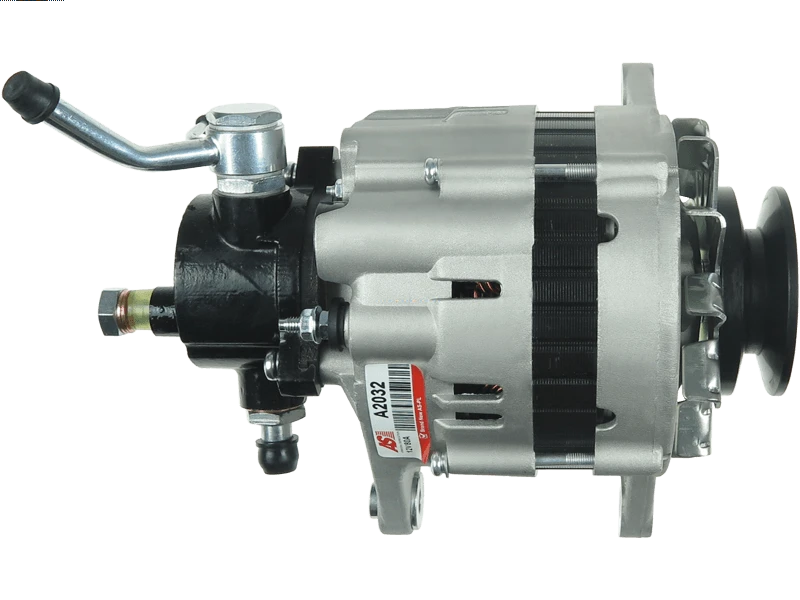

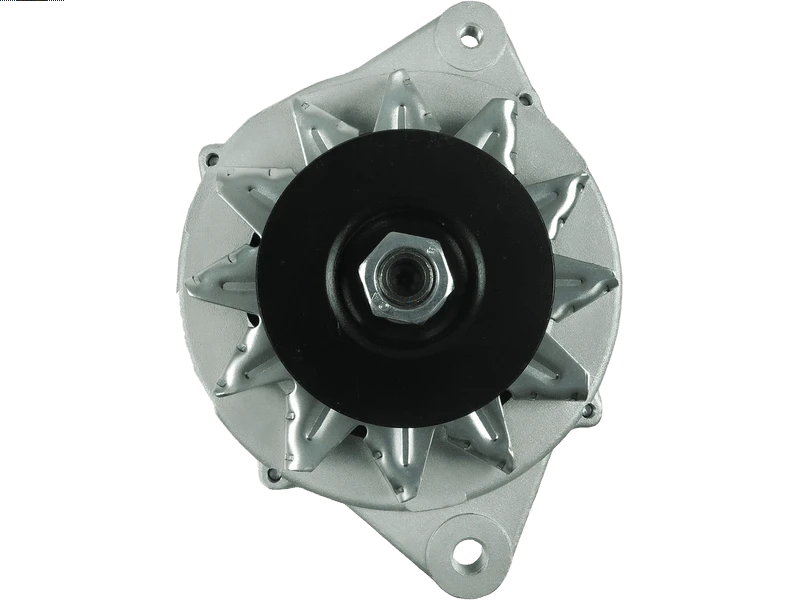

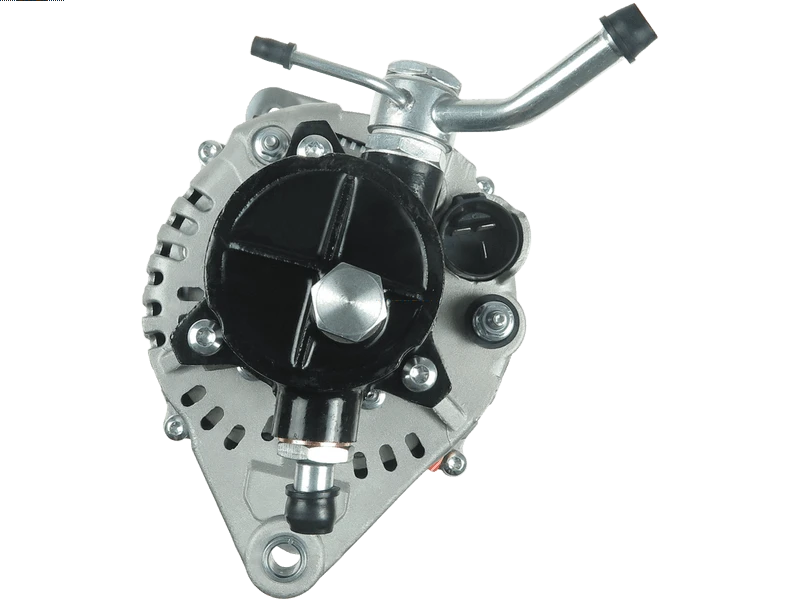

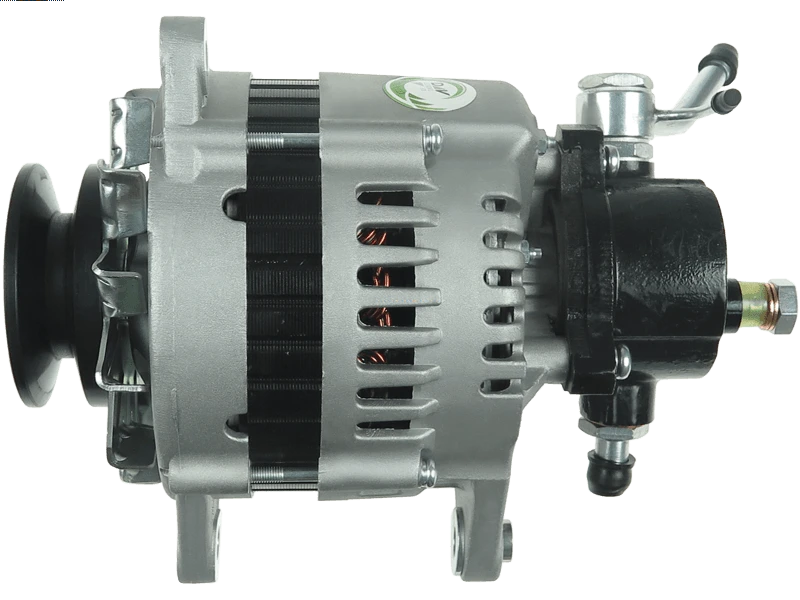

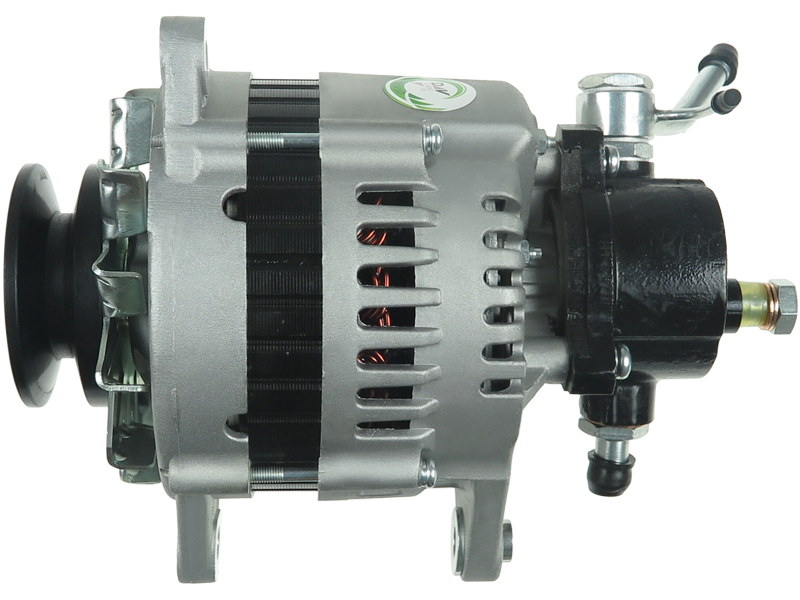

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Retail Price:
NZ$ 414.64 including GST
NZ$ 360.56 excluding GST
or four payments of $103.66
with
Learn More
each
A2032
2
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 267 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82.5 mm |
| OEM Product | No |
| Plug Code | PL_4500 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 16 mm |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 50.5 mm |
| Pulley Type | SOLID |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
