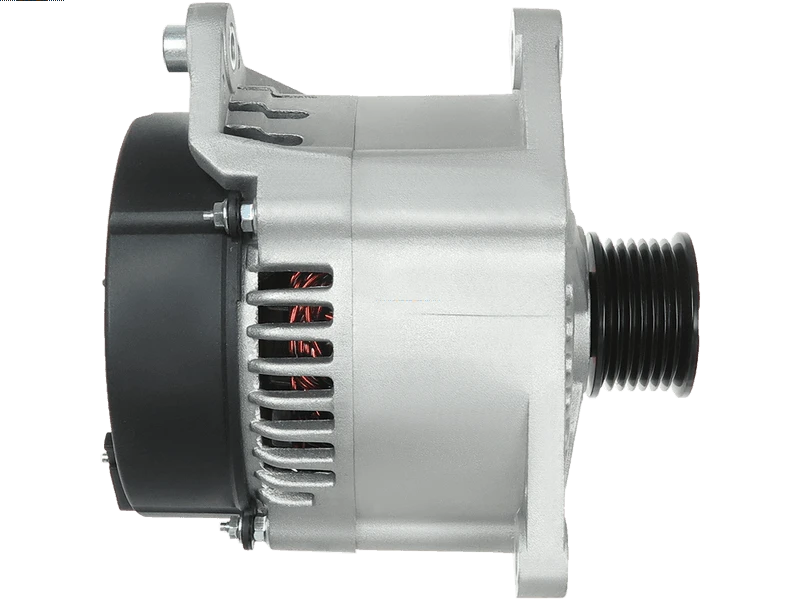

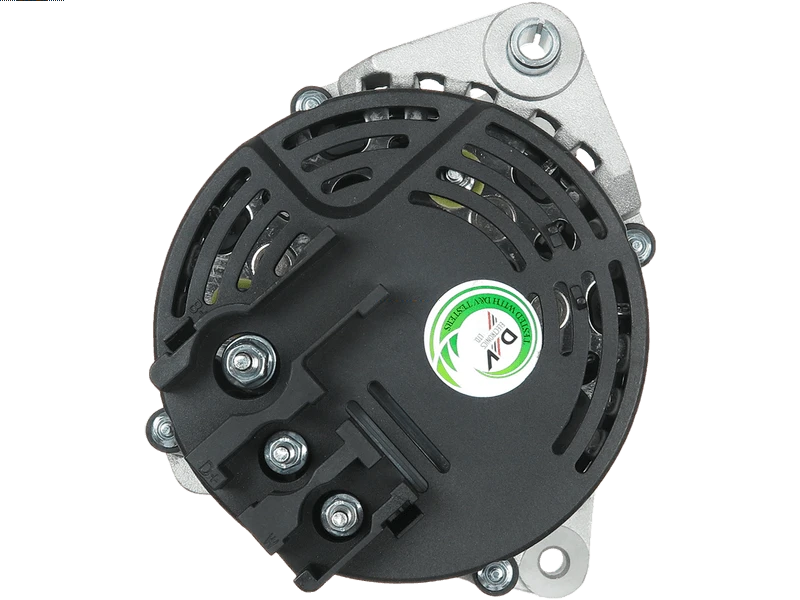

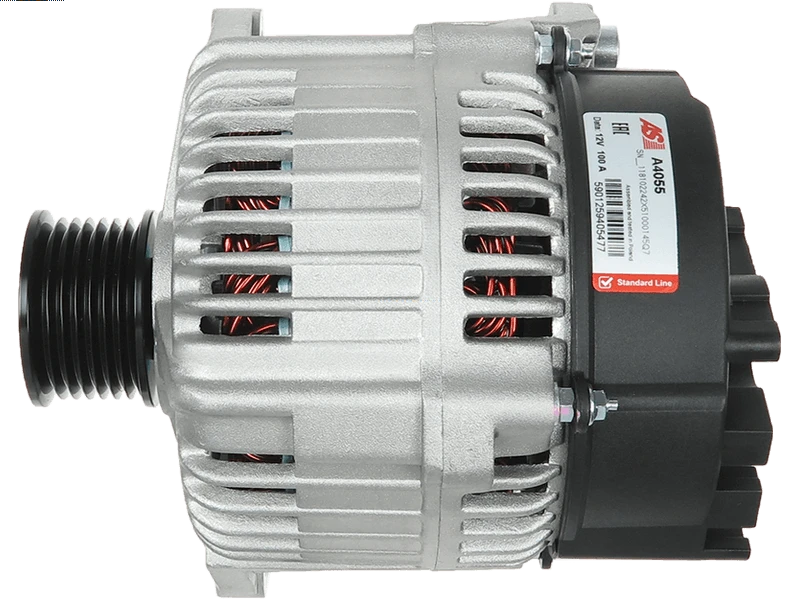

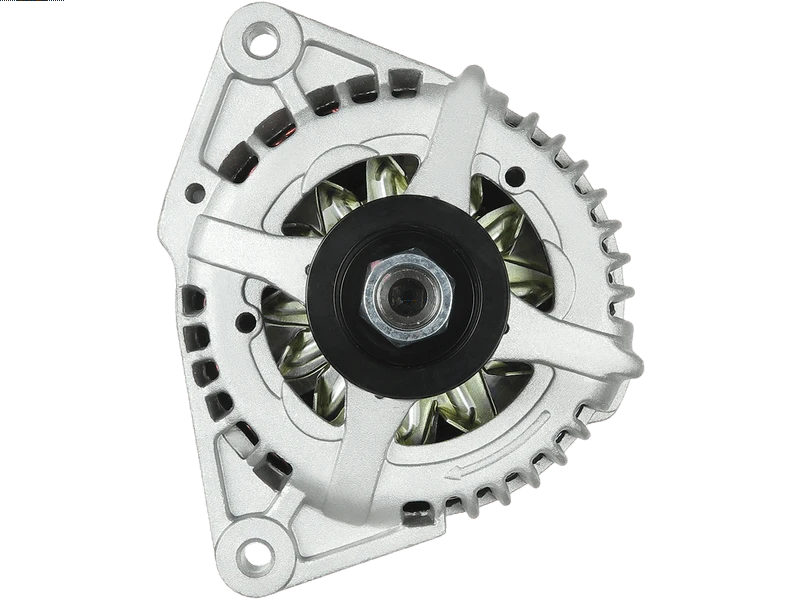

A4055 - Brand new AS-PL Alternator

Associated Numbers

58-007
A4055 ASPL List
LXA831 ASHDOWN INGRAM
AEA2207 AUTOELECTRO
AEA3284 AUTOELECTRO
0986044761 BOSCH
112021 CARGO
DRA3587 DELCO
DRA3679 DELCO
DRA3687 DELCO
DAN008 DENSO
EAA221114 EAA
EAA221242 EAA
283566 ELSTOCK
CA1191IR HC PARTS
CA1337IR HC PARTS
8EL012426851 HELLA
8EL737211001 HELLA
8EL737520001 HELLA
35000195 HERTH+BUSS
54022459 LUCAS List
54022498 LUCAS List
LRB00207 LUCAS
LRB00384 LUCAS
63321321 MAGNETI MARELLI List
63321358 MAGNETI MARELLI List
63340004 MAGNETI MARELLI List
63341321 MAGNETI MARELLI List
63341358 MAGNETI MARELLI List
AMR4248 ROVER
AMR5425 ROVER
AMR5425E ROVER
YLE10075 ROVER List
YLE10113 ROVER List
YLE10113E ROVER
SA322 SOVEREIGN
437825 VALEO List
ALT10057 WOODAUTO
ALT12025 WOODAUTO
655014 ANM008gq
0986044761
21810N
21810R
285506
437825
54022498
5622SP
595909100
63321358
63340004
63341358
9090304F
933587
ALT9015sa
AMR5425
CA1191IR
DRA3587
HCA1191IR
LRB00207
OAN11097
YLE10075
YLE10113
YLE1013
0986080820
285506
54022459
595523100
5990SP
63321321
63341321
9090118F
933679
A127IM
AAK5396
AMR4248
AMR4249
CA1337IR
CAL30159AS
CAL30159GS
DAN008
DRA3679
HCA1337IR
KTR1191046200
OAN11224
RAA14780
112021
11203205
1312401MM
21810
282203
595559100
72735551
AAK5396
IA1134
MG552
MAHLE 11203205, AAK5396, IA1134

Substitutes:
Magneti Marelli MAN674

References:
Lucas LRB384
Magneti Marelli 63341321, 63341358, MAN674, MAN831
MAHLE IA1134
Miscellaneous Vendor 8EL737211001, CA1191IR, CA1337IR
Rover 54022459, AMR5425, YLE10075, YLE10113
Delco DRA3587
Lucas LRB207
Magneti Marelli 063341321010, 54022459, 63320313, 63321358, 63340004, 63341321, 63341358
MAHLE MG552
Rover AMR4248

0986044761 112021 20110384 28-3566 301191RI 301191RID 301191RIM 301337RI 301337RID 301337RIM 35000195 401181RI 437825 54022459 54022498 63321321 63321358 63340004 63341321 63341358 8EL012426-851 8EL737211-001 8EL737520-001 A4055 AEA2207 AEA3284 ALE1337 ALT10057 ALT12025 AMR4248 AMR5425 AMR5425E CA1191IR CA1337IR DAN008 DRA3587 DRA3679 DRA3687 EAA-221114 EAA-221242 LRB00207 LRB00384 LXA831 SA322 STC233 YLE10075 YLE10113 YLE10113E

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	8.5 mm
Length (L.1)	190 mm
Mount Inside Length or Pad Mount C-C (C)	83 mm
OEM Product	No
On Sale Item	Yes
Plug Code	PL_9105
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	7 qty
Pulley Outside Diameter (O.D.1)	49 mm
Pulley to Mount Distance (A)	31 mm
Pulley Type	SOLID
Unit Type	MAGNETI MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAND ROVER	Discovery 2.5 TDi	[12L]	09.1989-12.1998
LAND ROVER	Discovery 2.5 TDi	[19L]	10.1995-
LAND ROVER	Discovery 2.5 TDi	[21L]	09.1989-12.1998
LAND ROVER	Range Rover 2.5 Diesel	[14L]	01.1996-04.1996

Alternatives >>>

A9158(LETRIKA) - 120 Amp option, No Pulley included

A4032 -  Has 3 extended bolts from the rear cover

A4033 - Has wiring connections in different location

Reference Information

LRB00384 63321321 ALT2500A 301191RIM ALE1337 SA322 8EL737520-001 8EL737211-001 ALTS077 YLE1013 20110384 YLE10075 DRA3587 CAL30159GS 35000195 STX100454 RTC5681N 210067 63321358 210149 595.909.100.200 595.909.100.201 AMR5425E LRB384 ALT321600 ALTS021 ALT2610 210837 STC233 63340004 A12MA0302A2 DRA3679 AEA2207 0986044761 AMR5425 8EL012426-851 437825 YLE10113E ALT10057 LRB00207 28-3566 ALT2500 AMR4248E 301337RI DRA3687 STX100596 595.909.100.460 ALT9015 595.909.100.461 401181RI AMR4248 CAL30159AS 54022498 20104951BN 54022459 DAN008 63341321 AEA3284 LXA831 301337RIM CA1337IR YLE10113 ALT12025 LRB207 301337RID A4055 CA1191IR CAL30160AS 112021 2030159.1 63341358 2030159.0 301191RID 301191RI 20104951OE 595.909.100.058
