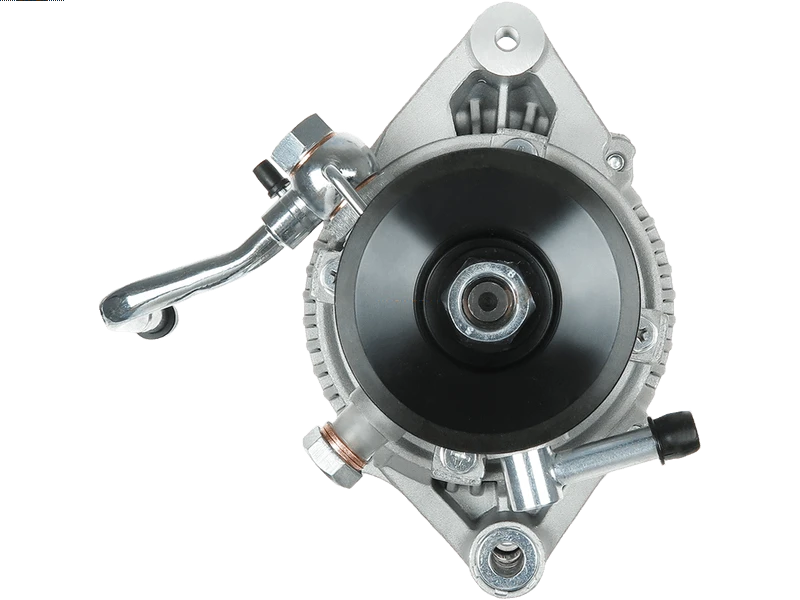

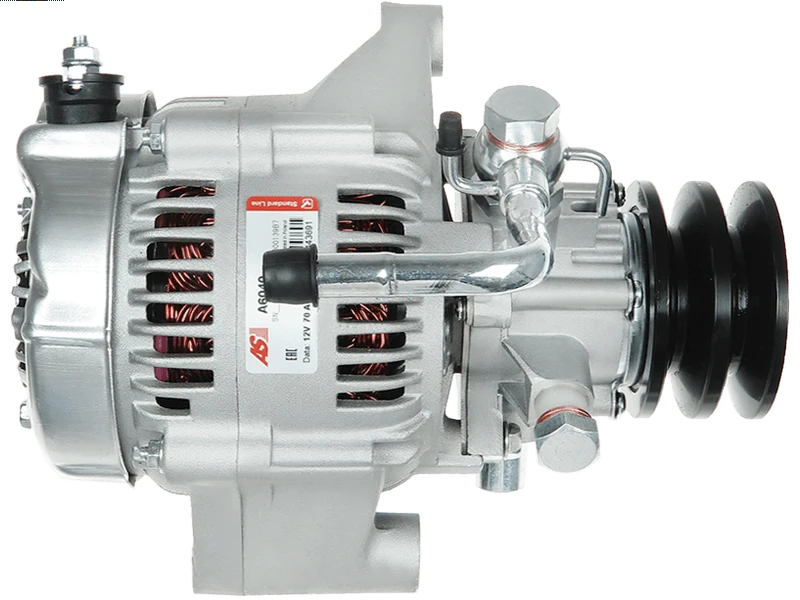

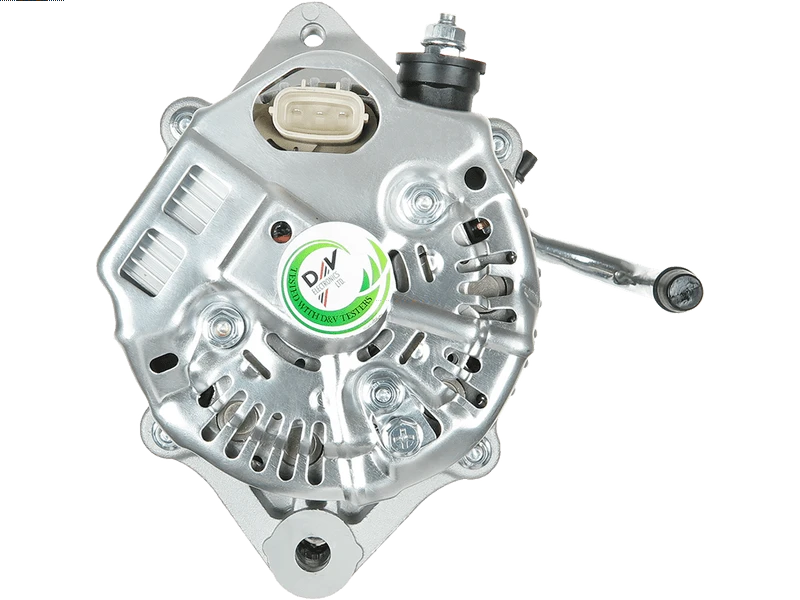

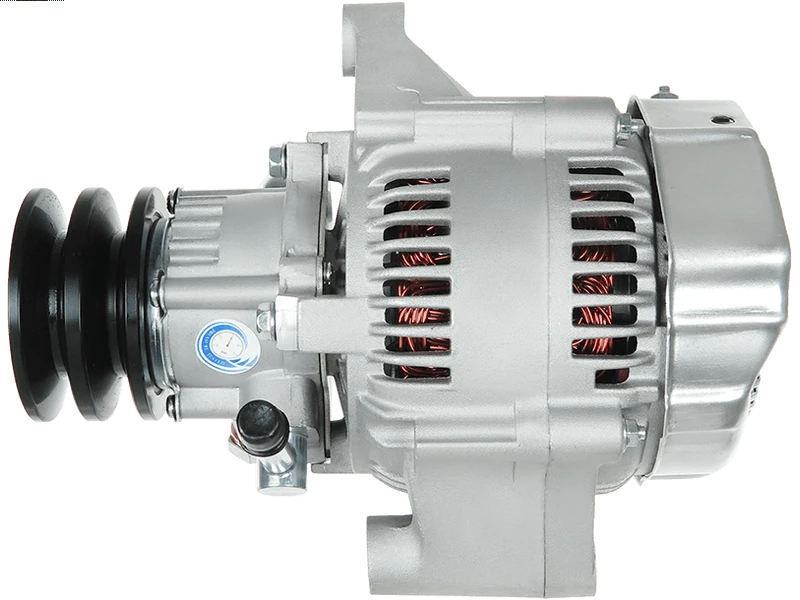

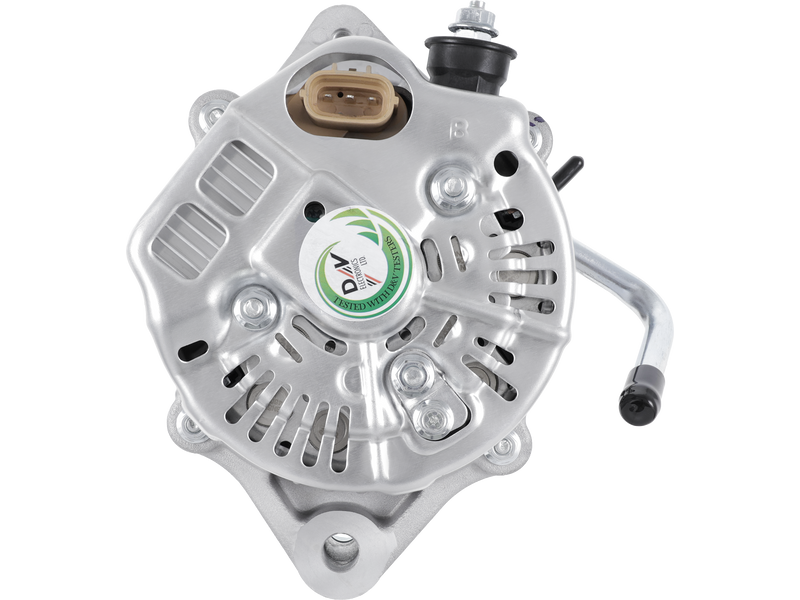

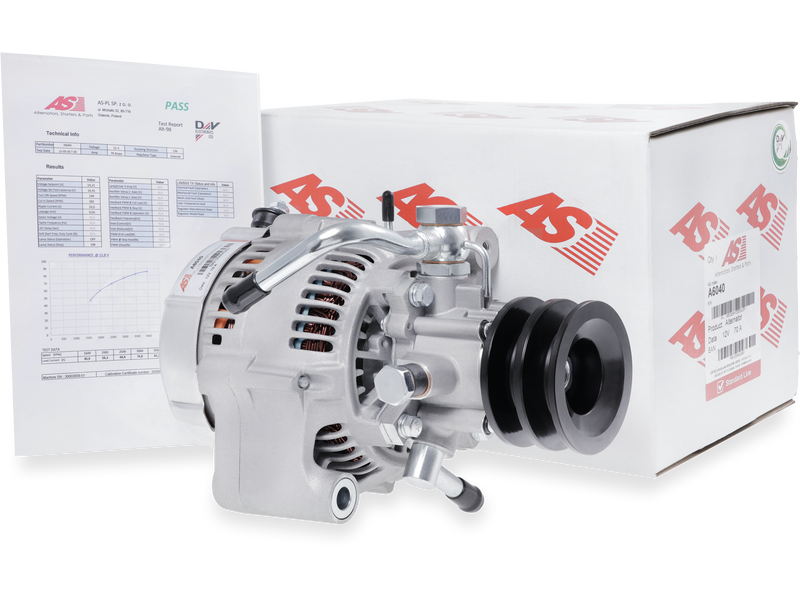

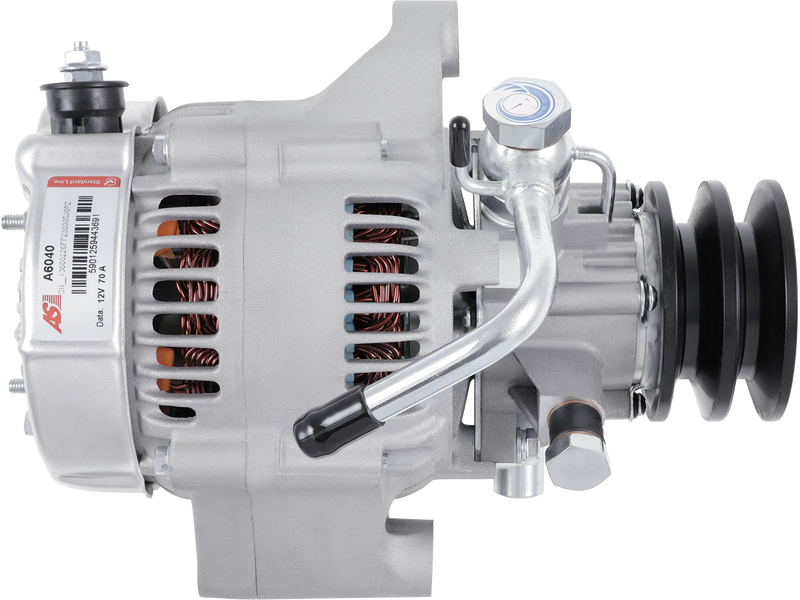

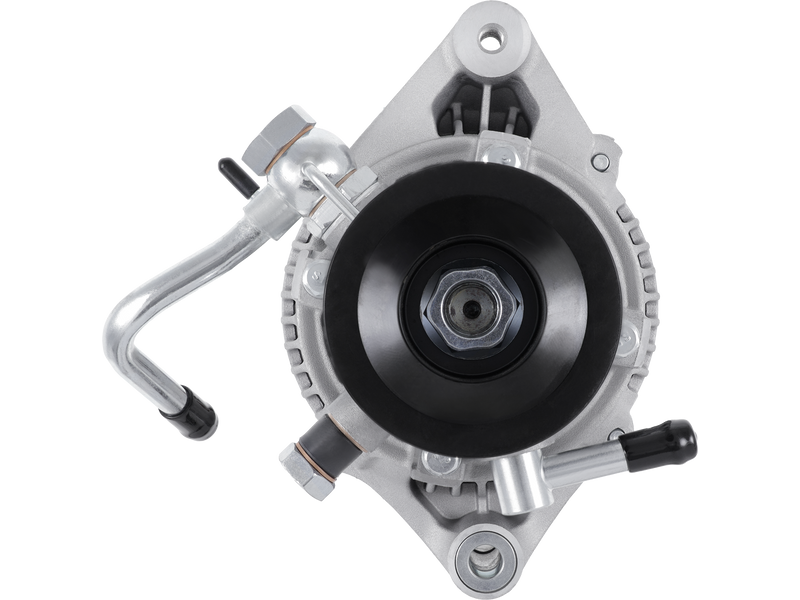

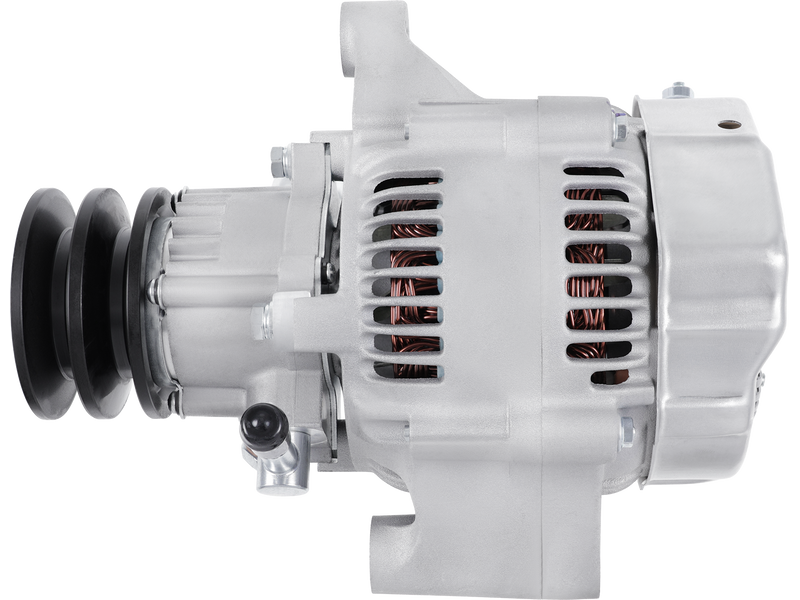

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 660.26 including GST
NZ$ 574.14 excluding GST
or four payments of $165.07
with
Learn More
each
A6524S
A6040
2
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
2706054340 27060-54340 100213-3020 1002133020 1002132450 2704054351 2704054480 1002132520 1002132521 2704054481 1002132570 100213-2570 27040-54490 2704054490 100213-1920 27040-54350 658404 6584042 6584043 6584044 65-8404 65-8404-1 65-8404-2 65-8404-4 A1280 14042 14-042 14042G ANJ009 ANJ009HO 195705070 14041 14-041 AEA3208 AUTOELECTRO 0986049510 BOSCH 111963 CARGO CAL40132AS CASCO 9416 CEVAM DRA3745 DELCO DRA3745N 1002131730 DENSO List 1002131770 1002132350 1002132351 1002132471 1002132580 1002132920 EAA221466 EAA 56950 EAI 282726 ELSTOCK 9090162 FRIESEN JA1367IR HC PARTS 8EL737558001 HELLA 11.1367 LAUBER 11.1367M LRA02710 LUCAS LRB00308 89213302 POWERMAX 9213302 20110308WP PRESTOLITE SA332 SOVEREIGN SB079 2704054280 TOYOTA 2704054300 2704054310 2704054440 2704054500 2704054580 2706054140 2706054290 23710N WAI / TRANSPO 0986046381 1002115250 1002131900 1002131910 1002132240 1002132250 195704070 2704054320 2704054340 2704054380 2706054150 2706054210 282629 437776 5479SP 8EL012428041 9090134F 933745 ATA529 HJA989IR JA989IR LRA1156 N5112237 OAN10497 6584041 dxa478 anj009 anj009ho 1002115200 1002115371 1002131920 100213244 100213247 1002132730 2704054290 2706054330 2706054360 6019SP 930907 9660218537 ALTH072 ATA597 F042A0H072 HJA1367IR J5112111 100213-1730 100213-1770 100213-2350 100213-2351 100213-2471 100213-2580 100213-2920 20132231BN 2040132 27040-54280 27040-54300 27040-54310 27040-54440 27040-54500 27040-54580 27060-54140 27060-54290 28-2726 401367RI 8EL737558-001 A6040 EAA-221466 27040-54340 ALTERNATOR 1 27040-54351 27040-54370 27040-54380 27040-54390 27040-54391 27040-54480 27040-64391 Wilson 90-29-5071 Denso 100213-2441 100213-2450 100213-2460 100213-2461 100213-2480 27040-54450 100213-2520 100213-2660 27040-54530 101211-2280 27060-87509-A 9761219-224 VG947 VG947R VG947V ALT305 27040-54290 100213-1030 27040-54170 55amps 100213-1040 27040-54180 100213-1050 27040-54190 100213-1150 100213-1240 27040-54240 100213-1250 27040-54250 100213-1260 27040-64150 100213-1261 100213-1740 100213-1910 100213-1911 100213-2240 100213-2250 100213-2280 100213-2281 100213-2400 27040-54410 100213-2440 Ashdown DXA478 RXA478 Baxters A-1261 09813910 100210-3470 27030-64130 100211-2280 27060-16090 100211-5120 100213-3030 030127 Da Silva 031478 063731367010 Magneti Marelli Bosch Exchange 0986AN0697 1002115210 1002115220 100211537 1002131740 1002131780 1002132352 1002132400 1002132470 1002132920SEL +line 1002135370 10442133 Alanko 111961 Cargo 119708 Farcom 12060768 EuroTec PSH 2040131 Sando 210267 Messmer 235155802 DRI 235166602 235166702 23710 Lester 23710R Toyota 2704054410 2704054450 2704054520 2706054160 2706054170 Elstock 285944 DAS 442133 442135 446416 Logistik 59213302 Artec Spidan PowerMax 8EL737531001 Hella Friesen EDR PSA A131410 Short code A157987 A161462 AS-PL A6040SR A6333 ADT31182 Blue Print Auto Electro AL01388 TMI AL02963 ALT30039 Wood Unipoint AND1052 Quasar ATK BXD1312N (USA) CAL40131 Casco CAL40132 CGB82726 Ainde DMS8297 DriveTec DS031478 HC-Parts IR6258 Protech Nipparts JA1359IR L82400 ATL L82730 LEA1242 Lucas LRA03332 LRA2710 QRA1249 QH RNL1002131730 RNL RNL1355JA Sovereign WOOALT30039Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 71 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 229 mm |
| OEM Product | No |

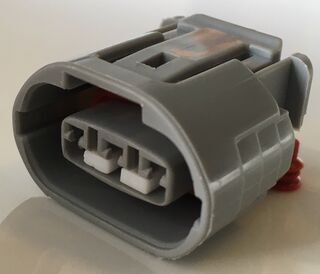

| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 11.5 mm |
| Pulley Outside Diameter (O.D.1) | 46.5 mm |
| Pulley Outside Diameter (O.D.2) | 74.5 mm |
| Pulley to Mount Distance (A) | 147 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| METROCAB | Taxi 2.4 TD | [2L-T] | 01.2001-05.2006 |
| TOYOTA | Hiace 2.4 D | [2L] | 07.1999-08.2006 |
| TOYOTA | Hiace 2.4 D | [2L] | 08.1995-08.2006 |
| TOYOTA | Hiace 2.4 TD | [2L-T] | 08.1995-08.2006 |
| TOYOTA | Hiace 2.4 TD 4WD | [2L-T] | 08.1995-08.2006 |
| TOYOTA | Hilux 2.4 D | [2L] | 01.1995-01.2002 |
| TOYOTA | Hilux 2.4 TD 4WD | [2L-T] | 08.1998-01.2002 |
Reference Information
8EL012428-041 J5112111 23710N 20132231BN RNL100213-1730 2040132 LRA02710 11.1367M 63731367010 ANM35965X 100213-2920 195.705.070.265 27040-54500 27040-54300 DRA3745N 27040-54580 2704054290 27060-54140 DRA3745 210267 2704054410 9416 9090162 27040-54380 AEA3208 8EL737558-001 100213-3020 MQA1367 STX101472 195.705.070.050 2706054170 195.705.070.059 28-2629 CGB-13745 2706054330 2706054210 195.705.070.058 9.43314E+11 27060-54410 27040-54410 PRAL781 27040-54450 27060-54330 401367RI 27040-54370 27060-54290 11.1367 2704054320 100213-2580 89213302 ALTL781 100213-1730 100213-1770 LRA1156 446416 2704054391 JA1367IR 27040-54520 ALT529 SB079 56950 27040-54440 27060-54360 27040-54280 A6040 ALT6343 2704054350 ALT5890 9207560005 2.70605E+11 111963 100213-2351 100213-2350 100213-2471 20110308WP 28-2726 SA332 LRA2710 CAL40132AS EAA-221466 27040-54310 2704054380 0986049510 5540437 002-T529 0986AN0697 27040-54391 2T529 2704054340 A12DE0331A2Video/Publications
A6040Related Items
