Associated Numbers
0001123012 0001123013 02Z911023F 02Z911023FX 063521230120 063721293010 0986020250 101293 101293B 101293V 113842 115508 20401872 220449 25-3219 300.551.103 3039 32673N 32673R 42020250 458217 6010278 88212636 8EA011610-221 8EA738156-001 91-15-7236 944280202500 AEU1293 BOS0001123012 CS1293 CST10278 CST10278AS CST10278ES CST10278GS CST10278OS CST10278RS DRT0250 DT1360 EAA-121009 G201293B-R GS123012-A LRS01673 MQS1293 NEU1293 RAS41361 S-6271 S0090 S1029B S1030B SG0420 STB1293 STR54058 STV1293
S0090 ASPLList
AEU1293 AUTOELECTRO
NEU1293 AUTOELECTRO
0001123012 BOSCHList
0001123013 BOSCHList
0986020250 BOSCH
113842 CARGO
115508 CARGO
CST10278 CASCO
3039 CEVAM
DRT0250 DELCO
DT1360 DELCO
RAS41361 DELCO
S6271 DIXIE
EAA121009 EAA
253219 ELSTOCK
220449 ERA
SG0420 GHIBAUDI
G201293BR GPARTS
GS123012A GPARTS
CS1293 HC PARTS
8EA011610221 HELLA
8EA738156001 HELLA
42020250 HERTH+BUSS
STB1293 KRAUF
STV1293 KRAUF
LRS01673 LUCAS
063521230120 MAGNETI MARELLI
063721293010 MAGNETI MARELLI
944280202500 MAGNETI MARELLI
MQS1293 MAGNETI MARELLI
88212636 POWERMAX
S1029B PRESTOLITE
S1030B PRESTOLITE
300.551.103 PSH
20401872 REAL
6010278 SANDO
458217 VALEOList
02Z911023F VW
02Z911023FX VW
32673N WAI / TRANSPO
32673R WAI / TRANSPO
91157236 WILSON
BOS0001123012 WOODAUTO
STR54058 WOODAUTO
0986020250 BOSCH
CST15185 CASCO
DRS1061 DELCO
DS2171 DELCO
12001 EAI
254442 ELSTOCK
220449 ERA
STB1293 KRAUF
STV1293 KRAUF
LRS02769 LUCAS
LRS2769 LUCAS
944280202500 MAGNETI MARELLI
MRS20250 MAGNETI MARELLI
88212636 POWERMAX
S1030B PRESTOLITE
300.551.103 PSH
6015185 SANDO
438175 VALEOList
D7GS8 VALEOList
TS18E1 VALEOList
02Z911023F VW
02Z911023FX VW
02Z911023H VW
02Z911023HX VW
02Z911024J VW
02Z911024JX VW
2Z911023F VW
2Z911023FX VW
2Z911023H VW
2Z911023HX VW
2Z911024J VW
2Z911024JX VW
32674N WAI / TRANSPO
VAL438175 WOODAUTO
0001123012 Bosch
0001123013 Bosch
02Z911023F VW
02Z911023FX VW
02Z911023H VW
02Z911023HX VW
02Z911024J VW
02Z911024JX VW
0986020250 Bosch ruil
11020250 EuroTec
113842 Cargo
12001 EAI
120441 PIC
12130145 AES
199077 Valeo
231245 Cargo
253219 Elstock
254442 Elstock
300551103 PSH
3039 CEVAM
32673 Lester
32673N WAI
32673R WAI
32674 Lester
32674N WAI
32674NOE WAI
438175 Valeo
458217 Valeo
4768SP Spidan
726087 Valeo
8020250F Friesen
911061 EDR
915109A Magneton
920250 PIC
A20250 ATL
CS1293 HC
D7GS8 Valeo
DRT0250 Remy
DSN3007 Denso
F042200145 Bosch
F042202509 Bosch
F042S02166 Bosch
HCS1293 HC
LRS01673 Lucas
LRS02769 Lucas
OSM11209 Optimum
STM946 Rolling Components
STR0023sa Electrolog
STR1329sa Electrolog
STR2242 Unipoint
STRH128 Unipoint
TS18E1 Valeo
Bosch 0001123013
Substitutes:
Remy Light Duty 16111
Valeo 438175
Wilson 91157236
References:
Bosch 0001123013
Volkswagen 02Z911023F
Valeo D7GS8, TS18E1
Substitutes:
Valeo TS18E1
References:
Bosch 0001123012, 0001123013, 0986020250
Delco DRT0250
Lester 32674
Paris Rhone D7GS8
Valeo 191335, 193170, 458217, D7GS8, TS18E1
Volkswagen 02Z911023FX, 02Z911023H, 02Z911023HX, 02Z911023F
Valeo 438175
References:
Lucas LRS02769
PIC Picture ID 108496
Valeo 438175, 458217, D7GS8
Volkswagen 02Z911024J
snb3012 706211 bxs0152 438175

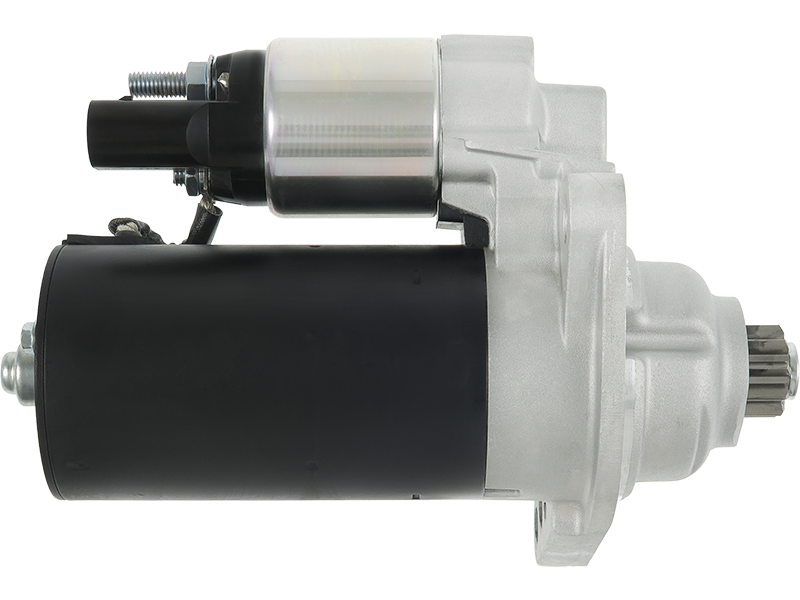

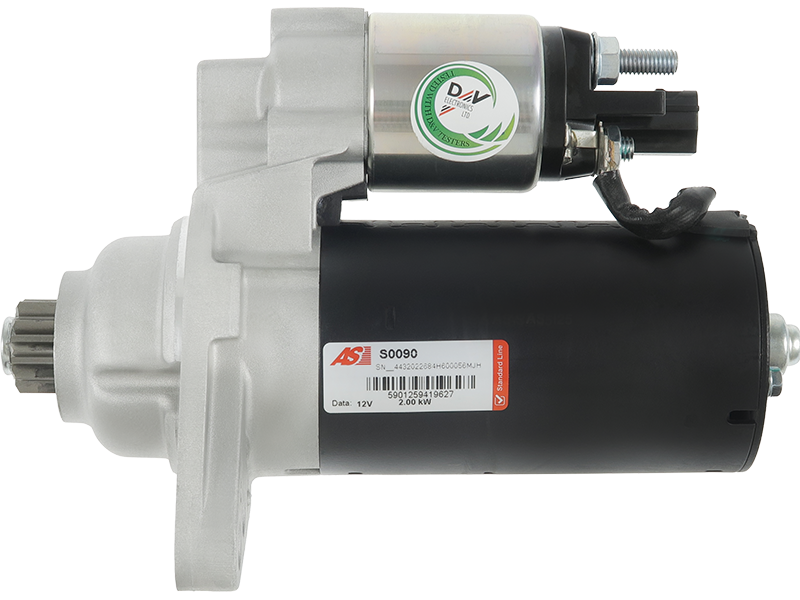

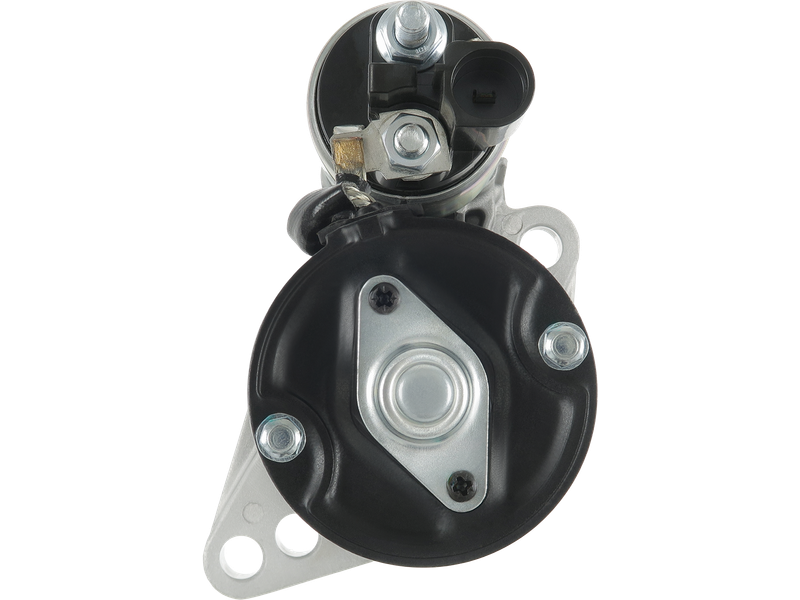

Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 233 mm |
| Mount Hole Center - Center (O.1) | 18 mm |
| Mount Hole Center - Center (O.2) | 112 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10, 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 52 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 1.9 TDi | [BKC] | 03.2003- |
| AUDI | A3 1.9 TDi Sportback | [BKC] | 09.2004- |
| AUDI | A3 2.0 TDi 16V Quattro | [BKD] | 08.2004- |
| AUDI | A3 2.0 TDi Quattro | [AZV] | 05.2003- |
| AUDI | A3 2.0 TDi Sportback | [AZV] | 09.2004- |
| AUDI | TT 1.8 Turbo | [BVP] | 09.2005- |
| AUDI | TT 1.8 Turbo | [BVR] | 09.2005- |
| AUDI | TT 1.8 Turbo Quattro | [BVR] | 09.2005- |
| SEAT | Altea 1.9 TDi | [BJB] | 04.2004-09.2005 |
| SEAT | Altea 1.9 TDi | [BKC] | 04.2004-05.2006 |
| SEAT | Altea 1.9 TDi | [BLS] | 04.2004-10.2005 |
| SEAT | Altea 1.9 TDi | [BXE] | 04.2004-02.2006 |
| SEAT | Altea XL 1.9 TDi | [BLS] | 10.2006- |
| SEAT | Altea XL 1.9 TDi | [BXE] | 10.2006- |
| SEAT | Cordoba 1.4 TDi | [AMF] | 12.2004- |
| SEAT | Cordoba 1.4 TDi | [BMS] | 06.2005- |
| SEAT | Cordoba 1.4 TDi | [BNV] | 06.2005- |
| SEAT | Cordoba 1.9 TDi | [ATD] | 12.2004- |
| SEAT | Ibiza 1.4 TDi | [AMF] | 11.2004- |
| SEAT | Ibiza 1.4 TDi | [BMS] | 06.2005- |
| SEAT | Ibiza 1.4 TDi | [BNV] | 06.2005- |
| SEAT | Ibiza 1.9 TDi | [ATD] | 12.2004- |
| SEAT | Leon 1.9 TDi | [BKC] | 09.2005- |
| SEAT | Leon 1.9 TDi | [BLS] | 09.2005- |
| SEAT | Toledo 1.9 TDi | [BJB] | 10.2004- |
| SEAT | Toledo 1.9 TDi | [BKC] | 10.2004- |
| SKODA | Fabia 1.4 TDi | [AMF] | 11.2004- |
| SKODA | Fabia 1.4 TDi | [BMS] | 03.2007- |
| SKODA | Fabia 1.4 TDi | [BNV] | 10.2005- |
| SKODA | Fabia 1.9 TDi | [ATD] | 11.2004-04.2007 |
| SKODA | Fabia 1.9 TDi | [BLS] | 03.2007- |
| SKODA | Fabia 1.9 TDi | [BSW] | 10.2007- |
| SKODA | Octavia 1.9 TDi | [BKC] | 06.2004- |
| SKODA | Octavia 1.9 TDi 4x4 | [BKC] | 11.2004- |
| SKODA | Octavia 2.0 TDi 16V | [BKD] | 08.2004- |
| SKODA | Praktik 1.4 TDi | [BMS] | 01.2007-12.2010 |
| SKODA | Praktik 1.4 TDi | [BNV] | 01.2007-12.2010 |
| SKODA | Roomster 1.4 TDi | [BMS] | 09.2006- |
| SKODA | Roomster 1.9 TDi | [BLS] | 09.2006- |
| VW | Caddy 1.9 TDi | [BJB] | 04.2004- |
| VW | Caddy 1.9 TDi | [BSU] | 09.2005- |
| VW | Golf Plus 1.9 TDi | [BLS] | 01.2005- |
| VW | Golf Plus 1.9 TDi | [BRU] | 05.2005- |
| VW | Golf Plus 1.9 TDi | [BXF] | 05.2005- |
| VW | Golf V 1.9 TDi | [BKC] | 10.2003- |
| VW | Golf V 1.9 TDi | [BLS] | 08.2005- |
| VW | Golf V 1.9 TDi | [BRU] | 05.2004- |
| VW | Golf V 1.9 TDi | [BXE] | 10.2003- |
| VW | Golf V 1.9 TDi | [BXF] | 05.2004- |
| VW | Golf V 1.9 TDi 4-Motion | [BKC] | 08.2004- |
| VW | Golf V 1.9 TDi 4-Motion | [BLS] | 08.2004- |
| VW | Golf V 1.9 TDi 4-Motion | [BXE] | 08.2004- |
| VW | Jetta 1.9 TDi | [BKC] | 08.2005- |
| VW | Jetta 1.9 TDi | [BLS] | 08.2005- |
| VW | Multivan 1.9 TDi | [AXB] | 04.2003- |
| VW | Multivan 1.9 TDi | [BRS] | 06.2006- |
| VW | Passat 1.9 TDi | [BKC] | 03.2005- |
| VW | Passat 1.9 TDi | [BLS] | 08.2005- |
| VW | Polo 1.4 TDi | [BAY] | 11.2004-03.2005 |
| VW | Polo 1.4 TDi | [BMS] | 04.2005- |
| VW | Polo 1.4 TDi | [BNM] | 04.2005- |
| VW | Polo 1.4 TDi | [BNV] | 04.2005- |
| VW | Polo 1.9 TDi | [ATD] | 04.2005- |
| VW | Polo 1.9 TDi | [AXR] | 04.2005- |
| VW | Touran 1.9 TDi | [AVQ] | 02.2003- |
| VW | Touran 1.9 TDi | [BKC] | 08.2003-02.2006 |
| VW | Touran 1.9 TDi | [BRU] | 06.2005-02.2006 |
| VW | Transporter 1.9 TDi | [AXB] | 04.2003- |
| VW | Transporter 1.9 TDi | [AXC] | 04.2003- |
| VW | Transporter 1.9 TDi | [BR] | 01.2006- |
| VW | Transporter 1.9 TDi | [BRS] | 06.2006- |
Reference Information
02Z911023F 8EA011610-221 S1029B CST10278GS CST10278 STA0063R 331418 2Z911023FX STM946 CST10278OS MQS1293 STX201076R 02Z911023M ANM22470X RNL2025 02Z911023H STX200340 3039 CS1293 STX201076 2Z911023F 2Z911023H 63521230120 300.551.103.280 2070-B 300.551.103.000 STM1310 STR54058 115508 LRS1673 113842 RAS41361 S12BH0015A2 DT1360 101293B 9.4428E+11 63721293010 0986020250 STRL134 STX200340R 02Z911023HX SG0420 101293V 8EA738156-001 32673N 300.551.103.210 300.551.103.010 32673R MAV171850 CST10278ES S0090 101293 300.551.103.212 2Z911023HX 300.551.103.018 STB1293 91-15-7236 NEU1293 AEU1293 G201293B-R 6010278 STX200014R GS123012-A 88212636 STV1293 BOS0001123012 220449 300.551.103.500 458217 20401872 S-6271 SX DRT0250 5015830 42020250 25-3219 300.551.103.505 STR1329 CST10278RS MAV122780 02Z911024J S12BH0015 LRS01673 EAA-121009 02Z911023FX 0001123013 S1030B 2Z911024J 0001123012 CGB-20250 STX200014 CST10278ASVideo/Publications
