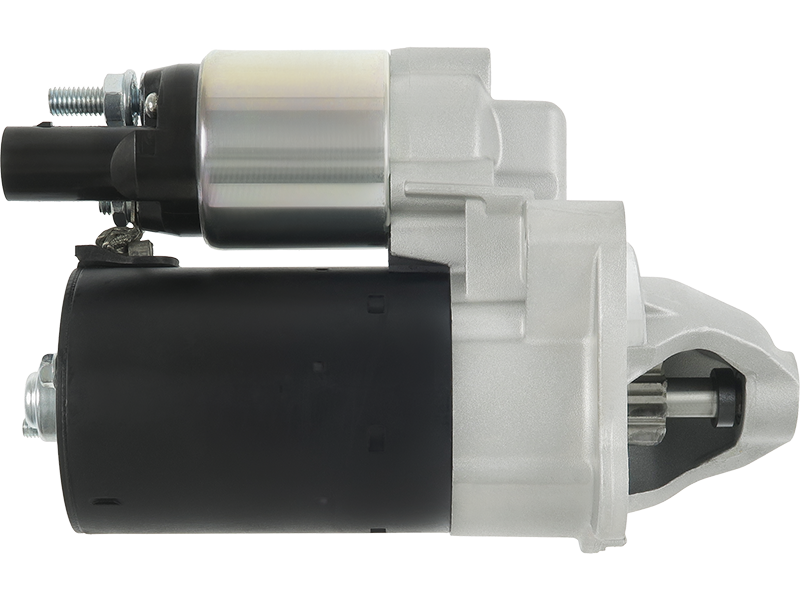

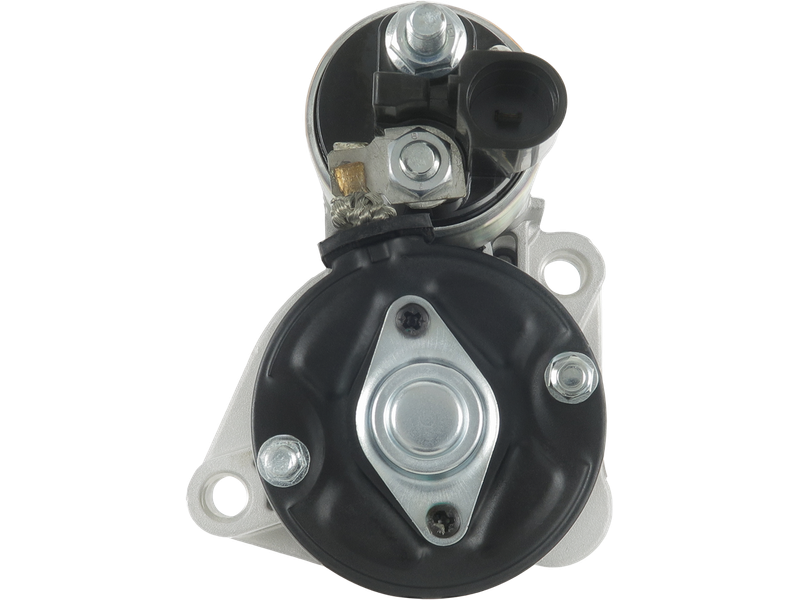

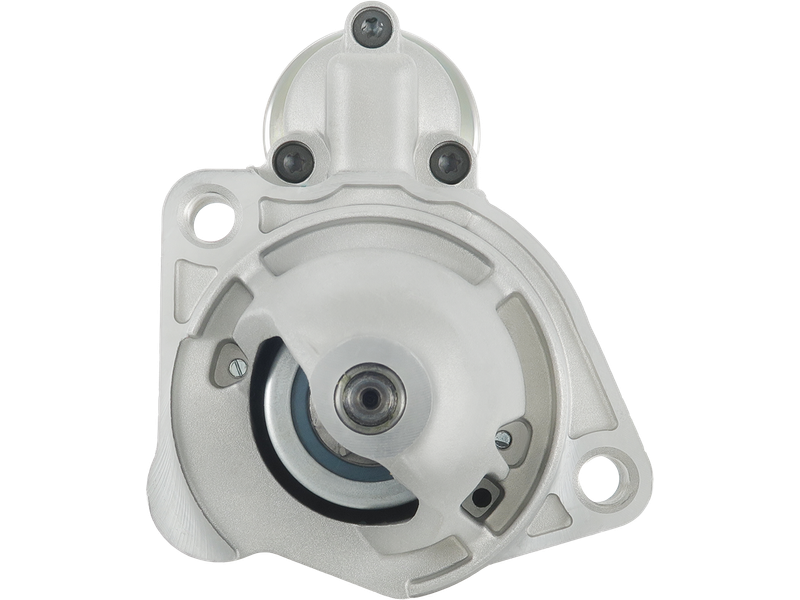

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 224.91 including GST
NZ$ 195.57 excluding GST
or four payments of $56.23
with
Learn More
each
S0572
2
Associated Numbers
0001107446 0001107447 06B911023B 06B911023BX 0986024070 115961 200.532.092 20401605OE 25-4072 254606 254606B 3177 6010506 63521070 AEY2400 BOS0001107446 CST10506 CST10506AS CST10506ES CST10506GS CST10506OS CST10506RS DRS0371 LRS02400 SS534 UD12949S ASPL AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO 254072 ELSTOCK LUCAS MAGNETI MARELLI PSH REAL SANDO SOVEREIGN VW WOODAUTO Bosch ruil 11024070 EuroTec 12044630 1205108 PIC 200532092 Elstock 30371N WAI 910371 EDR A79040 ATL Remy L44630 Lucas show Volkswagen Cargo 1986S00676 63521070010 Magneti Marelli Wood Auto LRS2400 STR50683 WOOSTR50683Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 205 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 2.0 TFSi | [BPJ] | 01.2005- |
| AUDI | A6 2.0 TFSi | [BYK] | 01.2005- |
Reference Information
0001107446 CST10506ES 6010506 CST10506GS AEY2400 254606B 0986024070 CST10506AS SS534 115961 BOS0001107446 S0572 25-4072 06B911023BX STRF641 254606 CST10506RS DRS0371 UD12949S 06B911023B 3177 332116 PRSF641 CST10506 200.532.092 LRS02400 63521070 20401605OE CST10506OS STR1481 ANM12591X 0001107447 LRS2400Video/Publications
