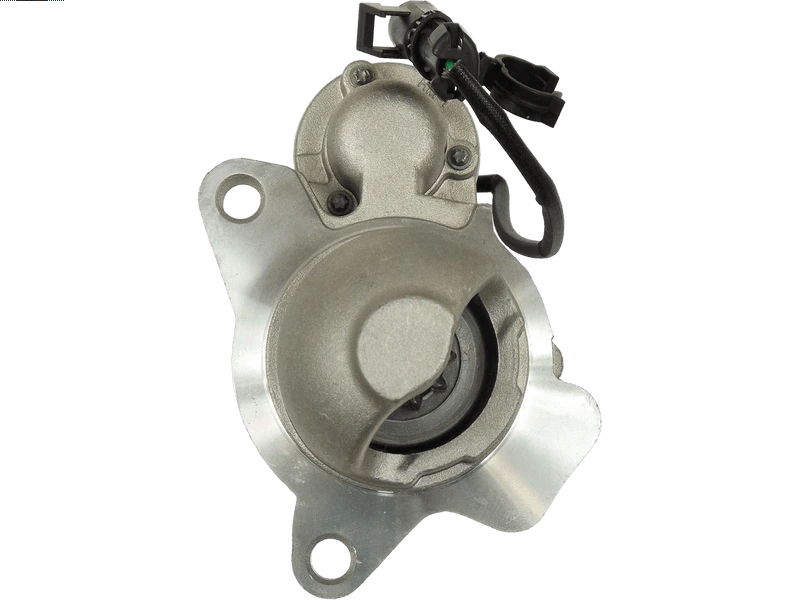

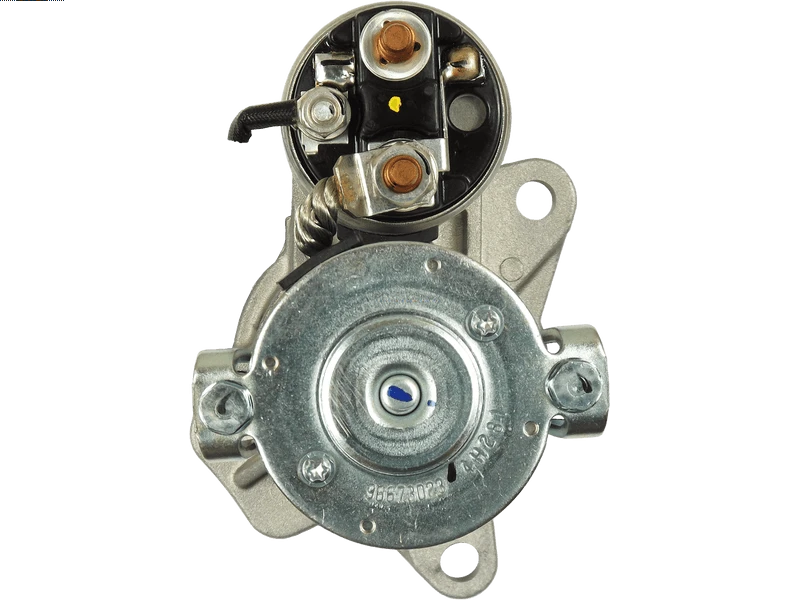

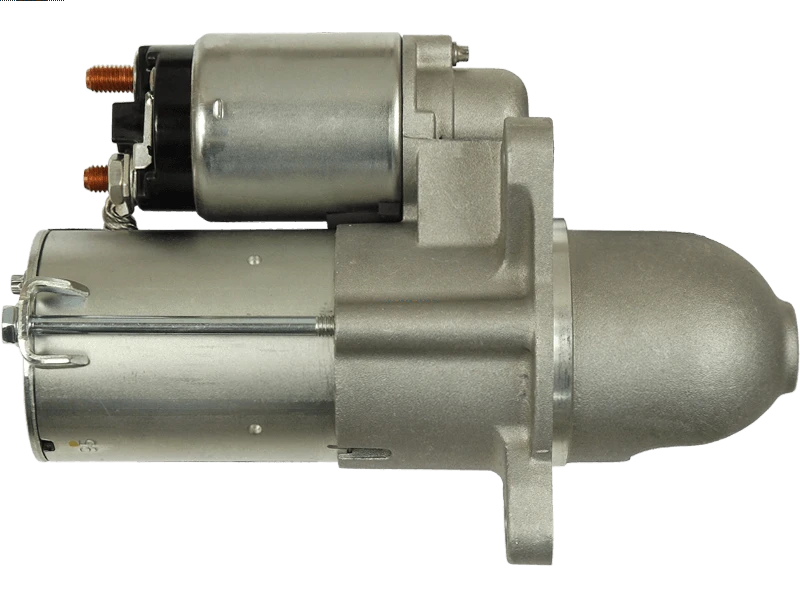

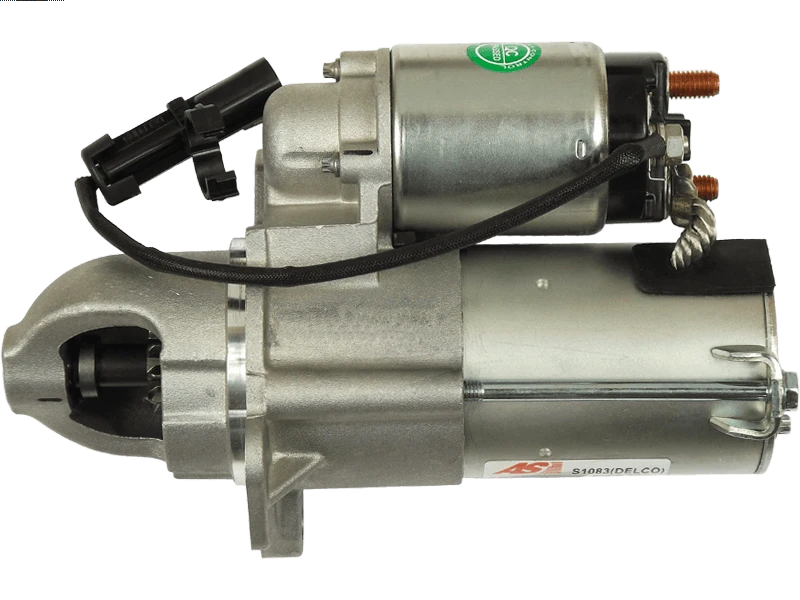

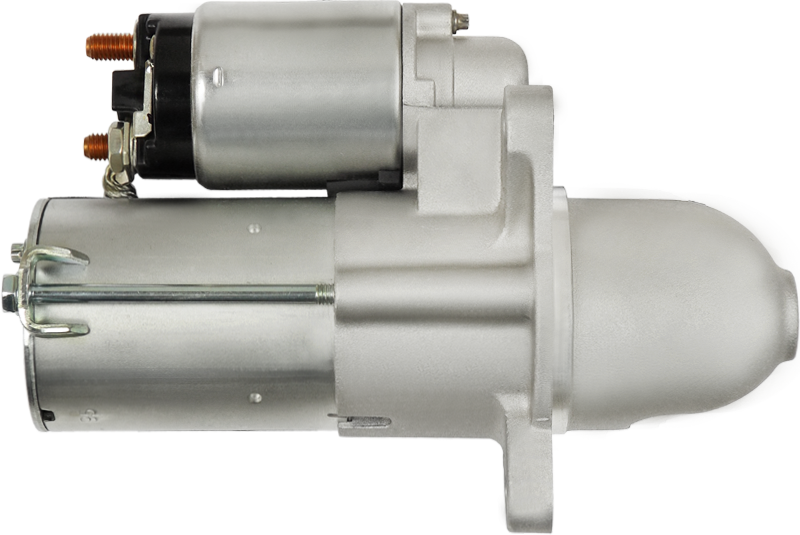

Brand new OEM DELCO Starter motor
PREMIUM LINE
Delco
DELCO
Price:
NZ$ 449.47 including GST
NZ$ 390.84 excluding GST
or four payments of $112.37
with
Learn More
each
S1083(DELCO)
1
Associated Numbers
230.506.102 255546D 8000222 96627036 96673023 DRS0903 PXPSC-013 S1085R UD02077S
70-6286 snd046 snd046gq DXS592
11090329 EuroTec
230506102 PSH
255153 Elstock
328085102 DRI
8000222 Remy
96627036 Opel
96673023 GM
DRS0903 Remy
LRS03991 Lucas
57-105 57105
UD02077S ASPL
8000222 DELCO
96627036 DELCO
96673023 DELCO
DRS0903 DELCO
PXPSC013 PARTS MALL
S1085R PRESTOLITE
230.506.102 PSH
706286
11090329 EuroTec
230506102 PSH
255153 Elstock
8000222 Remy
96627036 Opel
96673023 GM
DRS0903 Remy
LRS03991 Lucas
DXS592 SND046gq
Specifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 98 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 29 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Captiva 3.2 4WD | [LU1] | 06.2006- |
| OPEL | Antara 3.2 V6 | [Z32SEE] | 07.2006-12.2011 |
Reference Information
STR2116 96673023 4805519 CST46115GS 96627036 TZ 230.506.102.390 6046115.1 1202516 S1085R DRS0903 255546D 95520349 LRS03991 KC PXPSC-013 8000222 230.506.102.030 LRS3991 DS2013 11090329 20460511OE UD02077S 25-5153Video/Publications
