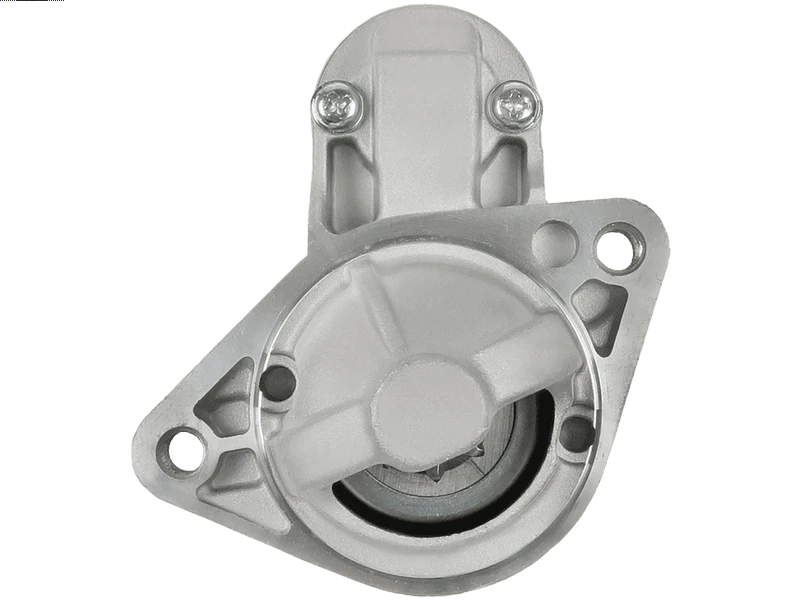

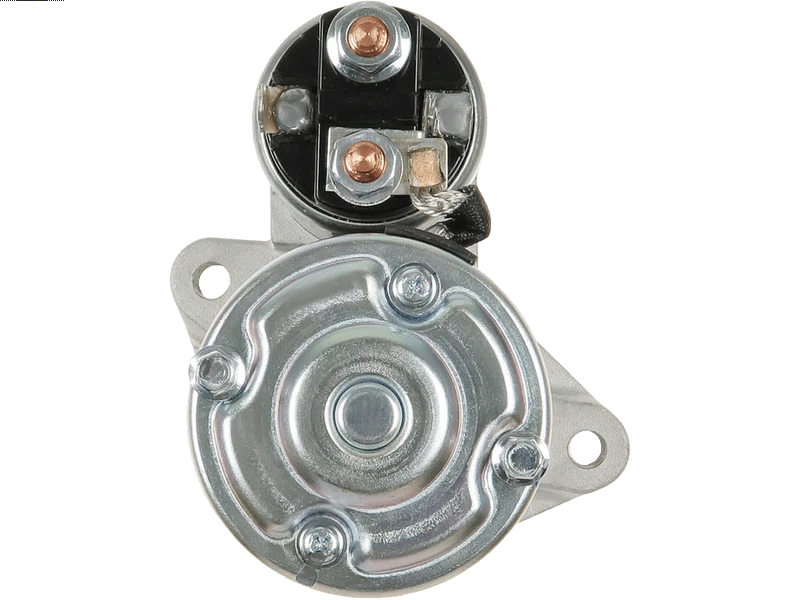

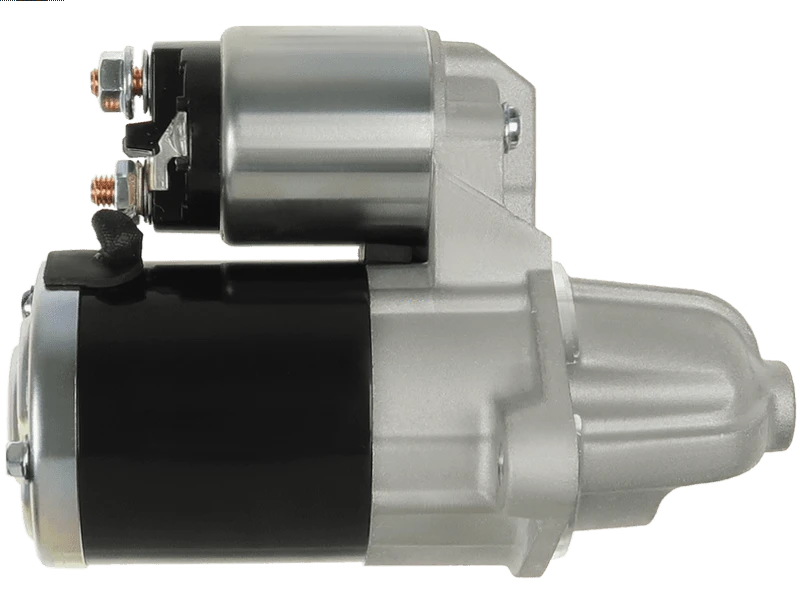

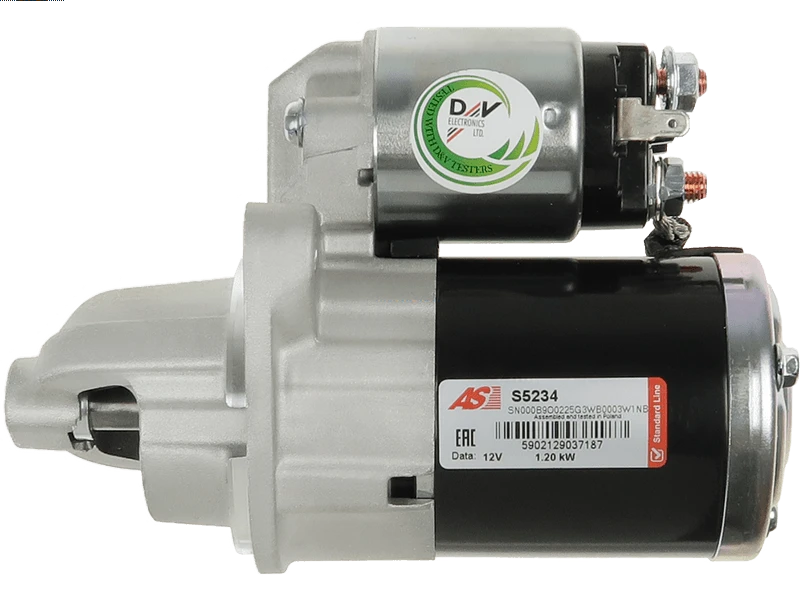

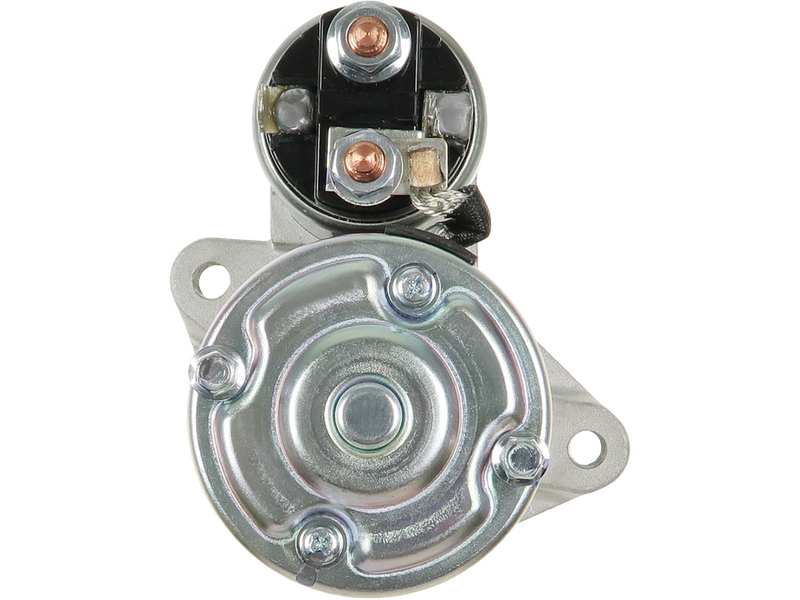

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 275.11 including GST
NZ$ 239.23 excluding GST
or four payments of $68.78
with
Learn More
each
S5234
3
Associated Numbers
0986023720 115349 12108 180.507.082 201310 201310M 201319 20432702 228000-8930 25-3146 31100-63J00 31100-63J10 31100-75F60 31100-80G00 31100-80G1 31100-80G10 31100-80G20 31100-86G00 31100-86G00E 32620N 33216R 428000-3600 6035180 6040207 8EA738258-121 9764 AET1310 CST35180 CST35180AS CST35180ES CST35180GS CST35180OS CST35180RS CST40207 CST40207AS CST40207ES CST40207GS CST40207OS CST40207RS DRS0873 J5218019 JS1319 LRS01621 M000T36071 M000T36071ZE M000T86581 M002T46781ZE M002T46782ZE M002T47681 M00T86582 M0T36071 M0T36071ZE M0T86581 M1T86681 M2T46781 M2T46781ZE M2T46782ZE M2T47681 MITM0T36071 S5234 SS213 SS523 STR71116 UD11987S DXS4025 16-421 snj279 70-8135 UD20375S ASPL S80022 DIXIE STM3005 KRAUF M000T86685 MITSUBISHI M000T86685ZC M000T90685 M000T90685ZC M0T86685 MITSUBISHIList M0T86685ZC M0T90685 M0T90685ZC 233009E011 NISSAN 233009E012 17828N WAI / TRANSPO 17828R 91273362 WILSON Arrowhead SMT0217 Bosch SR2296X Lester 17828 Mitsubishi Nissan PIC Picture ID 103382A Wilson J N 41048107 References: J& IAT S33216 33216 Lucas (Europe) LRS2216 103-5236 Suzuki 708135 dxs4025 SNJ279 HC CARGO Parts Industry Romaine Electric 33216N Standard Starter Drive 436850 Voltux V1-33216 ruil 1035236 105440 FARC 106585 11040713 EuroTec Cargo 180523082 PSH 2280008931 Denso 2280008932 2280008933 253387 Elstock 31100080G1 3110063J00 show 3110063J10 3110075F60 3110080G0 3110080G00 3110080G10 3110081A30 3110086G00 32620 NRF 446518 Valeo 458700 Sando 8EA738154001 Hella 8EA738258121 A92550 ATL AZS262 ATK Remy LRS02216 LRS1621 N5218027 Nipparts RNLM0T86581 RNL SP4767 Spidan SP4790 STR23387 Stabeco 040178 Da Silva 0986023230 Exchange 10439780 Alanko 180507082 253146 254227 3110080G20 439780 4767SP 4790SP 6035180AS 8080243 Friesen 88214365 PowerMax 910101 EDR CEVAM Auto Electro AS1786 Charge AS1786AC ASM1631 Apec ASM1636 AZS261 Casco DRS0101 DS040178 IR8262 Protech KTR361014164 KTR M000T36071AM M000T36073 M000T36073AM M001T86681 M002T46781 M0T36071AM M0T36071SEL +line M0T36073 M0T36073AM Wood NSM1631 Napa (UK) NSM1636 RNLM0T36071 S130996 Short code S145732 S148434 ST01222 TMI ST01730 STR5194sa Electrolog STR6179sa STR7046 Unipoint TNS009 TWA WOOSTR71116Specifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Sedici 1.6 | [M16A] | 06.2006-10.2014 |
| FIAT | Sedici 1.6 4x4 | [M16A] | 06.2006-10.2014 |
| FIAT | Sedici 1.9 4x4 | [D19AA] | 06.2006-10.2014 |
| SUBARU | Justy 1.3 | [M13A] | 01.2003-12.2007 |
| SUBARU | Justy 1.5 | [M15A] | 01.2003-12.2007 |
| SUZUKI | Ignis 1.3 4x4 | [M13A] | 09.2003- |
| SUZUKI | Ignis 1.5 | [M15A] | 09.2003- |
| SUZUKI | Ignis 1.5 4WD | [M15A] | 09.2003- |
| SUZUKI | Jimny 1.3 | [M13A] | 01.2001-12.2005 |
| SUZUKI | Jimny 1.3 16V 4WD | [M13A] | 08.2005- |
| SUZUKI | Liana 1.3 | [M13A] | 03.2002- |
| SUZUKI | Liana 1.3 | [M13A] | 07.2001- |
| SUZUKI | Liana 1.6 | [M16A] | 01.2005- |
| SUZUKI | Liana 1.6 | [M16A] | 03.2002- |
| SUZUKI | Liana 1.6 | [M16A] | 04.2002- |
| SUZUKI | Liana 1.6 | [M16A] | 07.2001- |
| SUZUKI | Liana 1.6 4WD | [M16A] | 01.2005- |
| SUZUKI | Liana 1.6 4WD | [M16A] | 03.2002- |
| SUZUKI | Liana 1.6 4WD | [M16A] | 04.2002- |
| SUZUKI | Liana 1.6 4WD | [M16A] | 07.2001- |
| SUZUKI | Swift 1.3 4x4 | [M13A] | 01.2006- |
Reference Information
31100-80G1 31100-80G00 201319 20437081OE J5218026 31100-80G0 M000T86581 STN1310 LRS02555 LRS01621 M0T36071 STR71116 M002T47681 446518 180.523.082.130 WOOSTR71116 31100-80G10 J5218019 M002T46781ZE 71750026 CST35180AS MITM0T36071 S5234 003-Z266 114060 31100-80G20 9764 9.44281E+11 CGB-54227 25-3146 DRS0873 33216R 8EA738154-001 32620N M001T86681 31100-81A30 33216N 31100-86G00 M2T46781 31100-63J10 JS1310 M2T46781ZE CST35180GS M002T46782ZE 31100-75F60 STRS668 M0T36071ZE M0T36071AM 20104081BN 3Z266 25-4227 8EA012528-631 JS1319 201310M 31100-63J00 88214365 180.507.082.395 M0T84981 S12DE0829A2 6035180.1 71793347 STX200348 SG0873 AET1310 CGB-20101 UD11987S 220826 M2T46782ZE 3110086G00000 115349 6035180 M000T36071ZE 31100-86G00E M002T46781 0986023720 STX200348R TT16642 M2T47681 180.507.082.138 180.507.082.370 180.507.082.130 336327 PRSS668 STR5194 MTZ266 M00T86582 LRS1621 5040118 8EA738258-121 MRS80243 180.507.082.265 M1T86681 12108 M000T84981 201310 M0T86581 MAV371800A M000T36071 UD102799S STX200578Video/Publications
