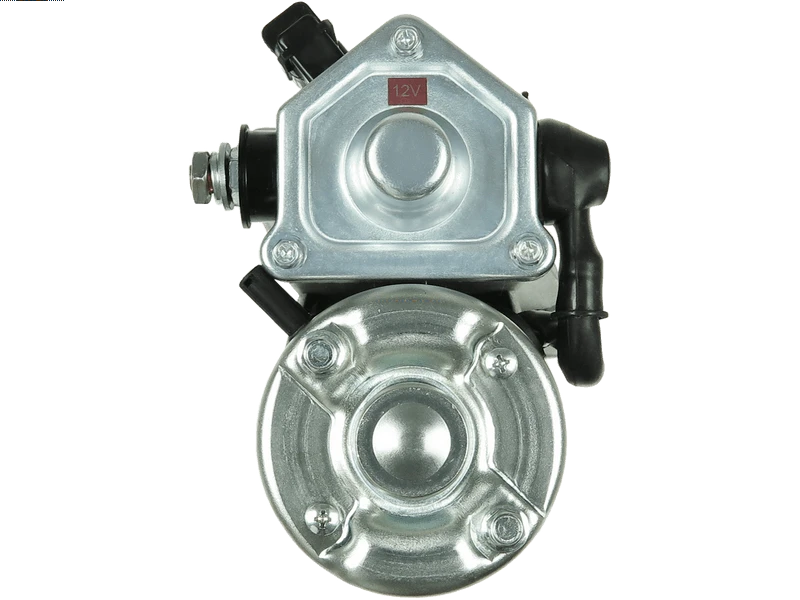

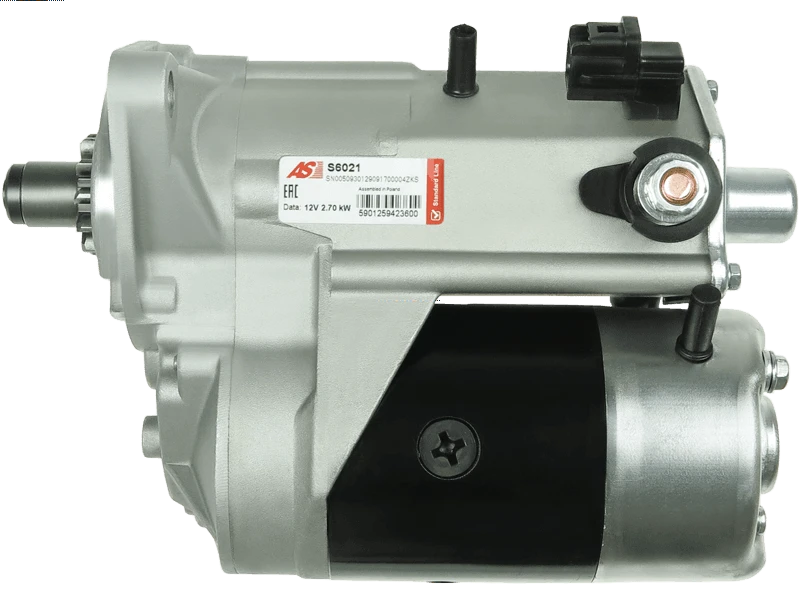

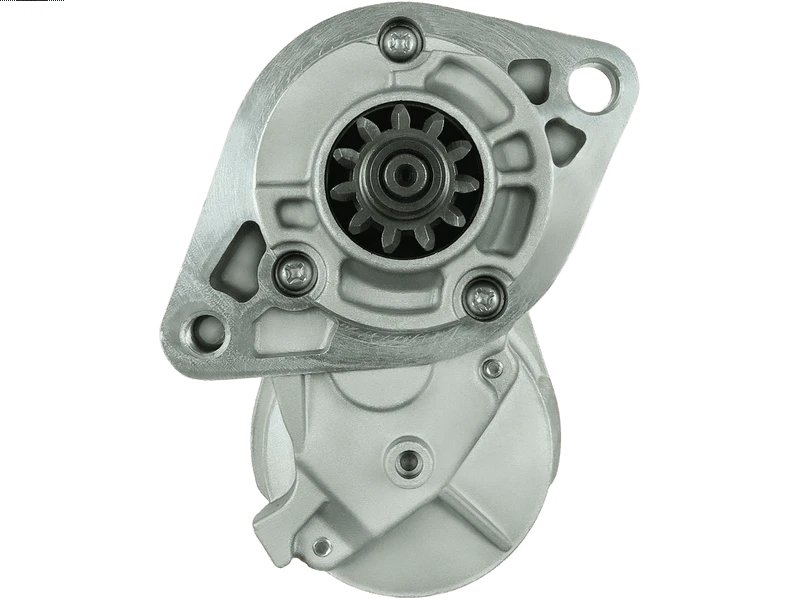

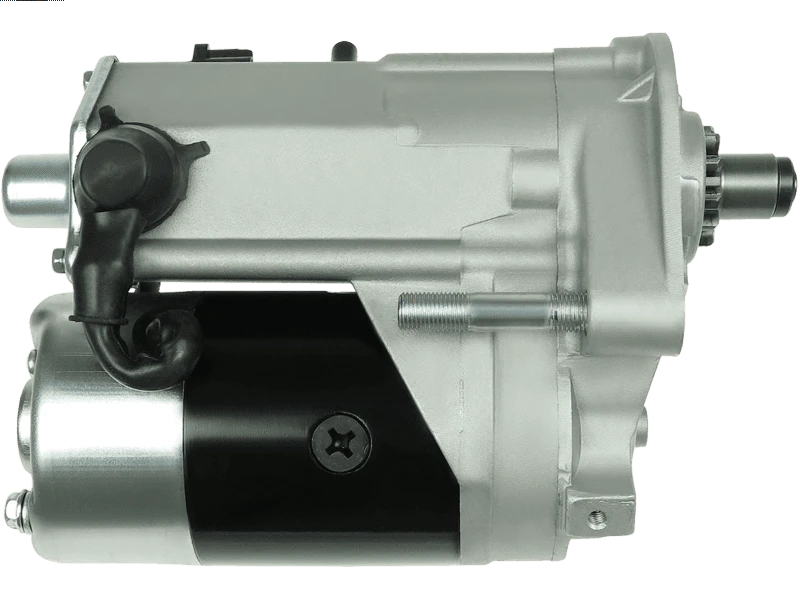

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 437.02 including GST
NZ$ 380.02 excluding GST
or four payments of $109.26
with
Learn More
each
S6355S
S6021
1
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
28100-67070 228000-5342 2280005341 2280005340 2810067670-84 0986020591 101447 1027928 10977 10977V 11982 201155 20432932BN 20432932OE 20500976 22.1155 228000-4930 228000-5340 228000-5341 228000-5651 228000-5652 25-3388 28100-30050 28100-30051 28100-30080 33217N 33217R 428000-0290 428000-0291 428000-1370 428000-1371 428000-3110 6040239 8052287 8212807 88212807 8EA737760-001 9728 AET1155 CST40239AS CST40239GS CST40379 CST40379AS CST40379ES CST40379GS CST40379OS CST40379RS DRS3965 DSN1229 EAA-111430 JS1155 LRS02217 S6021 SS474 SS481 STN1155 STR70020 16357 16-357 16357G 2280001771 2280001770 2280001772 ASPLList AUTOELECTRO BOSCH CASCO CEVAM DELCO 2280004930 DENSOList 2280005342 2280005651 2280005652 DENSO 4280000290 4280000291 4280001370 4280001371 4280003110 EAA111430 EAA EAI 253388 ELSTOCK FORDList FRIESEN HC PARTS 8EA737760001 HELLA KRAUF LAUBER LUCAS POWERMAX PRESTOLITE REAL SANDO SOVEREIGN 2810030050 TOYOTA 2810030051 2810030080 2810067070 TOYOTAList WAI / TRANSPO WOODAUTO DXS575 708578 snj208 Bosch ruil 11040632 EuroTec 11040770 113938 Cargo 190575112 PSH Denso Elstock Toyota 2810030081 2810067040 4280004930 4627SP Spidan 4901SP 737760001 Hella 913965 EDR ATS374 ATK Remy F042S0H078 HJS1155 J5212087 Nipparts Lucas OSM11239 Optimum STRH078 Unipoint 2810067020 28100-30100 4280003340Specifications
| Kilowatt | 2.7 kW |
| Length (L.1) | 259 mm |
| Mount Hole Center - Center (O.1) | 128 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 2.5 D-4D | [2KD-FTV] | 07.2001- |
| TOYOTA | Dyna 2.5 D-4D | [2KD-FTV] | 08.2001- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 06.2004- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 08.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 08.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 09.2006- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 09.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D | (_H1_,_H2_) | 08.2006- |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 08.2001-08.2004 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 08.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 09.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D 4WD | (_H1_,_H2_)[2KD-FTV] | 11.2001- |
| TOYOTA | Hilux 2.5 D-4D | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Hilux 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Land Cruiser 3.0 D-4D | [1KD-FTV] | 01.2003- |
| TOYOTA | Land Cruiser 3.0 D-4D | (J12) | 01.2007- |
| TOYOTA | Land Cruiser 3.0 D-4D | (J12)[1KD-FTV] | 01.2005- |
| TOYOTA | Land Cruiser 3.0 D-4D | (_J9_)[1KD-FTV] | 10.2000- |
| TOYOTA | Land Cruiser 3.0 D-4D 4WD | [1KD-FTV] | 08.2000-08.2002 |
| TOYOTA | Land Cruiser 3.0 TD | [1KZ-TE] | 04.1995-07.2000 |
| TOYOTA | Land Cruiser 3.0 TD | [1KZ-TE] | 04.1996-12.2002 |
| TOYOTA | Land Cruiser 3.0 TD 4WD | [1KZ-TE] | 04.1996- |
| TOYOTA | Land Cruiser Prado 2.8 D-4D | [1GD-FTV] | 06.2015- |
| TOYOTA | Land Cruiser Prado 2.8 D-4D | [1GD-FTV] | 10.2018- |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 07.2004-08.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 08.2006-07.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 08.2009- |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 09.2002-08.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 09.2002-12.2010 |
| TOYOTA | Land Cruiser Van 3.0 D-4D 4WD | [1KD-FTV] | 01.2011- |
Alternatives >>>
S6011 - 2.2kW Version with large exciter terminal
S6060 - 2.2kW Version with large exciter terminal facing away from pinion
Reference Information
458865 DENDSN1229 113938 CST40379AS 106564 SS474 28100-30051 28100-30050 982ST11 SG1000 0986024320 STN1155 STR70020 DRS3965 11982 LRS2374 STX210245R TO9050 F042S0H078 428080-3111 STN1447 428000-0291 428000-0290 88212807 33217R CST40239AS 20432973BN 33217N STRS926 11040770 190.930.112.058 28100-3005184 S511208 22.1155 9.44281E+11 S12DE0137A2 190.930.112.050 25-3388 28100-67070 428000-3110 428000-3111 LRS02374 PRSS067 S1402D ANM16185X JS1155 DSN1229 CST40239GS SS481 S-70020 MRS52287 20432932BN PRSS926 LRS2217 STR6305 28100-67090 8EA737760-001 AET1155 STX200468 220789 228000-5651 228000-5652 228000-5650 CS1447 190.575.112.260 28100-30081 28100-30080 25-4046 6040379 J5212087 88212202 8052287 EAA-111430 115973 6040239.1 228000-5341 190.575.112.050 228000-5342 STX210245 28100-30071 228000-4930 28100-30070 8EA012527-341 6040239 8EA012527-342 428000-1370 RNL1155JS 428000-1371 5040191 228000-5340 DRS0434 TO9066 ST01571 101447 LRS02217 335224112 MAV422390A WOOSTR70020 S6021 STRS067 20432932OE 10438145 0986020591 CGB-23965 201155 MAV422390 STX200339 QRS2048 28100-67040 MAV423790A 9728 25-3388CTVideo/Publications
