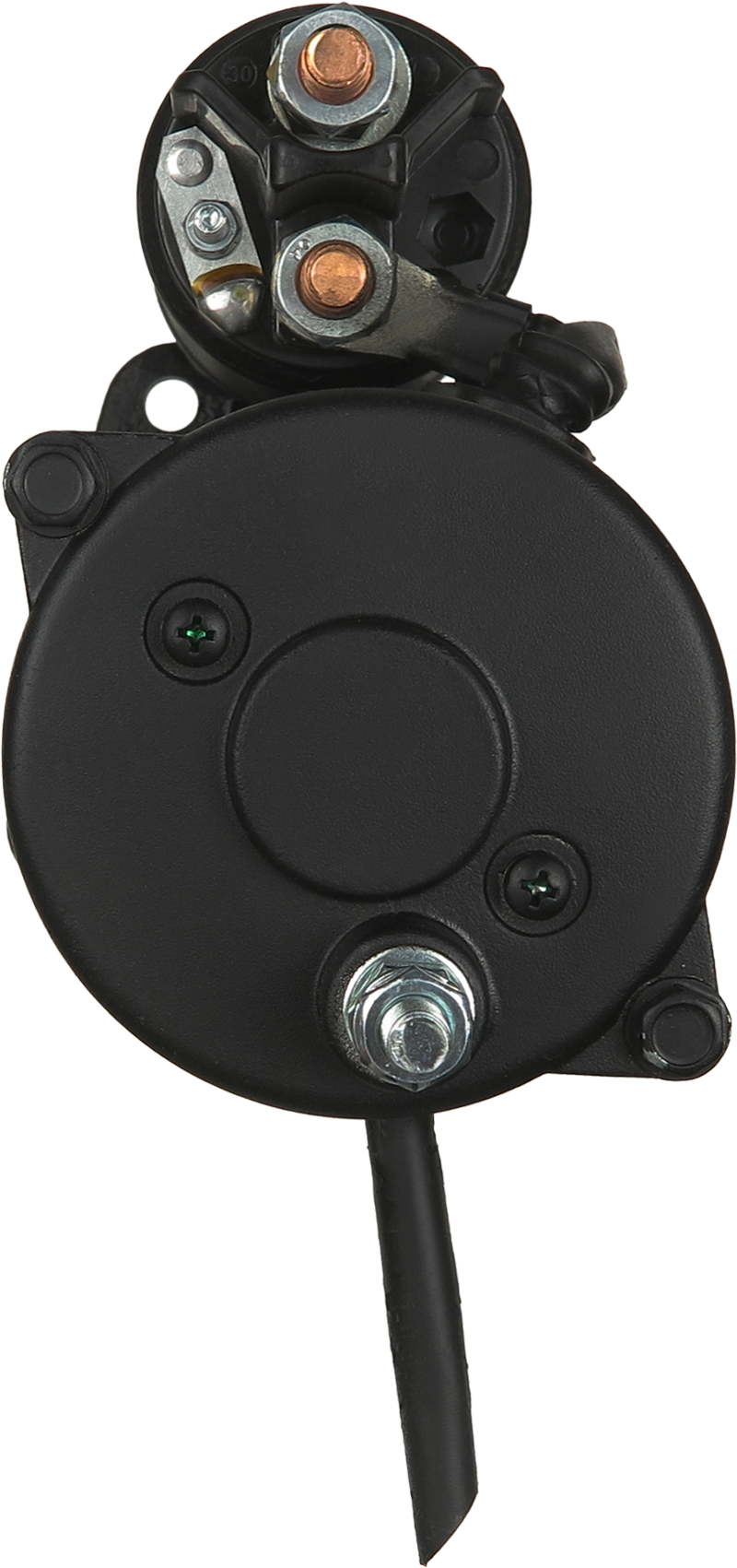

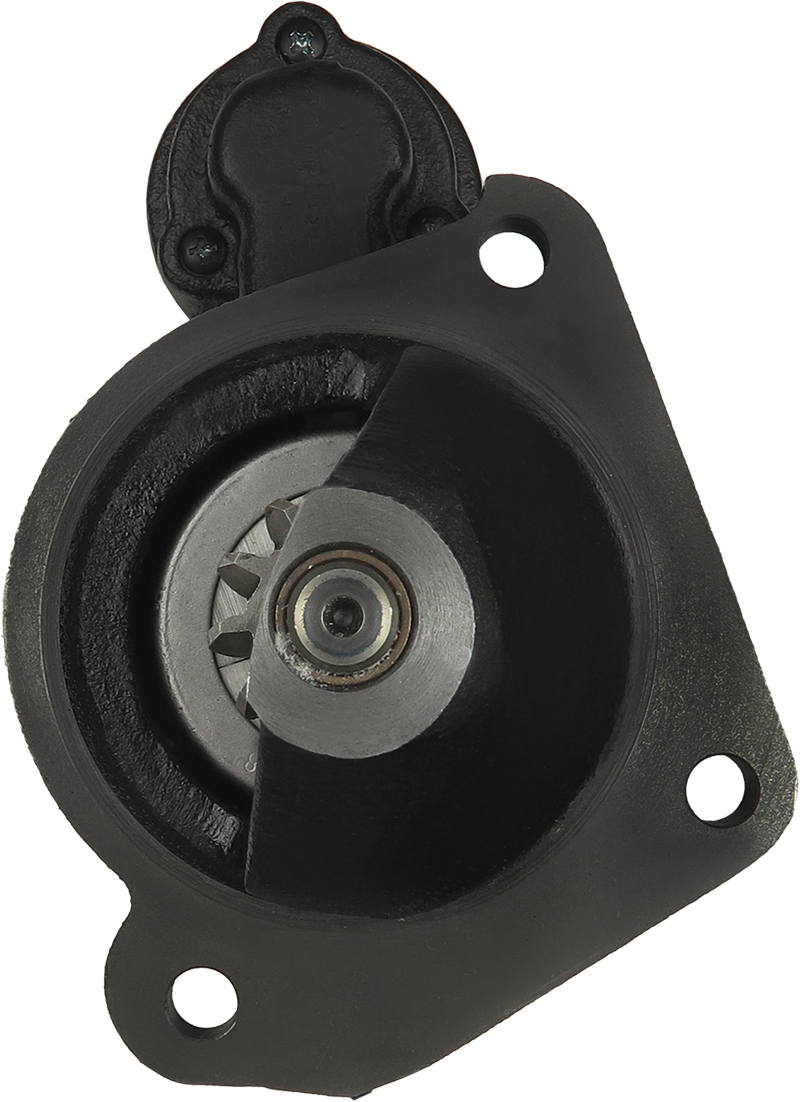

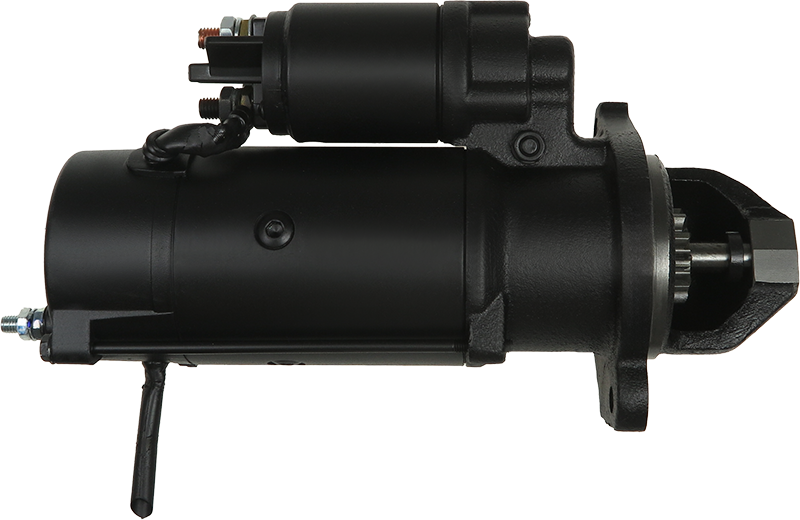

S9173(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Associated Numbers

11.131.848 114264 20419331OE 25-4161 273-42102 30230N 320/09022 320/09023 320/09026 320/09032 320/09035 320/09144 320/09346 320/09409 320/09452 320/09454 6021133 68436 700.507.113 72735712 8441 AZF4181 AZF4186 AZF4224 AZF4576 CST21133GS DRS0117 IS1105 LETIS1105 LRS02489 MS84 STR60624 TS-6212 UD11886(LETRIKA)S

S9173 ASPLList
UD02664S ASPL
114264 CARGO
CST21133GS CASCO
8441 CEVAM
DRS0117 DELCO
27342102 DIXIE
TS6212 DIXIE
11131292 ISKRA / LETRIKA
11131697 ISKRA / LETRIKA
11131711 ISKRA / LETRIKA
11131848 ISKRA / LETRIKA
11132113 ISKRA / LETRIKA
AZF4181 ISKRA / LETRIKAList
AZF4186 ISKRA / LETRIKA
AZF4224 ISKRA / LETRIKAList
AZF4301 ISKRA / LETRIKA
AZF4576 ISKRA / LETRIKA
IS1105 ISKRA / LETRIKAList
320/09022 JCB
320/09023 JCB
320/09026 JCB
320/09032 JCB
320/09035 JCB
320/09144 JCB
320/09346 JCB
320/09409 JCB
320/09452 JCB
320/09454 JCB
30230 LESTER
88214354 POWERMAX
700507113 PSH
20419331OE REAL
6021133 SANDO
30230N WAI / TRANSPO
LETIS1105 WOODAUTO
STR60624 WOODAUTO
ms84 702600 SNI1105GQ
11131292 Mahle
11131697 Mahle
11131711 Mahle
11131848 Mahle
231744 Cargo
30230N WAI
32009022 JCB
32009035 JCB
32009346 JCB
32009452 JCB
3552682M92 Massey Ferguson
35532039F VM (STABILIMENTI MEC
700507113 PSH
910117 EDR
AZF4181 Mahle
AZF4224 Mahle
AZF4576 Mahle
DRS0117 Remy
IS1105 Mahle
MS84 Mahle
STR7936sa Electrolog
References:
Arrowhead SIA0003
Case 32009452
Delco DRS0117
JCB 320/09409, 32009022, 32009032, 32009035, 32009144, 32009346
Lester 30230
MAHLE 11131292, 11131697, 11131711, 11132113, AZF4181, AZF4186, AZF4224, AZF4301, AZF4576, IS1105, MS84
PIC Picture ID 182742
MAHLE 11131292, 11131697, 11131711, 11131848, 11132113, AZF4181, AZF4224, AZF4301, IS1105

Substitutes:
J&N 41029035

References:
Arrowhead MS84, SIA0003
J&N 41029035
Case 32009452
Delco DRS0117
JCB 320/09409, 32009022, 32009032, 32009035, 32009144, 32009346
Lester 30230
MAHLE AZF4186, AZF4576, IS1105
PIC Picture ID 182742

AZF4267 ISKRA / LETRIKAList
IS1106 ISKRA / LETRIKA
320/09023 JCB
320/09033 JCB
320/09347 JCB
320/A9080 JCB

S9173 ASPLList
UD02664S ASPL
114264 CARGO
CST21133GS CASCO
8441 CEVAM
DRS0117 DELCO
27342102 DIXIE
TS6212 DIXIE
11131292 ISKRA / LETRIKA
11131697 ISKRA / LETRIKA
11131711 ISKRA / LETRIKA
11131848 ISKRA / LETRIKA
11132113 ISKRA / LETRIKA
AZF4181 ISKRA / LETRIKAList
AZF4186 ISKRA / LETRIKA
AZF4224 ISKRA / LETRIKAList
AZF4301 ISKRA / LETRIKA
AZF4576 ISKRA / LETRIKA
IS1105 ISKRA / LETRIKAList
320/09022 JCB
320/09023 JCB
320/09026 JCB
320/09032 JCB
320/09035 JCB
320/09144 JCB
320/09346 JCB
320/09409 JCB
320/09452 JCB
320/09454 JCB
30230 LESTER
88214354 POWERMAX
700507113 PSH
20419331OE REAL
6021133 SANDO
30230N WAI / TRANSPO
LETIS1105 WOODAUTO
STR60624 WOODAUTO
ms84 702600 SNI1105GQ
11131292 Mahle
11131697 Mahle
11131711 Mahle
11131848 Mahle
231744 Cargo
30230N WAI
32009022 JCB
32009035 JCB
32009346 JCB
32009452 JCB
3552682M92 Massey Ferguson
35532039F VM (STABILIMENTI MEC
700507113 PSH
910117 EDR
AZF4181 Mahle
AZF4224 Mahle
AZF4576 Mahle
DRS0117 Remy
IS1105 Mahle
MS84 Mahle
STR7936sa Electrolog
References:
Arrowhead SIA0003
Case 32009452
Delco DRS0117
JCB 320/09409, 32009022, 32009032, 32009035, 32009144, 32009346
Lester 30230
MAHLE 11131292, 11131697, 11131711, 11132113, AZF4181, AZF4186, AZF4224, AZF4301, AZF4576, IS1105, MS84
PIC Picture ID 182742
MAHLE 11131292, 11131697, 11131711, 11131848, 11132113, AZF4181, AZF4224, AZF4301, IS1105

Substitutes:
J&N 41029035

References:
Arrowhead MS84, SIA0003
J&N 41029035
Case 32009452
Delco DRS0117
JCB 320/09409, 32009022, 32009032, 32009035, 32009144, 32009346
Lester 30230
MAHLE AZF4186, AZF4576, IS1105
PIC Picture ID 182742

Specifications

INSULATED GROUND

Kilowatt	4.2 kW
Length (L.1)	347 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	87.5 mm
Mount Hole Center - Center (O.3)	127.5 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
OEM Product	Yes
On Sale Item	Yes
Pinion at Rest (B)	21 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
JCB	260 4.4
JCB	260T 4.4
JCB	280 4.4
JCB	2CX 4.4	[JCB444]
JCB	320T 4.4
JCB	3CLL 4.4	[JCB444]
JCB	3CX 4.4	[JCB444]
JCB	3PLUS 4.4
JCB	411HT 4.4
JCB	411HT-SHL 4.4
JCB	412-AGRI 4.4
JCB	412-WM 4.4
JCB	414S-AGRI 4.4	[SLB]
JCB	414-WM 4.4
JCB	416HT 4.4
JCB	416S-AGRI 4.4
JCB	416-WM 4.4
JCB	4CN 4.4
JCB	4CX 4.4
JCB	524-50-AGRI
JCB	526-56 4.4
JCB	526-56-AGRI
JCB	527-55-AGRI
JCB	527-55-WM
JCB	527-58 4.4
JCB	531-70 4.4
JCB	531-70-AGRI
JCB	531-70-WM	[SLB]
JCB	533-105 4.4
JCB	535-125-HiViz 4.4
JCB	535-140-HiViz 4.4
JCB	535-95 4.4
JCB	535-95-AGRI
JCB	536-60 4.4
JCB	536-60-AGRI
JCB	536-70-AGRI
JCB	540-140	[TC63]
JCB	540-140 4.4
JCB	540-170 4.4
JCB	541-70 4.4
JCB	541-70-AGRI
JCB	541-70-WM	[SLB]
JCB	550-140
JCB	550-170
JCB	550-80 4.4	[TC63]
JCB	926-2WD 4.4	[TC63]
JCB	930-2WD	[TCA.74]
JCB	940-2WD 4.4
JCB	G66 QX 4.8
JCB	JCB444 4.4
JCB	NA 4.4
JCB	TC 4.4
JCB	TCA 4.8
JCB	TCAE 4.4
JCB	TCAE 4.8	[48 TG-60]
JCB	TCAE 4.8	[48TG-60]
JCB	TM 180 Agri 4.4
JCB	TM 310 AGRI 4.4
JCB	TM 310-WM 4.4
JCB	TM 320 4.4
JCB	TM 320 S 4.8
JCB	TM 320 VM 4.4
JCB	TN 220 Agri 4.4
JCB	VM115PD 4.4
JCB	VTM860
MOSA	GE 125 JSX	[JCB444G-TCA]
MOSA	GE 145 JSX	[JCB448G-TCA]
MOSA	GE 65 JSX	[JCB444G-TC1]
MOSA	GE 85 JSX	[JCB444G-TC2]
SIDERMECCANICA	SM 100-125 B 4.4
SIDERMECCANICA	SM 125-175 A 4.4
SIDERMECCANICA	SM 125-175 A 4.4
SIDERMECCANICA	SM 125-175 B3 4.4
SIDERMECCANICA	SM 125-175 B3 4.4
SIDERMECCANICA	SM 125-175 B 4.4

Alternatives >>>

S9173 - Aftermarket 4.2kW option INSULATED GROUND

S9097 - Aftermarket 4.0kW Option, NON INSULATED GROUND

S9097 - Genuine Mahle option 4.0kW NON INSULATED GROUND

Reference Information

STR60624 68436 MS84 320/09409 CST21133GS AZF4224 AZF4186 320-09032 320-09035 STX210180 S12ML0299 AZF4181 72735712 LRS2489 32009035 MS 320-09409 TS-6212 S12ML0299A2 32009032 11.131.848 320/09035 AZF4576 320/09032 114264 700.507.113.380 25-4161 700.507.113.460 30230N 32009346 700.507.113 32009144 LETIS1105 32009022 STR7936 320/09023 320/09144 DRS0117 320/09022 320/09346 320/09026 320-09452 320-09454 320-09346 8441 6021133 UD11886(LETRIKA)S 273-42102 20419331OE 320/09452 LRS02489 IS1105 320/09454 32009409 320-09022 84 320-09144 320-09026

Video/Publications

S9173(LETRIKA)

< Critical Notes >

S9173 and S9173(LETRIKA) starters are INSULATED GROUND for Marine use. To use this starter a ground/earth cable must be used on the ground stud at the COM END CAP

S9097 and S9097(LETRIKA) are an alternative but not listed as insulated ground
