Associated Numbers
06D911023 06D911023A 0986024180 101401V 115947 11988 17978N 17978R 200.525.093 20479812OE 22.1401 25-4024 3055 438190 458238 6015218 8080325 8212228 88212228 8EA738258-461 AEY2352 CS1401 CST15218 CST15218AS CST15218ES CST15218GS CST15218OS CST15218RS D6GS19 DRS0112 EAA-121475 LRS02352 S1213V STR54066
AEY2352 AUTOELECTRO
0986024180 BOSCH
115947 CARGO
CST15218 CASCO
CST15218GS CASCO
3055 CEVAM
DRS0112 DELCO
EAA121475 EAA
11988 EAI
254024 ELSTOCK
8080325 FRIESEN
CS1401 HC PARTS
8EA738258461 HELLA
22.1401 LAUBER
LRS02352 LUCAS
8212228 POWERMAX
88212228 POWERMAX
S1213V PRESTOLITE
200.525.093 PSH
20479812OE REAL
6015218 SANDO
438190 VALEOList
458238 VALEOList
D6GS19 VALEOList
06D911023 VW
06D911023A VW
17978N WAI / TRANSPO
17978R WAI / TRANSPO
STR54066 WOODAUTO
Valeo D6GS19
Substitutes:
Bosch SR9498X
Valeo 458238
References:
Arrowhead SVA0008, V438190
Lester 17978
Paris Rhone D6GS19
Valeo 191882, 458238, D6GS19
Volkswagen 06D911023, 06D911023A
06D911023 VW
06D911023A VW
06D911023D VW
0986024180 Bosch ruil
11090096 EuroTec
11988 EAI
17978 Lester
17978N WAI
17978R WAI
191882 Valeo
200525093 PSH
254024 Elstock
438190 Valeo
458238 Valeo
4850SP Spidan
8080325F Friesen
910112 EDR
A78810 ATL
CS1401 HC
D6GS19 Valeo
DRS0112 Remy
HCS1401 HC
LRS02352 Lucas
STR0073sa Electrolog

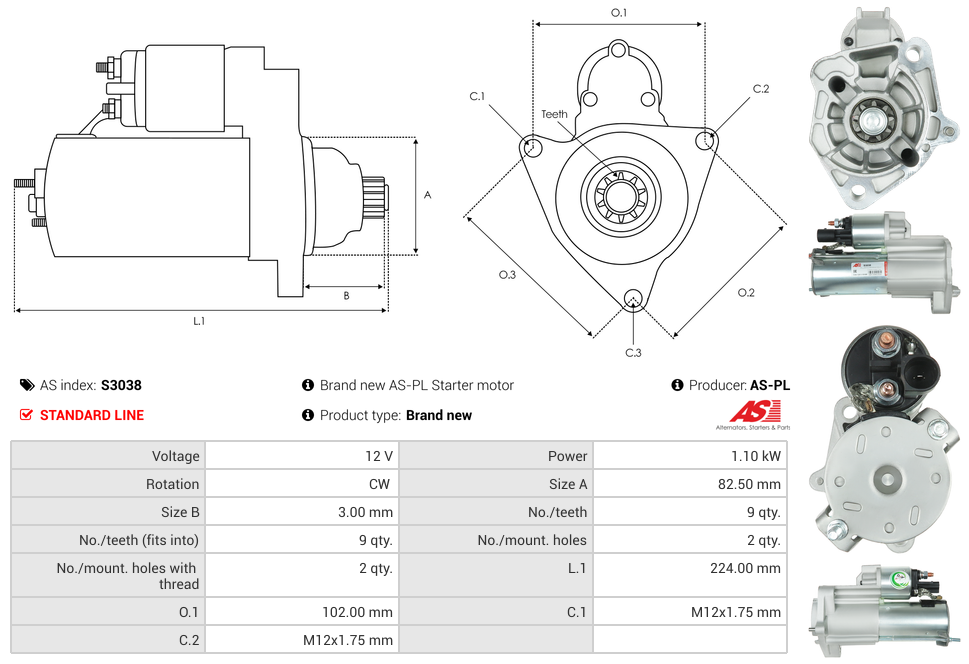

Specifications
| Kilowatt | 1.1 kW |
| Length (L.1) | 224 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 3 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 2.0 FSi | [BYK] | 10.2006- |
| AUDI | A4 2.0 TDi | [BVA] | 06.2006-06.2008 |
| AUDI | A4 2.0 TDi Quattro | [BVA] | 06.2006-06.2008 |
| AUDI | A4 2.0 TFSi | [BGB] | 11.2004- |
| AUDI | A4 2.0 TFSi | [BPJ] | 10.2006-06.2008 |
| AUDI | A4 2.0 TFSi | [BUL] | 06.2005- |
| AUDI | A4 2.0 TFSi | [BWE] | 10.2005- |
| AUDI | A4 2.0 TFSi | [BYK] | 10.2006-06.2008 |
| AUDI | A4 2.0 TFSi 16V | [BWE] | 01.2006-03.2009 |
| AUDI | A4 2.0 TFSi Quattro | [BGB] | 11.2004- |
| AUDI | A4 2.0 TFSi Quattro | [BUL] | 06.2005- |
| AUDI | A4 2.0 TFSi Quattro | [BWE] | 11.2004- |
| AUDI | A4 2.0 TFSi Quattro | [BWT] | 06.2006- |
| AUDI | A6 2.0 TFSi | [BPJ] | 06.2005- |
| AUDI | A6 2.0 TFSi | [BPJ] | 06.2005-03.2011 |
| AUDI | A6 2.0 TFSi | [BPJ] | 06.2005-08.2011 |
| SEAT | Exeo 2.0 TFSi | [BWE] | 03.2009-05.2013 |
| SEAT | Exeo ST 2.0 TFSi | [BWE] | 06.2009-05.2013 |
Reference Information
STRF237 91-20-3554 6D911023AX 20479812OE ST01552 220430 200.525.093.000 WOOSTR54066 11090096 221401 311250092 11988 6D911023A LRS02352 BST2425 AC-CBS1401 458238 D6GS19 106499 SVA218 S6561 3055 0986024180 S1213V WG2150990 200.525.093.008 6D911023 PRSF237 988ST11 10439615 8EA738258-461 STV1401 8080325 VAL438190 A78810 3114715 3114716 10015218OV 6015218.1 06D911023 42024180 220430A 200.525.093.500 STX200362 CST15218GS DRS0112 101401 LRS2352 191882 VALD6GS19 17978R 331901 06D911023A 17978N 8EA011611-411 438190 25-4024 101401V 200.525.093.505 06D911023AX STR0073 S3038 STR54066 88212228 AU9023Video/Publications
