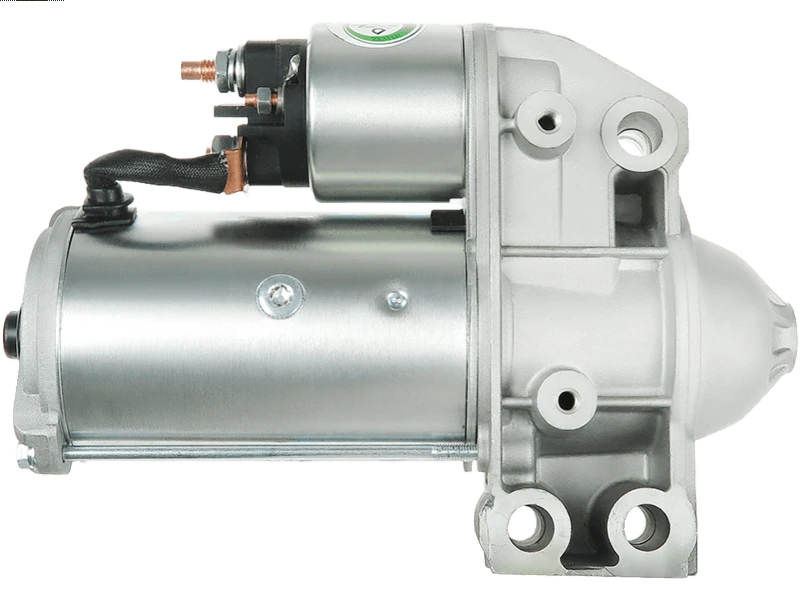

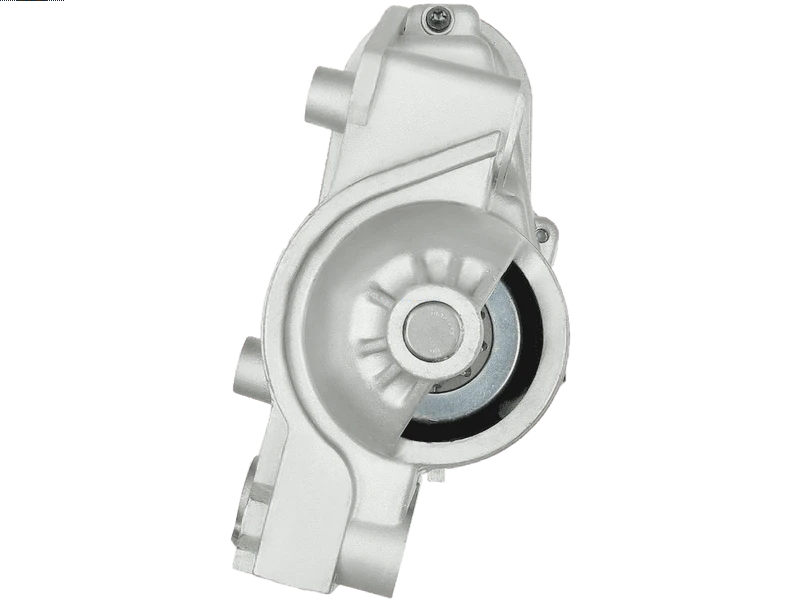

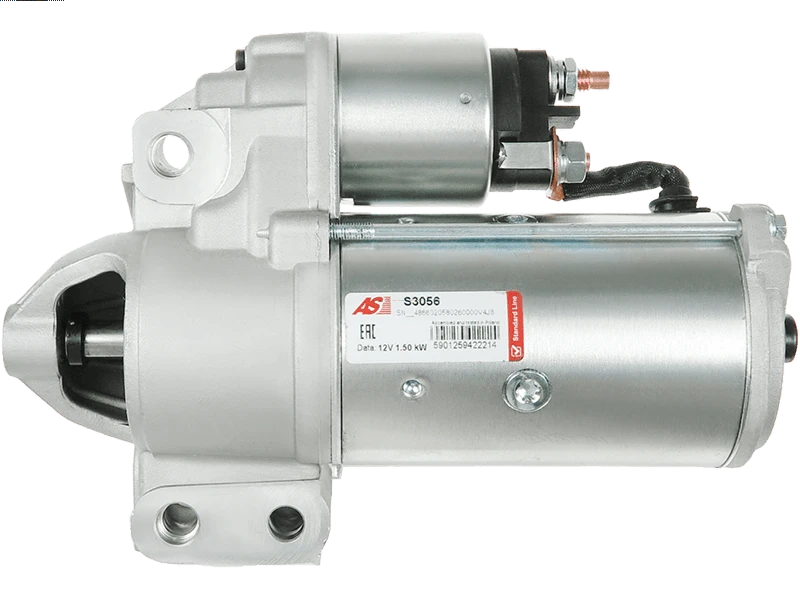

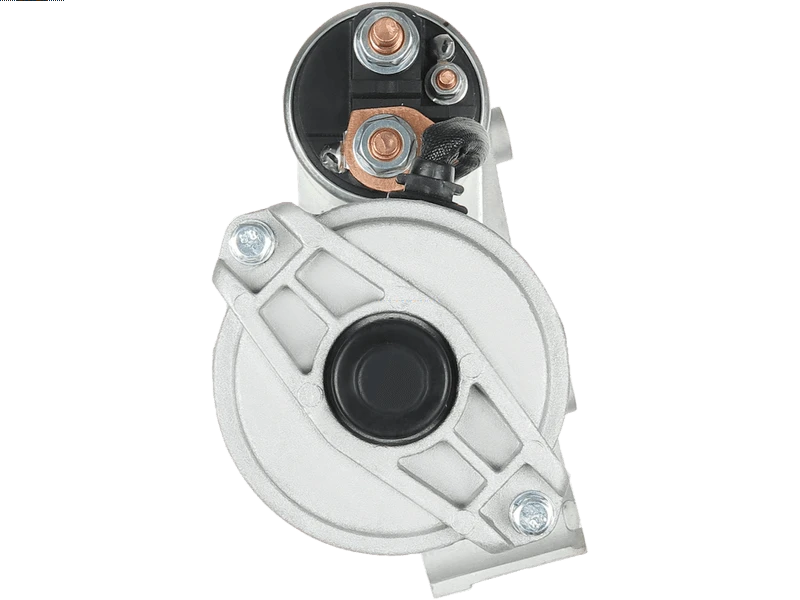

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 337.33 including GST
NZ$ 293.33 excluding GST
or four payments of $84.33
with
Learn More
each
S3085
S3056
1
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
0986018531 101108 11788 20479691OE 20479691RC 22.1108 25-2389 3083 32456N 438011 455734 5802CV 5802N4 5802V9 5802W0 6015196 8018531 8213069 8EA737517-001 9627267180 CS1108 CST15196GS CST15196RS D7R17 D7RP82 DRS3619 EAA-121466 ND168 STR-4701 STR54122 BOSCH CASCO CEVAM DELCO EAA121466 EAA EAI 252389 ELSTOCK FRIESEN HC PARTS 8EA737517001 HELLA LAUBER PEUGEOT POWERMAX REAL RENAULT SANDO STR4701 UNIPOINT VALEO VALEOList WAI / TRANSPO WOODAUTO Bosch ruil 11018530 EuroTec 11090061 120519100 PSH 187373 Valeo 220520103 Elstock 32456 Lester 32456R 3857 4562SP Spidan PSA 7711134302 Renault 8018531F Friesen 8EA012526441 Hella A18530 ATL A77140 D6RA70 Remy HCS1108 LRS01456 Lucas STR0025sa Electrolog snv014 438087Specifications
| Kilowatt | 1.5 kW |
| Length (L.1) | 241 mm |
| Mount Hole Center - Center (O.1) | 112 mm |
| Mount Hole Center - Center (O.2) | 33 mm |
| Mount Hole Center - Center (O.3) | 117 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Xantia 3.0 i 24V | [XFZ(ES9J4)] | 11.1996-01.1998 |
| CITROEN | Xantia 3.0 V6 | [XFZ(ES9J4)] | 01.1998-04.2003 |
| CITROEN | XM 3.0 V6 | [XFZ(ES9J4)] | 04.1997-10.2000 |
| FIAT | Ulysse 3.0 V6 | [XFW(ES9J4S)] | 08.2002- |
| PEUGEOT | 406 3.0 24V | [XFZ(ES9J4)] | 10.1996-06.2004 |
| PEUGEOT | 406 3.0 V6 24V | [XFZ(ES9J4)] | 03.1997-02.2005 |
| PEUGEOT | 407 3.0 | [XFV(ES9A)] | 05.2004- |
| PEUGEOT | 605 3.0 V6 | [ES9J4] | 04.1997-05.1999 |
| RENAULT | Avantime 3.0 V6 | [L7X720] | 09.2001-12.2003 |
| RENAULT | Avantime 3.0 V6 | [L7X721] | 09.2001-12.2003 |
| RENAULT | Clio 3.0 V6 Sport | [L7X760] | 11.2000- |
| RENAULT | Clio 3.0 V6 Sport | [L7X762] | 12.2002-06.2005 |
| RENAULT | Espace 3.0 V6 24V | [L7X727] | 10.1998-10.2002 |
| RENAULT | Laguna 3.0 24V | [L7X700] | 03.1997-03.2001 |
| RENAULT | Laguna 3.0 24V | [L7X701] | 03.1997-03.2001 |
| RENAULT | Safrane 2.9 24V | [L7X713] | 03.1999-12.2000 |
Alternatives >>>
S3085 - 1.3kW version
Reference Information
ANM15839X 5802W0 5802CV 8018531 7711134302 5015883 STR-4701 3083 PRSW384 8EA737517-001 STX200410R 5802V9 STR00113 5802N4 ND168 9627267180 32456N D7RP82 32456R CST15196RS 11788 101108 20479691RC MAV171960 STRW384 CS1108 CST15196GS EAA-121466 0986018531 220400 DRS3619 8213069 438011 20479691OE 6015196 25-2389 455734 S12VA0614A2 STX200410 STR54122 D7R17 22.1108Video/Publications
