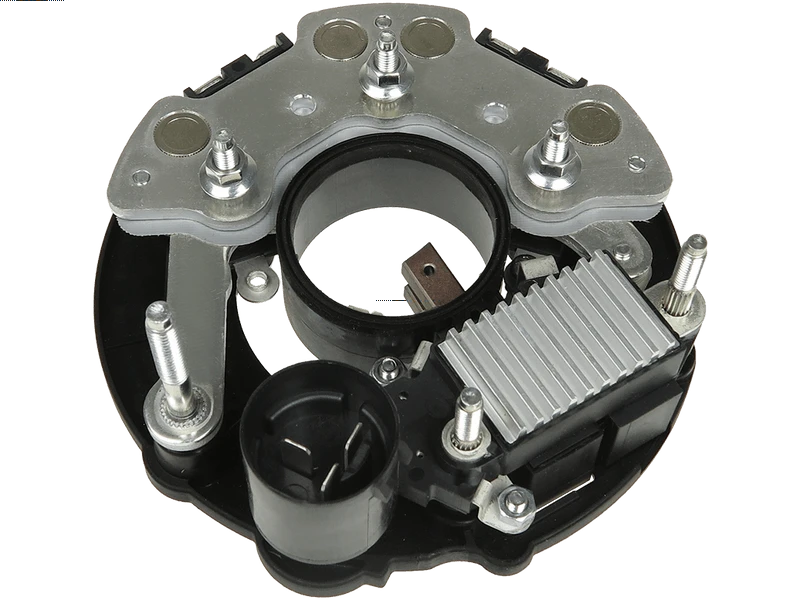

Brand new AS-PL Alternator rectifier + regulator set
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 102.33 including GST
NZ$ 88.98 excluding GST
or four payments of $25.58
with
Learn More
each
ARR2003
2
Associated Numbers
LR235503 LR250503 LR250504 LR250504C LR250G507C LR260502K LR260504B 8971430111 8971484961 8971753901
L250G-1320 HITACHI
L250G-2308 HITACHI
8-97083286-0 ISUZU
8-97111263-0 ISUZU
75-153 PAN PACIFIC
75-195 PAN PACIFIC
1134-002RS RS
LR235503 HITACHI
LR250503 HITACHI
LR250504 HITACHI
LR250504C HITACHI
LR250G507C HITACHI
LR260502K HITACHI
LR260504B HITACHI
8971430111 ISUZU
8971484961 ISUZU
8971753901 ISUZU
LR250-502C
LR250-507
LR250-507C
ISUZU
8-97075-883-2
8-97148-496-0
8-97148-496-1
Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 37 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 8 qty |
| Inside Diameter (I.D.1) | 43 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 127 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | Yes |
| Unit Type | HITACHI |
| Voltage | 24 V |
Reference Information
AEH3474 UD101905ARC 053.900.007.087 DIVR-864607 75-195 AEH9474 8971112630 75-153 L250G-2308Video/Publications
LR250511 LR260504B LR250504C LR260503 LR260504 LR260502 A2018 LR260508 LR250G507C LR260502K LR235503 LR250507C LR250507 LR250508 LR250503 LR250504 ARR2003View your shopping basket or Browse other items in Rectifier.
