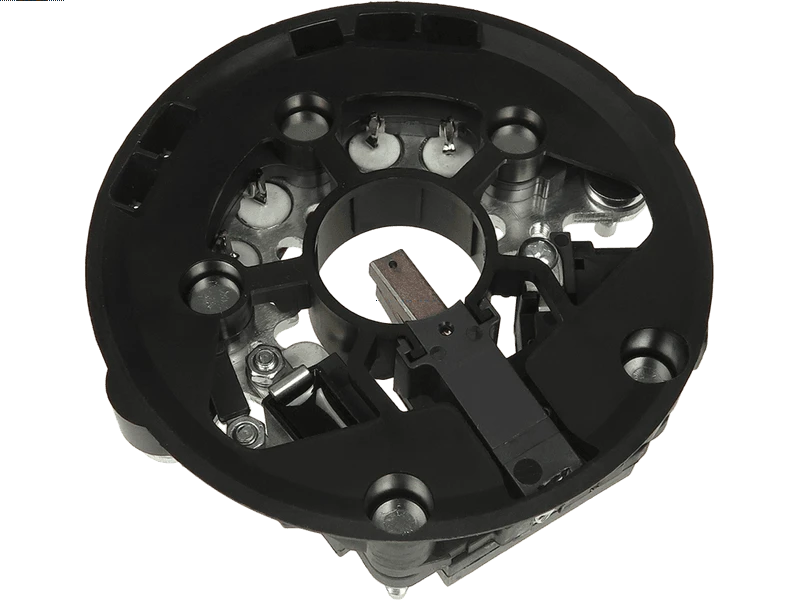

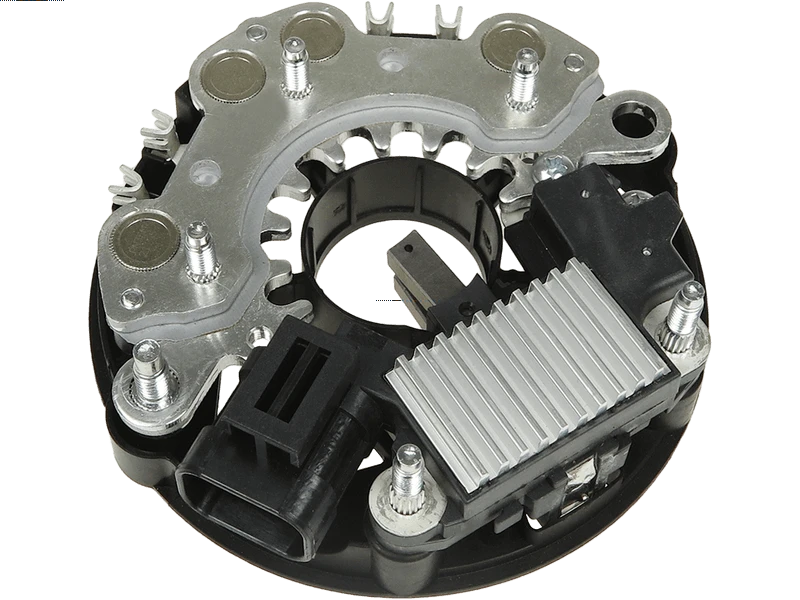

Brand new AS-PL Alternator rectifier + regulator set
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 120.99 including GST
NZ$ 105.21 excluding GST
or four payments of $30.25
with
Learn More
each
ARR2009
1
Associated Numbers
A2023lR190-752
LR190752
lR190752B
LR190-752B
LR170746
LR170746A
LR170746B LR170746C LR170746D LR170746E LR170746F LR170746G LR170746H LR170746G LR170746J LR170746K LR170746M
lr190760 lr190760b 23100ax001
Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 13.5 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 8 qty |
| Inside Diameter (I.D.1) | 39.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 114.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | Yes |
| Unit Type | HITACHI |
| Voltage | 12 V |
Alternatives >>>
ARR2008 8MM STUD OPTION
ARR2016 14.3v SET POINT (ARR2009 IS 14.5v)
