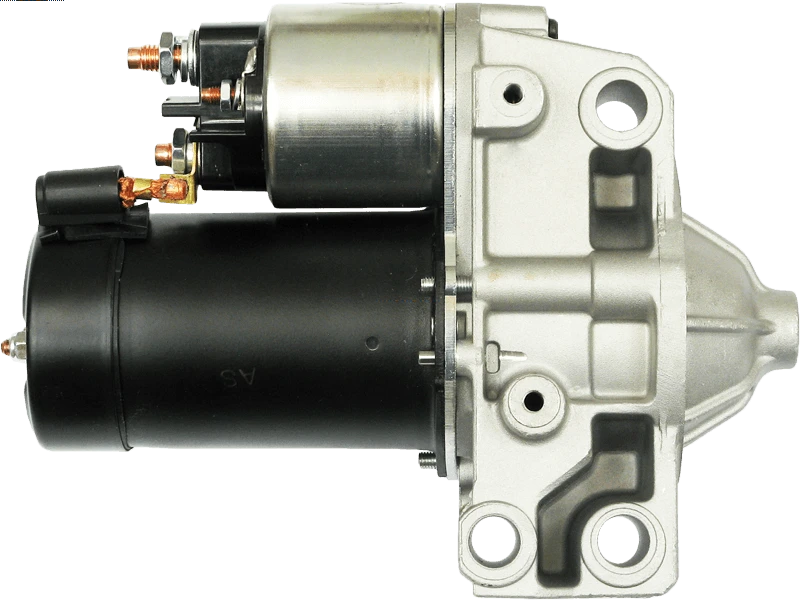

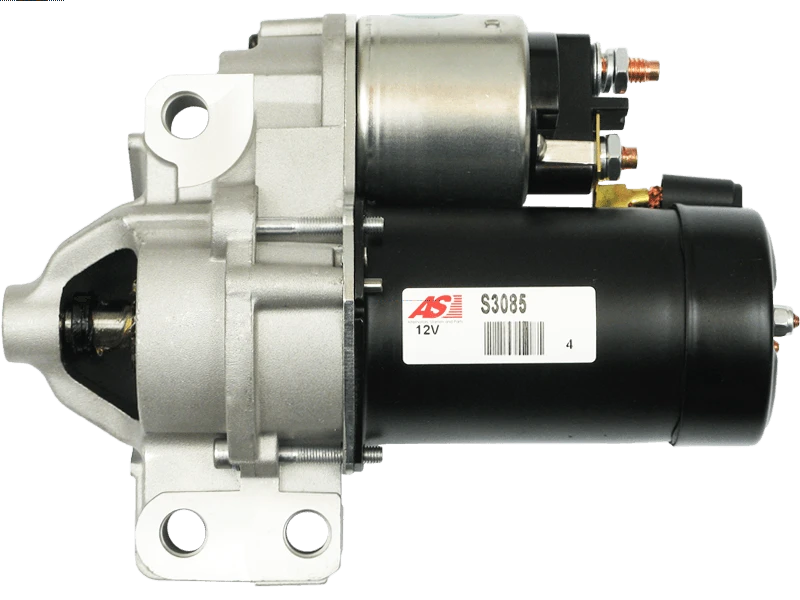

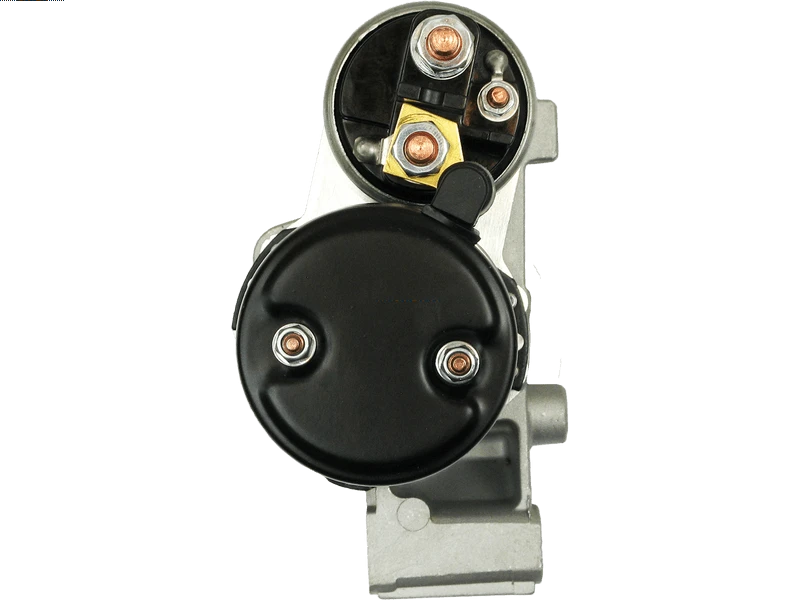

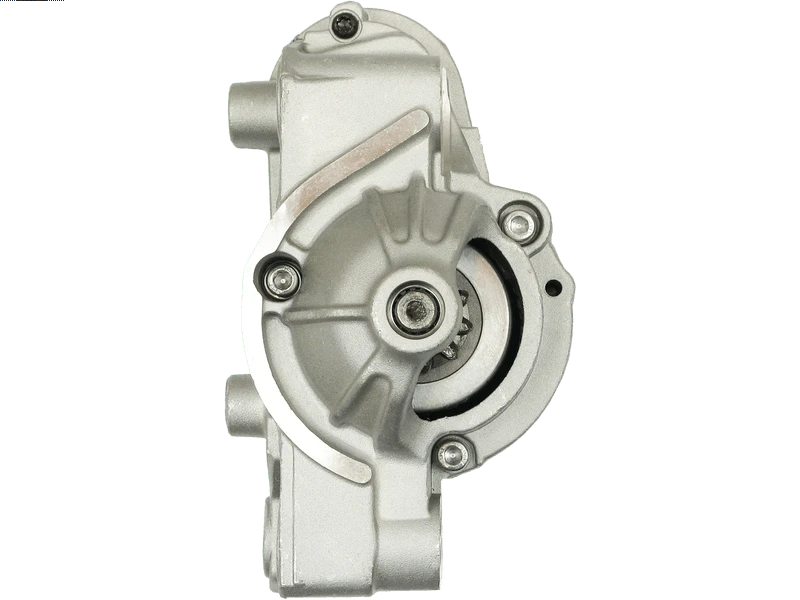

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 159.14 including GST
NZ$ 138.38 excluding GST
or four payments of $39.79
with
Learn More
each
S3056
S3085
2
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
0986023480 101290 11930 188339 20479452OE 20479691OE 20479691RC 22.1290 22.1290M 25-3048 32554R 3857 455956 5802CZ 5802W6 5802X7 5802X8 6015196 6015254 7711134529 8080178 88213084 8EA738135001 9635501280 AEU1290 CS1290 CST15196GS CST15196RS CST15254GS CST15254OS D6RA107 D6RA70 D6RAP404 DRS3737 EAA-121295 LRS01554 S3085 SS318 ASPLList AUTOELECTRO BOSCH CASCO CEVAM DELCO EAA121295 EAA EAI 253048 ELSTOCK FRIESEN HC PARTS HELLA LAUBER LUCAS PEUGEOT POWERMAX REAL RENAULT SANDO SOVEREIGN VALEO VALEOList WAI / TRANSPO 0986018531 Bosch ruil 11018530 EuroTec 11090061 11788 120519100 PSH 187373 Valeo 220520103 252389 Elstock 32456 Lester 32456N 32456R 438011 455734 4562SP Spidan 5802CV PSA 5802N4 5802V9 7711134302 Renault 8018531F Friesen 8EA012526441 Hella 9627267180 A18530 ATL A77140 CS1108 D7R17 D7RP82 DRS3619 Remy HCS1108 LRS01456 Lucas STR0025sa Electrolog snv014 115354 Cargo 188575 220525103 231096 300042102 DRI 42023480 Herth Buss 438087 4759SP 71723464 Fiat 726148 8080178F 820053977 913737 EDR 9657391280 show D6RAP405 HCS1290 K9635501280 OSM11043 Optimum SP4759Specifications
| Kilowatt | 1.3 kW |
| Length (L.1) | 213 mm |
| Mount Hole Center - Center (O.1) | 112 mm |
| Mount Hole Center - Center (O.2) | 33 mm |
| Mount Hole Center - Center (O.3) | 117 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 13.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C5 3.0 V6 | [ES9..] | 01.2004- |
| CITROEN | C5 3.0 V6 | [XFE(ES9J4S)] | 01.2001-12.2004 |
| CITROEN | C5 3.0 V6 | [XFU(ES9A)] | 01.2008- |
| CITROEN | C6 3.0 V6 | [XFV(ES9A)] | 01.2005- |
| CITROEN | XM 2.9 i V6 | [XFZ(ES9J4)] | 01.1997-12.2000 |
| PEUGEOT | 406 3.0 24V | [ES9J4] | 01.1999-12.2004 |
| PEUGEOT | 607 3.0 V6 | [ES9A] | 01.2000-12.2004 |
| PEUGEOT | 607 3.0 V6 | [ES9A] | 01.2004- |
| PEUGEOT | 607 3.0 V6 | [ES9J4S] | 01.2000-12.2004 |
| PEUGEOT | 607 3.0 V6 | [ES9J4S] | 01.2004- |
| RENAULT | Avantime 3.0 V6 | [L7X720] | 01.2001-12.2003 |
| RENAULT | Avantime 3.0 V6 | [L7X721] | 01.2001-12.2003 |
| RENAULT | Clio 3.0 V6 Sport | [L7X760] | 01.2000-12.2002 |
| RENAULT | Laguna 3.0 V6 24V | [L7X731] | 01.2001-12.2007 |
Alternatives >>>
S3056 - 1.3kW version
Reference Information
5802CZ 7711134529 K9635501280 MAV2040 SS318 EAA-121295 5802CV 188339 9635501280 D6RAP404 25-3048 8EA738135001 D6RA70 8080178 CS1290 331260 5802X7 9627267180 5802X8 22.1290M 22.129 71723464 20479691OE 6015196 0986023480 STA0438R LRS1554 STR0025 RNLD6RA70 S3085 820053977 7711134302 CST15254OS 101290 STX200164 AEU1290 STX200410R CST15254GS 5802V9 20479452OE 5802N4 D6RA107 CST15196RS 9657391280 ANM15957X 3857 20479691RC STX200325 STX200325R 220527 88213084 CST15196GS S12VA0239 LRS01554 DRS3737 S12VA0239A2 6015254 5802W6 455956 STRS707 STX200410 32554R 11930Video/Publications
