Specifications

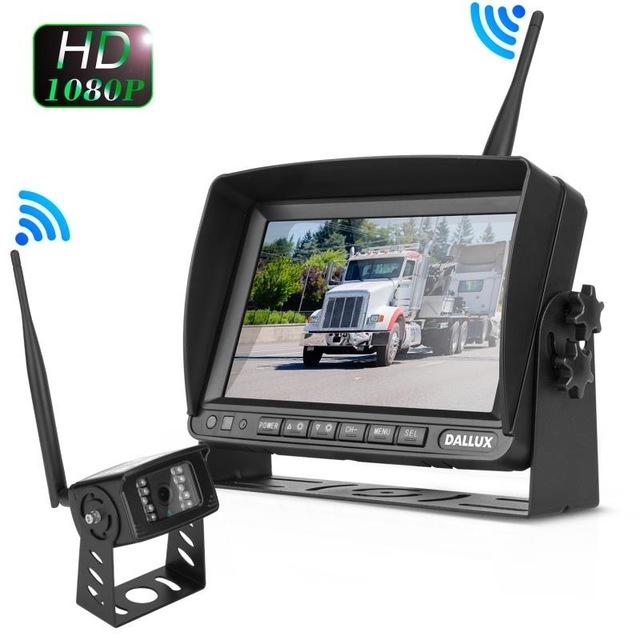

Wireless Camera Kit.
This system uses DIGITAL signal for no interference and great reliablity.
Comes with 5DB Antenna for greatest range of over 300 meters!
Can have up to 4 cameras on screen at once in QuadMode, 2 Cameras in Split Mode.
All channels are recordable via the SD card slot with up to 8 hours of recoding storage
Kit comes with 1x Monitor, 1x Wireless Camera, 2x Power cables and mounting bracket
Extra Cameras are WHC5006
Monitor specification:
Monitor size: 7" Digital IPS Panel
Resolution: 800 x 3 (RGB) x 480
Aspect Ratio: 16:09
Channel: 1/2/3/4 channel according to requirements.
Operating Frequency: 2400 - 2483.5 MHz
Receiving Sensitivity: 88dBm@4MHZ
Transmittance distance: >300 Meters
Power Supply: +9~+30V
Current Consumption: Typical:380mA, Max.480mA
Operating Temperature: -10~+60 ºC
Storing Temperature: -30~+85 ºC
Operating humidity : 85%RH
Latency : 180mS
Max. Resolution : 1080P
Frame Rate : 25f/s 30f/s
Video Codec: AVI
Video in System : PAL/NTSC
Operation Frequency : 2400 ~ 2483.5MHz* RF
Bit Rate : 4Mbps
Maximum storage : 128GB
Camera Specification:
Power Supply : +9~+30V
Current Consumption: TYPE:170mA, Max.250mA
Operating Temperature: -10~+60 oC
Storing Temperature: -30~+85 oC
Operating humidity: 85%RH
POWER ON time: 2S Max.
Latency : 180mS Max.
Resolution : 1080P
Video Codec: MPEG4
Modulation: FSK/GFSK
