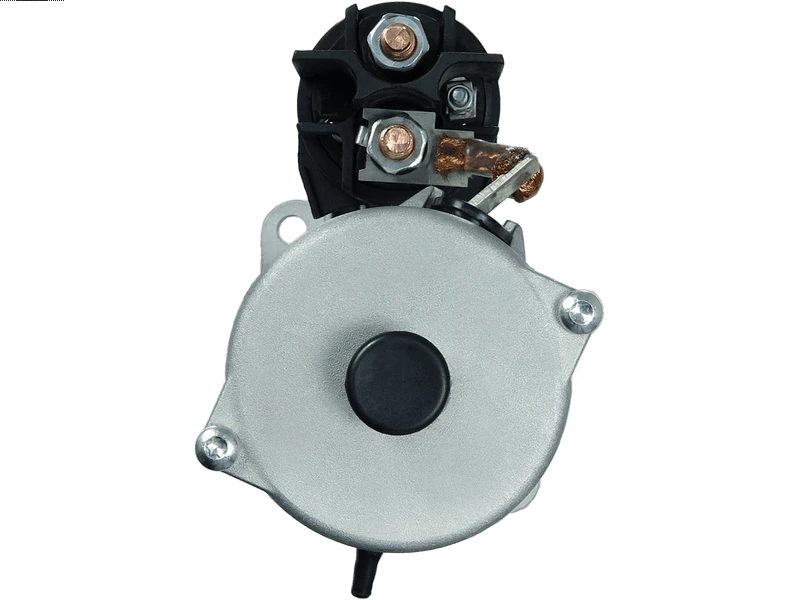

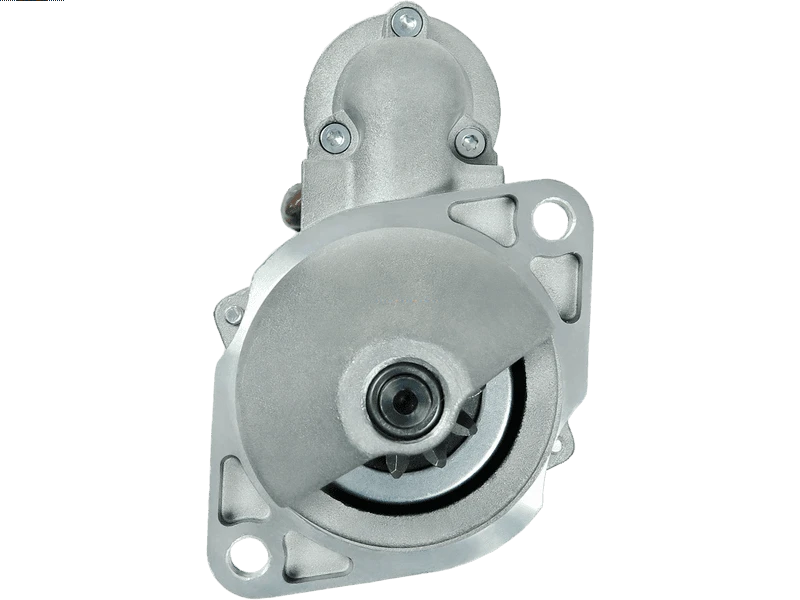

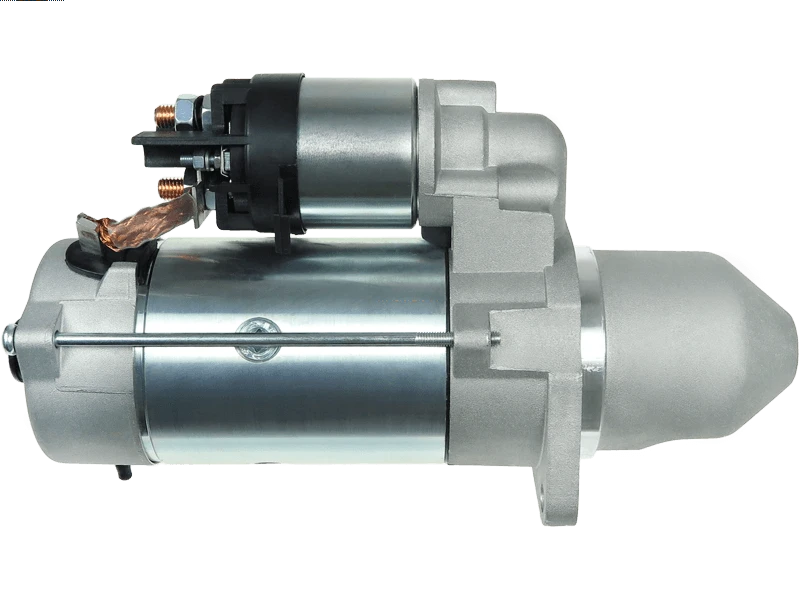

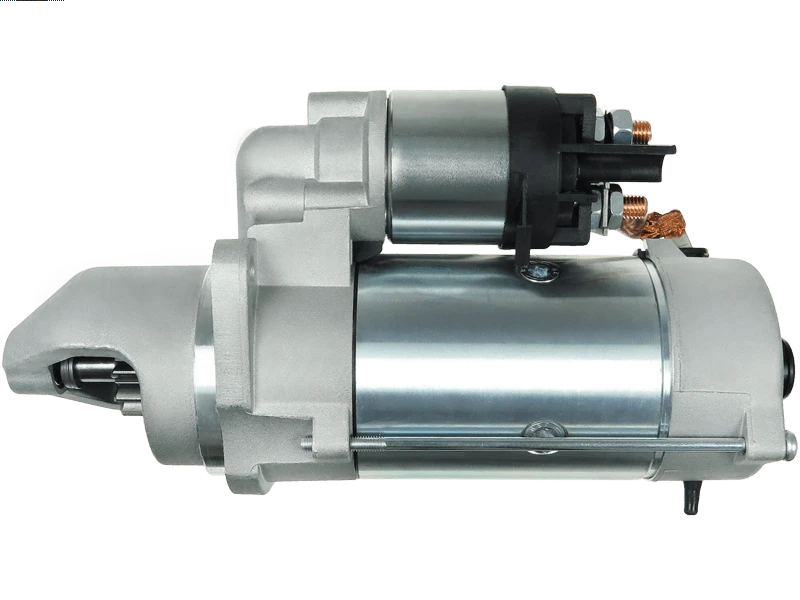

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 638.71 including GST
NZ$ 555.40 excluding GST
or four payments of $159.68
with
Learn More
each
S0286
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001260001Associated Numbers
0001260001 0001260004 20401725BN 20401725OE 25-4210 254821 254821B 6010527 CST10527AS CST10527GS EAA-121534 LRS02538 RE526375 RE527400 S0286 STR50571701309 snb160
S0286 ASPLList
0001260001 BOSCHList
0001260004 BOSCHList
CST10527AS CASCO
CST10527GS CASCO
EAA121534 EAA
254210 ELSTOCK
RE526375 JOHN DEERE
RE527400 JOHN DEERE
LRS02538 LUCAS
20401725BN REAL
20401725OE REAL
6010527 SANDO
STR50571 WOODAUTO
Bosch 0001260001
References:
Arrowhead SBO0293
JANNCO 41024097R
Bosch 0001260001, 0001260004
John Deere RE526375, RE527400
Lester 19825
PIC Picture ID 1206521
0001260001 Bosch
0001260004 Bosch
01260001 Andre Niermann
11090216 EuroTec
1206521 PIC
19825 Lester
19825N WAI
19825R WAI
254210 Elstock
630517112 PSH
910719 EDR
DRS0719 Remy
LRS02538 Lucas
RE526375 John Deere
RE527400 John Deere
SE501868 John Deere
STR1431sa Electrolog
Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 325 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 4630 6.8 | [6068] | 01.2009-12.2018 |
| JOHN DEERE | 6090MC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6090RC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6095MC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6095RC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6100MC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6100RC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6105M 4.5 | [4045] | 01.2013-12.2015 |
| JOHN DEERE | 6105MC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6105R 4.5 | [4045] | 01.2012-12.2016 |
| JOHN DEERE | 6105RC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6110M 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6110MC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6110R 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6110RC 4.5 | [4045] | 01.2013-12.2018 |
| JOHN DEERE | 6115J 4.5 | [4045] | 01.2015-12.2018 |
| JOHN DEERE | 6115M 4.5 | [4045] | 01.2013-12.2015 |
| JOHN DEERE | 6115MC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6115R 4.5 | [4045] | 01.2012-12.2016 |
| JOHN DEERE | 6115RC 4.5 | [4045] | 01.2016-12.2018 |
| JOHN DEERE | 6120M 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6120R 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6125E 4.5 | [4045] | 01.2010-12.2016 |
| JOHN DEERE | 6125M 4.5 | [4045] | 01.2013-12.2015 |
| JOHN DEERE | 6125R 4.5 | [4045] | 01.2012-12.2016 |
| JOHN DEERE | 6130 4.5 | [4045] | 01.2011-12.2018 |
| JOHN DEERE | 6130 4.5 | [4045T] | 01.2007- |
| JOHN DEERE | 6130M 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6130R 4.5 | [4045] | 01.2012-12.2022 |
| JOHN DEERE | 6135J 6.8 | [6068] | 01.2017-12.2018 |
| JOHN DEERE | 6135M 4.5 | [4045] | 01.2016-12.2020 |
| JOHN DEERE | 6135R 4.5 | [4045] | 01.2015-12.2020 |
| JOHN DEERE | 6140M 4.5 | [4045] | 01.2013-12.2015 |
| JOHN DEERE | 6140R 6.8 | [6068] | 01.2012-12.2016 |
| JOHN DEERE | 6145M 4.5 | [4045] | 01.2015-12.2022 |
| JOHN DEERE | 6145R 6.8 | [6068] | 01.2015-12.2022 |
| JOHN DEERE | 6150J 6.8 | [6068] | 01.2017-12.2018 |
| JOHN DEERE | 6150M 6.8 | [6068] | 01.2013-12.2015 |
| JOHN DEERE | 6150R 6.8 | [6068] | 01.2012-12.2016 |
| JOHN DEERE | 6150RH 6.8 | [6068] | 01.2013-12.2018 |
| JOHN DEERE | 6155M 6.8 | [6068] | 01.2015-12.2022 |
| JOHN DEERE | 6155R 6.8 | [6068] | 01.2015-12.2022 |
| JOHN DEERE | 6155RH 6.8 | [6068] | 01.2013-12.2022 |
| JOHN DEERE | 6165J 6.8 | [6068] | 01.2010-12.2018 |
| JOHN DEERE | 6170J 6.8 | [6068] | 01.2017-12.2018 |
| JOHN DEERE | 6170M 6.8 | [6068] | 01.2013-12.2015 |
| JOHN DEERE | 6170R 6.8 | [6068] | 01.2011-12.2014 |
| JOHN DEERE | 6175M 6.8 | [6068] | 01.2015-12.2022 |
| JOHN DEERE | 6175R 6.8 | [6068] | 01.2014-12.2022 |
| JOHN DEERE | 6190J 6.8 | [6068] | 01.2017-12.2018 |
| JOHN DEERE | 6190R 6.8 | [6068] | 01.2011-12.2014 |
| JOHN DEERE | 6195M 6.8 | [6068] | 01.2015-12.2022 |
| JOHN DEERE | 6195R 6.8 | [6068] | 01.2014-12.2022 |
| JOHN DEERE | 6205J 6.8 | [6068] | 01.2016-12.2018 |
| JOHN DEERE | 6210J 6.8 | [6068] | 01.2017-12.2018 |
| JOHN DEERE | 6210R 6.8 | [6068] | 01.2011-12.2014 |
| JOHN DEERE | 6215 4.5 | [4045] | 01.2003-12.2007 |
| JOHN DEERE | 6215R 6.8 | [6068] | 01.2014-12.2021 |
| JOHN DEERE | 6225 4.5 | [4045] | 01.2011-12.2018 |
| JOHN DEERE | 6230 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6230 4.5 | [4045T] | 01.2007- |
| JOHN DEERE | 6230 Premium 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6230R 6.8 | [6068] | 01.2016-12.2022 |
| JOHN DEERE | 6250R 6.8 | [6068] | 01.2016-12.2022 |
| JOHN DEERE | 6325 4.5 | [4045] | 01.2011-12.2018 |
| JOHN DEERE | 6330 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6330 4.5 | [4045T] | 01.2007- |
| JOHN DEERE | 6330 Premium 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6425 4.5 | [4045] | 01.2011-12.2018 |
| JOHN DEERE | 6430 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6430 4.5 | [4045T] | 01.2007- |
| JOHN DEERE | 6430 Premium 4.5 | [4045] | 01.2007-12.2012 |
| JOHN DEERE | 6515 6.8 | [6068] | 01.2003-12.2010 |
| JOHN DEERE | 6520 6.8 | [6068] | 01.2001-12.2006 |
| JOHN DEERE | 6520 Premium 6.8 | [6068] | 01.2001-12.2006 |
| JOHN DEERE | 6525 6.8 | [6068] | 01.2011-12.2018 |
| JOHN DEERE | 6530 6.8 | [6068] | 01.2006-12.2008 |
| JOHN DEERE | 6530 6.8 | [6068T] | 01.2007- |
| JOHN DEERE | 6530 Premium 6.8 | [6068] | 01.2006-12.2009 |
| JOHN DEERE | 6534 4.5 | [4045] | 01.2009-12.2011 |
| JOHN DEERE | 6534 Premium 4.5 | [4045] | 01.2009-12.2011 |
| JOHN DEERE | 6605 6.8 | [6068] | 01.1998-12.2002 |
| JOHN DEERE | 6615 6.8 | [6068] | 01.2003-12.2010 |
| JOHN DEERE | 6620 6.8 | [6068] | 01.2001-12.2006 |
| JOHN DEERE | 6630 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 6630 6.8 | [6068T] | 01.2007- |
| JOHN DEERE | 6630 Premium 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 6715 6.8 | [6068] | 01.2003-12.2007 |
| JOHN DEERE | 6820 6.8 | [6068] | 01.2002-12.2008 |
| JOHN DEERE | 6830 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 6830 6.8 | [6068T] | 01.2007- |
| JOHN DEERE | 6830 Premium 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 6910S 6.8 | [6068] | 01.2000-12.2002 |
| JOHN DEERE | 6920 6.8 | [6068] | 01.2002-12.2008 |
| JOHN DEERE | 6920S 6.8 | [6068] | 01.2002-12.2008 |
| JOHN DEERE | 6930 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 6930 6.8 | [6068T] | 01.2007- |
| JOHN DEERE | 6930 Premium 6.8 | [6068] | 01.2006-12.2011 |
| JOHN DEERE | 7130 6.8 | [6068] | 01.2007-12.2017 |
| JOHN DEERE | 7130 Premium 6.8 | [6068] | 01.2007-12.2017 |
| JOHN DEERE | 7220 6.8 | [6068] | 01.2003-12.2007 |
| JOHN DEERE | 7230 6.8 | [6068] | 01.2007-12.2017 |
| JOHN DEERE | 7230 Premium 6.8 | [6068] | 01.2007-12.2011 |
| JOHN DEERE | 7320 6.8 | [6068] | 01.2003-12.2007 |
| JOHN DEERE | 7330 6.8 | [6068] | 01.2007-12.2017 |
| JOHN DEERE | 7330 Premium 6.8 | [6068] | 01.2007-12.2011 |
| JOHN DEERE | 7420 6.8 | [6068] | 01.2003-12.2007 |
| JOHN DEERE | 7430 6.8 | [6068T] | 01.2006- |
| JOHN DEERE | 7430 Premium 6.8 | [6068] | 01.2007-12.2011 |
| JOHN DEERE | 7520 6.8 | [6068] | 01.2003-12.2007 |
| JOHN DEERE | 7530 6.8 | [6068T] | 01.2006- |
| JOHN DEERE | 7530 Premium 6.8 | [6068] | 01.2007-12.2011 |
| JOHN DEERE | R4023 4.5 | [4045] | 01.2015-12.2018 |
| JOHN DEERE | R4023 6.8 | [6068] | 01.2015-12.2018 |
| JOHN DEERE | R4040i 6.8 | [6068] | 01.2014-12.2018 |
| JOHN DEERE | R4050i 6.8 | [6068] | 01.2017-12.2018 |
Reference Information
19825N S100700 AC-CBS5611 LRS2538 686015112 10010527AV 330961 8098 11139179 S12BH0955 ST01716 CST10527AS MS894 SBO527A RE526375 114275 STR50571 25-4210 11090216 STR79599 25-4210CT 72483376 TT16820 0001260032 254821B WG2045436 WOOSTR50571 RE503226 630.517.112.280 3123629 SE501868 3123628 10439534 SBO527 AZF4453 STRL699 0001260001 IS9480 CST10527GS RE504807 CMA-621534 91-15-7317 10010527OV DRS0719 0001260004 630.517.112.210 5010996G 630.517.112.010 S105179 254821S 254821 0986025790 RE527400 LRS02538 ANM12939 F032114275 6010527.1 107165 S101604 RE542532 6010527.0 20401725OE 1986S10041 88214490 S101365 120-20170NOE LES0340 S0286 20401725BNVideo/Publications
