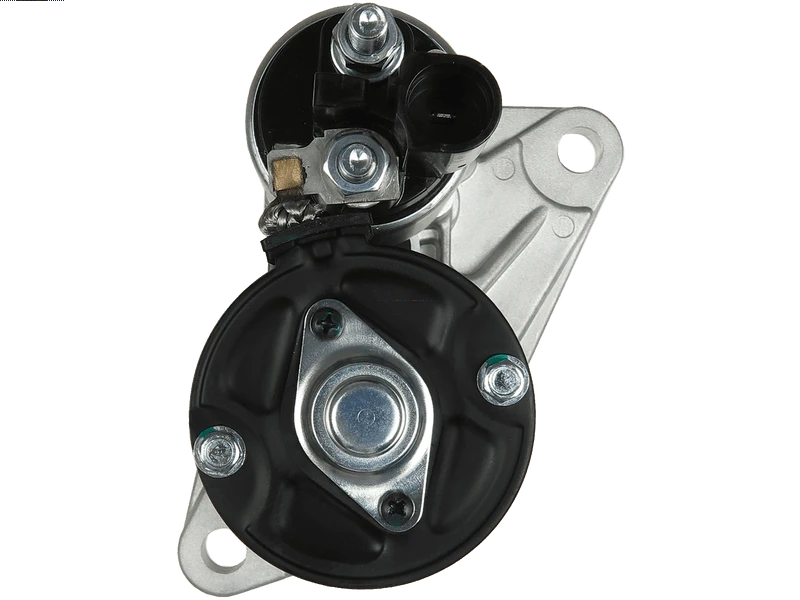

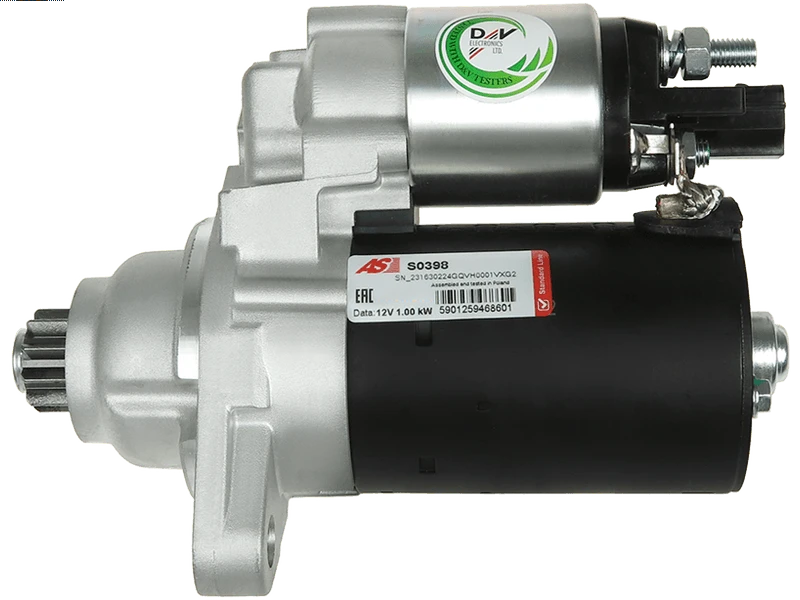

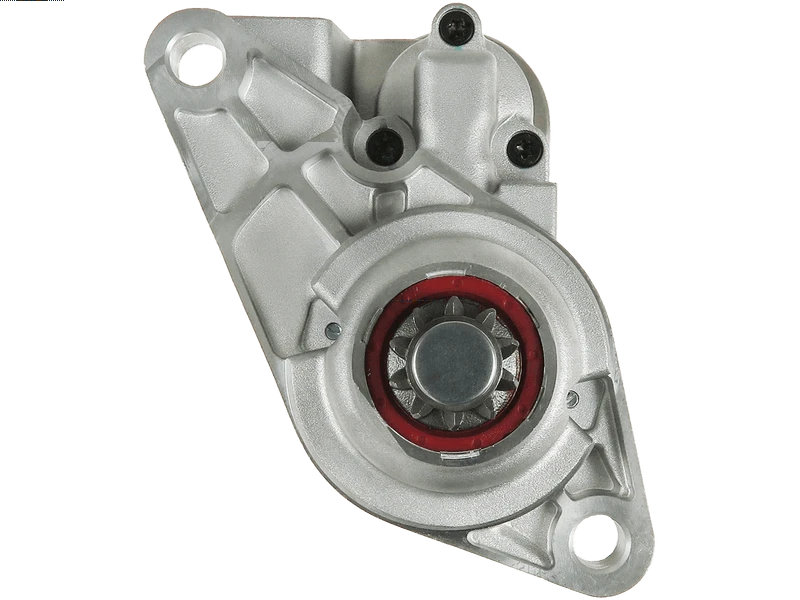

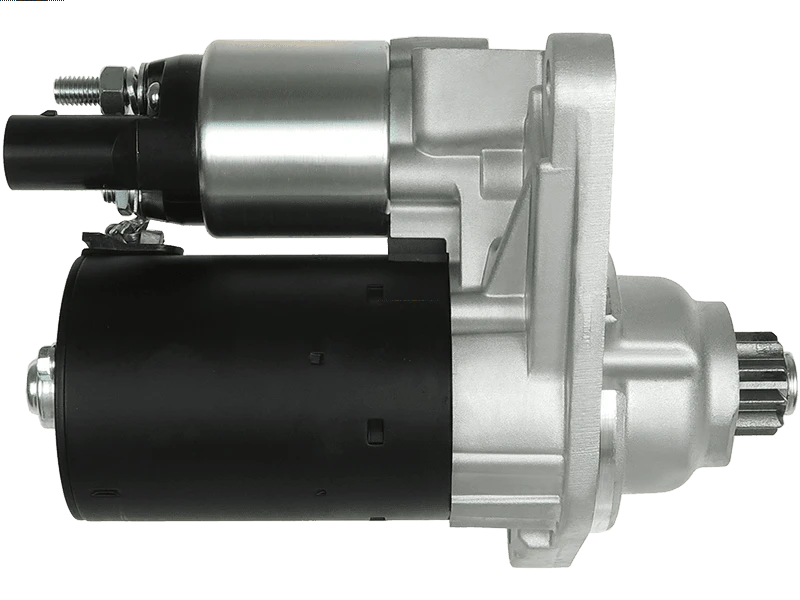

S0398 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0398
Price: 222.67 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 222.67 including GST

NZ$ 193.63 excluding GST

or four payments of $55.67 with
Learn More

UOM:

each

Alternative Item:

S0671S

Product Code:

S0398

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001120406 0001120407 0001121433 0001121434 02T911023R 02T911023RX 02T911023S 02T911023SX 02T911024A 02T911024AX 02T911024B 02T911024BX 02T911024K 02T911024KX 02T911024N 02T911024NX 02Z911023C 063521204060 063721330010 0986020290 101330 101330B 101330V 114034 12066 20479942OE 220446 25-3221 300.561.102 3042 32675N 32675R 42020290 438172 458214 6010578 6015249 88213047 8EA012527-531 8EA738199-001 915101A 944280202900 9999984 AEU1330 CS1330 CST10578 CST10578AS CST10578ES CST10578GS CST10578OS CST10578RS CST15249GS D6GS12 D6GS12M DRT0290 DRT0290N EAA-121291 LRS01675 M1202E M1203E NEU1330 S0398 SG0008 STB1330 STQ1330 STR50263 STV1330 STV7330 TS10E26 UD14877S VAL438172 ASPLList ASPL AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO EAA121291 EAA EAI 253221 ELSTOCK ERA GHIBAUDI HC PARTS 8EA012527531 HELLA 8EA738199001 HERTH+BUSS KRAUF LUCAS MAGNETI MARELLI MAGNETON POWERMAX PRESTOLITE PSH REAL SANDO VALEOList VW WAI / TRANSPO WOODAUTO S3044 CST15249 EAA121312 8020290 FRIESEN 22.1330 LAUBER RNLD6GS12 RNL SS165 SOVEREIGN SS165OE VALD6GS12M STB1330BA STV1330ZL 915111C snb047 701048 Bosch 02T911024C ruil 11020290 EuroTec Cargo 120458 PIC 202150 Valeo Elstock 300561102 32675 Lester 442010 458365 4783SP Spidan 726085 8020290F Friesen Magneton 920290 EDR 920290N A20290 ATL Remy DSN3006 Denso F042200033 F042S0H080 HCS1330 Lucas OSM11350 Optimum STM1036 Rolling Components STR00086sa Electrolog STR1233sa STR1414sa STRH080 Unipoint 0001121016 Volkswagen Substitutes: References: Arrowhead V438172 Delco Paris Rhone 191429 70-1048

Kilowatt	1 kW
Length (L.1)	200 mm
Mount Hole Center - Center (O.1)	150 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	9. 10 qty
OEM Product	No
Pinion at Rest (B)	53 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 1.2 TFSi	[CBZA]	01.2010-12.2015
AUDI	A1 1.2 TFSi Sportback	[CBZA]	01.2012-
AUDI	A3 1.6 FSi	[BAG]	01.2003-12.2007
AUDI	A3 1.6 FSi	[BLF]	01.2003-12.2007
AUDI	A3 1.6 FSi	[BLP]	01.2003-12.2007
AUDI	A3 2.0 FSi	[BMB]	01.2004-
SEAT	Altea 1.4	[BXW]	01.2006-
SEAT	Cordoba 1.2	[BME]	01.2004-12.2006
SEAT	Cordoba 1.2	[BXN]	01.2006-12.2009
SEAT	Cordoba 1.2	[BXV]	01.2006-12.2009
SEAT	Cordoba 1.4	[BBZ]	01.2004-12.2008
SEAT	Cordoba 1.4	[BXW]	01.2006-
SEAT	Cordoba 1.6	[BAH]	01.2004-
SEAT	Cordoba 1.6	[BTS]	01.2006-
SEAT	Ibiza 1.2	[BBM]	01.2004-12.2008
SEAT	Ibiza 1.2	[BME]	01.2004-12.2008
SEAT	Ibiza 1.2	[BXV]	01.2004-12.2008
SEAT	Ibiza 1.2	[BZG]	01.2008-
SEAT	Ibiza 1.2	[CGPA]	01.2009-
SEAT	Ibiza 1.2	[CGPA]	05.2010-
SEAT	Ibiza 1.2	[CGPB]	01.2009-
SEAT	Ibiza 1.2 TSi	[CBZA]	01.2012-
SEAT	Ibiza 1.2 TSi	[CBZB]	01.2010-
SEAT	Ibiza 1.2 TSi	[CBZB]	01.2012-
SEAT	Ibiza 1.2 TSi	[CBZB]	09.2010-
SEAT	Ibiza 1.2 TSI	[CBZA]	08.2012-
SEAT	Ibiza 1.2 TSI	[CBZA]	09.2012-
SEAT	Ibiza 1.4	[AUB]	01.2004-12.2009
SEAT	Ibiza 1.4	[BBZ]	01.2004-12.2009
SEAT	Ibiza 1.4	[BKY]	01.2004-12.2007
SEAT	Ibiza 1.4	[BXW]	01.2006-12.2009
SEAT	Ibiza 1.4	[BXW]	01.2010-
SEAT	Ibiza 1.4	[BXW]	03.2008-
SEAT	Ibiza 1.4	[BXW]	07.2008-
SEAT	Ibiza 1.4	[CGGB]	03.2008-
SEAT	Ibiza 1.4	[CGGB]	03.2010-
SEAT	Ibiza 1.4	[CGGB]	07.2008-
SEAT	Ibiza 1.4 ST	[CGGB]	01.2010-
SEAT	Ibiza 1.6	[BAH]	01.2004-
SEAT	Ibiza 1.6	[BTS]	01.2004-
SEAT	Ibiza 1.6	[BTS]	01.2008-
SEAT	Ibiza 1.6	[BTS]	05.2008-
SEAT	Ibiza 1.6	[CNKA]	01.2011-
SEAT	Ibiza 1.6 LPG	[CNKA]	05.2011-
SEAT	Ibiza 1.6 Sportscoupe	[BTS]	07.2008-
SEAT	Leon 1.4	[BXW]	01.2006-
SEAT	Toledo 1.2	[CGPC]	01.2012-
SEAT	Toledo 1.2	[CGPC]	07.2012-
SEAT	Toledo 1.2 TSi	[CBZA]	01.2012-
SEAT	Toledo 1.2 TSi	[CBZB]	01.2012-
SEAT	Toledo 1.2 TSI	[CBZA]	07.2012-
SEAT	Toledo 1.2 TSI	[CBZB]	07.2012-
SEAT	Toledo 1.4 16V	[BXW]	01.2006-12.2009
SEAT	Toledo 1.6	[CFNA]	01.2013-12.2015
SEAT	Toledo 1.6	[CFNA]	07.2013-
SKODA	Fabia 1.2	[BBM]	01.2006-
SKODA	Fabia 1.2	[BMD]	01.2004-12.2007
SKODA	Fabia 1.2	[BME]	01.2004-12.2007
SKODA	Fabia 1.2	[BZG]	01.2006-
SKODA	Fabia 1.2	[CEVA]	01.2006-
SKODA	Fabia 1.2	[CHFA]	01.2006-
SKODA	Fabia 1.2 16V	[CGPB]	11.2011-
SKODA	Fabia 1.2 TSi	[CBZA]	01.2010-
SKODA	Fabia 1.2 TSi	[CBZB]	01.2010-
SKODA	Fabia 1.4	[BXW]	03.2007-
SKODA	Fabia 1.4	[BXW]	06.2007-
SKODA	Fabia 1.4	[BXW]	10.2007-
SKODA	Fabia 1.4	[CGGB]	03.2007-
SKODA	Fabia 1.4	[CGGB]	06.2007-
SKODA	Fabia 1.4	[CGGB]	10.2007-
SKODA	Fabia 1.4 16V	[BKY]	01.2004-12.2007
SKODA	Fabia 1.4 16V	[BUD]	01.2006-
SKODA	Fabia 1.4 16V	[BXW]	01.2006-
SKODA	Fabia 1.6	[BTS]	01.2007-
SKODA	Octavia 1.4	[BCA]	01.2004-
SKODA	Octavia 1.4	[BCA]	05.2004-05.2006
SKODA	Octavia 1.6 FSi	[BLF]	01.2004-12.2008
SKODA	Praktik 1.2	[BZG]	01.2007-
SKODA	Praktik 1.2 TSi	[CBZA]	01.2010-
SKODA	Praktik 1.2 TSi	[CBZA]	03.2010-
SKODA	Praktik 1.4	[BXW]	01.2007-
SKODA	Rapid 1.2	[CGPC]	01.2012-
SKODA	Rapid 1.2	[CGPC]	10.2012-
SKODA	Rapid 1.2 TSi	[CBZA]	01.2012-
SKODA	Rapid 1.2 TSi	[CBZA]	10.2012-
SKODA	Rapid 1.2 TSi	[CBZB]	01.2012-
SKODA	Rapid 1.2 TSi	[CBZB]	10.2012-
SKODA	Rapid 1.6	[CFNA]	01.2012-
SKODA	Rapid 1.6	[CFNA]	07.2013-
SKODA	Rapid 1.6 TDi	[CAYC]	10.2012-
SKODA	Roomster 1.2	[BME]	01.2006-12.2007
SKODA	Roomster 1.2	[BZG]	01.2007-
SKODA	Roomster 1.2 TSi	[CBZA]	01.2010-
SKODA	Roomster 1.2 TSi	[CBZB]	01.2010-
SKODA	Roomster 1.2 TSi	[CBZB]	03.2010-
SKODA	Roomster 1.4	[BXW]	01.2006-
SKODA	Roomster 1.4	[BXW]	09.2006-
SKODA	Roomster 1.4	[CGGB]	09.2006-
SKODA	Roomster 1.6	[BTS]	01.2006-12.2010
SKODA	Roomster 1.6	[BTS]	09.2006-
SKODA	Roomster 1.6	[CFNA]	01.2010-12.2015
SKODA	Roomster 1.6	[CFNA]	09.2006-
VW	Bora 1.9 TDI 4-motion	[ARL]	01.2003-12.2005
VW	Bora 2.8 V6 4-Motion	[BDE]	01.2003-12.2005
VW	Golf Plus 1.4	[BCA]	01.2005-
VW	Golf Plus 1.4	[BUD]	01.2005-
VW	Golf Plus 1.4	[CGGA]	01.2005-
VW	Golf Plus 1.4 FSi	[BLN]	01.2005-
VW	Golf Plus 1.6 FSi	[BLF]	01.2005-12.2009
VW	Golf V 1.4	[BCA]	01.2003-
VW	Golf V 1.4	[BUD]	01.2006-
VW	Golf V 1.4 FSi	[BKG]	01.2003-12.2006
VW	Golf V 1.4 FSi	[BLN]	01.2003-12.2006
VW	Golf V 1.6 FSi	[BAG]	01.2003-12.2004
VW	Golf V 1.6 FSi	[BLF]	01.2005-12.2008
VW	Golf V 1.6 FSi	[BLP]	01.2004-12.2005
VW	Golf VI 1.4	[CGGA]	01.2008-12.2012
VW	Jetta 1.6	[CFNA]	01.2011-
VW	Jetta 1.6	[CFNB]	01.2011-
VW	Jetta 1.6	[CLRA]	01.2011-
VW	Jetta 1.6 FSi	[BLF]	01.2005-
VW	Polo 1.2	[BBM]	01.2005-12.2009
VW	Polo 1.2	[BBM]	01.2007-12.2009
VW	Polo 1.2	[BMD]	01.2005-12.2009
VW	Polo 1.2	[BME]	01.2004-12.2005
VW	Polo 1.2	[BZG]	01.2007-12.2009
VW	Polo 1.2	[CGPA]	01.2009-
VW	Polo 1.2	[CGPB]	01.2009-
VW	Polo 1.2	[CHFA]	01.2009-
VW	Polo 1.2 TSi	[CBZB]	01.2009-
VW	Polo 1.2 TSi	[CBZB]	06.2009-
VW	Polo 1.2 TSi	[CBZC]	05.2011-
VW	Polo 1.4	[CGGB]	01.2009-
VW	Polo 1.4	[CGGB]	06.2009-
VW	Polo 1.4 16V	[BBZ]	01.2005-
VW	Polo 1.4 16V	[BKY]	01.2005-
VW	Polo 1.4 16V	[BKY]	01.2005-12.2007
VW	Polo 1.4 BiFuel	[CMAA]	01.2010-12.2011
VW	Polo 1.4 Flexfuel	[CMAA]	03.2010-01.2011
VW	Polo 1.4 FSi	[AXU]	01.2001-12.2006
VW	Polo 1.6	[BAH]	01.2005-
VW	Polo 1.6	[BTS]	01.2006-
VW	Polo 1.6	[CFNA]	01.2010-
VW	Polo 1.6	[CFNB]	01.2010-
VW	Polo 1.6	[CFNB]	11.2010-
VW	Polo 1.6 BiFuel	[CNKA]	01.2011-

V10-12-20290 02Z911023C CST15249AS EAA-121291 20479942BN RNLD6GS12 RE83554N 06-10179-SX 2T911023R 2T911024KX 2Z911023C 63721330010 02Z911023CX 2T911023S 066ST21 300.561.102.395 2T911023SX 260540-5070 8EA012527-531 S12BH0093A2 201051 STB1330 438172 8EA738199-001 TT15328 SVA249A 2T911023RX H5015125 LRS1675 1638120880 PRSS105 02T911024KX STR1233 SVA249 WG2196681 STA0295R 2T911024AX EAA-121312 02T911024N 02T911024K 11020290 3116866 3116865 3116864 S12VA0093 WG2012756 4720330 02T911024BX CMA-621291 300.561.102.019 D6GS12 8550505892 300.561.102.018 TS10E26 6015249 11722 2S0069 458214 2Z911023CX AU9027 SKSTR-0330068 300.561.102.010 02T911023S 02T911023R 10439827 3116871 220124 2T911024BX DSN3006 LRS01675 9999984 5015125R 3116873 3116872 10010578OV 02T911024C 02T911024B 02T911024A 02T911024AX 300.561.102.008 STX200112R 10015249AV STR1414 L02T911023S 300.561.102.000 WG2226363 AC-CBS1330 STR00086 BST2074 S-50263 5015125 3042 331455 MQS1330 CS1330 12570768 02T911023SX 114034 20479942OE M1203E 011-001-000427R S0398 101624 STM1036 S12VA0093A2 6015249.1 101330B ANM22510X WG2170227 02T911023RX 105282 UD14877S 311092102 DRT0290N 9.4428E+11 STX200112 0001120406 0001120407 EZ0029 0986020290 IR9689 300.561.102.506 MAV501100 M1202E 101330V 300.561.102.500 H5015125R 101330 AEU1330 BOL-G091206 VALD6GS12M 915101A 8020290 460442 QRS1409 25-3221 DRT0290 LES0530 10015249OV WG2013001 WG2013000 300.561.102.210 2T911024C F032114034 88213047 12066 A20290 2T911024A S513023 2T911024B 02T911024NX 220446 STRS105 32675N 2T911024N S12BH0093 ST01285 2T911024K 0001121433 1986S00895 CST15249GS SG0008 2T911024NX

S0398
