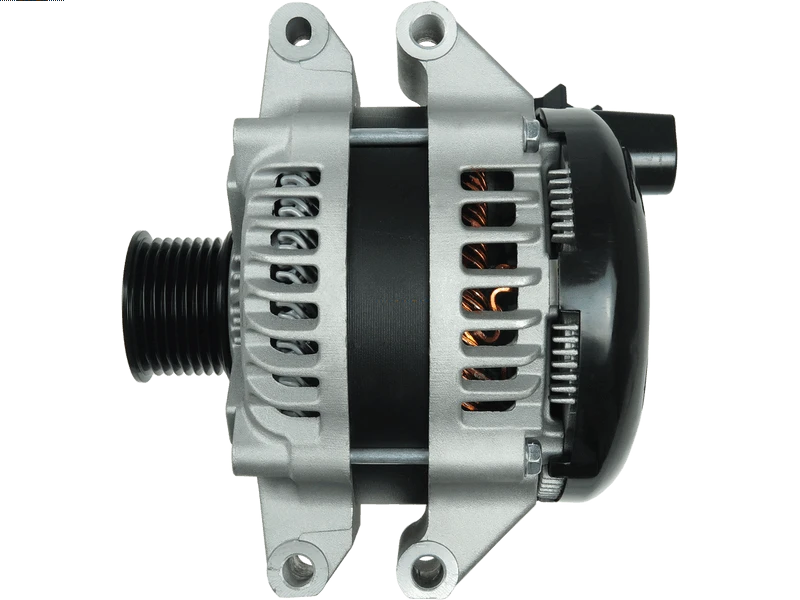

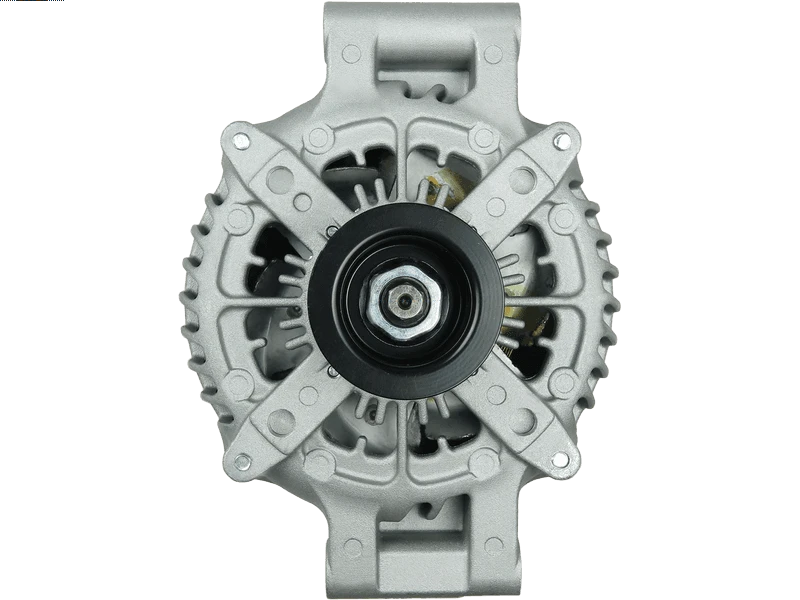

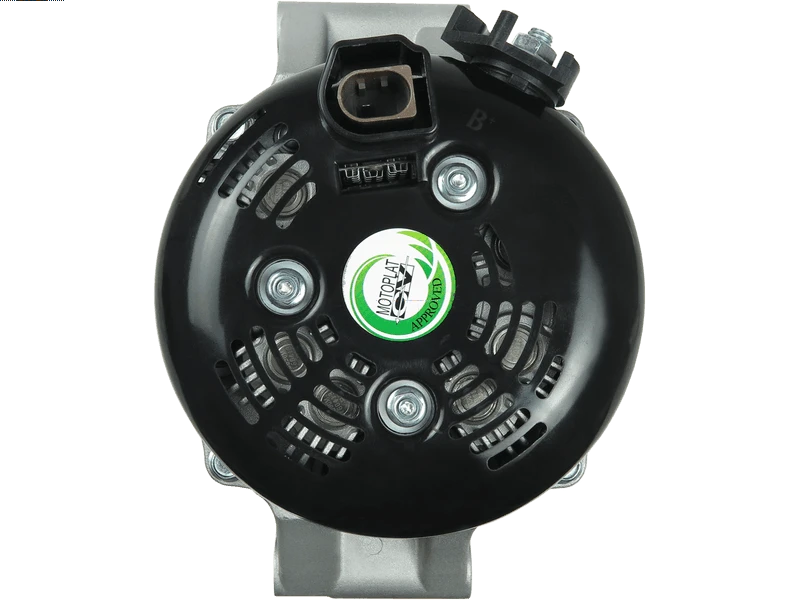

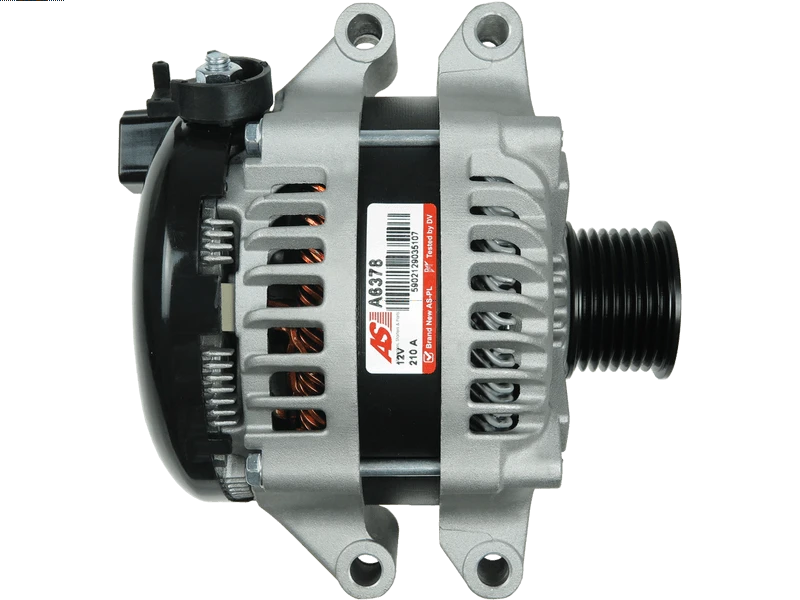

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 649.21 including GST
NZ$ 564.53 excluding GST
or four payments of $162.30
with
Learn More
each
AGV-C8217
A6378
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-6072Associated Numbers
UD12671A ASPL
AEK3667 AUTOELECTRO
12317591529 BMW
12317591530 BMW
7591529 BMW
7591530 BMW
CAL40455 CASCO
11135 DELCO
1042106070 DENSOList
1042106071 DENSOList
1042106072 DENSOList
A80610 DIXIE
286807 ELSTOCK
LRA03667 LUCAS
89215822 POWERMAX
215.572.210 PSH
2040455 SANDO
90295842 WILSON
J&N 40052508
BMW 12317591529, 12317591530, 7591529, 7591530
Denso 1042106070, 1042106071, 1042106072
Lester 11496
Lucas LRA03667
PIC Picture ID 2205559
1042106070 Denso
1042106070OR
1042106071 Denso
1042106072 Denso
1042106075 Denso
12090691 EuroTec
12317591529 BMW
12317591530 BMW
215572210 PSH
286807 Elstock
7591529 BMW
7591530 BMW
DAN1134 Denso
LRA03667 Lucas
S759152902
Specifications
| Amp | 210 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 10.5 mm |
| Diameter (D.4) | 10.5 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 42 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 62.5 mm |
| Pad mount thickness (E.2) | 62.5 mm |
| Pad mount thickness (E.3) | 62.5 mm |
| Pad mount thickness (E.4) | 62.5 mm |
| Plug Code | PL_2303 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 335 3.0 i | (F30)[N55B30A] | 10.2011- |
| BMW | 335 3.0 i | (F34)[N55B30A] | 03.2013- |
| BMW | 335 3.0 i | (F34)[N55B30A] | 03.2013-03.2014 |
| BMW | 335 3.0 i | (F80)[N55B30A] | 10.2011- |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 07.2013- |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 10.2011- |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 10.2011-07.2013 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 01.2012-07.2013 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 03.2013- |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 07.2013- |
| BMW | 335 3.0 i xDrive | (F34)[N55B30A] | 03.2013- |
| BMW | 335 3.0 i xDrive | (F34)[N55B30A] | 03.2013-03.2014 |
| BMW | 335 3.0 i xDrive | (F80)[N55B30A] | 07.2013- |
| BMW | 335 3.0 i xDrive | (F80)[N55B30A] | 10.2011- |
| BMW | 335 3.0 i xDrive | (F80)[N55B30A] | 10.2011-07.2013 |
| BMW | 435 3.0 i | (F32)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i | (F33)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i | (F33)[N55B30A] | 10.2013- |
| BMW | 435 3.0 i | (F34)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i | (F36)[N55B30A] | 03.2014- |
| BMW | 435 3.0 i | (F82)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i | (F83)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i | (F83)[N55B30A] | 10.2013- |
| BMW | 435 3.0 i xDrive | (F32)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i xDrive | (F33)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i xDrive | (F33)[N55B30A] | 07.2014- |
| BMW | 435 3.0 i xDrive | (F34)[N55B30A] | 03.2014- |
| BMW | 435 3.0 i xDrive | (F36)[N55B30A] | 07.2014- |
| BMW | 435 3.0 i xDrive | (F82)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i xDrive | (F83)[N55B30A] | 07.2013- |
| BMW | 435 3.0 i xDrive | (F83)[N55B30A] | 07.2014- |
| BMW | 535 3.0 i | (F07)[N55B30A] | 03.2014- |
| BMW | 535 3.0 i | (F10)[N55B30A] | 10.2009- |
| BMW | 535 3.0 i | (F10)[N55B30A] | 12.2009- |
| BMW | 535 3.0 i xDrive | (F07)[N55B30A] | 07.2014- |
| BMW | 535 3.0 i xDrive | (F10)[N55B30A] | 09.2010- |
| BMW | 535 3.0 i xDrive | (F11)[N55B30A] | 09.2011- |
| BMW | 640 3.0 i | (F06)[N55B30A] | 11.2010- |
| BMW | 640 3.0 i | (F12)[N55B30A] | 09.2011- |
| BMW | 640 3.0 i | (F13)[N55B30A] | 03.2011- |
| BMW | 640 3.0 i xDrive | (F06)[N55B30A] | 01.2013- |
| BMW | 640 3.0 i xDrive | (F12)[N55B30A] | 09.2011- |
| BMW | 640 3.0 i xDrive | (F13)[N55B30A] | 01.2013- |
| BMW | M 135 3.0 i | (F20)[N55B30A] | 03.2015- |
| BMW | M 135 3.0 i | (F20)[N55B30A] | 11.2011- |
| BMW | M 135 3.0 i | (F21)[N55B30A] | 03.2015- |
| BMW | M 135 3.0 i | (F21)[N55B30A] | 12.2011- |
| BMW | M 135 3.0 i xDrive | (F20)[N55B30A] | 02.2012- |
| BMW | M 135 3.0 i xDrive | (F20)[N55B30A] | 03.2015- |
| BMW | M 135 3.0 i xDrive | (F21)[N55B30A] | 02.2012- |
| BMW | M 135 3.0 i xDrive | (F21)[N55B30A] | 03.2015- |
| BMW | M 235 3.0 i | (F22)[N55B30A] | 10.2013- |
| BMW | M 235 3.0 i | (F23)[N55B30A] | 11.2014- |
| BMW | M 235 3.0 i | (F87)[N55B30A] | 10.2013- |
| BMW | M 235 3.0 i xDrive | (F22)[N55B30A] | 07.2014- |
| BMW | M 235 3.0 i xDrive | (F23)[N55B30A] | 07.2015- |
| BMW | M 235 3.0 i xDrive | (F87)[N55B30A] | 07.2014- |
| BMW | X3 35 3.0 i xDrive | (F25)[N55B30A] | 09.2011- |
| BMW | X5 35 3.0 i xDrive | (E70)[N55B30A] | 02.2012-06.2013 |
| BMW | X5 35 3.0 i xDrive | (E70)[N55B30A] | 09.2010-06.2013 |
| BMW | X6 35 3.0 i xDrive | (E71)[N54B30A] | 06.2007-03.2010 |
| BMW | X6 35 3.0 i xDrive | (E71)[N55B30A] | 06.2007-03.2010 |
| BMW | X6 35 3.0 i xDrive | (E72)[N54B30A] | 06.2007-03.2010 |
| BMW | X6 35 3.0 i xDrive | (E72)[N55B30A] | 06.2007-03.2010 |
Reference Information
89215822 CAL40455GS UD12671A 12317591530 LRA03667 STX110256 554842RIR CAL40455AS 2040455 CAL40455ES ALT6742 CAL40455OS 12317591529 90-29-5842 7591529 AEK3667 28-6807 CAL40455 LRA3667 215.572.210 STX110256R A6378 215.572.210.608 11135 A-80610 104210-6072 7591530 104210-6070 104210-6071 CAL40455RS 215.572.210.500Video/Publications
