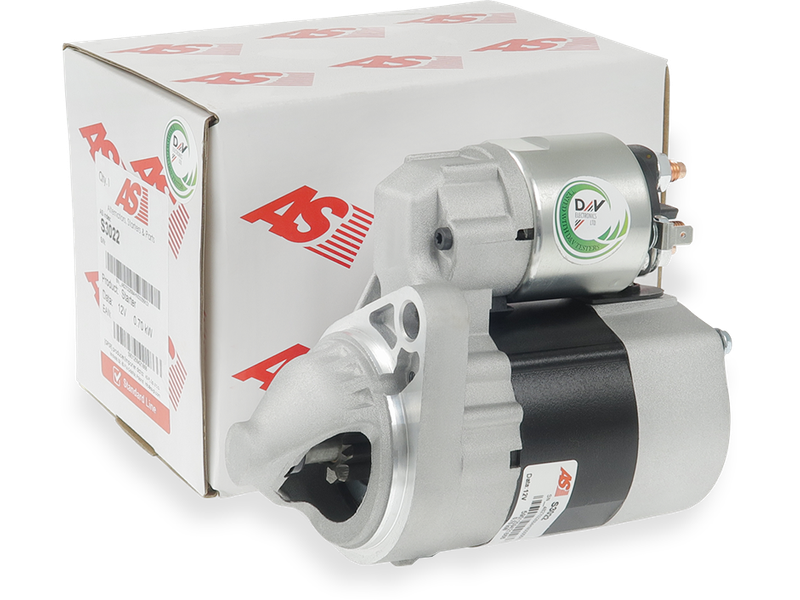

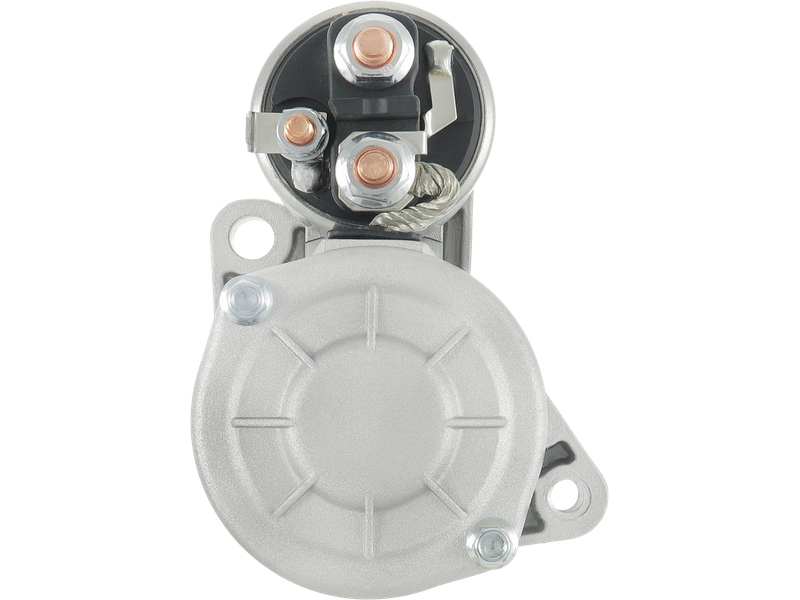

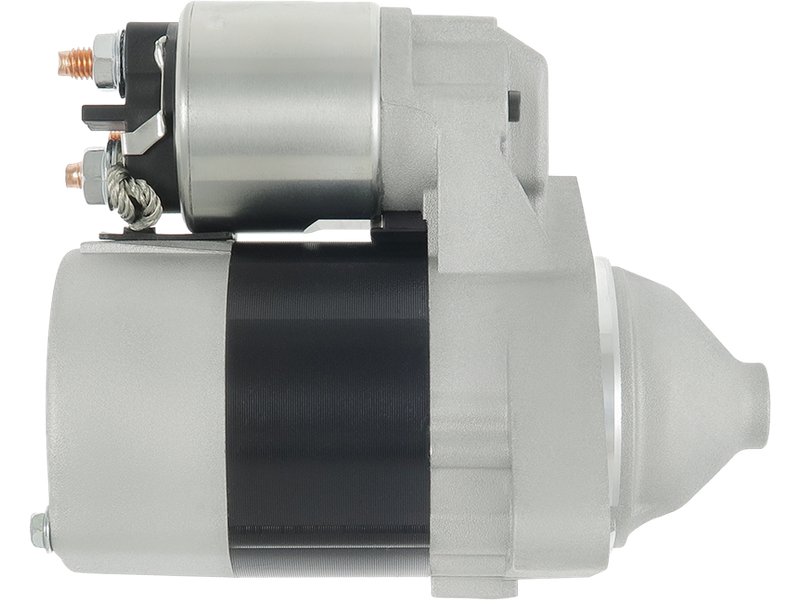

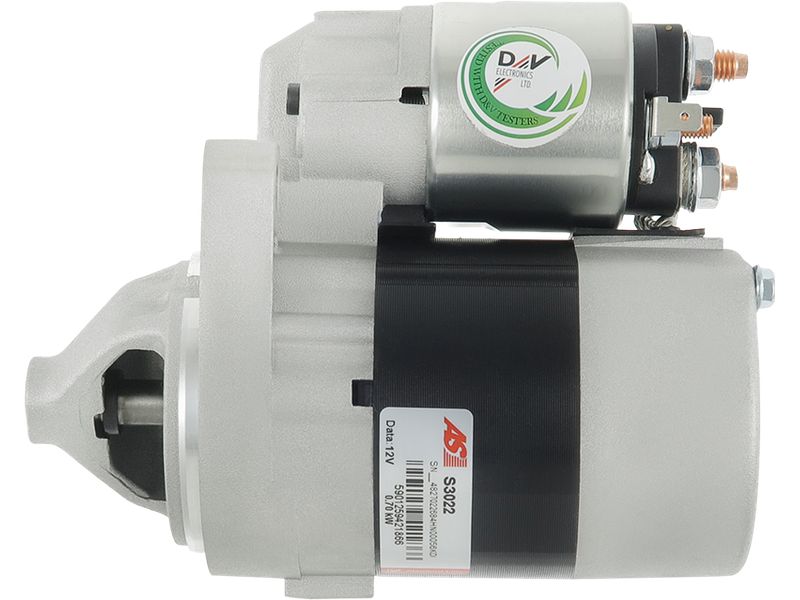

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 189.19 including GST
NZ$ 164.51 excluding GST
or four payments of $47.30
with
Learn More
each
SGM-C8010
S3022
2
Associated Numbers
0986016730 114199 11952 160.531.082 201016 201079 201307 201307V 20417011BN 20417011OE 220495 23300-1F770 23300-1F771 23300-1F772 23300-1F77A 23300-1F77B 23300-1F77C 25-2247 33080N 33080R 438136 455985 6045110 88213076 8EA011610-781 8EA738139-001 943213071010 943241027010 944280167300 9571 AET1307 CST45110 CST45110AS CST45110ES CST45110GS CST45110OS CST45110RS D7E30 D7E32 D7E40 D7E40B D7E42 DRS3945 DRS6730 DS5055 DS7840 EAA-121137 EAA-121347 GS438136-A J5211092 JS1307 LRS02080 M002T42881 M2T42881 MRS16730 MSR1027 MSRC1307 S3022 SS477 SS499 STV1307 TS8E3 AUTOELECTRO BOSCH CARGO CASCO CEVAM DELCO EAA121137 EAA EAA121347 EAI 252247 ELSTOCK ERA GS438136A GPARTS HC PARTS 8EA011610781 HELLA 8EA738139001 HERTH+BUSS KRAUF LUCAS MAGNETI MARELLI MITSUBISHIList 233001F770 NISSAN 233001F771 233001F772 233001F77A 233001F77B 233001F77C POWERMAX PSH REAL SANDO SOVEREIGN VALEO VALEOList WAI / TRANSPO Valeo TS8E5 Substitutes: 458170 References: Delco Nissan 23300AX000 23300AX001 23300AX002 23300AX00A 23300AX00B 23300AX00C Paris Rhone 190678 190779 191748 191750 192813 192815 7060161 snv018 0001107092 Bosch 0001112017 0001116008 11040182 EuroTec Cargo 120277 PIC 160531082 233001F7R1 2330041B70 2330099A10 233009W200 23300AX010 23300AX01A Elstock 33082 Lester 438156 4762SP Spidan 8016730F Friesen 913945 EDR A16730 ATL A77730 Remy F042S0H102 HJS1307 STR0019sa Electrolog STR1724SA STR5506sa STRH102 Unipoint S0239 ASPLList AES1225 0001107010 BOSCHList 0001107038 111821 CST45106AS DRS3478 11953 252082 8016730 FRIESEN GPS0239A JS1079 8EA737361001 22.1079 LAUBER LRT00125 233001F715 2330094851 2330099B15 2330099B16 6045106 STR50088 WOODAUTO ruil 160909082 233001F710 2330099B10 33079R 458463 916730 916730N Casco DRS6730N EF10376 EF10376N HJS1016 JS1016 LRS0208 Lucas OSM11153 Optimum RAS37841 STM591 Rolling Components TRS095 TWA 111866 160569082 2330041B71 253049 4492SP CST35285GS DRS0681 F042001147 F042S01147 LRS01555 M000T84585 Mitsubishi M0T84585 STR3596 mxs394 16371 16371VSpecifications
| Kilowatt | 0.7 kW |
| Length (L.1) | 167 mm |
| Mount Hole Center - Center (O.1) | 106.5 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Micra 1.0 16V | [CG10DE] | 01.2003-06.2010 |
| NISSAN | Micra 1.0 i 16V | [CG10DE] | 09.2000-02.2003 |
| NISSAN | Micra 1.2 16V | [CG12DE] | 01.2003-06.2010 |
| NISSAN | Micra 1.2 16V | [CR12DE] | 01.2003-06.2010 |
| NISSAN | Micra 1.2 LPG | [CR12DE] | 06.2005-06.2010 |
| NISSAN | Micra 1.4 16V | [CR14DE] | 08.2005- |
| NISSAN | Micra 1.4 i 16V | [CGA3DE] | 09.2000-02.2003 |
| NISSAN | Note 1.4 | [CR14DE] | 03.2006- |
Reference Information
88213076 SS477 0001112017 S12VA0132A2 MTD211 233001F772B 114199 MAV471100 M2T42881 6045110 455985 STA0225R STX200940 TS8E3 DRS6730 EAA-121347 MAV471060 STR0019 3D211 LRS2080 20417011RE DS5055 M0T84585AM 9.43213E+11 M002T42881 23300-AX000 2330099B10 160.531.082.009 220495 233001F715 160.531.082.008 PRSS743 SS499 RNLD7E32 160.531.082.000 20417011BN 233001F710 STX200107R S12VA0132 233009W200 2330099B16 6045110.4 6045110.1 23300-99A10 PRSL046 33080R 9.43241E+11 33080N 003-D211 MSR1027 0986016730 2330041B71 STX200940R 23300-AX00A GS438136-A 23300-AX002 23300-1F772B 8EA011610-781 160.531.082.505 EAA-121137 23300-94851 160.531.082.500 LRS02080 M0T84585 MSRC1307 S3022 DS7840 STX200107 23300-99B10 JS1307 23300-1F710 23300-1F7R1 8EA738139-001 9.4428E+11 AET1307 CST45110AS CGB-26730 11952 438136 23300AX010 D7E32 23300AX01A DRS3945 STRL046 D7E30 STX200966 20417011OE 23300AX000 STM591 D7E40B 201307V CST45110OS MRS16730 D7E42 201307 9571 335866 23300-1F772 23300-1F771 23300-1F770 23300AX002 STV1307 M000T84585 STRS743 D7E40 25-2247 ANM12901 B33001F77C 23300-1F77C 23300-1F77B CST45110GS 23300-1F77A 23300AX00A J5211092 23300AX00BVideo/Publications
