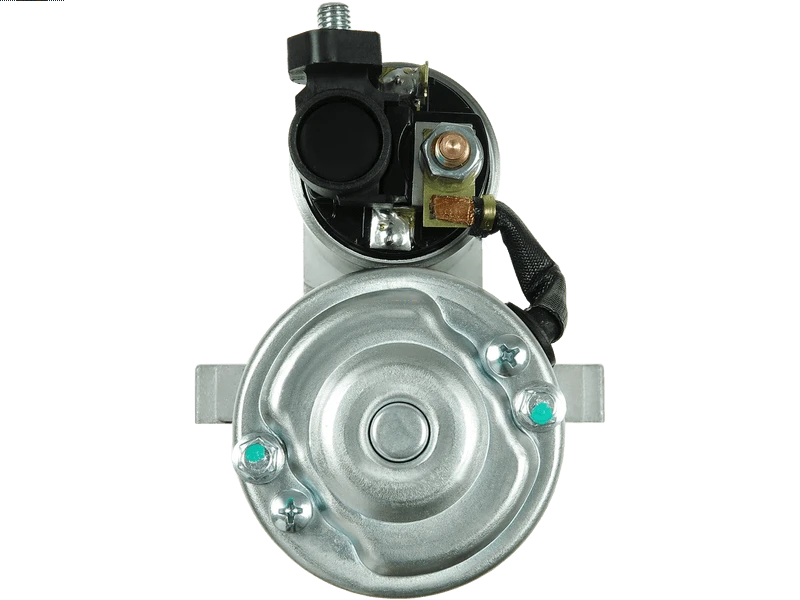

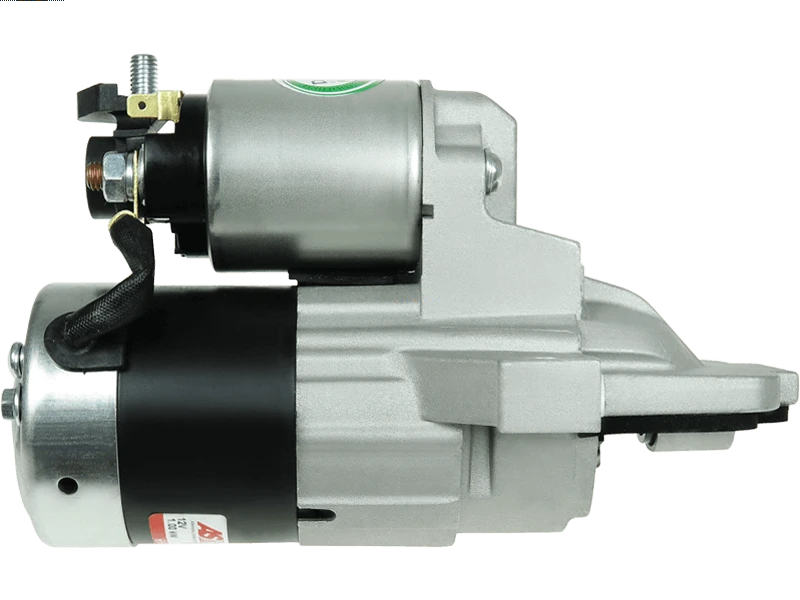

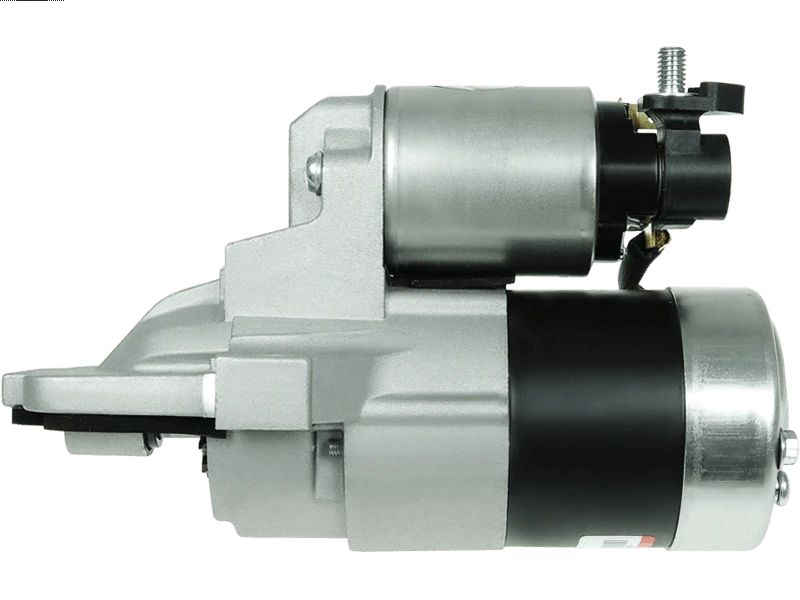

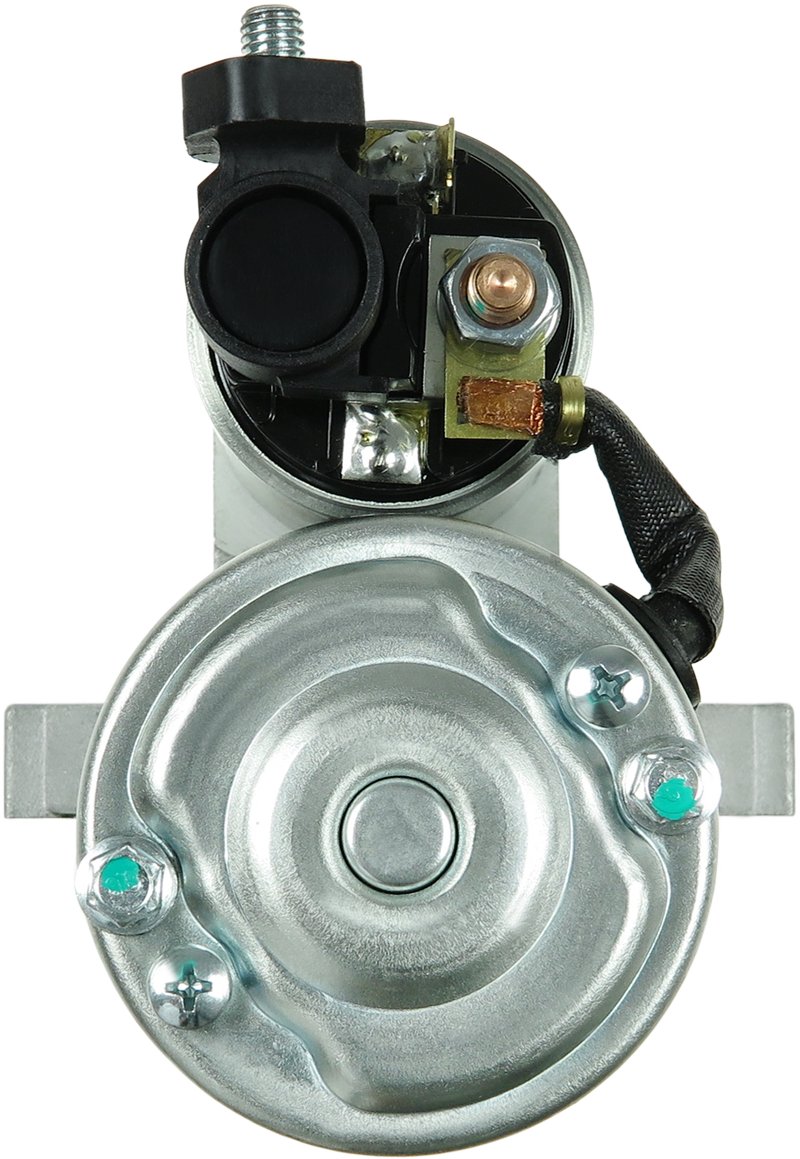

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 246.34 including GST
NZ$ 214.21 excluding GST
or four payments of $61.59
with
Learn More
each
S5401S.
S5259S
3
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
0986023610 113795 12187 130-00163 140.526.112 17909N 17909R 201317 220921 25-3268 6035108 88212507 8EA012528-141 8EA738258-321 91-27-3404 9652 AEY1713 CST35108 CST35108AS CST35108ES CST35108GS CST35108OS CST35108RS DRS0033 DRS0033N EAA-123181 J5213048 JS1317 L813-18-400 L813-18-400A L813-18-400RE LRS01713 M000T90981 M00T90981 M00T90981AM M0T90981 M0T90981AM MITM0T90981 RAS31144 STM1317 UD14236S UD14918S 706071 snj508 Bosch ruil 11040703 EuroTec EAI 140526112 PSH WAI 253268 Elstock 4787SP Spidan 738258321 Hella 8052348F Friesen 910033 EDR 910033N A78290 ATL AMS214 ATK Remy HJS1317 HC L81318400 Mazda Lucas Mitsubishi N5213053 Nipparts STM1042 Rolling Components STR5196sa Electrolog ASPL AUTOELECTRO BOSCH CARGO CASCO CEVAM DELCO EAA123181 EAA ELSTOCK ERA PARTS 8EA012528141 HELLA 8EA738258321 HERTH+BUSS KRAUF LUCAS MAZDA L81318400A L81318400RE MITSUBISHIList MITSUBISHI POWERMAX 13000163 ROBERT'S SANDO / TRANSPO 91273404 WILSON WOODAUTO SR4235X Denso 2804260 Light Duty 17471 Wilson References: Arrowhead SMT0253 Lester 17909 PIC Picture ID 1035053 J N 41048145 BSR4235X J& L81318400R00 mxs2005U 0986CN1518 0986UR1518 Cargo 324035112 DRI 458664 Valeo 944280523480 Magneti Marelli F0422000554HE Herth Buss LRS1713 show M000T90981AM MRS52348 SR4235N (USA) s5259S. S5362s. S5401s.Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 208 mm |
| Mount Hole Center - Center (O.1) | 98 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 83 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 3 2.0 | [LF17] | 02.2004- |
| MAZDA | 3 2.0 | [LF17] | 09.2003-06.2006 |
| MAZDA | 3 2.0 | [LF17] | 10.2003- |
| MAZDA | 3 2.0 | 01.2004- | |
| MAZDA | 3 2.0 i | 01.2005- | |
| MAZDA | 5 1.8 | [L823] | 03.2005- |
| MAZDA | 5 2.0 | [LFF7] | 03.2005- |
| MAZDA | 5 2.3 | [L3C1] | 01.2005-12.2010 |
| MAZDA | 6 1.8 | [L813] | 08.2002- |
| MAZDA | 6 2.0 | [LF17] | 08.2002- |
| MAZDA | 6 2.0 | [LF18] | 06.2002- |
| MAZDA | 6 2.0 | [LF18] | 08.2002- |
| MAZDA | 6 2.0 | [LFF7] | 03.2005- |
Alternatives >>>
S5362S - 1.4 Kw Version
Reference Information
CST35108ES STM1317 MITM0T90981 CST35108AS L813-18-400 L813-18-400A 17909R 201317 17909N M00T90981AM 336037 91-27-3404 J5213048 CST35108RS STX201032 M0T90981 MOT90981 CST35108 M0T90981AM 8EA012528-141 UD14918S MTM214 UD14236S LRS1713 6035108 L813-18-400RE 113795 003-M214 M000T90981 130-00163 AEY1713 S12MH0826A2 25-3268 RAS31144 STR5196 ANM12253X DRS0033 S5259S 140.526.112 0986023610 9652 M000T90981AM 220921 DRS0033N EAA-123181 12187 8EA738258-321 3M214 88212507 CST35108OS CST35108GS STRF057 LRS01713 M00T90981 JS1317Video/Publications
