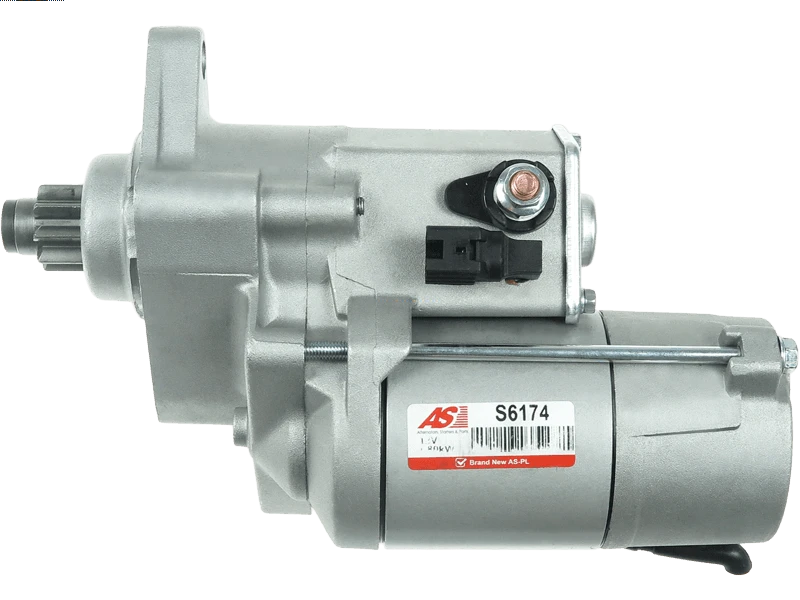

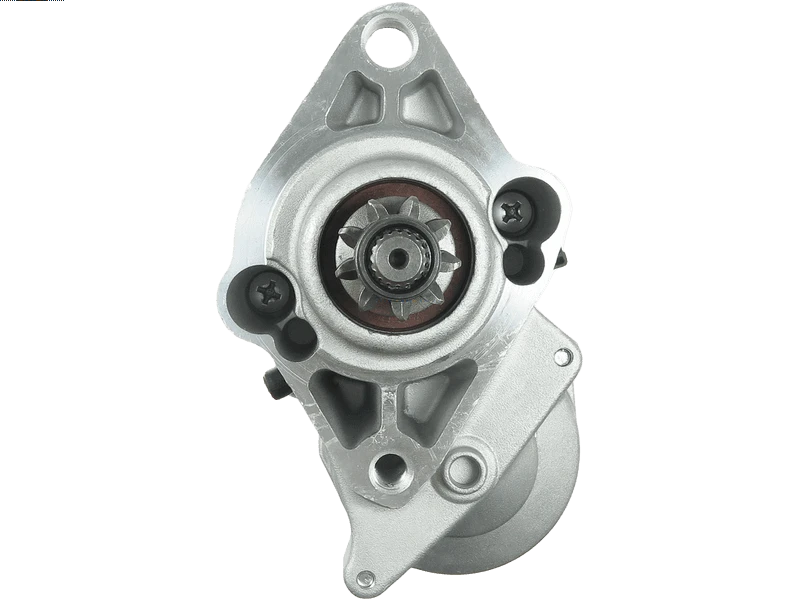

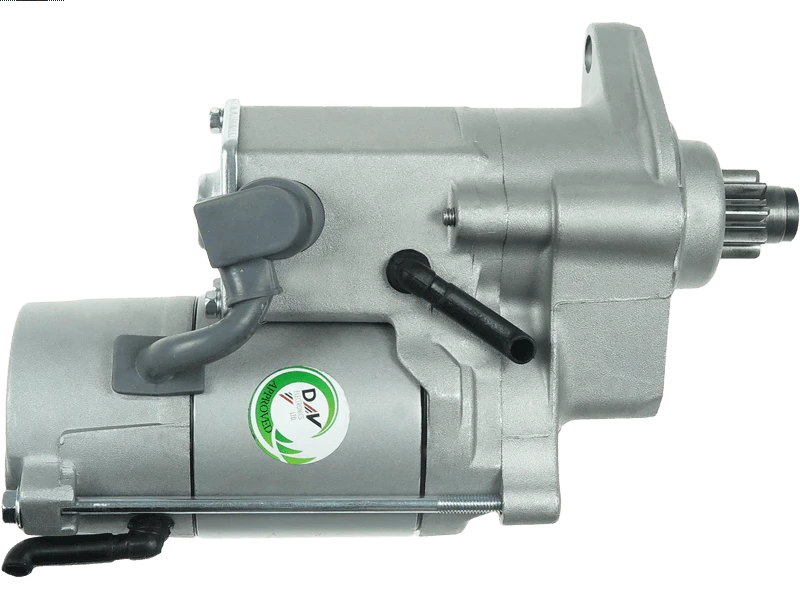

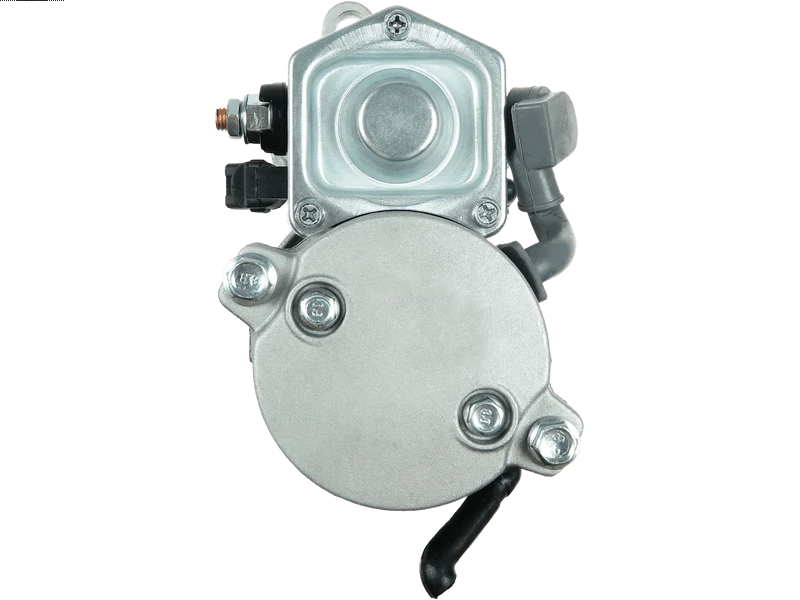

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 438.59 including GST
NZ$ 381.38 excluding GST
or four payments of $109.65
with
Learn More
each
S6174
2
Associated Numbers
17531 19019N 20432413BN 25-4282 254573 428000-1920 428000-1921 428000-1922 450.517.092 6040314 91-29-5693 AEY2609 CST40314 CST40314AS CST40314ES CST40314GS CST40314OS CST40314RS DRS0887 LR009298 LRS02609 NAD500160 NAD500160E NAD500310 S-80392 STR70279 UD11995S 16-651 16651 ASPL AUTOELECTRO CASCO DELCO 4280001920 DENSOList 4280001921 DENSO 4280001922 S80392 DIXIE 254282 ELSTOCK LUCAS PSH REAL ROVER SANDO WAI / TRANSPO 91295693 WILSON WOODAUTO 708834 11040861 EuroTec 115822 Cargo 19021R Elstock Denso 450517092 910887 EDR Remy Lucas Rover Group STM1264 Rolling Components STR6184sa Electrolog Light Duty Wilson References: Arrowhead SND0649 Beck Arnley 1871014 2800364 428000192 Lester 19019 LRS2609 PIC Picture ID 1906153 1906153A Youtech/PartRef 432851 J N 41052482 J&Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 252 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 62 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Discovery 4.4 V8 | [448PN] | 01.2004-12.2010 |
| LAND ROVER | LR3 4.4 | 01.2005-12.2009 | |
| LAND ROVER | Range Rover 4.0 | 01.2008- | |
| LAND ROVER | Range Rover 4.2 | 01.2006-12.2009 | |
| LAND ROVER | Range Rover 4.4 | 01.2006-12.2009 | |
| LAND ROVER | Range Rover 4.6 | 01.2007- | |
| LAND ROVER | Range Rover Sport 4.2 | 01.2006-12.2009 | |
| LAND ROVER | Range Rover Sport 4.4 4x4 | [448PN] | 01.2006-12.2009 |
Reference Information
NAD500160E S-80392 LR009298 CST40314OS 19019N 6040314 450.517.092 STX201099 STR6184 UD11995S 91-29-5693 NAD500160 20432413BN 17531 LRS02609 CST40314 CST40314RS LRS2609 STX201099R 115822 DRS0887 STR70279 AEY2609 CST40314AS 254573 NAD500310 25-4282 CST40314ES 428000-1921 428000-1922 CST40314GS 428000-1920Video/Publications
