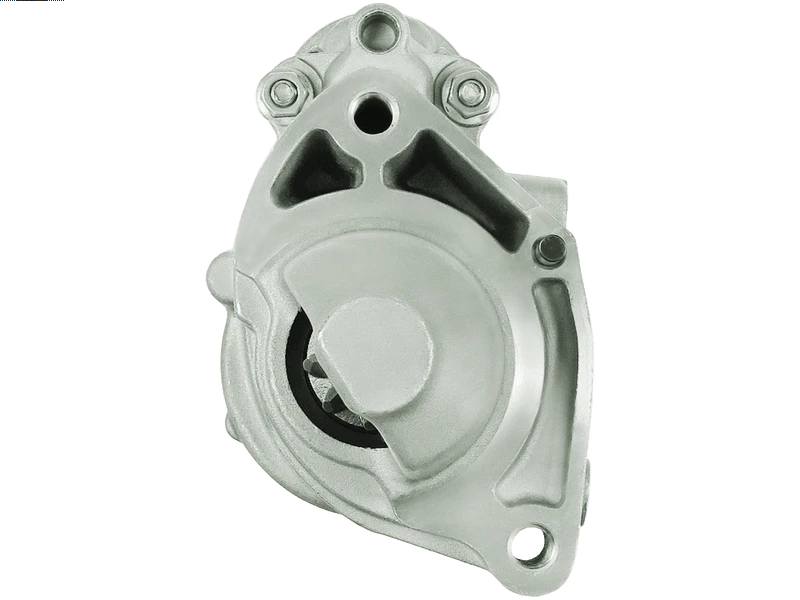

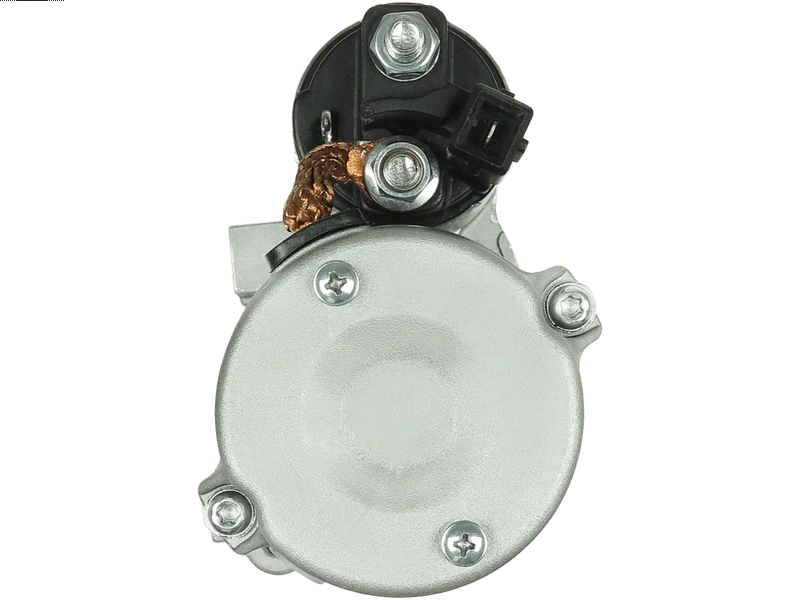

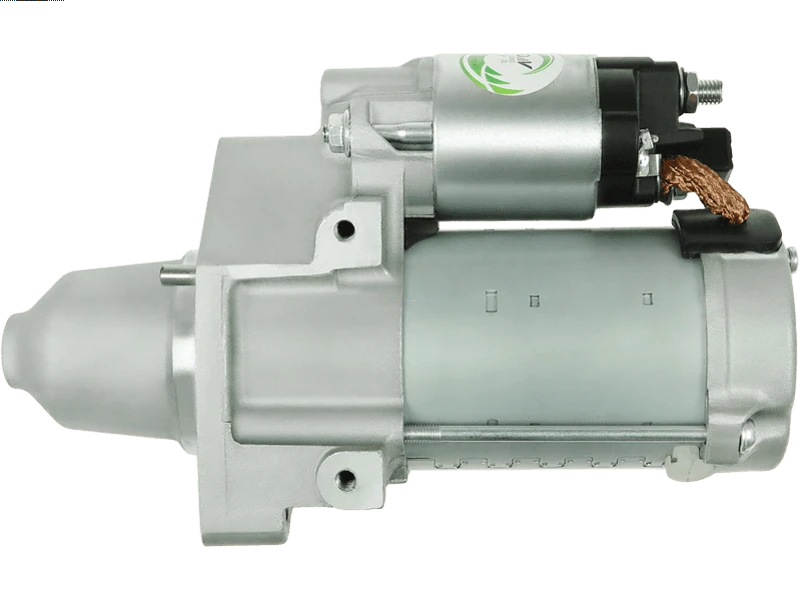

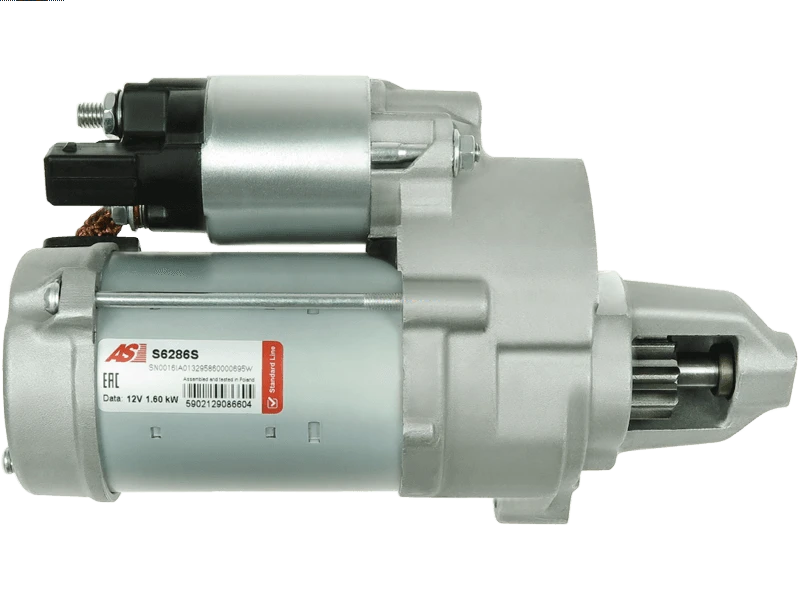

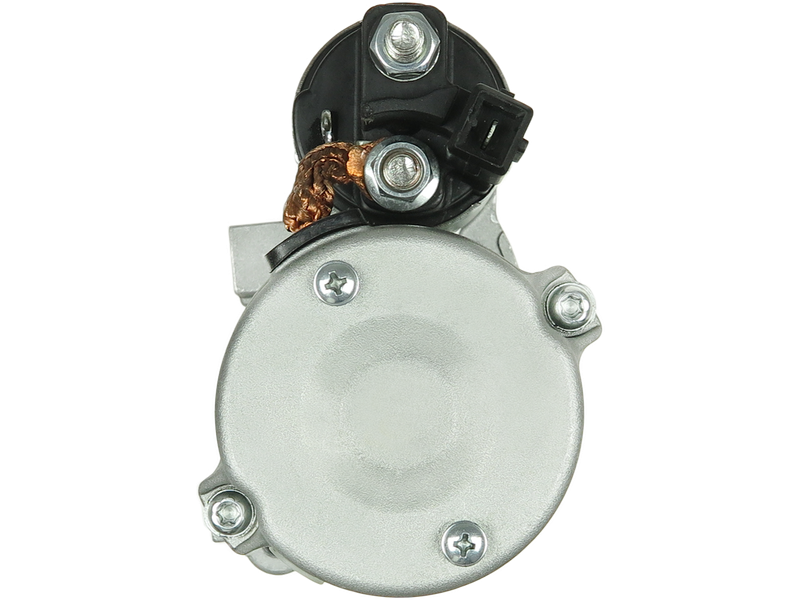

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 335.33 including GST
NZ$ 291.59 excluding GST
or four payments of $83.83
with
Learn More
each
S6286S
1
Associated Numbers
12417556131 12417577257 19079N 210.544.092 25-5165 255300 3271 428000-5480 428000-5481 6040440 7556131 7577257 91-29-5761 CST40440 CST40440AS CST40440ES CST40440GS CST40440OS CST40440RS DRS1138 DS2248 DSN1377 LRS04003 S-80297 STN5480 STR70405 UD14899S ASPL BMW CASCO CEVAM DELCO 4280005480 DENSOList 4280005481 DENSO S80297 DIXIE 255165 ELSTOCK KRAUF LUCAS PSH SANDO WAI / TRANSPO 91295761 WILSON WOODAUTO 708584 1906254 PIC 19079 Lester 210544092 Elstock Denso 4280805480 911138 EDR Wilson Casco Remy LRS03949 Lucas Light Duty 16154 References: Arrowhead SND0659 Picture ID J N 41052520 Bosch SR3295X 2800384 J& Beck Arnley 1871039 0986UR1239 Exchange 0986UR1799 10438378 Alanko 107771 Farcom 11090390 EuroTec 20130108 AES 215062132 DRI DAS 315064092 4280005480SEL +line 438378 Sando 88214614 PowerMax A79710 ATL AEX1179 Auto Electro CGB55165 Ainde DENDSN1377 Wood IR8827 Protech RNL4280005480B RNL S131777 Short code S144378 S163834 S6286 AS-PL S6286S Dixie SND1238 Quasar (USA) ST02127 TMI ST3062 AMK WOOSTR70405Specifications
| Kilowatt | 1.6 kW |
| Length (L.1) | 227 mm |
| Mount Hole Center - Center (O.1) | 99 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 550 4.4 i | (F10)[N63B44A] | 01.2009-12.2012 |
| BMW | 550 4.4 i | (F11)[N63B44A] | 01.2009-12.2012 |
| BMW | 550 4.4 i GT | (F07)[N63B44A] | 01.2009-12.2012 |
| BMW | 550 4.4 i xDrive | (F10)[N63B44A] | 01.2010-12.2012 |
| BMW | 550 4.4 i xDrive | (F11)[N63B44A] | 01.2010-12.2012 |
| BMW | 550 4.4 i xDrive GT | (F07)[N63B44A] | 01.2009-12.2012 |
| BMW | 650 4.4 i | (F12)[N63B44A] | 01.2010- |
| BMW | 650 4.4 i | (F13)[N63B44A] | 01.2010- |
| BMW | 750 4.4 i | (F01)[N63B44A] | 01.2008-12.2012 |
| BMW | 750 4.4 i | (F02)[N63B44A] | 01.2008-12.2012 |
| BMW | 750 4.4 i | (F03)[N63B44A] | 01.2008-12.2012 |
| BMW | 750 4.4 i xDrive | (F01)[N63B44A] | 01.2009-12.2012 |
| BMW | 750 4.4 i xDrive | (F02)[N63B44A] | 01.2009-12.2012 |
| BMW | 750 4.4 i xDrive | (F03)[N63B44A] | 01.2009-12.2012 |
| BMW | X5 4.4 M | (E70)[S63B44A] | 01.2009- |
| BMW | X5 4.4 xDrive 50i | (E70)[N63B44A] | 01.2010- |
| BMW | X6 4.4 50i | (E71)[N63B44A] | 01.2008- |
| BMW | X6 4.4 M | (E71)[S63B44A] | 01.2008- |
| BMW | X6 4.4 xDrive 50i | (E71)[N63B44A] | 01.2007- |
Reference Information
STN5480 S-80297 DSN1377 CST40440 CST40440GS CST40440ES S6286S 6040440 STR70405 12417556131 CST40440OS 7556131 S12DE0429A2 12417577257 7577257 25-5165 DS2248 STR6678 428000-5481 UD14899S 428000-5480 3271 210.544.092 CST40440AS 19079N LRS04003 DRS1138 255300 91-29-5761 UD102238S 5040586 CST40440RS LRS4003Video/Publications
