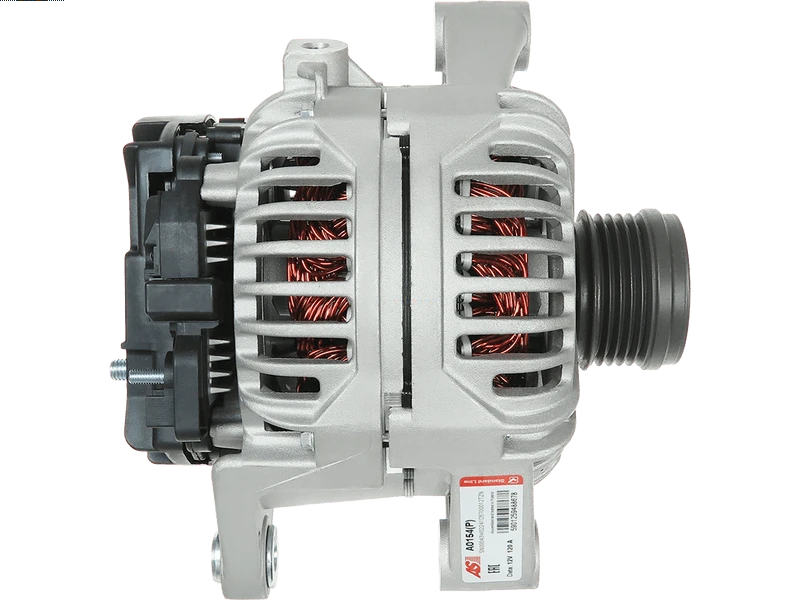

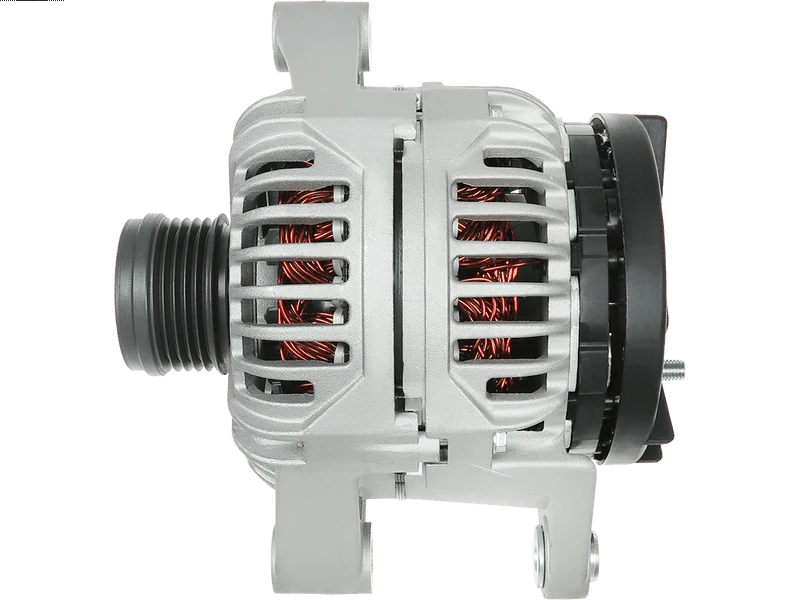

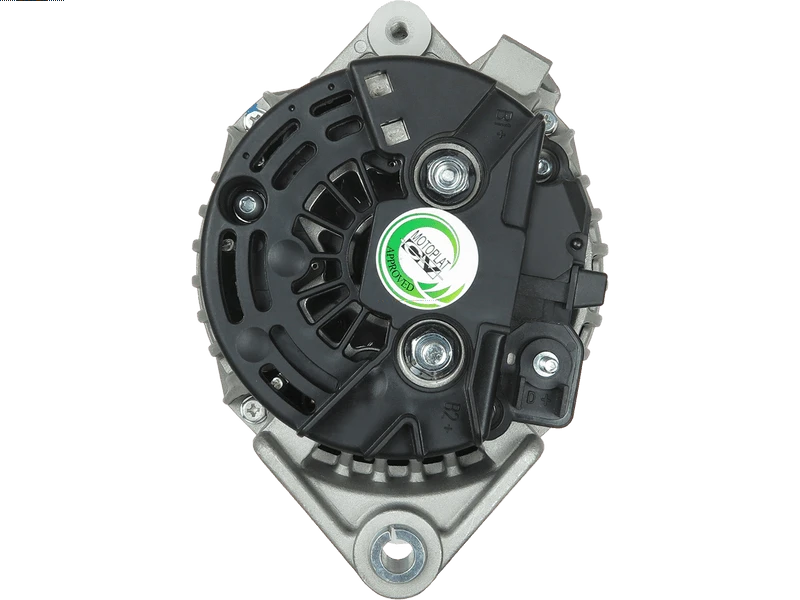

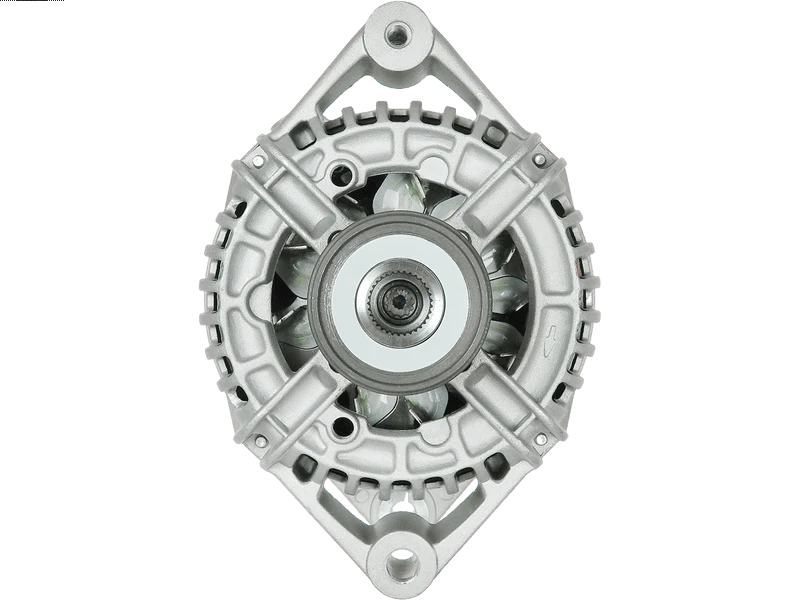

Brand new AS-PL Alternator with freewheel pulley
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 507.01 including GST
NZ$ 440.88 excluding GST
or four payments of $126.75
with
Learn More
each
A0154(P)
2
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Associated Numbers
AEC1765 AUTOELECTRO AEC1821 0124515004 BOSCH List 0124515031 0986042800 DRB2800 DELCO DRB6150 EAA221369 EAA 284777 ELSTOCK 284863 CA1821IR HC PARTS 8EL738206001 HELLA 32046150 HERTH+BUSS LRA02295 LUCAS LRA02359 6204095 OPEL 9195336 437611 VALEO ALT10054 WOODAUTO 09195336 0986048240 115619 13125229 13147093 135588120 6204158 6250SP 738206001 90561972 9117936 93175808 93175957 93175989 93177834 946150 948240 9512794 DRB8240 HCA1821IR OAN10473 R1530025 0124425006 0124425009 0124425027 0986046150 0986047320 1291701BO 13156050 135519120 2205365 23295 23295N 6217SP 738160001 9042800F 9047320F 9048240F 9173572 9203145 93180414 CA1765IR F042A01098 HCA1765IR CARGO CAL10333 CASCO 4079 CEVAM EAA221158 56887 EAI 210584 ERA 9047320 FRIESEN AG1344 GHIBAUDI 8EL738160001 ALB1765 KRAUF ALB1765AN ALB1765WA ALB765WA 11.1765 LAUBER 944390901590 MAGNETI MARELLI 6204080 6204178 89212765 POWERMAX 9212765 135.519.120 PSH SB029 SOVEREIGN WAI / TRANSPO 23295R anb5031 and008GQ bxa4037 6562091 28-4777 28-4863 301765RI 301821RI 8EL738206-001 EAA-221369 UD20636A A0154P BX515004 bx515031Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 33.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 198 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 55.5 mm |
| Pulley to Mount Distance (A) | 54.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra G 1.4 i 16V | [X14XE] | 09.1997-09.2000 |
| OPEL | Astra G 1.4 i 16V | [X14XE][Z14XE] | 09.2000-01.2004 |
| OPEL | Astra G 1.6 | [Z16YNG] | 09.2002-06.2004 |
| OPEL | Astra G 1.6 16V | [X16XEL] | 09.1997-08.2000 |
| OPEL | Astra G 1.6 i | [X16SZR] | 02.1998-09.2000 |
| OPEL | Astra G 1.6 i | [X16SZR][Z16SE] | 09.2000-01.2004 |
| OPEL | Astra G 1.6 i 16V | [X16XEL] | 09.1997-08.2000 |
| OPEL | Astra G 1.6 i 16V | [X16XEL][Z16XE] | 09.1998-01.2005 |
| OPEL | Astra G 1.8 16V | [X18XE1] | 09.1997-08.2000 |
| OPEL | Astra G 1.8 i 16V | [X18XE1] | 09.1997-08.2000 |
| OPEL | Astra G 1.8 i 16V | [X18XE1][Z18XE] | 09.2000-02.2005 |
| OPEL | Astra G 2.0 | [Z20LER] | 11.2002- |
| OPEL | Astra G 2.0 16V | [X20XEV] | 09.1997-06.2004 |
| OPEL | Astra G 2.0 i 16V | [X20XER] | 11.1999-09.2002 |
| OPEL | Astra G 2.0 i 16V | [X20XEV] | 09.1997-01.2004 |
| OPEL | Astra G 2.0 OPC | [Z20LET] | 09.2001-06.2004 |
| OPEL | Combo 1.6 16V Tour | [Z16YNG] | 06.2006- |
| OPEL | Corsa C 1.4 i 16V | [Z14XE] | 09.2000- |
| OPEL | Corsa C 1.8 i 16V | [Z18XE] | 09.2000- |
| OPEL | Signum 1.8 | [Z18XE] | 05.2003- |
| OPEL | Vectra C 1.8 | [Z18XEL] | 04.2002-08.2005 |
| OPEL | Vectra C 1.8 i | [Z18XE] | 10.2003- |
| OPEL | Vectra C 1.8 i 16V | [Z18XE] | 04.2002- |
| OPEL | Vectra C 1.8 i 16V | [Z18XEL] | 04.2002- |
| OPEL | Vectra C 1.8 i 16V GTS | [Z18XE] | 08.2002- |
| OPEL | Vectra C 1.8 i 16V GTS | [Z18XEL] | 08.2002- |
| OPEL | Zafira 1.6 | [Z16YNG] | 01.2006- |
| OPEL | Zafira A 1.6 16V | [X16XEL] | 04.1999-07.2005 |
| OPEL | Zafira A 1.6 16V | [X16XEL][Z16XE] | 09.2000-07.2005 |
| OPEL | Zafira A 1.6 i | [Z16YNG] | 09.2001- |
| OPEL | Zafira A 1.8 16V | [X18XE1] | 04.1999-09.2000 |
| OPEL | Zafira A 1.8 16V | [X18XE1][Z18XE] | 09.2000-07.2005 |
| OPEL | Zafira A 2.0 | [Z20LET] | 09.2001-06.2005 |
| OPEL | Zafira A 2.0 OPC | [Z20LET] | 11.2002-07.2005 |
| VAUXHALL | Astra G 1.4 16V | [X14XE] | 09.1997-08.2000 |
| VAUXHALL | Astra G 1.4 16V | [Z14XE] | 09.2000-08.2005 |
| VAUXHALL | Astra G 1.6 | [X16SZR] | 09.1997-08.2005 |
| VAUXHALL | Astra G 1.6 16V | [X16XEL] | 09.1997-08.2000 |
| VAUXHALL | Astra G 1.6 16V | [Z16XE] | 09.2000-08.2005 |
| VAUXHALL | Astra G 1.8 16V | [X18XE1] | 09.1997-08.2000 |
| VAUXHALL | Astra G 2.0 16V | [X20XEV] | 09.1997-08.2005 |
| VAUXHALL | Astra MK IV 1.6 16V | [Z16XE] | 09.2000- |
| VAUXHALL | Astra MK IV 1.8 16V | [Z18XE] | 09.2000- |
| VAUXHALL | Astra MK IV 1.8 16V | [Z18XE] | 09.2000-08.2005 |
| VAUXHALL | Astra MK IV 1.8 Dualfuel 16V | [Z18XE] | 09.2002-08.2005 |
| VAUXHALL | Astra MK IV 2.0 Turbo 16V | [Z20LET] | 09.2000-08.2005 |
| VAUXHALL | Astravan MK IV 1.6 i | [X16SZR] | 08.1998-09.2000 |
| VAUXHALL | Astravan MK IV 1.6 i | [Z16SE] | 09.2000- |
| VAUXHALL | Corsa MK II 1.4 16V | [Z14XE] | 09.2000-08.2003 |
| VAUXHALL | Vectra Mk II 1.6 16V | [Z16XE] | 06.2004- |
| VAUXHALL | Vectra Mk II 1.8 | [Z18XER] | 04.2002- |
| VAUXHALL | Vectra Mk II 1.8 16V | [Z18XE] | 10.2003- |
| VAUXHALL | Vectra Mk II 1.8 i 16V | [Z18XE] | 04.2002- |
| VAUXHALL | Vectra Mk II 1.8 i 16V GTS | [Z18XE] | 08.2002-08.2005 |
| VAUXHALL | Zafira 1.6 16V | [X16XEL] | 04.1998- |
| VAUXHALL | Zafira 1.8 16V | [X18XE1] | 04.1998- |
| VAUXHALL | Zafira 1.8 16V | [Z18XE] | 09.2000-06.2005 |
Alternatives >>>
A0066PR - Remanufactured version
A0154(P)R Remanufactured version with clutch pulley
A0154(P) Brand new AS NZ Alternator with clutch pulley
A0066 Brand New AS NZ Alternator
Reference Information
CA1821IR CGB-12800 13156050 LRA02359 13156054 13125229 32046150 UA CA1765IR 6204178 6204095 6204172 93175808 437611 210584 93180414 9173572 LRA2295 301821RI UD20636A 90561972 EAA-221369 93175957 301765RI 9195336 AEC1821 0124515031 115619 ALT10054 441968 R1530025 93117508 6204158 9512794 LRA02295 STX101604 LRA2359 28-4777 8EL738206-001 DRB6150 93175989 STX100166R 0986042800 WX ALTS603 28-4863 13147093 9117936 DRB2800 ALT1420 6204080 STX100166 93177834 AEC1765 ALT123140Video/Publications
