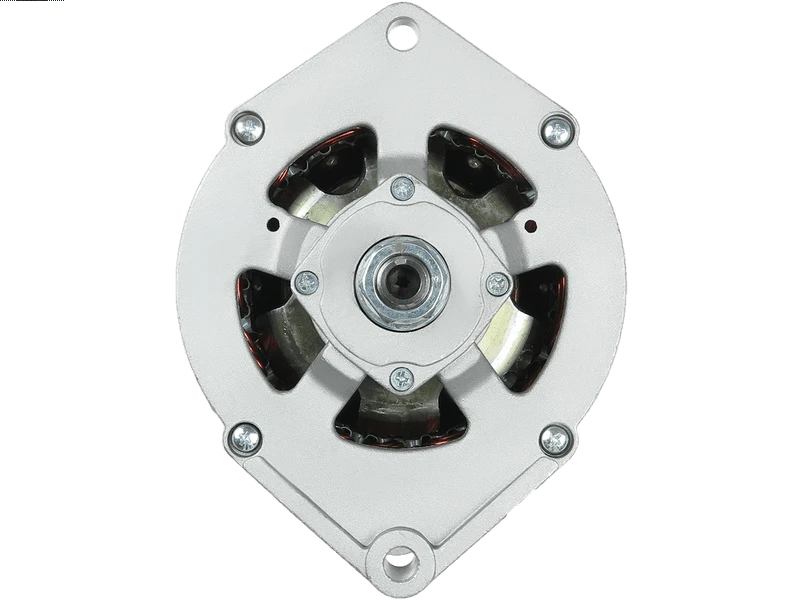

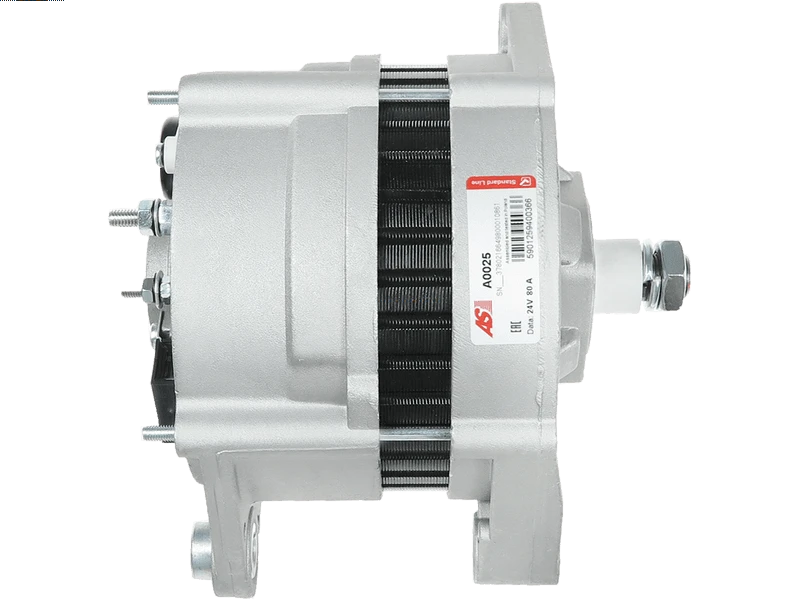

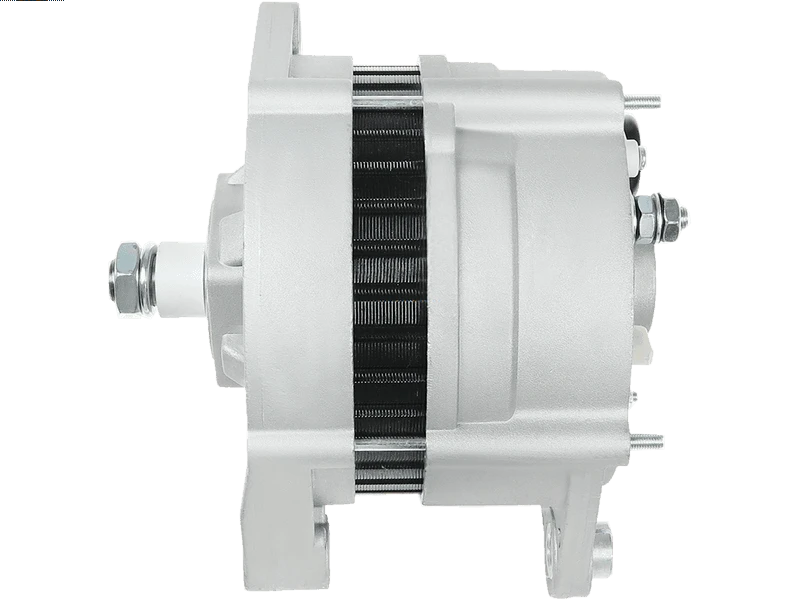

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Retail Price:
NZ$ 406.42 including GST
NZ$ 353.41 excluding GST
or four payments of $101.61
with
Learn More
each
A0025
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120468065Associated Numbers
75765 75895 7700308989 860560 89212401 8EL012584-171 8EL737633-001 916.003.075 98424453 98424739 98424748 98449163 A0025 A14N104 A14N138 AG0047 ALT10333 CA1438IR CAL10605 CAL10605AS CAL10605ES CAL10605GS CAL10605OS CAL10605RS DA0450 DRA9340 EAA-221137 EAA-221612 GA468124-A IA9478 LRA02469 LRB00100 MAN2006 MG821 0120468065 0120468094 0120468116 0120468124 0120468129 0120468130 063534681240 0986036240 0986039340 11.209.630 1105368 112076 1126600699 12708N 12709N 1516469R 160-68209 19025101 1986A00155 20101506BN 20101506EL 20101506OE 20101506RC 2010605 2063 210297 2541178 301438RI 301438RIB 301438RIP 30550RI 30558RI 42498612 436434 48-1801 48-2545 571518 72460229Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 72.5 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | NO PULLEY |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 100 E 15 6.0 | [8060.25R.4200LTC] | 01.1991- |
| IVECO | 100 E 15 6.0 | [8060.45R.5000] | 01.1991- |
| IVECO | 100 E 15 6.0 | [8060.45R.5001] | 01.1991- |
| IVECO | 100 E 15 6.0 | [8060.45R.5003] | 01.1991- |
| IVECO | 100 E 15 6.0 | [8060.45R.5005] | 01.1991- |
| IVECO | 135 E 18 6.0 | [8060.25VTC] | 01.1993-12.1996 |
| IVECO | 135 E 18 6.0 | [8060.25VTC] | 01.1997- |
| IVECO | 150 E 27 7.7 | [8360.46.417TCA] | 01.1992- |
| IVECO | 170 E 18 5.8 | [8060.25VTC] | 01.1994- |
| IVECO | 170 E 23 5.8 | [8060.45STCA] | 01.1994- |
| IVECO | 170 E 27 7.7 | [8360.46.417TCA] | 01.1994- |
| IVECO | 180 E 18 5.8 | [8060.25VTC] | 01.1994- |
| IVECO | 180 E 23 5.8 | [8060.45STCA] | 01.1994- |
| IVECO | 180 E 24 7.7 | [8360.46R.416TCA] | 01.1992-12.1996 |
| IVECO | 180 E 24 7.7 | [8360.46R.416TCA] | 01.1993-12.1996 |
| IVECO | 180 E 25 9.5 | [8460.41T] | 05.1999-11.2004 |
| IVECO | 180 E 27 7.7 | [8360.46.417TCA] | 01.1992-12.1996 |
| IVECO | 180 E 27 7.7 | [8360.46.417TCA] | 01.1994- |
| IVECO | 180 E 30 9.5 | [8460.41C.320] | 01.1992-12.1996 |
| IVECO | 180 E 34 9.5 | [8460.41K.406] | 01.1992-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.151] | 01.1990-12.1992 |
| IVECO | 190-36 13.8 | [8210.42.152] | 07.1990-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.154] | 07.1990-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.161] | 01.1990-12.1992 |
| IVECO | 190-36 13.8 | [8210.42.162] | 07.1990-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.171] | 01.1990-12.1992 |
| IVECO | 190-36 13.8 | [8210.42.181] | 07.1990-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.182] | 07.1990-12.1993 |
| IVECO | 190-36 13.8 | [8210.42.191] | 07.1990-12.1993 |
| IVECO | 190-48 17.2 | [8280.42.050] | 03.1989-03.1991 |
| IVECO | 190-48 17.2 | [8280.42.050] | 04.1991-12.1993 |
| IVECO | 190 E 24 7.7 | [8360.46R.416TCA] | 01.1997-08.1998 |
| IVECO | 190 E 27 7.7 | [8360.46.417TCA] | 01.1997-08.1998 |
| IVECO | 190 E 30 9.5 | [8460.41C.] | 11.1999-11.2004 |
| IVECO | 190 E 30 9.5 | [8460.41C] | 01.1993-11.2004 |
| IVECO | 190 E 30 9.5 | [8460.41C.320] | 01.1997-08.1998 |
| IVECO | 190 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 190 E 34 9.5 | [8460.41K.406] | 01.1993- |
| IVECO | 190 E 34 9.5 | [8460.41K.TCA] | 11.1999-11.2004 |
| IVECO | 190 E 37 13.8 | [8210.42K(TCA)] | 01.2000-11.2004 |
| IVECO | 190 E 37 13.8 | [8210.42K(TCA)] | 11.1999-11.2004 |
| IVECO | 190 E 42 13.8 | [8210.42L(TCA)] | 11.1999-11.2004 |
| IVECO | 190 E 47 14.0 | [8210.42M.TCA] | 01.1993-02.2002 |
| IVECO | 240-36 13.8 | [8210.42.155] | 01.1990-12.1992 |
| IVECO | 240-36 13.8 | [8210.42.165] | 01.1990-12.1992 |
| IVECO | 240-36 13.8 | [8210.42.175] | 01.1990-12.1992 |
| IVECO | 240-36 13.8 | [8210.42.185] | 01.1990-12.1992 |
| IVECO | 240-36 13.8 | [8210.42.186] | 01.1990-12.1992 |
| IVECO | 240-36 13.8 | [8210.42.195] | 01.1990-12.1992 |
| IVECO | 240 E 30 9.5 | [8460.41C.TCA] | 01.1997- |
| IVECO | 240 E 34 9.5 | [8460.41K.TCA] | 09.1995-12.1996 |
| IVECO | 240 E 38 9.5 | [8460.41L.5020] | 01.1992- |
| IVECO | 240 E 42 14.0 | [8210.42L.400] | 01.1992- |
| IVECO | 240 E 47 14.0 | [8210.42M.TCA] | 01.1993-02.2002 |
| IVECO | 240 E 52 17.2 | [8280.42S.TCA] | 01.1993-02.2002 |
| IVECO | 260 E 23 KE 5.9 | [8060.45STCA] | 01.1992- |
| IVECO | 260 E 30 9.5 | [8460.41C] | 01.1993-11.2004 |
| IVECO | 260 E 30 9.5 | [8460.41C.TCA] | 11.1999-11.2004 |
| IVECO | 260 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 260 E 34 9.5 | [8460.41K.TCA] | 11.1999-11.2004 |
| IVECO | 260 E 37 13.8 | [8210.42K(TCA)] | 11.1999-11.2004 |
| IVECO | 260 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 260 E 38 9.5 | [8460.41LTCA] | 01.1993-02.2002 |
| IVECO | 260 E 38 9.5 | [8460.41N] | 01.1994- |
| IVECO | 260 E 42 13.8 | [8210.42L(TCA)] | 11.1999-11.2004 |
| IVECO | 260 E 47 13.8 | [8210.42M.TCA] | 11.1999-11.2004 |
| IVECO | 260 E 47 14.0 | [8210.42M.TCA] | 01.1993-02.2002 |
| IVECO | 340 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 340 E 34 9.5 | [8460.41K] | 11.1999-11.2004 |
| IVECO | 340 E 37 13.8 | [8210.42K.] | 11.1999-11.2004 |
| IVECO | 340 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 340 E 42 13.8 | [8210.42L] | 11.1999-11.2004 |
| IVECO | 340 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 360 8.7 | [F2CFE611B] | 01.2016- |
| IVECO | 380 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 380 E 34 9.5 | [8460.41K] | 11.1999-11.2004 |
| IVECO | 380 E 37 13.8 | [8210.42K(TCA)] | 11.1999-11.2004 |
| IVECO | 380 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 380 E 42 13.8 | [8210.42L(TCA)] | 11.1999-11.2004 |
| IVECO | 380 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 380 E 47 13.8 | [8210.42M.TCA] | 11.1999-11.2004 |
| IVECO | 400 E 30 9.5 | [8460.41C.320] | 01.1992-08.1998 |
| IVECO | 400 E 34 9.5 | [8460.41K.406] | 01.1992- |
| IVECO | 400 E 34 9.5 | [8460.41K.406] | 01.1992-08.1998 |
| IVECO | 400 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 400 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 410 E 37 13.8 | [8210.42K(TCA)] | 11.1999-11.2004 |
| IVECO | 410 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 410 E 42 13.8 | [8210.42L(TCA)] | 11.1999-11.2004 |
| IVECO | 410 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 440 E 34 9.5 | [8460.41K.406] | 01.1992- |
| IVECO | 440 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 440 E 38 9.5 | [8460.41LTCA] | 01.1993- |
| IVECO | 440 E 38 9.5 | [8460.41N] | 01.1993-02.2002 |
| IVECO | 440 E 39 10.3 | [F3AE0681E] | 11.1999- |
| IVECO | 440 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 440 E 47 14.0 | [8210.42M.TCA] | 01.1993-02.2002 |
| IVECO | 720 E 37 14.0 | [8210.42K] | 01.1993-11.2004 |
| IVECO | 720 E 42 14.0 | [8210.42L] | 01.1993-11.2004 |
| IVECO | 75 E 12 4.0 | [8040.25X.4000TC] | 01.1997- |
| IVECO | 95 E 15 6.0 | [8060.25R.4750] | 11.1993- |
| IVECO | 95 E 15 6.0 | [8060.25R.4755] | 11.1993- |
| IVECO | 95 E 15 6.0 | [8060.25R.4760] | 11.1993- |
| IVECO | 95 E 15 6.0 | [8060.25R.4764] | 11.1993- |
| IVECO | 95 E 15 6.0 | [8060.45R.5050] | 11.1993- |
| IVECO | 95 E 15 6.0 | [8060.45R.5051] | 11.1993- |
| IVECO | 95 E 21 6.0 | [8060.45.5250] | 11.1993- |
| IVECO | 95 E 21 6.0 | [8060.45.5251] | 11.1993- |
| IVECO | 95 E 21 6.0 | [8060.45.5255] | 11.1993- |
| IVECO | LE 360 8.7 | [F2CFE611B] | 01.2016- |
| IVECO | PRO 360 8.7 | [F2CFE611B] | 01.2016- |
| IVECO | PRO 400 8.7 | 01.2016- | |
| IVECO | Urbanway 8.7 | 05.2013- | |
| IVECO | Urbanway CNG 7.8 | 05.2013- | |
| RENAULT | 385.26 11.1 | [MIDR06.23.56A/41] | 06.1997- |
| SCANIA | 113 E/320 11.0 | [DSC11.16] | 11.1991-12.1996 |
| SCANIA | 113 E/320 11.0 | [DSC11.17] | 11.1991-12.1996 |
| SCANIA | 113 E/320 11.0 | [DSC11.21] | 11.1991-12.1996 |
| SCANIA | 113 E/360 11.0 | [DSC11.13] | 01.1990-12.1996 |
| SCANIA | 113 E/360 11.0 | [DSC11.18] | 01.1990-12.1996 |
| SCANIA | 113 E/360 11.0 | [DSC11.23] | 01.1990-12.1996 |
| SCANIA | 113 E/360 11.0 | [DSC11.30] | 01.1990-12.1996 |
| SCANIA | 113 H/310 11.0 | [DS11.34] | 01.1990-12.1991 |
| SCANIA | 113 H/310 11.0 | [DS11.34] | 05.1988-12.1989 |
| SCANIA | 113 H/310 11.0 | [DS11.73] | 01.1990-12.1991 |
| SCANIA | 113 H/310 11.0 | [DS11.73] | 05.1988-12.1989 |
| SCANIA | 113 H/310 11.0 | [DS11.75] | 01.1990-12.1991 |
| SCANIA | 113 H/310 11.0 | [DSC11.08] | 01.1990-12.1991 |
| SCANIA | 113 H/320 11.0 | [DSC11.16] | 01.1990-12.1996 |
| SCANIA | 113 H/320 11.0 | [DSC11.16] | 05.1988-12.1989 |
| SCANIA | 113 H/320 11.0 | [DSC11.17] | 01.1990-12.1996 |
| SCANIA | 113 H/320 11.0 | [DSC11.21] | 01.1990-12.1996 |
| SCANIA | 113 H/360 11.0 | [DSC11.13] | 01.1989-12.1989 |
| SCANIA | 113 H/360 11.0 | [DSC11.13] | 01.1990-12.1996 |
| SCANIA | 113 H/360 11.0 | [DSC11.13] | 05.1988-12.1989 |
| SCANIA | 113 H/360 11.0 | [DSC11.18] | 01.1990-12.1996 |
| SCANIA | 113 H/360 11.0 | [DSC11.23] | 01.1990-12.1996 |
| SCANIA | 113 H/360 11.0 | [DSC11.30] | 01.1990-12.1996 |
| SCANIA | 113 M/320 11.0 | [DSC11.16] | 01.1990-12.1996 |
| SCANIA | 113 M/320 11.0 | [DSC11.16] | 05.1988-12.1989 |
| SCANIA | 113 M/320 11.0 | [DSC11.17] | 01.1990-12.1996 |
| SCANIA | 113 M/320 11.0 | [DSC11.21] | 01.1990-12.1996 |
| SCANIA | 113 M/360 11.0 | [DSC11.13] | 01.1990-12.1996 |
| SCANIA | 113 M/360 11.0 | [DSC11.13] | 05.1988-12.1989 |
| SCANIA | 113 M/360 11.0 | [DSC11.18] | 01.1990-12.1996 |
| SCANIA | 113 M/360 11.0 | [DSC11.23] | 01.1990-12.1996 |
| SCANIA | 113 M/360 11.0 | [DSC11.30] | 01.1990-12.1996 |
| SCANIA | 143 E/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 E/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | 143 E/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.16] | 01.1991-12.1996 |
| SCANIA | 143 H/400 14.2 | [DSC14.06] | 01.1990-12.1991 |
| SCANIA | 143 H/400 14.2 | [DSC14.06] | 05.1988-12.1989 |
| SCANIA | 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1993 |
| SCANIA | 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.03] | 05.1988-12.1989 |
| SCANIA | 143 H/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 H/470 14.2 | [DSC14.04] | 01.1990-05.1991 |
| SCANIA | 143 H/470 14.2 | [DSC14.04] | 03.1988-12.1989 |
| SCANIA | 143 H/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 H/500 14.2 | [DSC14.16] | 01.1991-12.1996 |
| SCANIA | 143 M/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 M/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | 143 M/450 14.2 | [DSC14.03] | 05.1988-12.1989 |
| SCANIA | 143 M/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 M/470 14.2 | [DSC14.04] | 01.1990-05.1991 |
| SCANIA | 143 M/470 14.2 | [DSC14.04] | 03.1988-12.1989 |
| SCANIA | 143 M/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 M/500 14.2 | [DSC14.16] | 01.1991-12.1996 |
| SCANIA | 93 H/220 8.5 | [DSC9.10] | 12.1991-12.1996 |
| SCANIA | 93 H/250 8.5 | [DS9.05] | 01.1989-12.1989 |
| SCANIA | 93 H/250 8.5 | [DS9.05] | 01.1990-12.1996 |
| SCANIA | 93 H/250 8.5 | [DS9.05] | 03.1988-12.1989 |
| SCANIA | 93 H/250 8.5 | [DSC9.07] | 01.1990-12.1996 |
| SCANIA | 93 H/280 8.5 | [DSC9.02] | 12.1991-12.1996 |
| SCANIA | 93 H/280 8.5 | [DSC9.08] | 12.1991-12.1996 |
| SCANIA | 93 M/220 8.5 | [DSC9.10] | 12.1991-12.1996 |
| SCANIA | 93 M/230 8.5 | [DS9.06] | 01.1990-12.1991 |
| SCANIA | 93 M/230 8.5 | [DS9.06] | 03.1988-12.1989 |
| SCANIA | 93 M/250 8.5 | [DS9.05] | 01.1990-12.1996 |
| SCANIA | 93 M/250 8.5 | [DS9.05] | 03.1988-12.1989 |
| SCANIA | 93 M/250 8.5 | [DS9.05] | 10.1990-12.1996 |
| SCANIA | 93 M/250 8.5 | [DSC9.07] | 01.1990-12.1996 |
| SCANIA | 93 M/250 8.5 | [DSC9.07] | 10.1990-12.1996 |
| SCANIA | 93 M/280 8.5 | [DSC9.02] | 01.1990-12.1996 |
| SCANIA | 93 M/280 8.5 | [DSC9.02] | 03.1988-12.1989 |
| SCANIA | 93 M/280 8.5 | [DSC9.08] | 01.1990-12.1996 |
| SCANIA | K 93 CL 8.5 | [DSC9.08] | 01.1991-12.1996 |
| SCANIA | T 113 E/320 11.0 | [DSC11.17] | 01.1990-12.1996 |
| SCANIA | T 113 E/320 11.0 | [DSC11.21] | 01.1990-12.1996 |
| SCANIA | T 113 E/360 11.0 | [DSC11.13] | 01.1990-12.1996 |
| SCANIA | T 113 E/360 11.0 | [DSC11.18] | 01.1990-12.1996 |
| SCANIA | T 113 E/360 11.0 | [DSC11.23] | 01.1990-12.1996 |
| SCANIA | T 113 H/320 11.0 | [DSC11.17] | 01.1990-12.1996 |
| SCANIA | T 113 H/360 11.0 | [DSC11.13] | 01.1990-12.1996 |
| SCANIA | T 113 H/360 11.0 | [DSC11.18] | 01.1990-12.1996 |
| SCANIA | T 113 H/360 11.0 | [DSC11.23] | 01.1990-12.1996 |
| SCANIA | T 143 E/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | T 143 E/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | T 143 E/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | T 143 E/500 14.2 | [DSC14.16] | 01.1991-12.1996 |
| SCANIA | T 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | T 143 H/450 14.2 | [DSC14.03] | 01.1990-12.1996 |
| SCANIA | T 143 H/450 14.2 | [DSC14.10] | 01.1990-12.1996 |
| SCANIA | T 143 H/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | T 143 H/500 14.2 | [DSC14.16] | 01.1991-12.1996 |
| SCANIA | T 93 H/250 8.5 | [DS9.05] | 01.1990-12.1996 |
| SCANIA | T 93 H/250 8.5 | [DSC9.07] | 01.1990-12.1996 |
| SCANIA | T 93 H/280 8.5 | [DSC9.02] | 12.1991-12.1996 |
| SCANIA | T 93 H/280 8.5 | [DSC9.08] | 12.1991-12.1996 |
Reference Information
11.209.445 20101506BN 0120468130 301438RI 0986039340 LRB00100 0120468094 CAL10605ES 75765 98449163 42498612 20101506OE 2541178 AL03958 20010605AV 0120468129 98424739 IA9478 A14N104 12709N 2010605.3 1105368 2010605.2 2010605.1 2010605.0 11.209.630 301438RIP LRA02469 LRB100 12708N DA0450 ANM31560X 75895 0120468065 5610005 A0025 GA468124-A 98424748 AAN3214 160-68209 301438RIB CA1438IR 436434 1516469 CAL10605GS AG0047 MG821 210297 72460229 48-2545 DRA9340 0120468116 AL03935 1986A00155 19025101 ALT79882 3127276 7700308989 1307454 310818 518120804 20010605OV 20010605RV PTC-3027 89212401 063534681240 860560 571518 0986036240 20101506RC 8EL012584-171 8EL737633-001 2063 CGB-13124 98424452 0120468124 532101754 98424453 2995070 LRA2469 MAN2006 CAL10605RS 48-1801 1516469R CAL10605AS 054903015L 20101506EL A14N138Video/Publications
A0025View your shopping basket or Browse other items in Alternators.
