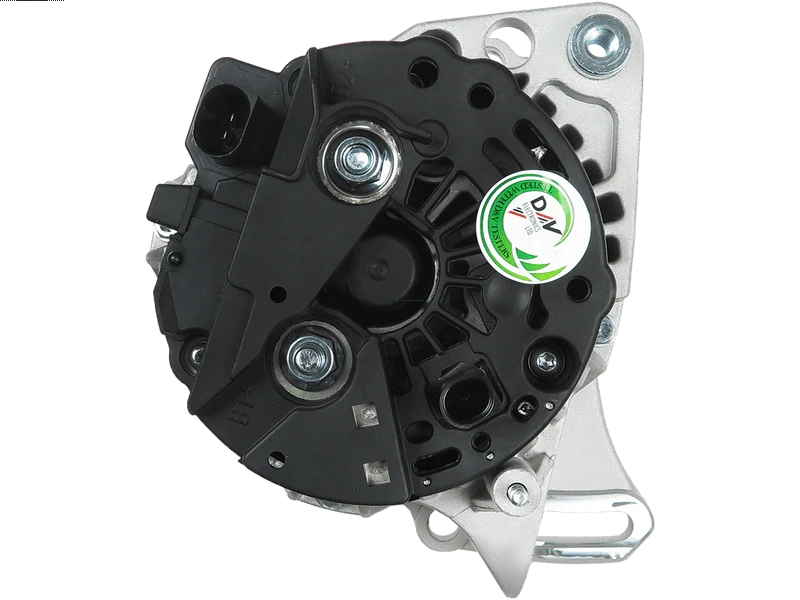

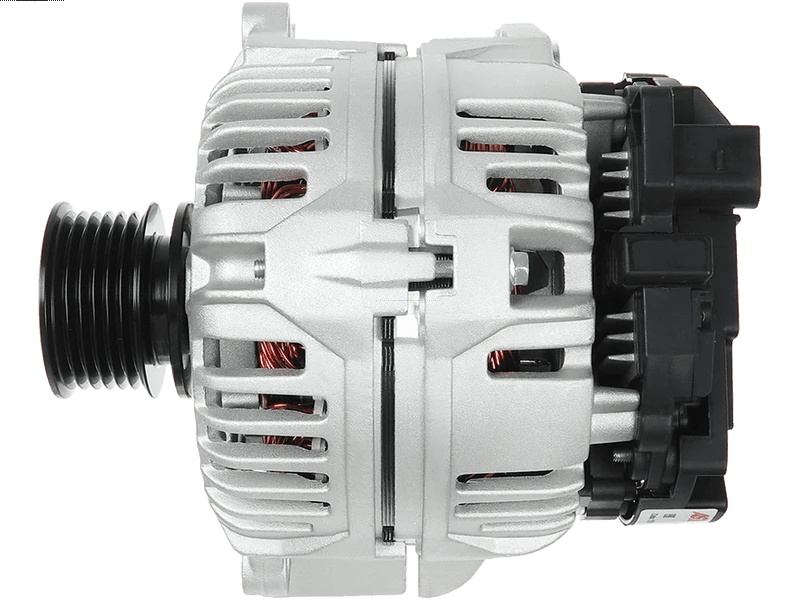

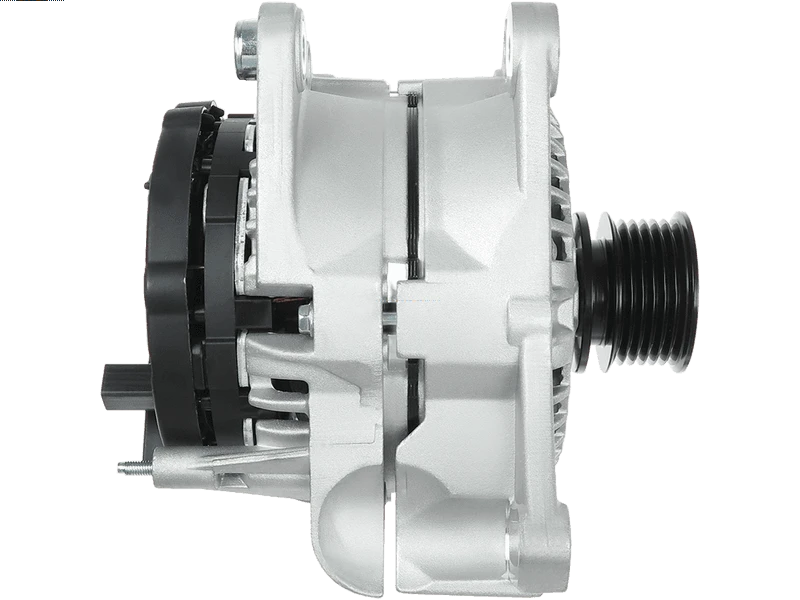

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 357.65 including GST
NZ$ 311.00 excluding GST
or four payments of $89.41
with
Learn More
each
A0039
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124325057 0124325106 0124325126 036903024M 036903024MX 0986045310 11.203.529 209303 23360N 23360R 28-4864 301815RI 305.543.110 4055 56857 89213503 8EL738200-001 944390453100 A0039 AAK5703 AEC1815 AG1118 ALB1815 ALT10109 CA1815IR IA1306 LRA02360 LRA2360 MG366 MRA45310Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.5 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A2 1.6 FSi | [BAD] | 05.2002-08.2005 |
| SEAT | Altea 1.4 16V | [BXW] | 05.2006- |
| SEAT | Altea 1.4 16V | [CGGB] | 05.2006- |
| SEAT | Altea XL 1.4 16V | [BXW] | 10.2006- |
| SEAT | Altea XL 1.4 16V | [CGGB] | 10.2006- |
| SEAT | Ibiza 1.4 | [BXW] | 03.2008- |
| SEAT | Ibiza 1.4 | [CGGB] | 03.2008- |
| SEAT | Ibiza Sportcoupe 1.4 | [BXW] | 07.2008- |
| SEAT | Ibiza Sportcoupe 1.4 | [CGGB] | 07.2008- |
| SEAT | Ibiza ST 1.4 | [CGGB] | 03.2010- |
| SEAT | Leon 1.4 16V | [BXW] | 06.2006-12.2012 |
| SEAT | Leon 1.4 16V | [CGGB] | 06.2006-12.2012 |
| SEAT | Toledo 1.4 16V | [BXW] | 05.2006-05.2009 |
| SKODA | Octavia 1.4 | [BCA] | 05.2004-05.2006 |
| SKODA | Octavia 1.4 | [BUD] | 05.2006-06.2013 |
| SKODA | Octavia 1.4 | [BUD] | 06.2004-04.2013 |
| SKODA | Octavia 1.4 | [CGGA] | 05.2006-06.2013 |
| SKODA | Octavia 1.4 | [CGGA] | 06.2004-04.2013 |
| VW | Golf Plus 1.4 16V | [BCA] | 01.2005-11.2006 |
| VW | Golf Plus 1.4 16V | [BUD] | 05.2006-12.2013 |
| VW | Golf Plus 1.4 16V | [CGGA] | 05.2006-12.2013 |
| VW | Golf V 1.4 16V | [BCA] | 10.2003-05.2006 |
| VW | Golf V 1.4 16V | [BUD] | 05.2006-11.2008 |
| VW | Golf VI 1.4 | [BUD] | 07.2009-07.2013 |
| VW | Golf VI 1.4 | [CGGA] | 07.2009-07.2013 |
| VW | Golf VI 1.4 | [CGGA] | 10.2008-11.2012 |
| VW | Polo 1.4 | [CDDA] | 03.2009-05.2014 |
| VW | Polo 1.4 | [CGGB] | 03.2009-05.2014 |
| VW | Polo 1.4 | [CLPA] | 03.2009-05.2014 |
| VW | Polo 1.4 BiFuel | [CMAA] | 03.2010-01.2011 |
Reference Information
4055 LRA2360 89213503 AG1118 MG366 AAK5703 311051 209303 441962 A0039 301815RI AEC1815 9.4439E+11 PRAF370 STX100811 036903024M ALT79368 ALT1454 11.203.529 MG ALB1815 56857 305.543.110 0124325057 ALTF370 8EL738200-001 036903026E LRA02360 MRA45310 CAL10036AS 28-4864 366 20101630BN ALT10109 ALT4038 036903024MX 0124325106 0986045310 23360N IA1306 23360R 0124325126 CA1815IR 2010036Video/Publications
