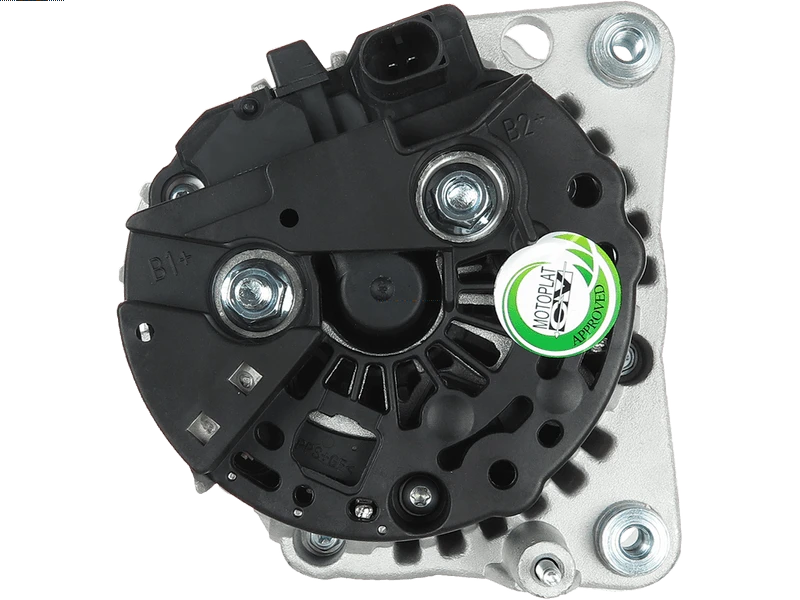

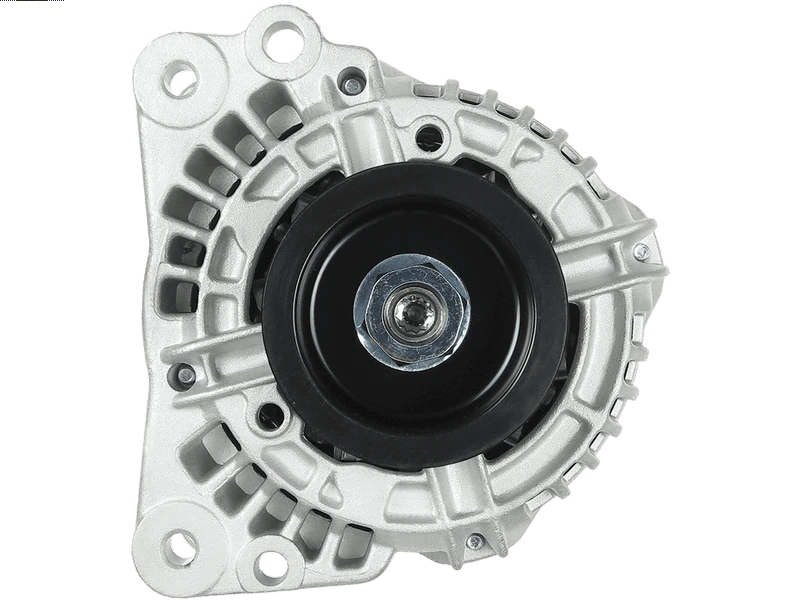

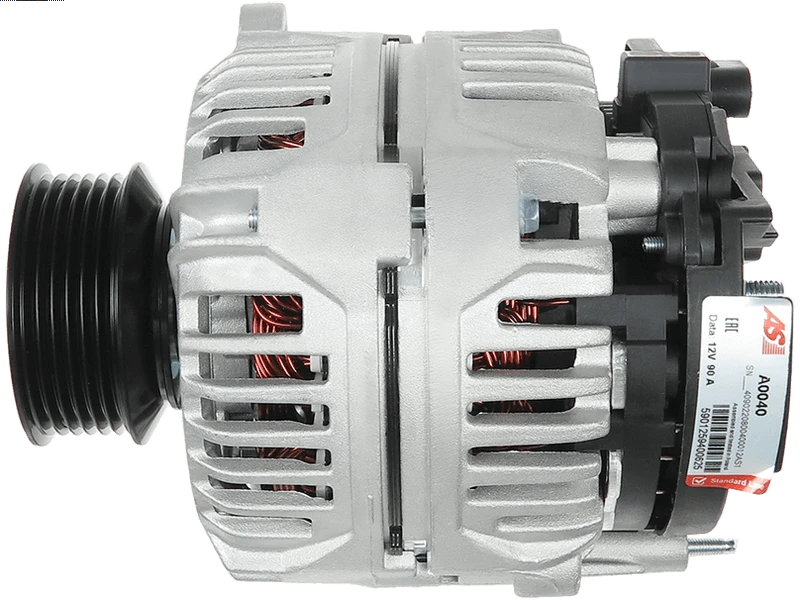

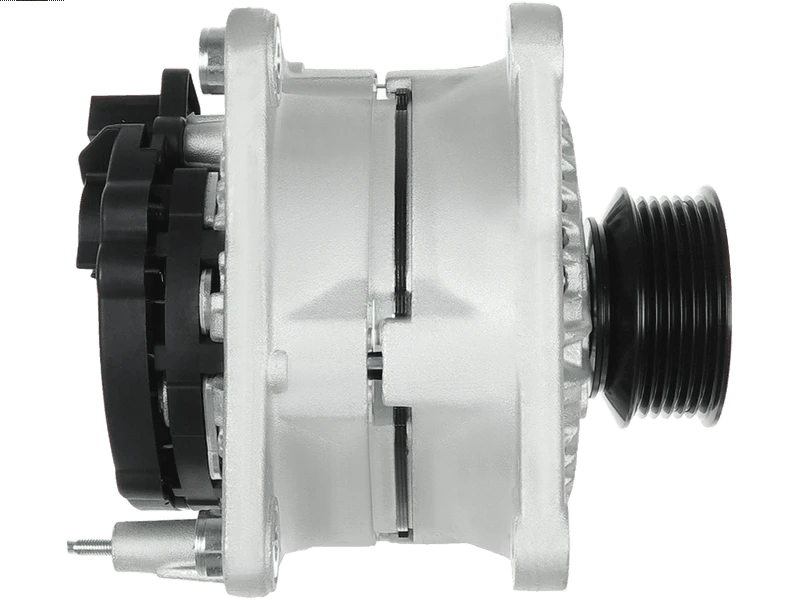

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 367.32 including GST
NZ$ 319.41 excluding GST
or four payments of $91.83
with
Learn More
each
A0040
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124325004Associated Numbers
0124325004 063731402010 074903025K 074903025KX 078903025K 0986041230 11.1402 11.203.223 112043 1516463R 20101462OE 2010264 20130223 210256 22710N 28-2964 301402RI 32041230 437513 439529 56845 817530 89212631 8EL012428-071 8EL737607-001 9041230 9212631 944390412300 9517218 9517219 A0040 A13VI306 A1903H AAK5518 AEC1402 ALB1402 ALB1402AN ALB1402DD ALB1402UX ALT10311 CA1402IR CAL10264 CAL10264AS CAL10264ES CAL10264GS CAL10264OS CAL10264RS DRB1230 EAA-221433 LRA01710 MG291 SA350Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 68 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | LT 28-35 2.5 SDi | [AGX] | 07.1998-04.2001 |
| VW | LT 28-35 2.5 TDi | [AHD] | 07.1998-05.1999 |
| VW | LT 28-35 2.5 TDi | [ANJ] | 05.1999-07.2006 |
| VW | LT 28-35 2.5 TDi | [APA] | 05.1999- |
| VW | LT 28-35 2.5 TDi | [AVR] | 12.2002-07.2006 |
| VW | LT 28-35 2.5 TDi | [BBE] | 05.2001- |
| VW | LT 28-35 2.5 TDi | [BBF] | 05.2001- |
| VW | LT 40-55 2.5 SDi | [AGX] | 08.1998-04.2001 |
| VW | LT 40-55 2.5 TDi | [AHD] | 08.1998-05.1999 |
| VW | LT 40-55 2.5 TDi | [ANJ] | 05.1999- |
| VW | LT 40-55 2.5 TDi | [APA] | 05.1999-04.2001 |
| VW | LT 40-55 2.5 TDi | [AVR] | 12.2002-07.2006 |
| VW | LT 40-55 2.5 TDi | [BBE] | 05.2001- |
| VW | LT 40-55 2.5 TDi | [BBF] | 05.2001- |
| VW | Multivan 2.5 | [AET] | 08.1996-06.2003 |
| VW | Multivan 2.5 | [APL] | 05.1999-06.2003 |
| VW | Multivan 2.5 | [AVT] | 12.1999-06.2003 |
| VW | Transporter 2.4 Diesel Syncro | [AAB] | 11.1998-04.2003 |
| VW | Transporter 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.5 | [AEU] | 08.1996-06.2003 |
| VW | Transporter 2.5 | [APL] | 05.1999-06.2003 |
| VW | Transporter 2.5 | [AVT] | 12.1999-06.2003 |
| VW | Transporter 2.5 Syncro | [AET] | 07.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [AEU] | 11.1998-04.2002 |
| VW | Transporter 2.5 Syncro | [APL] | 05.1999-06.2003 |
| VW | Transporter 2.5 Syncro | [AVT] | 12.1999-06.2003 |
| VW | Transporter 2.5 TD | [AJT] | 10.1998-06.2003 |
| VW | Transporter 2.5 TD | [AYY] | 10.2001-06.2003 |
| VW | Transporter 2.5 TDi | [ACV] | 10.1998-06.2003 |
| VW | Transporter 2.5 TDi | [AHY] | 05.1998-03.2004 |
| VW | Transporter 2.5 TDi | [AJT] | 10.1998-06.2003 |
| VW | Transporter 2.5 TDi | [AUF] | 05.1999-06.2003 |
| VW | Transporter 2.5 TDi | [AXG] | 05.1998-03.2004 |
| VW | Transporter 2.5 TDi | [AYC] | 04.2001-06.2003 |
| VW | Transporter 2.5 TDi | [AYY] | 10.2001-06.2003 |
| VW | Transporter 2.5 TDi Syncro | [ACV] | 10.1998-06.2003 |
| VW | Transporter 2.5 TDi Syncro | [AXL] | 10.1998-06.2003 |
| VW | Transporter 2.8 VR6 | [AES] | 11.1995-04.2000 |
Reference Information
A13VI306 ALB1402 89212631 A12BH0397A2 STA0160R 9212631 20130223 ALT10311 11.203.223 ALTS593 ALT122640 074903025KX 22710N A0040 MG PRAL219 PRAL219B 9041230 ALTL219B ALB1402AN MG291 RNL4123 SA350 LRA1710 CAL10264AS ALT00754 74903025K CAL10264ES 1516463R 112043 11.1402 074903025K ALT122640A CAL10264RS 439529 078903025K 8EL737607-001 291 441523 5510371 944390412300 32041230 310810 ALT1255 20101462OE 9517218 9517219 CA1402IR 2010264 ALB1402UX 437513 ALT79286 CAL10264 CGB-82964 CAL10264OS A1903H LRA01710 063731402010 CAL10264GS AAK5518 ALT171690 8EL012428-071 ALT456 301402RI 817530 28-2964 ANM43450X 0986041230 210256 ALB1402DD 0124325004 56845 DRB1230 AEC1402Video/Publications
A0040View your shopping basket or Browse other items in Alternators.
