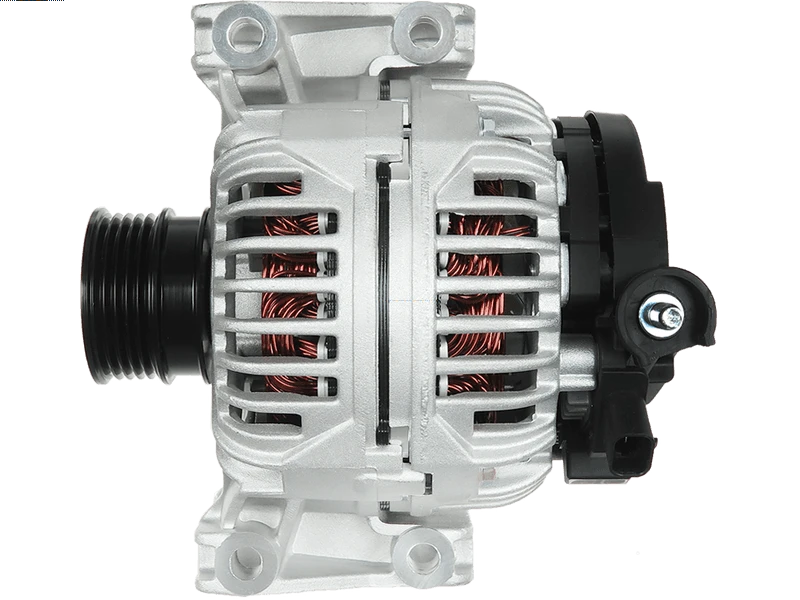

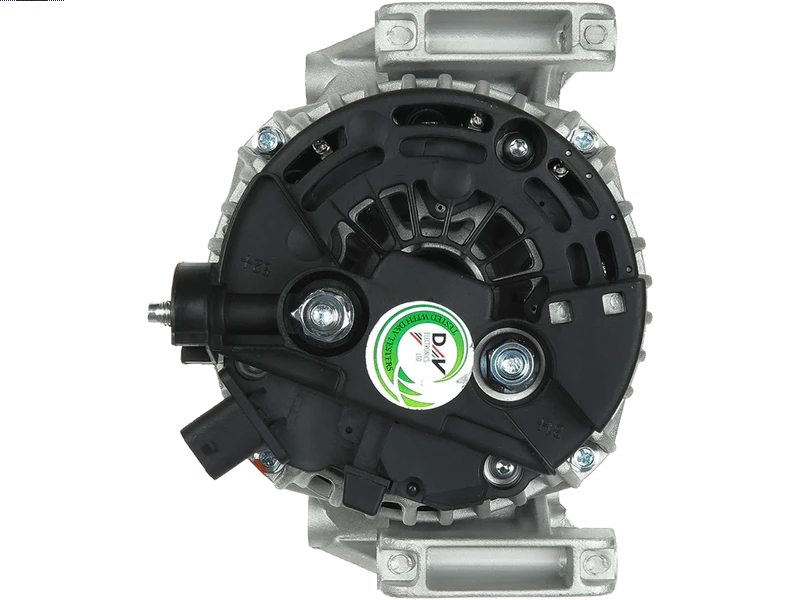

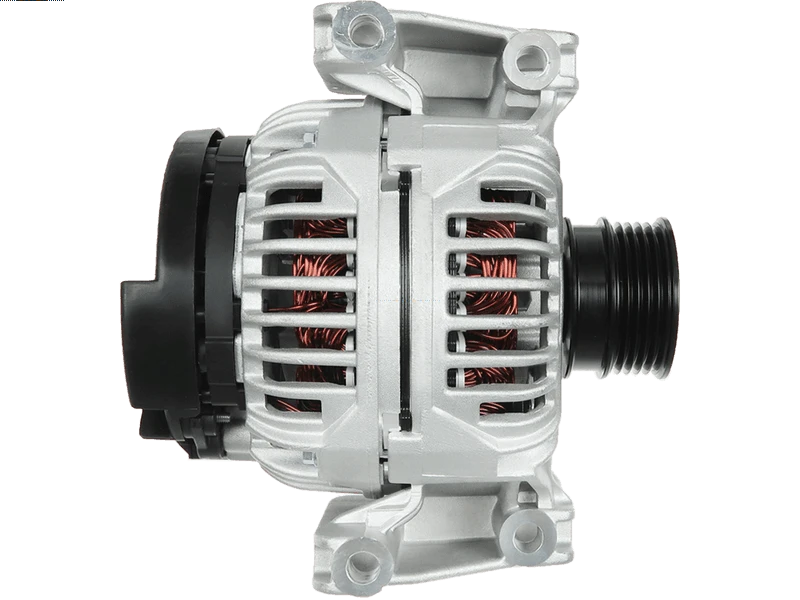

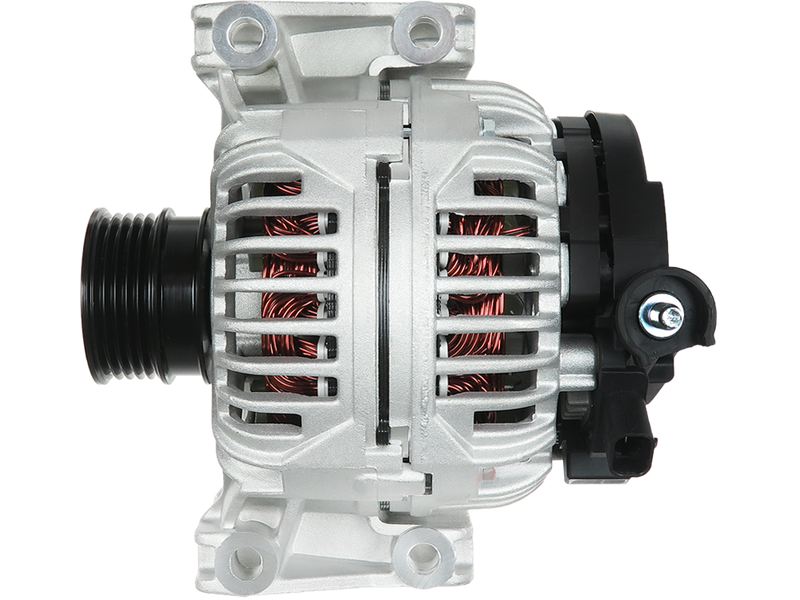

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 492.86 including GST
NZ$ 428.57 excluding GST
or four payments of $123.22
with
Learn More
each
A0047
1
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0124425004 0124425053 0124425056 0124515033 0124515095 0124515096 09131264 0986044020 11.1740 11279N 113352 12762730 13129850 13229988 20101924BN 20101924OE 2010429 23241N 23241R 24415914 24430294 24455914 28-4716 301740RI 301858RI 32044010 440054 4736 56868 6204112 6204119 6204173 89212275 8EL738094-001 9044020 9131264 9199574 9212275 93172080 93176035 93190828 A0047 AEC1740 ALT10352 CA1740IR CAL10429AS CAL10429GS DRB4020 DRB4021 EAA-221191 LRA02241 LRA02242 SA352Specifications
| Amp | 120 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Diameter (D.4) | 10.5 mm |
| Length (L.1) | 197 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 79 mm |
| Pad mount thickness (E.2) | 79 mm |
| Plug Code | PL_2200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 09.2000-08.2005 |
| OPEL | Signum 2.0 Turbo | [Z20NET] | 05.2003- |
| OPEL | Signum 2.2 | [Z22YH] | 05.2003- |
| OPEL | Speedster 2.0 Turbo | [Z20LET] | 04.2003- |
| OPEL | Speedster 2.2 | [Z22SE] | 09.2000- |
| OPEL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-09.2003 |
| OPEL | Vectra C 2.0 Turbo | [Z20NET] | 10.2003- |
| OPEL | Vectra C 2.0 Turbo 16V | [Z20NET] | 03.2003- |
| OPEL | Vectra C 2.0 Turbo 16V GTS | [Z20NET] | 03.2003- |
| OPEL | Vectra C 2.2 Direct | [Z22YH] | 10.2003- |
| OPEL | Vectra C 2.2 GTS Direct | [Z22YH] | 10.2003- |
| OPEL | Vectra C 2.2 i 16V | [Z22SE] | 04.2002- |
| OPEL | Vectra C 2.2 i 16V GTS | [Z22SE] | 08.2002- |
| OPEL | Zafira A 2.2 16V | [Z22SE] | 09.2000-07.2005 |
| VAUXHALL | Astra Mk IV 2.2 | [Z22SE] | 03.2000- |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2001- |
| VAUXHALL | Signum 2.0 i Turbo | [Z20NET] | 05.2003- |
| VAUXHALL | Signum 2.2 i | [Z22YH] | 05.2003- |
| VAUXHALL | Speedster 2.2 i | [Z22SE] | 09.2000- |
| VAUXHALL | Vectra 2.2 i 16V | [Z22SE] | 09.2000-08.2001 |
| VAUXHALL | Vectra Mk II 2.0 Turbo 16V | [Z20NET] | 03.2003- |
| VAUXHALL | Vectra Mk II 2.2 Direct | [Z22YH] | 10.2003- |
| VAUXHALL | Vectra Mk II 2.2 Direct GTS | [Z22YH] | 10.2003- |
| VAUXHALL | Vectra Mk II 2.2 i 16V | [Z22SE] | 09.2000-08.2001 |
| VAUXHALL | VX 2.0 i Turbo 220 | [Z20LET] | 04.2003- |
| VAUXHALL | Zafira 2.2 16V | [Z22SE] | 09.2000-06.2005 |
Reference Information
ALTL681 9212275 STX100805 8EL738094-001 ALT10352 32044010 6204099 0124425004 ALT1397 311008 ALT1431 28-4716 ALT1432 9044020 CAL10429GS 20101924BN ANM46240X 13229987 93179323 93179322 13229989 13229988 12757362 6204147 6204146 95520880 STX100418 STX100813 442145 RNL4402 R1530022 93190894 11279N 4736 24430294 24430295 0124515033 ALT124290 9199275 9512795 9512796 LRA2241 1276273 LRA2242 A12BH0350A2 95521462 13129850 210724 CGB-84717 11.174 6204207 209078 LRA02242 LRA02241 PRAL681 9152264 113352 93175810 93175811 ALTF679 STX100281 9152247 9199574 55556065 9199575 R1530048 0124425053 CA1740IR 301858RI 0124515096 0124425056 0124515095 93184052 STX100613 6204173 ALT124290A 20101924OE 9562004 5510559 CAL10429AS SA352 ALT1406 440054 6204184 93186763 STX100418R 1516500R 301740RI 93175959 9193114 93175958 AEC1740 56868 9193117 89212275 24415914 ALTS893 6204119 6204118 93190828 93172080 93167057 6204113 6204112 93190827 2010429 A12BH0350 EAA-221191 12762730 DRB4021 STX100281R 93172075 DRB4020 93176035 55559583 A0047 0986044020 24455914 24455913 23241N 9131264 23241RVideo/Publications
A0047Related Items
