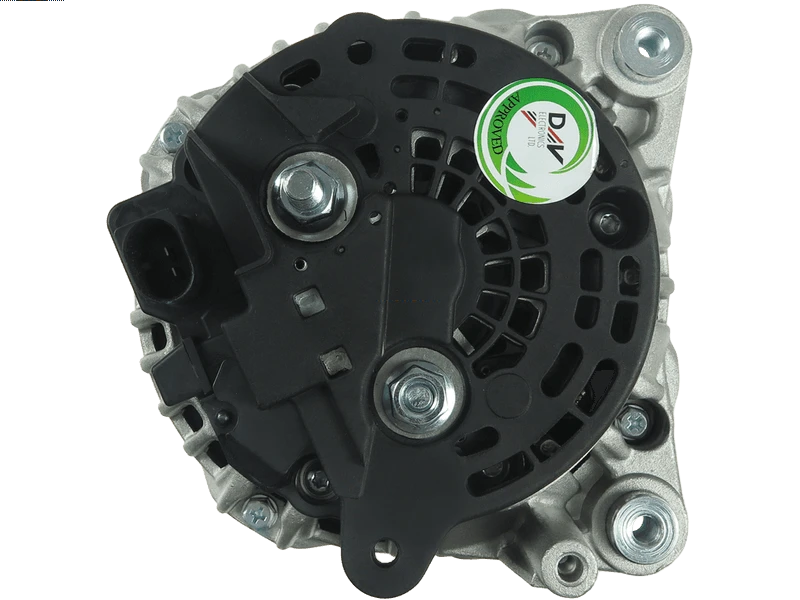

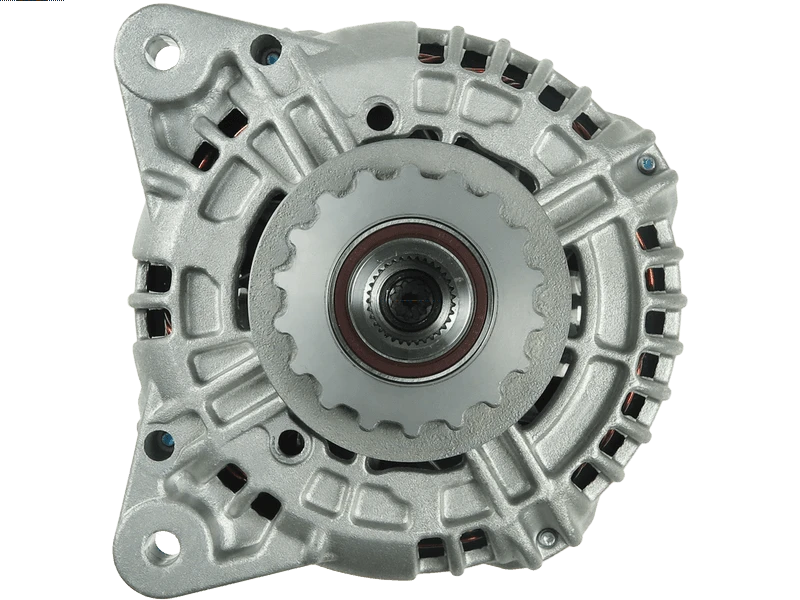

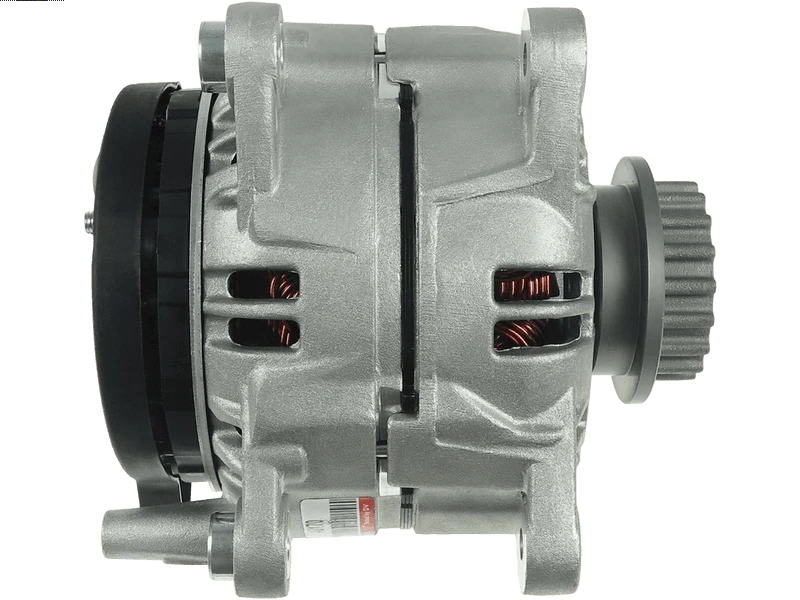

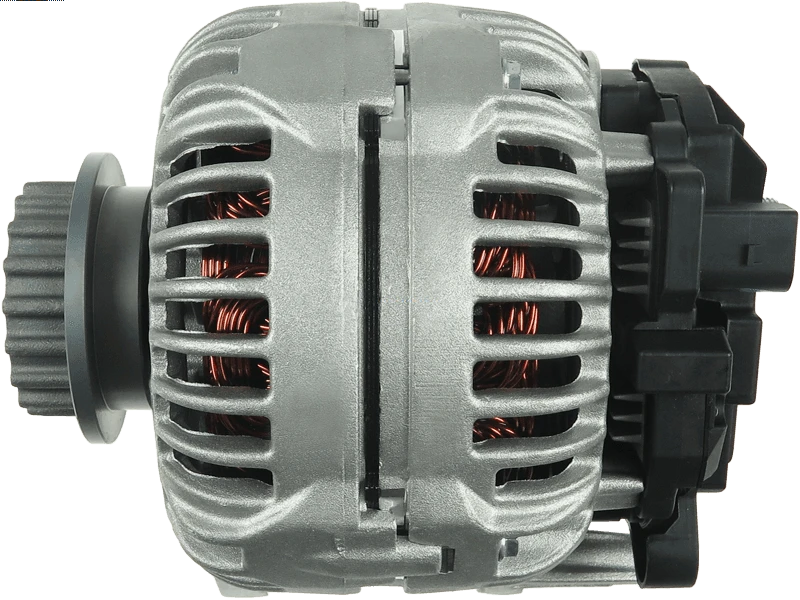

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 617.04 including GST
NZ$ 536.56 excluding GST
or four payments of $154.26
with
Learn More
each
A0237
A0170
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124615031Associated Numbers
0121615013 0121615029 0124615031 070903024A 070903024F 070903139X 20101552 2010255 210581 23321N 28-4816 301819RI 301819RIV 305.544.150 4659 57096 8EL011-712-291 8EL738-204-001 A0170 AEC1819 ALB1819 ALT10583 CA1819IR CAL10255 CAL10255AS CAL10255ES CAL10255GS CAL10255OS CAL10255RS DA5274 DRA4164 EAA-221147 LRA02321 SA818 SB335Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 18 qty |
| Pulley Outside Diameter (O.D.1) | 61 mm |
| Pulley to Mount Distance (A) | 43.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Multivan 2.5 TDi | [AXD] | 04.2003-11.2009 |
| VW | Multivan 2.5 TDi | [AXE] | 04.2003-11.2009 |
| VW | Multivan 2.5 TDi | [BLJ] | 11.2003-11.2009 |
| VW | Multivan 2.5 TDi | [BNZ] | 04.2003-11.2009 |
| VW | Multivan 2.5 TDi | [BPC] | 04.2003-11.2009 |
| VW | Multivan 2.5 TDi 4motion | [AXD] | 07.2004-11.2009 |
| VW | Multivan 2.5 TDi 4motion | [AXE] | 07.2004-11.2009 |
| VW | Multivan 2.5 TDi 4motion | [BNZ] | 07.2004-11.2009 |
| VW | Multivan 2.5 TDi 4motion | [BPC] | 07.2004-11.2009 |
| VW | Touareg 2.5 TDi R5 | [BAC] | 01.2003-05.2010 |
| VW | Touareg 2.5 TDi R5 | [BLK] | 08.2003-05.2010 |
| VW | Touareg 2.5 TDi R5 | [BPD] | 08.2003-05.2010 |
| VW | Touareg 2.5 TDi R5 | [BPE] | 01.2003-05.2010 |
| VW | Transporter 2.5 TDi | [AXD] | 04.2003-11.2009 |
| VW | Transporter 2.5 TDi | [AXD] | 06.2006- |
| VW | Transporter 2.5 TDi | [AXE] | 04.2003-11.2009 |
| VW | Transporter 2.5 TDi | [AXE] | 06.2006- |
| VW | Transporter 2.5 TDi | [BLJ] | 11.2003-11.2009 |
| VW | Transporter 2.5 TDi | [BNZ] | 04.2003-11.2009 |
| VW | Transporter 2.5 TDi | [BPC] | 04.2003-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [AXD] | 07.2004-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [AXE] | 04.2004-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [AXE] | 07.2004-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [BNZ] | 07.2004-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [BPC] | 04.2004-11.2009 |
| VW | Transporter 2.5 TDi 4motion | [BPC] | 07.2004-11.2009 |
Reference Information
DA5274 RNL625018INA ALT10072 0121615029 RNL625018NP ALTL244 311055 RNL625018 CAL10255AS STX100205R CAL10255ES SB335 CGB-84816 STA0415R 070903024A 070903024B CAL10255RS 070903024F 23321N 070903024H ALT10583 ALT122550A DRA4164 ALT122550 CAL10255 0124615031 4659 ANM36384X CA1820IR 8EL011-712-291 ALTL415V 070903139 STX101603R 441966 28-4816 LRA2321 CAL10255OS STX101603 305.544.150 AEC1819 CAL10255GS RNL615031 STX100049R ALB1819 301819RIV RNL615031INA 070903024 8EL738-204-001 20101552 113947 SA818 0121615013 AI-90033 ALTL415NE 210581 A12BH0130A2 LRA02321 57096 A0170 PRAL244 STX100205 301819RI 5510523 STX100049 RNL615031NP 070903139X CA1819IR 2010255 ALTL415Video/Publications
