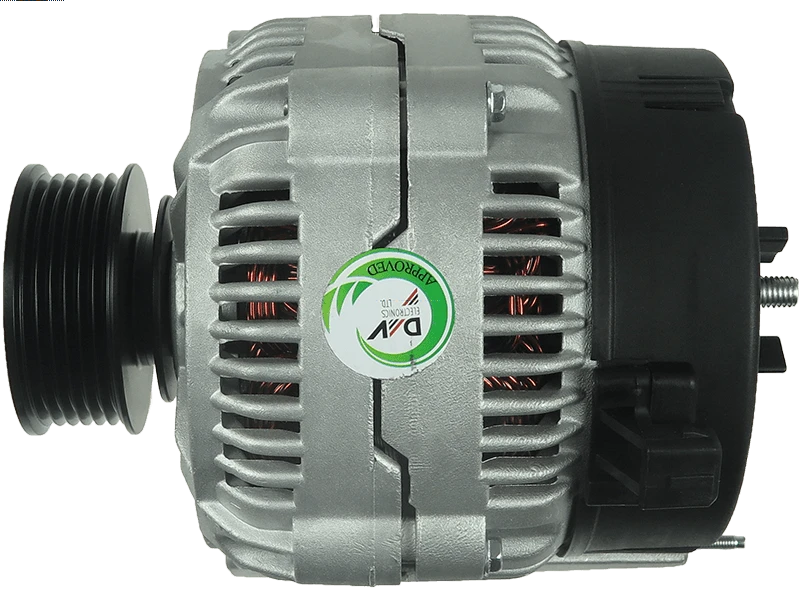

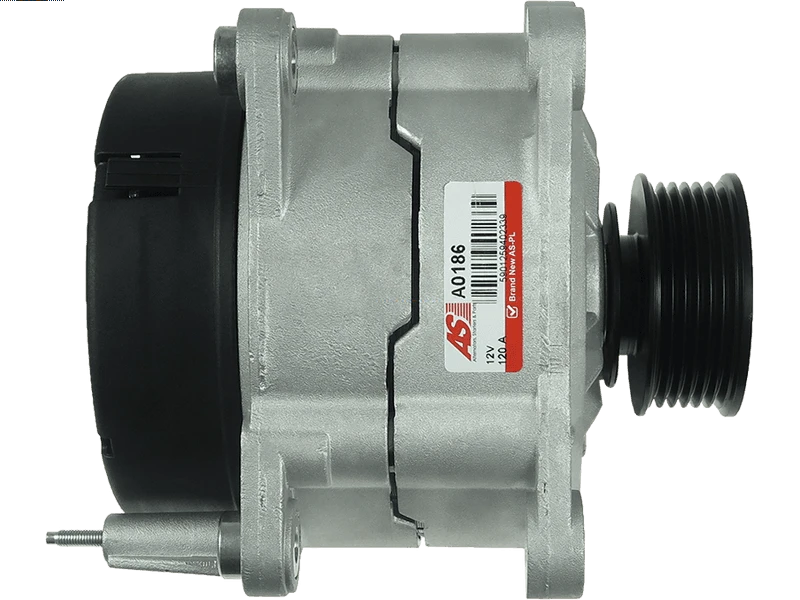

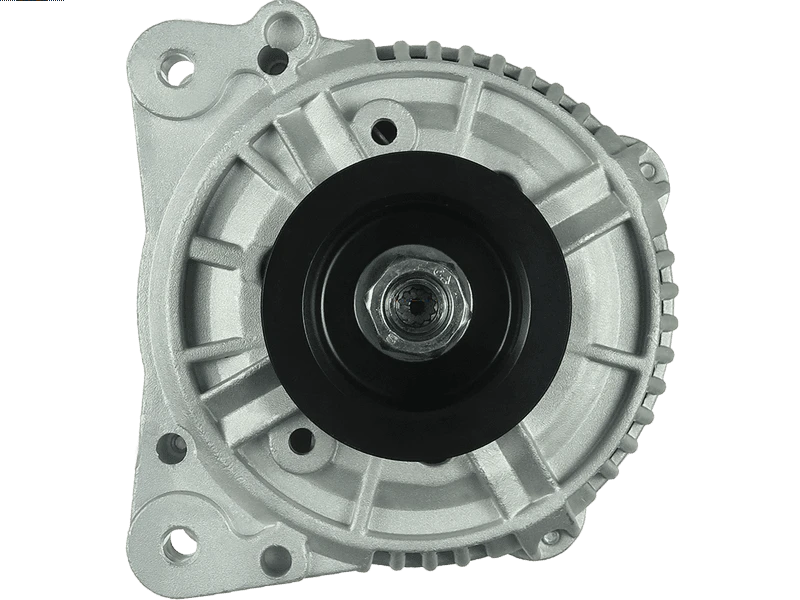

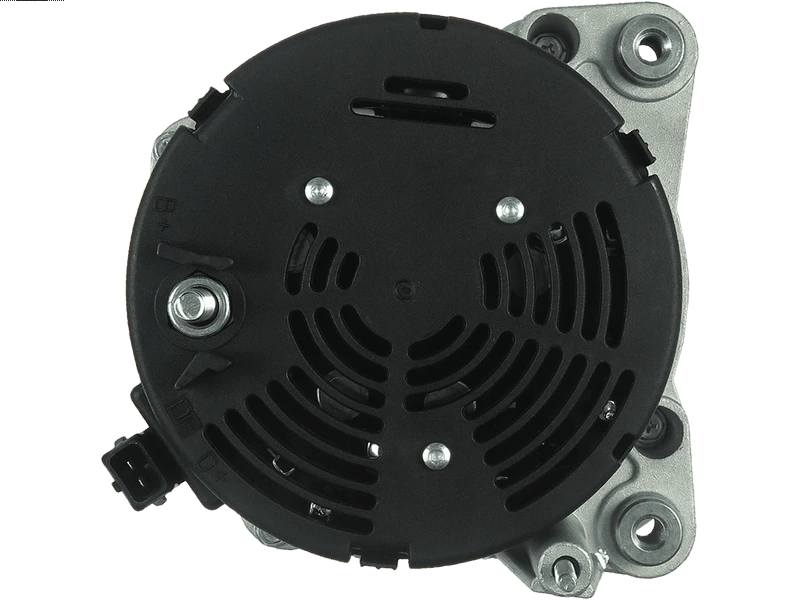

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 411.09 including GST
NZ$ 357.47 excluding GST
or four payments of $102.77
with
Learn More
each
A0186
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0123510026 0123515016 028903027P 0986040360 11.1229 11.1264 111898 13626R 20101105BN 2010501 28-2763 301229RI 32040360 437618 4547 56590 89213797 8EL737310-001 9040360 A0186 AEA2296 ALT10366 B120510614 CA1229IR CAL10501AS DRB0360 EAA-221379 IA1269 LRB00296 13626NSpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 68 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | LT 28-35 2.5 SDi | [AGX] | 07.1996-07.1998 |
| VW | LT 28-35 2.5 TDi | [AHD] | 05.1996-07.1998 |
| VW | LT 28-35 2.8 TDi | [AGK] | 06.1997-07.1998 |
| VW | LT 40-55 2.5 SDi | [AGX] | 05.1996-07.1998 |
| VW | LT 40-55 2.5 TDi | [AHD] | 05.1996-07.1998 |
| VW | LT 40-55 2.8 TDi | [AGK] | 07.1997-07.1998 |
| VW | Multivan 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.4 Diesel | [AAB] | 01.1996-04.2003 |
| VW | Transporter 2.4 Diesel | [AJA] | 08.1997-08.1998 |
| VW | Transporter 2.4 Diesel Syncro | [AAB] | 01.1996-03.2004 |
| VW | Transporter 2.5 | [ACU] | 12.1995-10.1996 |
| VW | Transporter 2.5 | [AEN] | 12.1995-10.1996 |
| VW | Transporter 2.5 | [AET] | 08.1996-06.2003 |
| VW | Transporter 2.5 | [AEU] | 08.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [ACU] | 12.1995-10.1996 |
| VW | Transporter 2.5 Syncro | [AEN] | 09.1995-12.1995 |
| VW | Transporter 2.5 Syncro | [AET] | 07.1996-06.2003 |
| VW | Transporter 2.5 Syncro | [AEU] | 10.1992-11.2001 |
| VW | Transporter 2.5 TD | [AJT] | 05.1998-10.1998 |
| VW | Transporter 2.5 TDi | [ACV] | 01.1995-10.1998 |
| VW | Transporter 2.5 TDi | [AJT] | 05.1998-10.1998 |
| VW | Transporter 2.5 TDi Syncro | [ACV] | 01.1995-10.1998 |
| VW | Transporter 2.5 TDi Syncro | [AXL] | 01.1995-10.1998 |
Reference Information
IA1269 301229RI LRB296 32040360 0123510026 STX100777 CAL10501AS EAA-221379 20101105BN ANM42580X MG LRB00296 89213797 AEA2296 STA0450R 028903028B A0186 441376 13626N 8EL737310-001 A12BH0527A2 028903027P 0986040360 ALTE569 AI-90093 ALTS307 DRB0360 13626R 028903027D 111898 1515434R 28903027P 56590 2010501 ALT1852 1516434R 28903027D B120510614 4547 ALT6780 33 437618 11.1264 CGB-82763 9040360 0123515016 ALT10366 209439 9.0571E+11 28-2763 CA1229IR 11.1229Video/Publications
A0186Related Items
