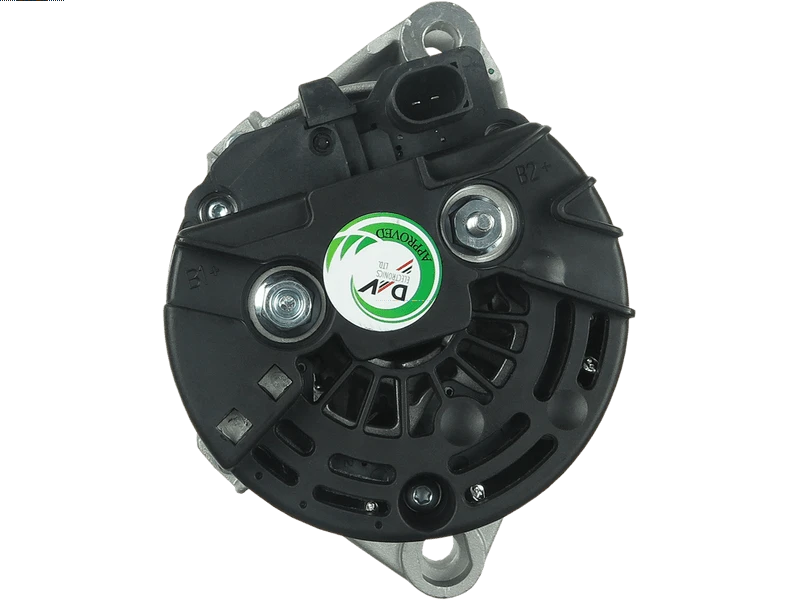

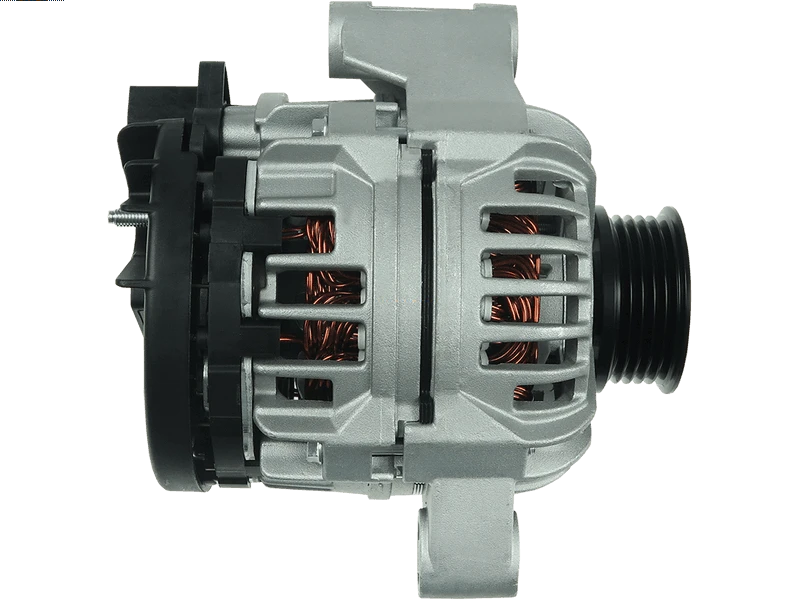

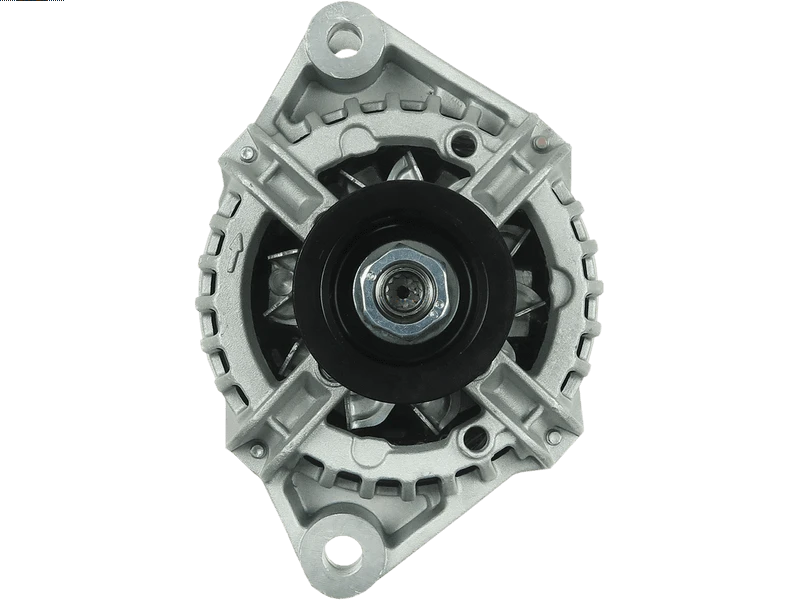

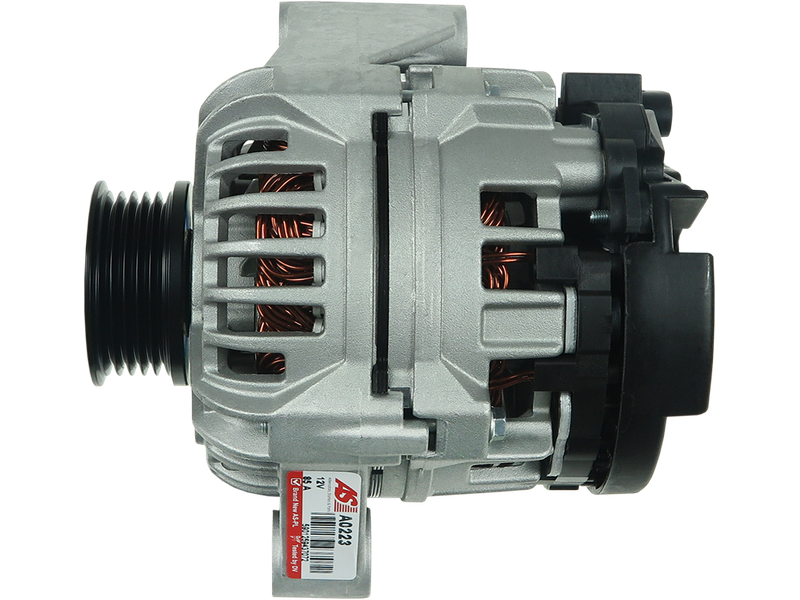

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 381.81 including GST
NZ$ 332.01 excluding GST
or four payments of $95.45
with
Learn More
each
A0223
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124225020Associated Numbers
0004717V005 0004717V006 0111548002 011154800280 0124225020 0124225037 063532250200 0986044490 114040 20101142 2010241 210707 23901N 28-5515 302024RI 302024RIB 437737 4577 555.542.085 57123 6601540902 660154090280 89213080 8EL012428-841 8EL738212-421 90-15-6605 943320241010 944390901430 A-6578 A0111548002 A011154800280 A0223 A6601540902 A660154090280 AEK2901 AG0870 ALB2024 ALT10316 BOS0124225020 CA2024IR CAL10241 CAL10241AS CAL10241ES CAL10241GS CAL10241OS CAL10241RS DB5600 DRB4490 EAA-221502 GA225020-A GA225020B-R LRA02901 MAN2027 MARC2024 MRA90143 Q0004717V005 Q0004717V006 SB308Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 175 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SMART | City 0.8 CDi | [OM660.940] | 11.1999-01.2004 |
| SMART | City 0.8 CDi | [OM660DE8LA] | 11.1999-01.2004 |
| SMART | Fortwo 0.8 CDi | [OM660.940] | 01.2004-03.2007 |
| SMART | Fortwo 0.8 CDi | [OM660DE8LA] | 01.2004-03.2007 |
| SMART | Smart 0.8 CDi | [OM660.940] | 03.2001-01.2004 |
| SMART | Smart 0.8 CDi | [OM660DE8LA] | 03.2001-01.2004 |
Reference Information
943320241010 4717V006 0124225037 ALT267 0004717V005000000 0986044490 1337 A-6578 210707 ALT10316 ALTL125 8EL012428-841 DB5600 2010241.1 2010241.0 CAL10241 MARC2024 GA225020B-R LRA02901 4717V00500 MRA90143 ALB2024 A0223 MAN2027 CAL10241AS 555.542.085 89213080 CAL10241ES RNL4449 AX 4577 A0111548002 660154090280 8EL738212-421 A660154090280 A6601540902 302024RI 90-15-6605 0004717V006 0004717V005 AEK2901 DRB4490 CAL10241RS 20101142OE BOS0124225020 0111548002 063532250200 ANM46710X ALT1578 0124225020 57123 944390901430 011154800280 A011154800280 20101142BN CGB-85515 CAL10241OS A12BH0142AS 437737 441710 CAL10241GS AG0870 23901N 114040 6601540902 ALT122410 LRA2901 STX100206 28-5515 CA2024IR STX100206R Q0004717V005 Q0004717V006 302024RIB GA225020-A SB308Video/Publications
