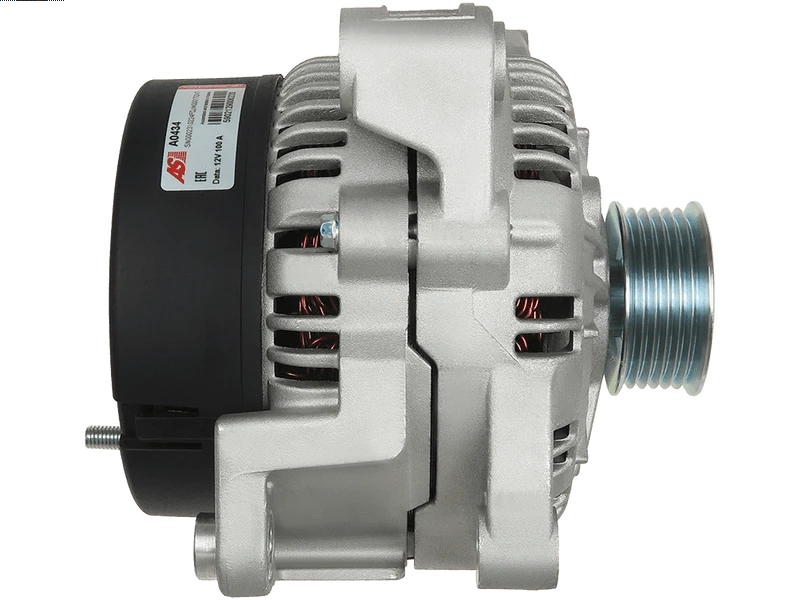

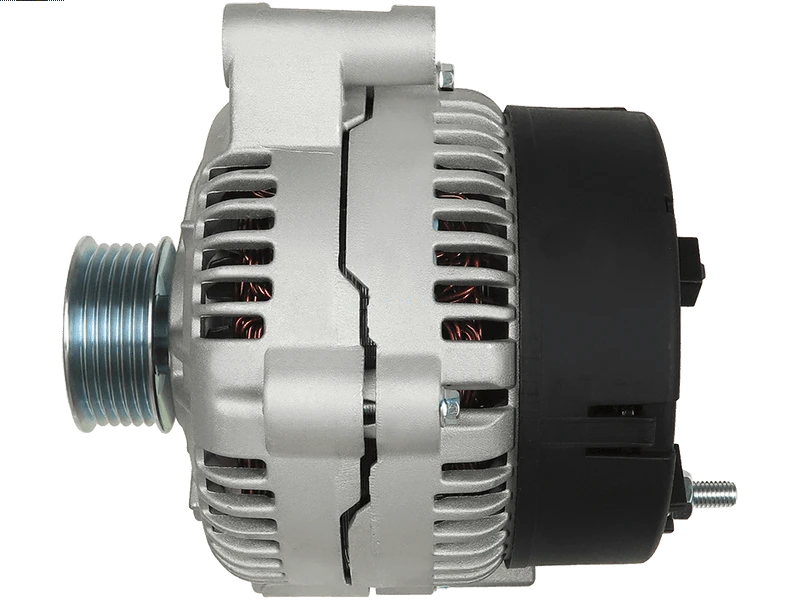

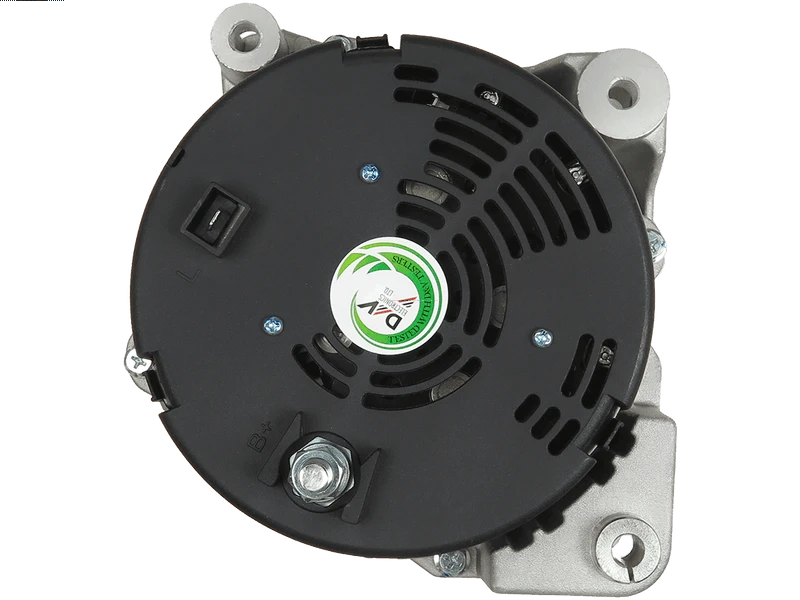

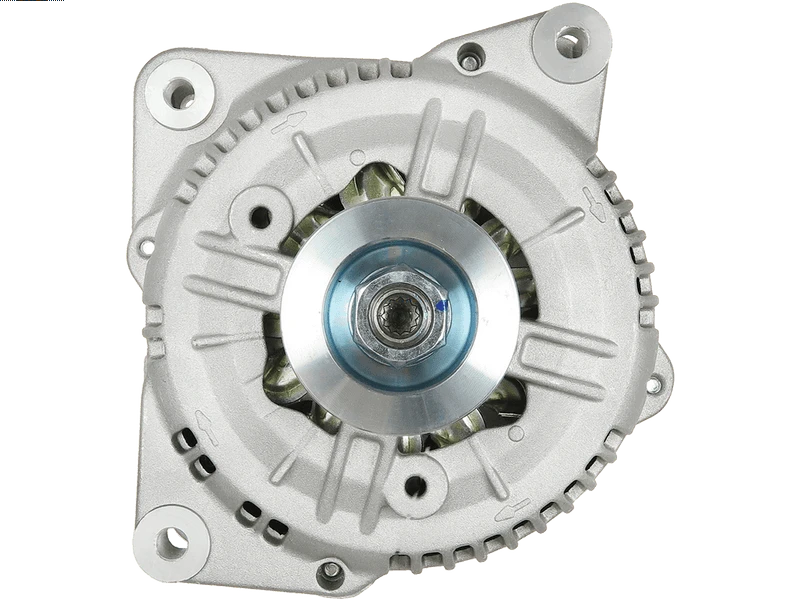

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 463.85 including GST
NZ$ 403.35 excluding GST
or four payments of $115.96
with
Learn More
each
A0434
No stock in NZ
No stock in NZ
Associated Numbers
0120465012 0123505014 11.1088 20101322BN 2010223 20110219 28-1668 301088RI 301822RI 301822RIR 815.506.100 9038630 A-6293 A0434 AG0087 CAL10223AS DA9740 DB1480 DRA8630 DRB0370 LRB00219 SA809 SA922 UD01529A 22536RSpecifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Diameter (D.4) | 8 mm |
| Length (L.1) | 189.5 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Laguna 2.0 | [N7Q] | 01.1995-12.2001 |
| VOLVO | 850 2.0 | [B5202] | 01.1992-12.1997 |
| VOLVO | 850 2.0 | [B5204] | 01.1992-12.1997 |
| VOLVO | 850 2.0 | [B5204FT] | 01.1994-12.1997 |
| VOLVO | 850 2.0 | [B5204T] | 01.1994-12.1997 |
| VOLVO | 850 2.3 | [B5234FS] | 01.1996-12.1996 |
| VOLVO | 850 2.3 | [B5234FT] | 01.1993-12.1996 |
| VOLVO | 850 2.3 | [B5234T] | 01.1993-12.1996 |
| VOLVO | 850 2.3 | [B5234T] | 01.1994-12.1997 |
| VOLVO | 850 2.3 | [B5234T2] | 01.1996-12.1996 |
| VOLVO | 850 2.3 | [B5234T5] | 01.1994-12.1997 |
| VOLVO | 850 2.4 | [B5254T] | 01.1996-12.1997 |
| VOLVO | 850 2.5 | [B5252S] | 01.1992-12.1997 |
| VOLVO | 850 2.5 | [B5254S] | 01.1991-12.1997 |
| VOLVO | C70 2.0 | [B5204T2] | 01.1998-12.2000 |
| VOLVO | C70 2.0 | [B5204T3] | 01.1997-12.2000 |
| VOLVO | C70 2.3 | [B5234T3] | 01.1997-12.1998 |
| VOLVO | C70 2.5 | [B5244T] | 01.1998-12.1999 |
| VOLVO | C70 2.5 | [B5254T] | 01.1998-12.1999 |
| VOLVO | S70 2.0 | [B5202S] | 01.1997-12.2000 |
| VOLVO | S70 2.0 | [B5204] | 01.1997-12.2000 |
| VOLVO | S70 2.0 | [B5204T] | 01.1997-12.1998 |
| VOLVO | S70 2.3 | [B5234] | 01.1997-12.2000 |
| VOLVO | S70 2.3 | [B5234T3] | 01.1996-12.1998 |
| VOLVO | S70 2.3 | [B5234T3] | 01.1997-12.2000 |
| VOLVO | S70 2.5 | [B5252S] | 01.1997-12.1998 |
| VOLVO | S70 2.5 | [B5254S] | 01.1997-12.2000 |
| VOLVO | S70 2.5 | [B5254T] | 01.1997-12.1998 |
| VOLVO | V70 2.0 | [B5202FS] | 01.1997-12.2000 |
| VOLVO | V70 2.0 | [B5204S] | 01.1997-12.2000 |
| VOLVO | V70 2.0 | [B5204T] | 01.1997-12.2000 |
| VOLVO | V70 2.3 | [B5234T3] | 01.1997-12.1998 |
| VOLVO | V70 2.3 | [B5234T4] | 01.1997-12.1998 |
| VOLVO | V70 2.5 | [B5244T] | 01.1997-12.2000 |
| VOLVO | V70 2.5 | [B5252S] | 01.1997-12.2000 |
| VOLVO | V70 2.5 | [B5254S] | 01.1997-12.2000 |
| VOLVO | V70 2.5 | [B5254T] | 01.1997-12.1998 |
| VOLVO | V70 2.5 | [B5254T] | 01.1997-12.2000 |
Reference Information
ANM30850X SA809 PRAS132 9130217 A0434 LRB219 DRA8630 9148301 301088RI 22536R 9164941 310633 8602082 7701499612 DB1480 SA922 A-6293 ALT122120 ALT6880 112557 9447863 11.1088 301822RIR 9162683 LRB00219 DA9740 STX100228 815.506.100 STX100228R 5003996 CA1056IR 9130273 20101322BN 9130274 9038630 STA0453R 7701042288 3523420 UD01529A ALTS132 AG0087 9162424 28-1668 3523422 9130002 STX100671 9130485 8111634 9130003 DRB0370 2010223 A12BH0321A2 210181 8602138 301822RI 441235 0120465012 ALT1026 5003975 8251639 8111887 CAL10223AS 0123505014Video/Publications
