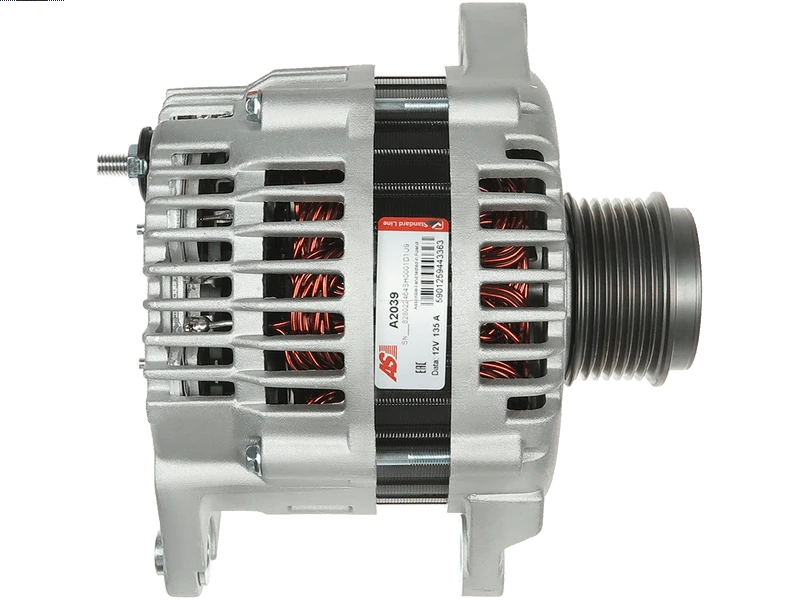

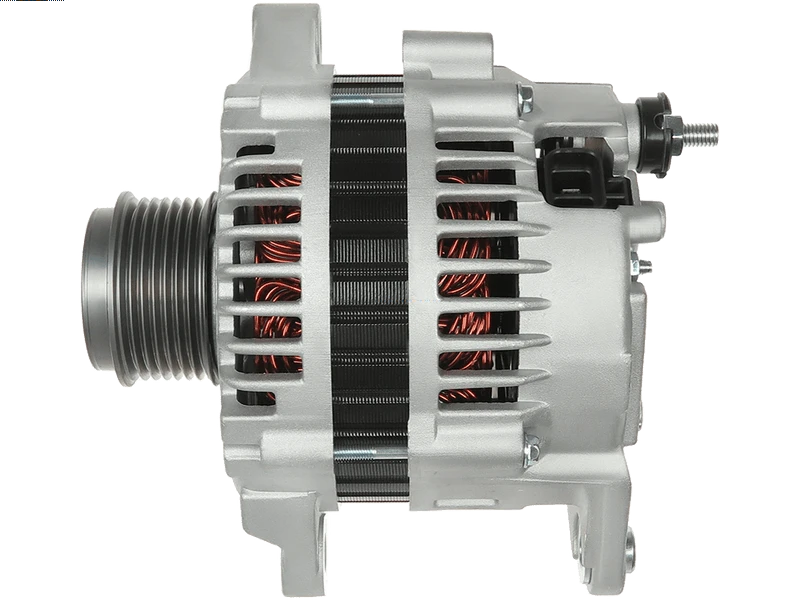

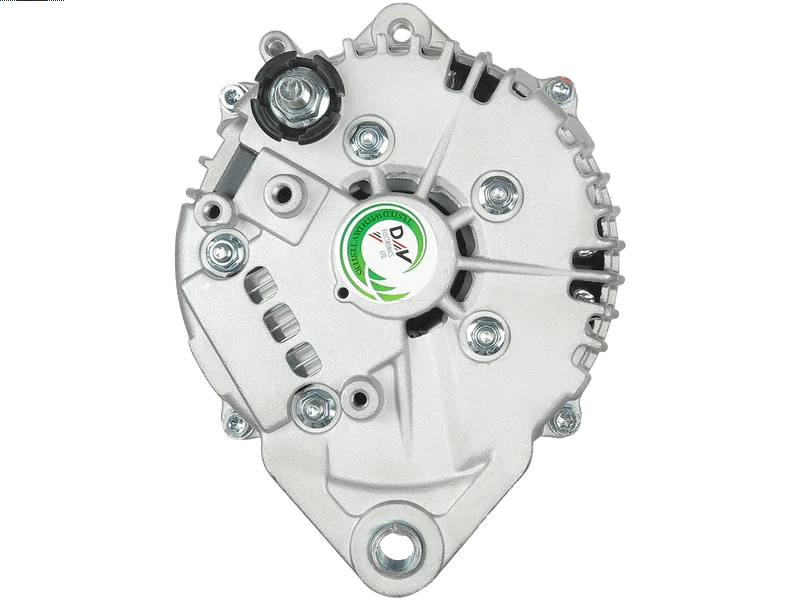

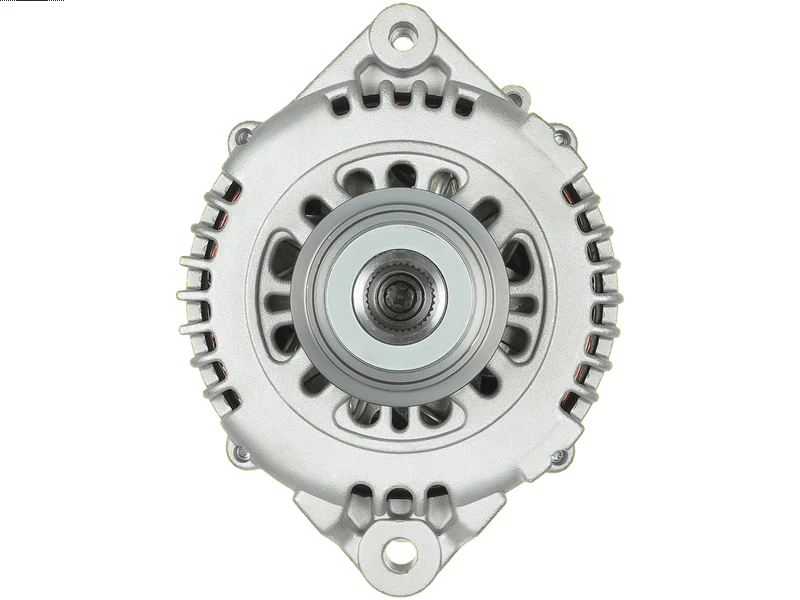

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 478.18 including GST
NZ$ 415.81 excluding GST
or four payments of $119.55
with
Learn More
each
A2039
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
LR1130-702Associated Numbers
0986082190 11.2082M 11.3044M 20145261OE 2020162 23100-DB000 23100-DB00A 28-4989 553109RI 553109RIM 7485129965 A2039 AEK2873 CAL20162GS DRA0231 EAA-221248 LR1130-702 LR1130-702B LR1130-702C LRA02873 SB358 14-368 14368Specifications
| Amp | 135 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 201 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | CLUTCH |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Interstar 3.0 dCi 140 | [ZD30] | 01.2003- |
| OPEL | Movano 3.0 CDTi | [ZD3-200] | 01.2003-01.2005 |
| OPEL | Movano 3.0 CDTi | [ZD3-202] | 01.2003-01.2005 |
| RENAULT | Master 3.0 dCi | [ZD3 20] | 01.2003-01.2006 |
| RENAULT | Master 3.0 dCi | [ZD320] | 01.2003-01.2006 |
| VAUXHALL | Movano 3.0 DTi | [ZD3-200] | 01.2004-01.2005 |
| VAUXHALL | Movano 3.0 DTi | [ZD3-202] | 01.2004-01.2005 |
Reference Information
CAR-821248 2506132 076.303 LRA02873 LR1130-702 553109RIM 93196984 WG2317984 12060860 3122132 20020162AV A12HT0289A2 5520302 9236 3122134 7711135920 ALTJ019 4406495 ANM32451X 23873N 7701070077 5010437730 23873R 101375 113993 A2039 ALH3702 STX100834 444237 CGB-13702R 575.517.135.080 PRAJ019 AHI162A 23100-00QA6 AHI162 DRA0231 L80940 575.517.135.088 LRA2873 WG2281063 2281621352 28-4989 23100-DB00A 23100-DB00B J5111117 TT12754 93179579 AC-CBA2082 23100-DB000 7485129965 LR1130-702B 9090634 LR1130-702C 11.3044M LR1130-702E LR1130-702F 210871A WG2012335 A-32191 RNLLR1130-702 BBA3050 AEK2873 CGB-13702 4419036 CAL20162AS TR8235 G107148 6.27029 AG0922RB 210871 8EL015630-741 93196797 G104556 G104557 G104558 ALT221620 205ST75 AG0922 4419088 11.2082M A2148H 10443187 CA2082IR 575.517.135.270 ANM32451 0986082190 F032113993 20145261BN 57205 95514576 SB358 ALT3199 CGB-84989 STA0331R 553109RI AL02553 446573 WG2196935 23100DB00B 2020162.0 136132 1986A01857 112340Video/Publications
A2039Related Items
