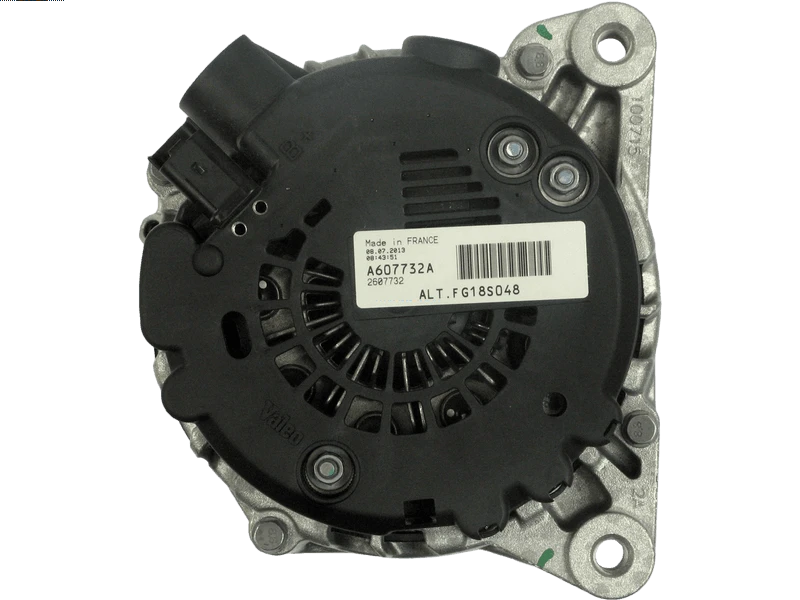

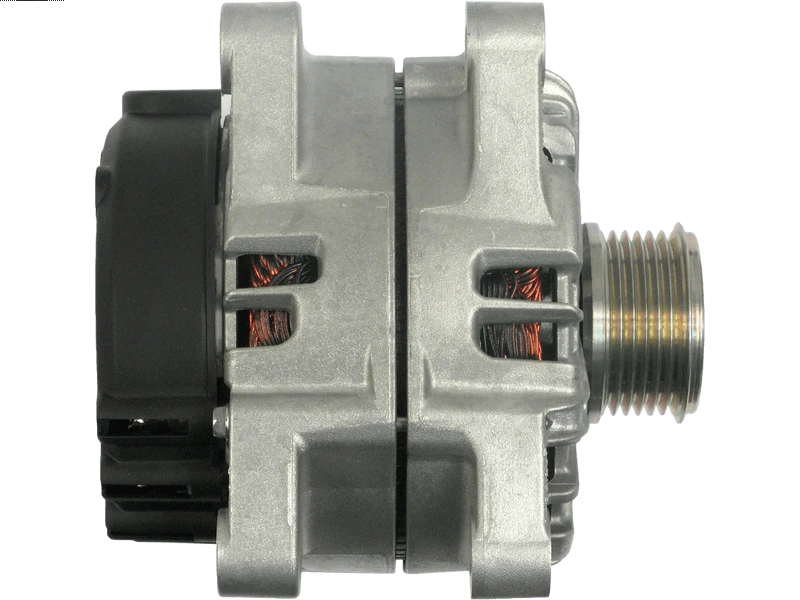

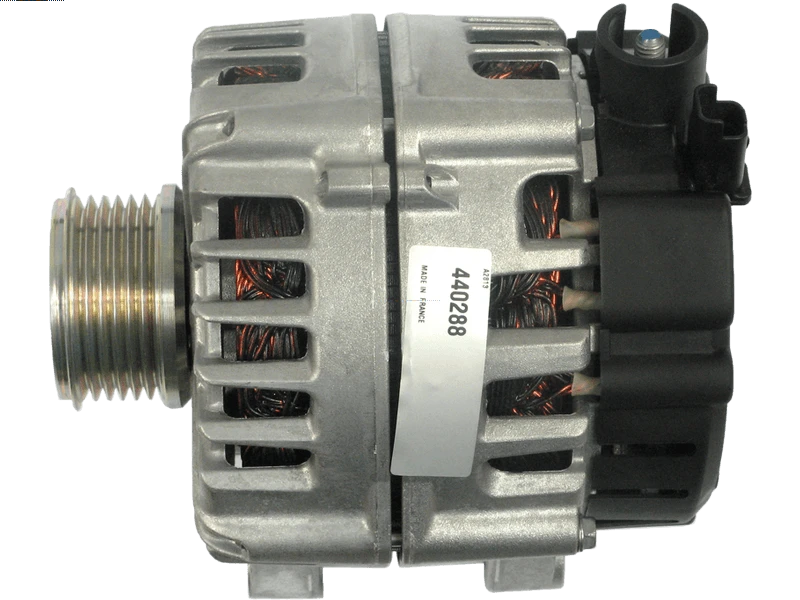

A3140(VALEO) - Brand new OEM VALEO Alternator

Specifications

Amp	180 A
Bottom Mounting Foot Width (B)	21 mm
Diameter (D.1)	10 mm
Diameter (D.2)	10 mm
Diameter (D.3)	M10x1.5 mm
Diameter (D.4)	M10x1.5 mm
Length (L.1)	178 mm
Mount Inside Length or Pad Mount C-C (C)	45.5 mm
OEM Product	Yes
Plug Code	PL_2401
Product Line	Premium Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	54 mm
Pulley to Mount Distance (A)	43 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	Berlingo 1.6 HDi	(9HT)[DV6BTED4]	04.2008-
CITROEN	Berlingo 1.6 HDi	(9HX)[DV6ATED4]	04.2008-
CITROEN	Berlingo 1.6 HDi	(9HZ)[DV6TED4]	08.2005-
CITROEN	Berlingo 1.6 HDi	[DV6TED4]	04.2008-
CITROEN	C4 1.6 HDi	(9HY)[DV6TED4]	02.2007-
CITROEN	C4 1.6 HDi Grand Picasso	(9HY)[DV6TED4]	10.2006-
CITROEN	C4 1.6 HDi Grand Picasso	(9HZ)[DV6TED4]	10.2006-
CITROEN	C4 1.6 HDi Picasso	(9HZ)[DV6TED4]	02.2007-
CITROEN	C4 2.0 HDi	(RHF)[DW10BTED4]	07.2008-
CITROEN	C4 2.0 HDi	(RHR)[DW10BTED4]	11.2004-
CITROEN	C4 2.0 HDi Grand Picasso	(RHJ)[DW10BTED4]	10.2006-
CITROEN	C4 2.0 HDi Grand Picasso	(RHR)[DW10BTED4]	10.2006-
CITROEN	C4 2.0 HDi Picasso	(RHJ)[DW10BTED4]	02.2007-
CITROEN	C4 2.0 HDi Picasso	(RHR)[DW10BTED4]	02.2007-
CITROEN	C5 1.6 HDi	(9HZ)[DV6TED4]	02.2008-
CITROEN	C5 2.0 HDi	[DW10BTED4]	02.2008-
CITROEN	C5 2.0 HDi	(RHR)[DW10BTED4]	09.2004-
CITROEN	C5 2.2 HDi	(4HT)[DW12BTED4]	02.2008-
CITROEN	C5 2.2 HDi	(4HT)[DW12BTED4]	04.2006-
CITROEN	C6 2.2 HDi	[DW12BTED4]	06.2006-
CITROEN	C8 2.0 HDi	(RHK)[DW10UTED4]	02.2007-
CITROEN	C8 2.0 HDi	(RHR)[DW10BTED4]	03.2006-
CITROEN	C8 2.2 HDi	(4HT)[DW12BTED4]	06.2006-
CITROEN	Jumpy 2.0 HDi	(RHK)[DW10UTED4]	01.2007-
CITROEN	Jumpy 2.0 HDi	(RHR)[DW10BTED4]	01.2007-
FIAT	Phedra 2.0 Multijet	(RHR)[DW10BTED4]	07.2006-
FIAT	Phedra 2.2 JTD	(4HW)[DW12ATED4]	09.2002-
FIAT	Phedra 2.2 Multijet		03.2008-
FIAT	Scudo 2.0 Diesel	[DW10BTED4]	01.2007-
FIAT	Scudo 2.0 Multijet	[DW10UTED4]	01.2007-
FIAT	Scudo 2.0 Multijet	[RH02]	04.2011-
FIAT	Scudo 2.0 Multijet	[RHH]	01.2007-
FIAT	Scudo 2.0 Multijet	(RHR)[DW10BTED4]	01.2007-
FIAT	Ulysse 2.0 Multijet	[4HT]	03.2008-
FIAT	Ulysse 2.0 Multijet	[RHK]	05.2006-
FIAT	Ulysse 2.0 Multijet	[RHR]	05.2006-
FIAT	Ulysse 2.2 JTD	[4HP]	03.2008-
FIAT	Ulysse 2.2 JTD	[4HR]	03.2008-
FIAT	Ulysse 2.2 JTD	(4HW)[DW12ATED4]	08.2002-
PEUGEOT	307 2.0 HDi	(RHR)[DW10BTED4]	02.2004-
PEUGEOT	407 2.0 HDi	(RHR)[DW10BTED4]	05.2004-
PEUGEOT	407 2.2 HDi	(4HT)[DW12BTED4]	05.2006-
PEUGEOT	407 2.2 HDi	(9HY)[DW12BTED4]	05.2006-
PEUGEOT	607 2.0 HDi	(RHR)[DW10BTED4]	09.2005-
PEUGEOT	607 2.2 HDi	(4HT)[DW12BTED4]	05.2006-
PEUGEOT	807 2.0 HDi	[DW10UTED4]	02.2006-
PEUGEOT	807 2.2 HDi	(4HT)[DW12BTED4]	06.2006-
PEUGEOT	Expert 2.0 HDi	(RHK)[DW10UTED4]	01.2007-
PEUGEOT	Expert 2.0 HDi	(RHR)[DW10BTED4]	01.2007-
PEUGEOT	Partner 1.6 HDi	[DV6ATED4]	02.2006-
PEUGEOT	Partner 1.6 HDi	[DV6TED4]	04.2008-

Reference Information

CAL35188GS ALTL361 225.533.180.008 225.533.180.009 442083 5705EE 9.44391E+11 A004TJ0081A 56547528ON80 DRA0142 FG18S017 440177 5705AX 9654752880 LRA2857 A004TJ0081AM A4TJ0084AM 225.533.180.130 A4TJ0081A 2035188 225.533.180.138 5702-E7 114859 8EL738211-991 0986080660 AI-90172 A004TJ0084B 9646065180 A004TJ0084A ALT0118 A004TJ0084C A12VA0124A2 5705JF 440288 5705NG A4TJ0081 57020000000 57056K EAA-222377 A4TJ0084C A4TJ0084 A4TJ0084A A4TJ0084B 96547528 9646388280 225.533.180.000 FGN18S048 MD171502 89212430 LRA02857 9688085380 20015079OV A4TJ0081AM A004TJ0084AM 28-4973 STX100675 CA1920IR 8EL011712-341 210520 444719 301920RIV 5702F4 5705-NG CAL15079GS CAL35188AS 439698 4704 5702G2 2607732B AEK2857 2015079.1 2035188.1 2543457A 20137881BN A4TJ0081B A4TJ0081C FG18S048 MM317603 200255 A004TJ0084 9661544880 20130N A004TJ0081C A004TJ0081 A004TJ0081B PRAL361 225.533.180.500 225.533.180.340 K9661544880 20137881OE 5702K8
