A3225 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A3225
Price: 760.46 NZD
Availability: BackOrder

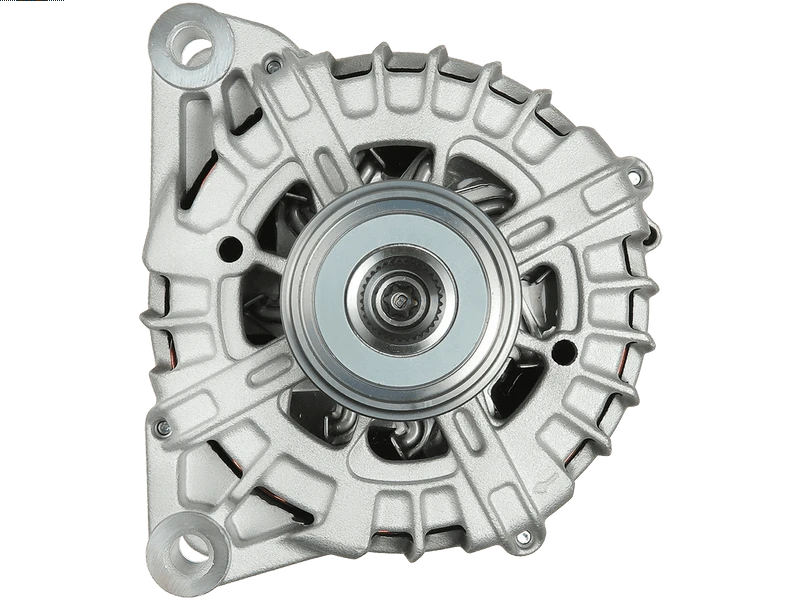

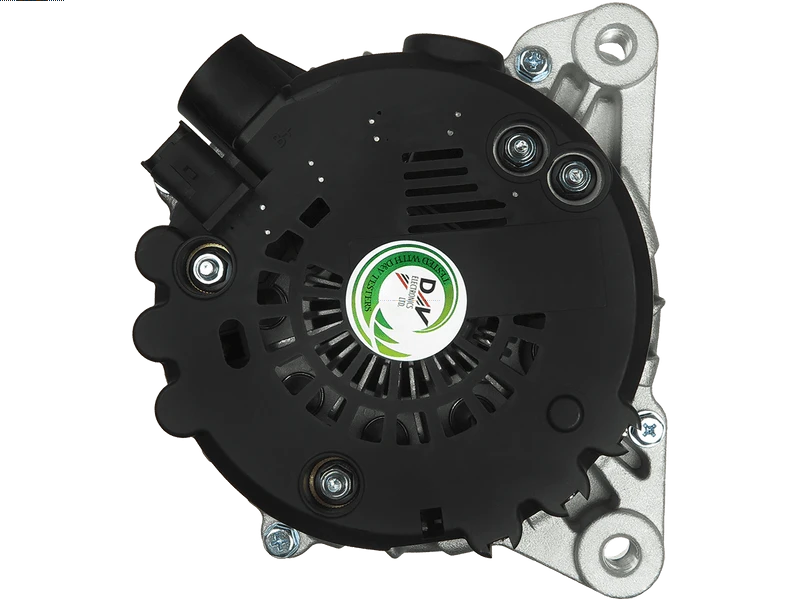

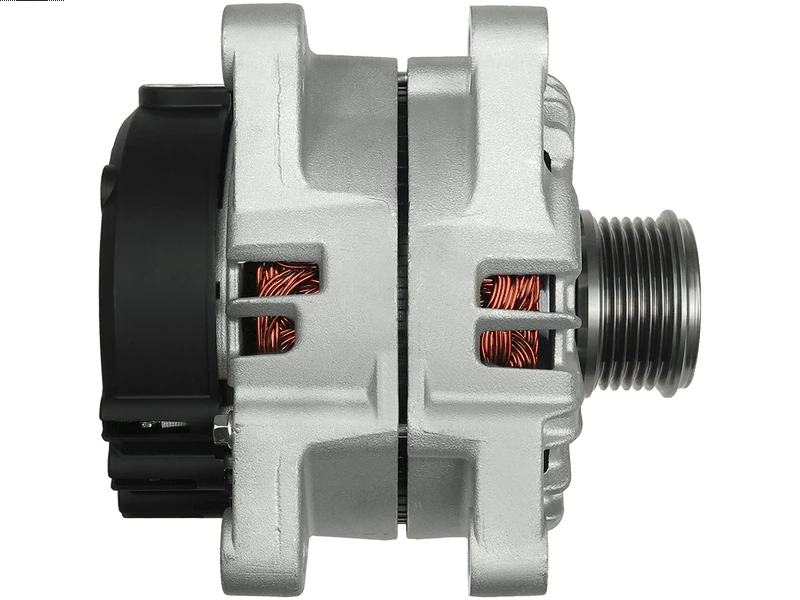

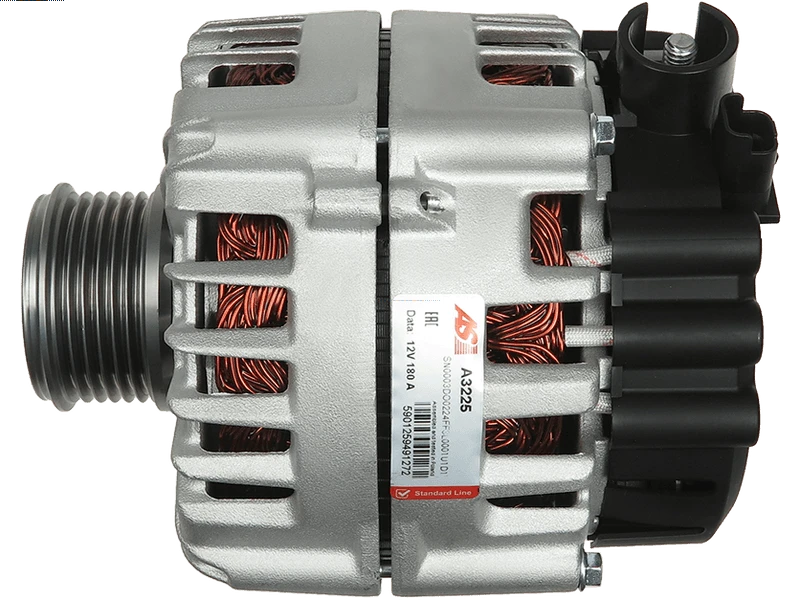

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 760.46 including GST

NZ$ 661.27 excluding GST

UOM:

each

Product Code:

A3225

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Related Items

0986080660 2035188 2543457A 28-4973 301920RIV 440288 5702G2 5705AX 5705JF 8EL012241-151 9090447 9646065180 9646388280 96547528 9654752880 9661544880 9688085380 A3225 A4TJ0081 A4TJ0081A A4TJ0081C A4TJ0084 A4TJ0084A A4TJ0084B A4TJ0084C AEK2857 CA1920IR CAL35188 CAL35188AS CAL35188ES CAL35188GS CAL35188OS CAL35188RS DRA0142 FG18S048 LRA02857 UD02343A

Amp	180 A
Bottom Mounting Foot Width (B)	21 mm
Diameter (D.1)	10.5 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	M10x1.5 mm
Diameter (D.4)	M10x1.5 mm
Length (L.1)	182 mm
Mount Inside Length or Pad Mount C-C (C)	45 mm
OEM Product	No

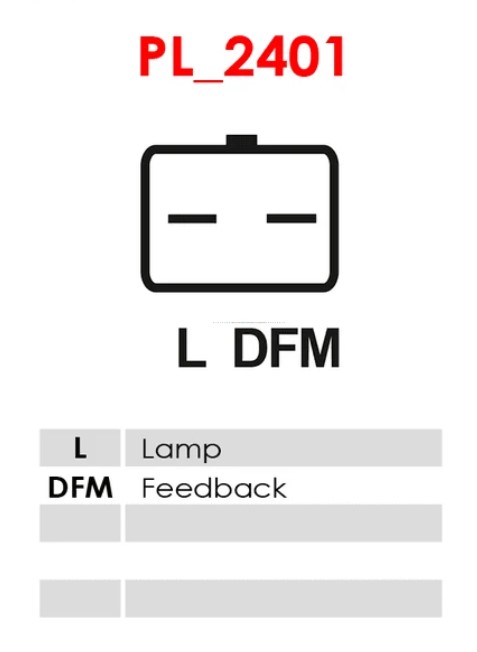

Plug Code	PL_2401
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	54 mm
Pulley to Mount Distance (A)	43 mm
Pulley Type	CLUTCH
Unit Type	VALEO
Voltage	12 V

Make	Model	Type	Year
CITROEN	Berlingo 1.6 HDi	[9HT(DV6BTED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HT(DV6BUTED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HX(DV6ATED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HX(DV6ATED4)]	07.2005-
CITROEN	Berlingo 1.6 HDi	[9HZ(DV6TED4)]	04.2008-
CITROEN	Berlingo 1.6 HDi	[9HZ(DV6TED4)]	08.2005-
CITROEN	Berlingo 1.6 HDi 90		04.2008-
CITROEN	C4 1.6 HDi Grand Picasso	[9HY(DV6TED4)]	10.2006-
CITROEN	C4 1.6 HDi Grand Picasso	[9HZ(DV6TED4)]	10.2006-
CITROEN	C4 1.6 HDi Picasso	[9HY(DV6TED4)]	02.2007-
CITROEN	C4 1.6 HDi Picasso	[9HZ(DV6TED4)]	02.2007-
CITROEN	C4 2.0 HDi	[RHF(DW10BTED4)]	07.2008-
CITROEN	C4 2.0 HDi	[RHR(DW10BTED4)]	11.2004-
CITROEN	C4 2.0 HDi Grand Picasso	[RHJ(DW10BTED4)]	10.2006-
CITROEN	C4 2.0 HDi Grand Picasso	[RHR(DW10BTED4)]	10.2006-
CITROEN	C4 2.0 HDi Picasso	[RHJ(DW10BTED4)]	02.2007-
CITROEN	C4 2.0 HDi Picasso	[RHR(DW10BTED4)]	02.2007-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	02.2008-
CITROEN	C5 2.0 HDi	[RHF(DW10BTED4)]	02.2008-
CITROEN	C5 2.0 HDi	[RHR(DW10BTED4)]	02.2008-
CITROEN	C5 2.0 HDi	[RHR(DW10BTED4)]	09.2004-
CITROEN	C5 2.2 HDi	[4HP(DW12BTED4)]	05.2006-
CITROEN	C5 2.2 HDi	[4HT(DW12BTED4)]	02.2008-
CITROEN	C5 2.2 HDi	[4HT(DW12BTED4)]	04.2006-
CITROEN	C5 2.2 HDi 165	[4HP(DW12BTED4)]	02.2008-
CITROEN	C6 2.2 HDi	[4HP(DW12BTED4)]	06.2006-
CITROEN	C6 2.2 HDi	[4HT(DW12BTED4)]	06.2006-
CITROEN	C8 2.0 HDi	[RHK(DW10UTED4)]	02.2007-
CITROEN	C8 2.0 HDi	[RHR(DW10BTED4)]	03.2006-
CITROEN	C8 2.2 HDi	[4HP(DW12BTED4)]	06.2007-
CITROEN	C8 2.2 HDi	[4HT(DW12BTED4)]	06.2006-
CITROEN	Jumpy 2.0 HDi	[RHK(DW10UTED4)]	01.2007-
CITROEN	Jumpy 2.0 HDi	[RHR(DW10BTED4)]	01.2007-
FIAT	Scudo 2.0 Diesel	[DW10BTED4]	01.2007-
FIAT	Scudo 2.0 Multijet	[RH02]	04.2011-
FIAT	Scudo 2.0 Multijet	[RH02]	05.2011-
FIAT	Scudo 2.0 Multijet	[RHH]	01.2007-
FIAT	Scudo 2.0 Multijet	[RHK]	01.2007-
FIAT	Scudo 2.0 Multijet	[RHR]	01.2007-
FIAT	Scudo 2.0 Multijet 4x4	[RH02]	04.2011-
FIAT	Ulysse 2.0 Multijet	[RHK]	05.2006-
FIAT	Ulysse 2.0 Multijet	[RHR]	05.2006-
FIAT	Ulysse 2.2 JTD	[4HP]	03.2008-
FIAT	Ulysse 2.2 JTD	[4HR]	03.2008-
FIAT	Ulysse 2.2 JTD	[4HW(DW12ATED4)]	08.2002-
FIAT	Ulysse 2.2 Multijet	[4HT]	03.2008-
LANCIA	Phedra 2.0 Multijet	[RHR(DW10BTED4)]	07.2006-
LANCIA	Phedra 2.2 JTD	[4HP]	04.2006-
LANCIA	Phedra 2.2 JTD	[4HR]	04.2006-
LANCIA	Phedra 2.2 JTD	[4HW(DW12ATED4)]	09.2002-
LANCIA	Phedra 2.2 Multijet	[4HS]	03.2008-
LANCIA	Phedra 2.2 Multijet	[4HT]	03.2008-
PEUGEOT	307 2.0 HDi FAP	[RHR(DW10BTED4)]	02.2004-
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	09.2008-12.2009
PEUGEOT	407 2.0 HDi	[RHR(DW10BTED4)]	10.2005-
PEUGEOT	407 2.0 HDi FAP	[RHR(DW10BTED4)]	05.2004-
PEUGEOT	407 2.2 HDi	[4HP(DW12BTED4)]	06.2008-
PEUGEOT	407 2.2 HDi FAP	[4HT(DW12BTED4)]	05.2006-
PEUGEOT	407 SW 2.2 HDi	[4HP(DW12BTED4)]	06.2008-
PEUGEOT	607 2.0 HDi	[RHR(DW10BTED4)]	09.2005-
PEUGEOT	607 2.2 HDi FAP	[4HT(DW12BTED4)]	05.2006-
PEUGEOT	807 2.0 HDi	[DW10UTED4]	02.2006-
PEUGEOT	807 2.2 HDi	[4HT(DW12BTED4)]	06.2006-
PEUGEOT	Expert 2.0 HDi	[RHK(DW10UTED4)]	01.2007-
PEUGEOT	Expert 2.0 HDi	[RHR(DW10BTED4)]	01.2007-
PEUGEOT	Expert 2.0 HDi Tepee	[RHK(DW10UTED4)]	01.2007-
PEUGEOT	Expert 2.0 HDi Tepee	[RHR(DW10BTED4)]	01.2007-
PEUGEOT	Partner 1.6 HDi	[9HT(DV6BTED4)]	01.2009-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	01.2009-
PEUGEOT	Partner 1.6 HDi	[9HX(DV6ATED4)]	02.2006-
PEUGEOT	Partner 1.6 HDi	[9HZ(DV6TED4)]	04.2008-
PEUGEOT	Partner 1.6 HDi Tepee	[9HZ(DV6TED4)]	04.2008-

CAL35188GS ALTL361 UD17215A A3225 CAL35188OS ALV1920 442083 5705EE ALT14318 A004TJ0081A 57100 56547528ON80 DRA0142 440177 FG18S017 5705AX 9654752880 LRA2857 A004TJ0081AM ALT2142CP A4TJ0084AM A4TJ0081A 2035188 CAL35188 5702-E7 114859 0986080660 A004TJ0084B 9646065180 A004TJ0084A ALT0118 A004TJ0084C A12VA0124A2 5705JF 440288 5705NG A4TJ0081 57020000000 57056K A4TJ0084C A4TJ0084 A4TJ0084A A4TJ0084B 96547528 9646388280 MD171502 89212430 439620 CAL35188ES LRA02857 9688085380 2543457 UD02343A A4TJ0081AM A004TJ0084AM 28-4973 STX100675 CA1920IR 5702-K8 8EL011712-341 210520 8EL012241-151 301920RIV 5702F4 5705-NG CAL15079GS CAL35188AS 439698 4704 5702G2 RNLFG18S017 AEK2857 2015079.1 2543457A ALT371880 A4TJ0081B A4TJ0081C 9090447 FG18S048 MM317603 225.533.180 CAL35188RS A004TJ0084 9661544880 A004TJ0081C A004TJ0081 A004TJ0081B K9661544880 20137881OE 5702K8

A3225

ALT Plug Kit

NZ$ 6.90 each
NZ$ 6.00 excl GST

Availability & Specs
