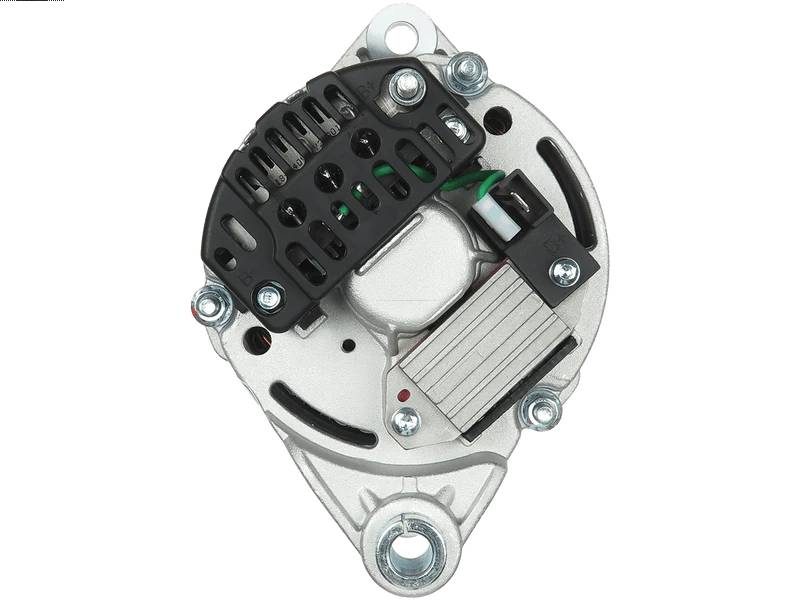

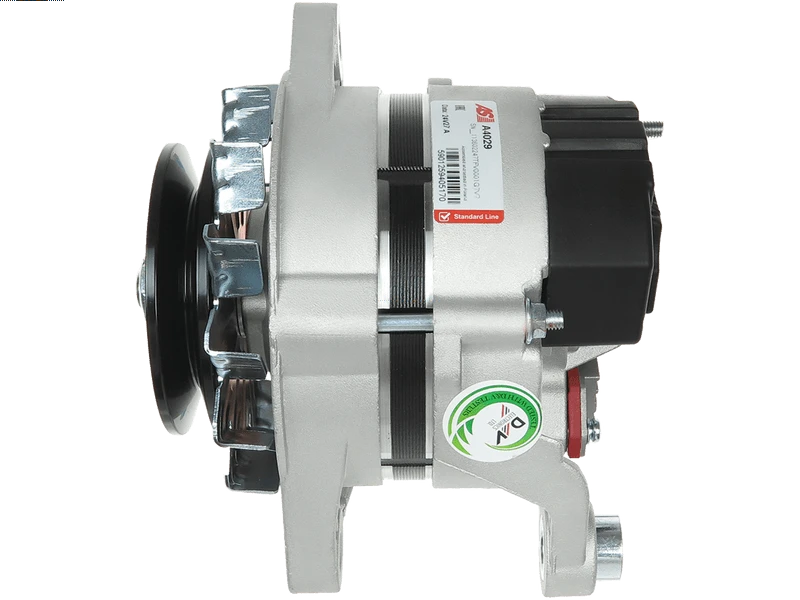

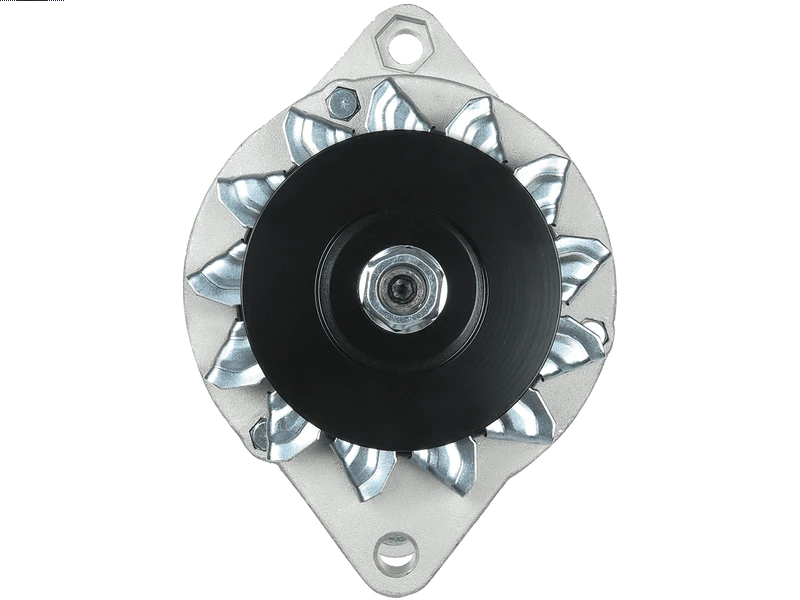

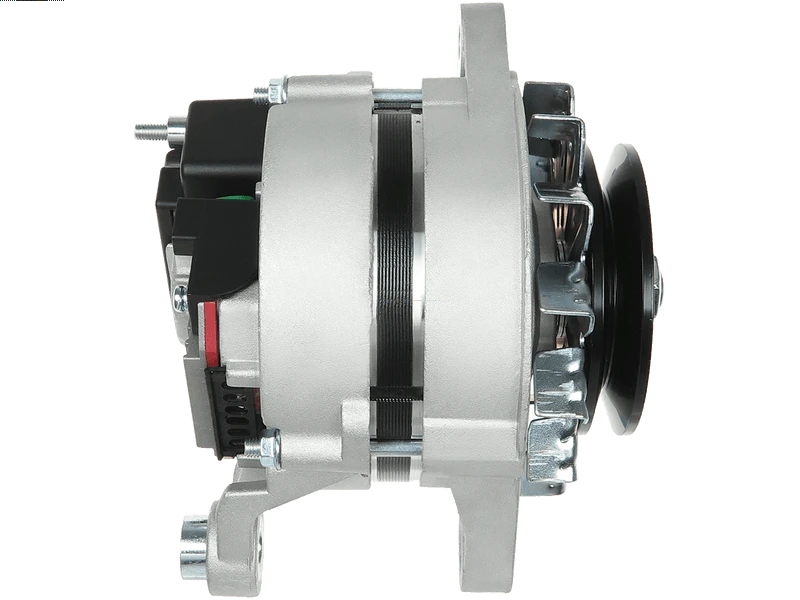

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 274.56 including GST
NZ$ 238.75 excluding GST
or four payments of $68.64
with
Learn More
each
A9216
A4029
1
Associated Numbers
0120489410 0120489412 0120489414 0120489612 0120489639 0120489792 0120489793 0120489795 0120489796 0986031340 10890 11.201.055 11.201.075 11.201.468 112097 12026N 12134N 18.0212 18.0212M 20104006BN 20104006OE 20104106BN 20104106OE 2011 2030600 2030601 30212RI 30212RIK 30212RIL 30212RIM 436416 4715786 4717871 4721890 4722724 4738563 4738569 4738570 4738571 4738772 4738775 4786913 48-0541 4808268 4808519 4808526 4808528 506.001.027 506.001.035 510391 553232RIK 553232RIL 553232RIM 553951RIR 553951RIV 63306000 63306300 63306301 63306302 63308300 63320025 63320060 63321045 63321050 63321055 63321115 63321161 63321163 75638 77050550 860141 88206020 89213145 8EL725640-001 98417208 98417209 9931340 9AR3952G A4029 AAK1110 AAK1209 AAK3564 AEA8139 ALT26000 CA212IR CAL30600AS CAL30600GS CAL30600OS CAL30601AS CAL30601GS DAN603 DRA1340 EAA-221451 G10212M-R GA320025-A IA0055 IA0075 LRA00839 NA181Specifications
| Amp | 27 A |
| Bottom Mounting Foot Width (B) | 16.5 mm |
| Diameter (D.1) | 11.5 mm |
| Diameter (D.2) | 12.5 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 172 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 11 mm |
| Pulley Outside Diameter (O.D.1) | 65 mm |
| Pulley Outside Diameter (O.D.2) | 95 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT-ALLIS | FA 150 8.1 Diesel | [8365.25.542] | 03.1984-03.1999 |
| FIAT-ALLIS | FD 14E 8.1 Diesel | [8365.25.541] | 12.1988-12.1992 |
| FIAT-ALLIS | FD 20 5.9 Diesel | [8215.02.520] | 03.1984-03.1999 |
| IVECO | 109-14 5.5 | [8060.04.689] | 06.1983-12.1985 |
| IVECO | 109-14 5.9 | [8060.05.289] | 11.1985-03.1991 |
| IVECO | 175-17 5.9 | [8060.25.60.] | 09.1986-07.1992 |
| IVECO | 190-26 9.5 | [8460.21.102] | 09.1986-09.1994 |
| IVECO | 190-32 9.5 | [8460.41.102] | 10.1988-01.1998 |
| IVECO | 50-10 4.6 | [8340.04.200][8340.04.250][8340.04.300][8340.04.362] | 01.1979-10.1983 |
| IVECO | 50-8 3.7 | [8040.04.200] | 01.1983-12.1986 |
| IVECO | 50-9 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | 60-10 4.6 | [8340.04.200][8340.04.250] | 05.1982-12.1986 |
| IVECO | 60-11 3.9 | [8040.25.230] | 01.1987-03.1991 |
| IVECO | 60-8 3.7 | [8040.04.200] | 01.1979-04.1983 |
| IVECO | 65-10 4.6 | [8340.04.200][8340.04.250][8340.04.300][8340.04.350] | 05.1982-01.1987 |
| IVECO | 65-12 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | 65-9 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | 70-12 5.4 | [8340.05.200] | 01.1983-01.1985 |
| IVECO | 70-14 5.7 | [8060.05.246][8060.05.285] | 05.1988-06.1991 |
| IVECO | 79-10 4.6 | [8340.04.200][8340.04.300] | 01.1983-01.1987 |
| IVECO | 79-12 3.9 | [8040.25.200][8040.25.220] | 01.1987-03.1991 |
| IVECO | 79-13 5.5 | [8060.04.060][8060.04.660] | 01.1983-06.1983 |
| IVECO | 79-14 5.5 | [8060.04.660] | 07.1983-11.1985 |
| IVECO | 79-14 5.9 | [8060.05.280] | 12.1985-03.1991 |
| IVECO | 8210 13.8 | [8210..] | 03.1985- |
| IVECO | 8210 13.9 | [8210M22.10] | 01.1990- |
| IVECO | 8215 13.8 | [8215.22.545] | 01.1987- |
| IVECO | 8281 17.0 | [8281.22..,42..] | 03.1990- |
| IVECO | 8460 9.5 | [8460SI..] | 10.1989- |
| IVECO | 95-14 5.5 | [8060.04.669] | 07.1983-10.1985 |
| IVECO | M 115-17 5.5 | [8060.24.601] | 09.1983-12.1985 |
| IVECO | M 115-17 5.7 | [8060.25.600] | 01.1986-12.1999 |
| IVECO | M 115-17 5.9 | [8060.25.600] | 01.1986-12.1999 |
| IVECO | M 135-17 5.5 | [8060.24.601] | 09.1983-12.1985 |
| IVECO | M 135-17 5.9 | [8060.25.600] | 01.1986-08.1992 |
| IVECO | M 145-17 5.9 | [8060.25.600] | 02.1986-07.1992 |
| IVECO | M 159-17 8.1 | [8360.05.254] | 07.1982-09.1986 |
| IVECO | M 175-17 5.9 | [8060.25.600] | 07.1986-12.1992 |
| IVECO | M 175-24 9.5 | [8460.21.002][8460.21.010] | 09.1986-07.1992 |
| IVECO | P/PA 159-17 8.1 | [8360.05.254] | 07.1982-09.1986 |
| IVECO | P/PA 190-30 13.8 | [8210.22.511][8210.22.521][8210.22.523][8210.22.525][8210.22.535][8210.22.537] | 09.1987-09.1997 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.069][8210.22X.575] | 10.1987-12.1995 |
| IVECO | P/PA 330-30 13.8 | [8210.22X.235][8210.22X.523] | 01.1984-07.1996 |
Reference Information
11.201.055 8EL725640-001 AAK1209 4808519 77050550 GA320025-A 98417209 RNL63320060 0120489792 0120489793 ALTS071 0120489795 4738563 0120489796 4474592 48-0541 LRA839 4738569 88206020 10890 G10212M-R 20104106BN 516 210662 63321115 ALT236010 20104006OE 4717509 4738571 4738570 ALTL152 63320025 CAL30600OS A4029 11.201.468 1516529R 2997074 0120489414 42498213 18.0212M 18.0212 ALT26000 4808520 63306000 63308300 CAL30601AS 369 4223787 88206010 4808528 LRA00839 NA181 4808526 CAL30600GS 4715786 0120489410 0120489412 30781001 9AR3952G 61146532 75638 ALT9030 ALT2080 38520135A DAN603 553951RIV CAL30601GS 4220539 553951RIR 63306300 0120489639 553232RIK 4786913 553232RIL 553232RIM ALT79034 2030601 1516473R 4808268 63306301 4721890 63306302 210298 A24MA0154A2 AAK1110 2030600 20104106OE 63321045 63393053 20104006BN ANM33560X IA0055 63321163 0986031340 A24MA0001A2 63321161 12026N 30212RI 506.001.035.461 506.001.027 CA212IR MG 112097 98417133 98417134 4722724 860141 12134N 4738775 4738774 4738773 4738772 63320060 038520135A 0120489612 4220357 4220356 506.001.035 ALT2050 ALT79092 11.201.075 30212RIM 436416 440359 2011 4702305 IA0075 4702308 510391 DRA1340 AAK3564 42498164 42498165 42498163 77445410 4152610 9931340 AEA8139 4474902 4717871 04717509 63321055 4699242 63321050 CGB-11340 ALTL290 98417201 CAL30600AS 98417208 77040550 42498271 30212RIL 30212RIK 89213145Video/Publications
