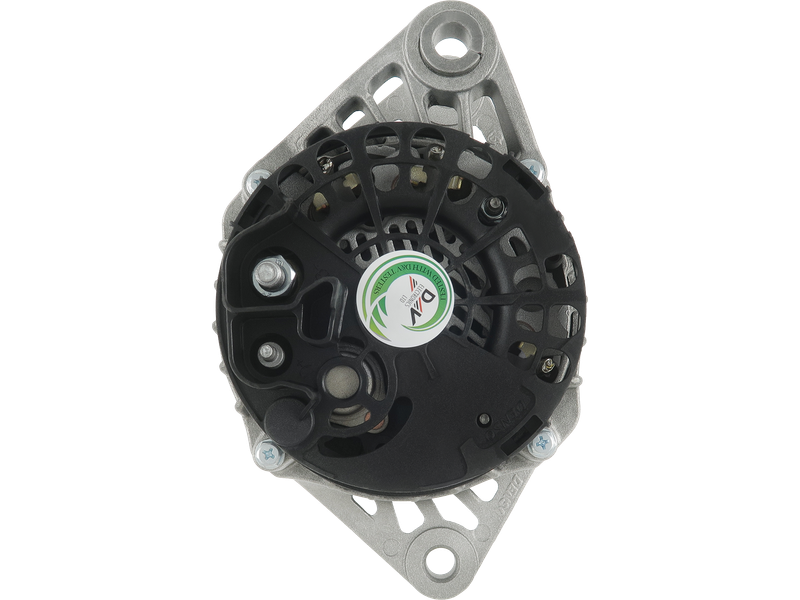

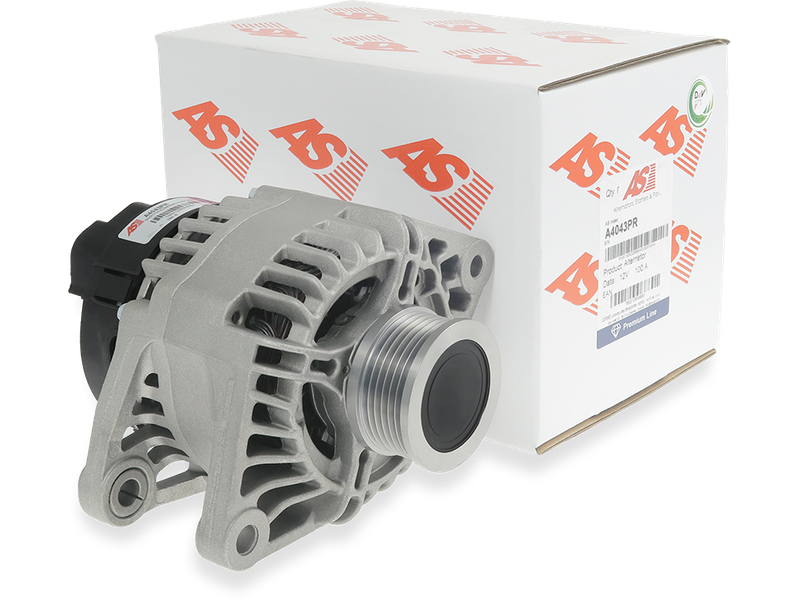

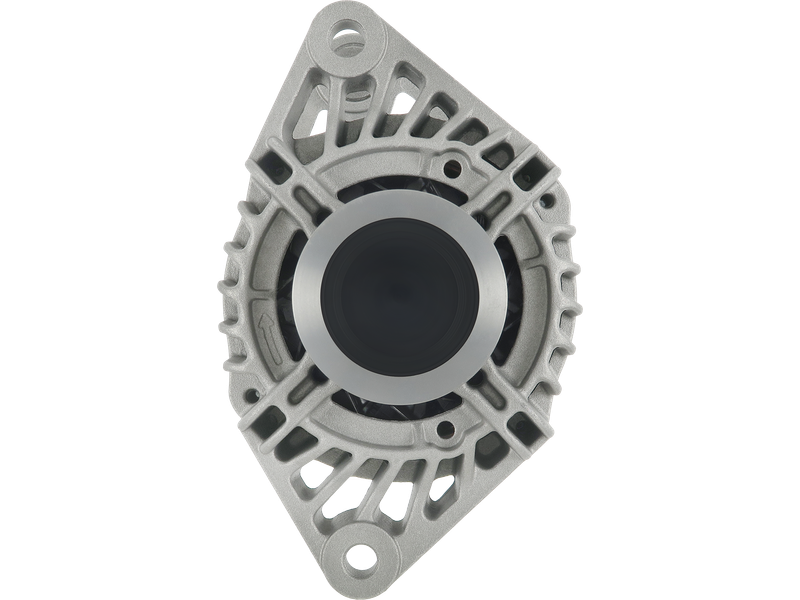

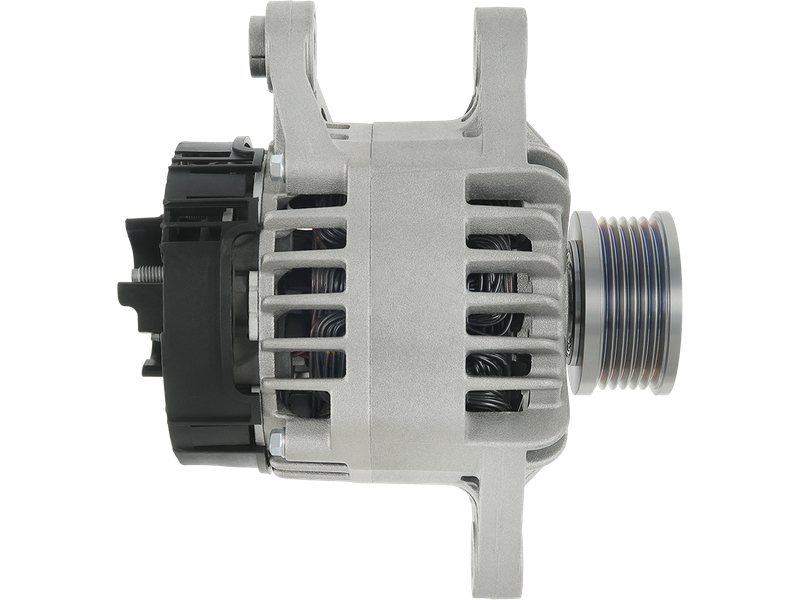

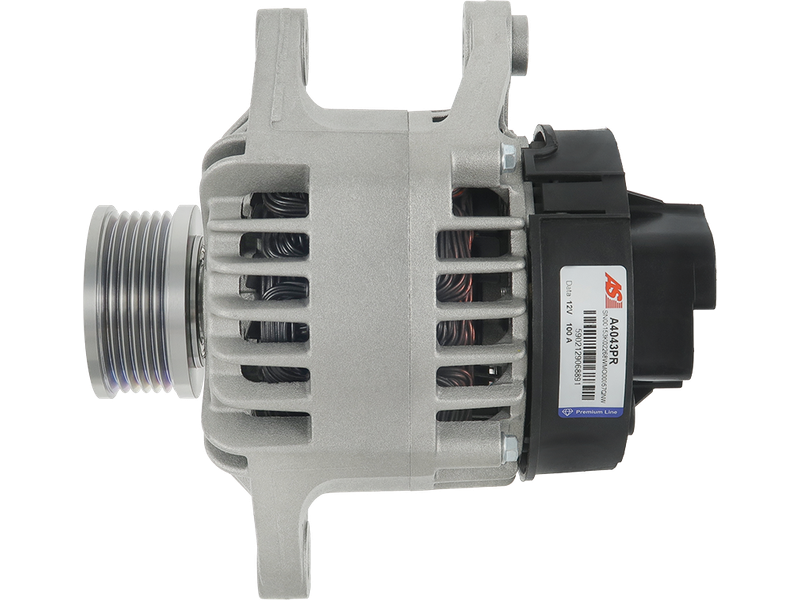

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 285.22 including GST
NZ$ 248.02 excluding GST
or four payments of $71.31
with
Learn More
each
A4043PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986049231 113943 20110326 2030103 28-3750 301189RI 301558RI 301558RIM 301697RIM 32321859 4497 46544329 46763533 46763534 46765838 46782213 56822 60816045 60816557 63321497 63321501 63321804 63321805 63321806 63321826 89213550 8EL011710-501 8EL737812-001 9213550 AEC1558 ALT12065 CA1558IR CAL30103 CAL30103AS CAL30103ES CAL30103GS CAL30103OS CAL30103RS DAN501 DAN635 DRA3768 DRA4206 EAA-221022 GA321826-A GA321826M-R LRA01887Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 17 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 61.5 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | CLUTCH |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 145 1.9 JTD | [AR32302] | 02.1999-01.2001 |
| ALFA ROMEO | 147 1.9 JTD | [937A2.000] | 11.2000- |
| ALFA ROMEO | 147 1.9 JTD 16V | [192A5.000] | 09.2002- |
| ALFA ROMEO | 147 1.9 JTDM 16V | [937A5.000] | 10.2004- |
| ALFA ROMEO | 156 1.9 JTD | [AR32302] | 09.1997-10.2000 |
| ALFA ROMEO | Alfa 146 1.9 JTD | [AR32302] | 02.1999-01.2001 |
| FIAT | Brava 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Brava 1.9 JTD | [182B9.000] | 09.2000-10.2001 |
| FIAT | Bravo 1.9 JTD | [182B4.000] | 12.1998-10.2001 |
| FIAT | Bravo 1.9 JTD | [182B9.000] | 09.2000-10.2001 |
| FIAT | Doblo 1.9 D | [223A6.000] | 03.2001- |
| FIAT | Doblo 1.9 Diesel Multijet | [186A9.000] | 10.2005- |
| FIAT | Doblo 1.9 JTD | [182B9.000] | 10.2001- |
| FIAT | Doblo 1.9 JTD | [182B9.000] | 10.2001-01.2004 |
| FIAT | Doblo 1.9 JTD | [223A7.000] | 11.2002-09.2005 |
| FIAT | Doblo 1.9 JTD | [223B1.000] | 11.2002-09.2005 |
| FIAT | Doblo 1.9 JTD | [223B2.000] | 10.2001- |
| FIAT | Idea 1.9 JTD | [188B2.000] | 01.2004- |
| FIAT | Marea 1.9 JTD | [182B4.000] | 04.1999-01.2001 |
| FIAT | Marea 1.9 JTD | [186A6.000] | 01.2001- |
| FIAT | Marengo 1.9 JTD | [186A6.000] | 08.2000-09.2002 |
| FIAT | Multipla 1.9 JTD | [182B4.000] | 04.1999- |
| FIAT | Multipla 1.9 JTD | [186A6.000] | 03.2001- |
| FIAT | Multipla 1.9 JTD | [186A8.000] | 07.2002- |
| FIAT | Multipla 1.9 JTD | [186A9.000] | 04.2002- |
| FIAT | Punto 1.9 JTD | [188A2.000] | 09.1999- |
| FIAT | Punto 1.9 JTD | [188A7.000] | 06.2001-06.2003 |
| FIAT | Punto 1.9 JTD | [188B2.000] | 06.2003- |
| FIAT | Stilo 1.9 D Multijet | [192A8.000] | 09.2005- |
| FIAT | Stilo 1.9 D Multijet | [192A9.000] | 09.2005- |
| FIAT | Stilo 1.9 JTD | [192A1.000] | 01.2003- |
| FIAT | Stilo 1.9 JTD | [192A3.000] | 01.2003- |
| FIAT | Stilo 1.9 JTD | [192A3.000] | 10.2001- |
| FIAT | Stilo 1.9 JTD | [192B1.000] | 01.2004- |
| FIAT | Stilo 1.9 JTD | [192B5.000] | 09.2004- |
| FIAT | Stilo 1.9 JTD | [937A7.000] | 07.2005- |
| LANCIA | Lybra 1.9 JTD | [937A2.000] | 05.2001- |
| LANCIA | Lybra 1.9 JTD | [AR32302] | 07.1999-09.2000 |
| LANCIA | Lybra 1.9 JTD | [AR37101] | 09.2000- |
| LANCIA | Lybra 1.9 JTD SW | [AR37101] | 09.2000- |
| LANCIA | Musa 1.9 D Multijet | [188B2.000] | 10.2004- |
Reference Information
20104301RE 113336 4497 ALT90023 71721092 CAL30103RS CA1558IR 46782212 46782213 MAN1127 A12MA1197A2 46765838 LRA1887 46544329 ALT2200 ALT2280A 46763533 AEC1558 ALTL129 46763534 ALT2280 ALTS916 210863 CA1698IR ALT321480 20104301OE DAN501 8EL737812-001 CAL30103OS 301558RIM STX100029 56822 CAL30103GS DRA4206 STX100127R STX100068 8EL011710-501 32321859 63321826 20104301BN 2030103 63321501 28-3750 GA321826-A 301189RI GA321826M-R LRA01887 DAN635 A12DE0003A2 51859053 60816557 STX100029R DRA3768 301697RIM 2030103.1 2030103.4 89213550 63321497 ALT12065 210263 20110326 STX102027 9213550 ALT321860 60816045 46554408 113943 CAL30103 60815953 301558RI STX100127 63321805 63321806 0986049231 CAL30103ES 71794788 46774430 STA0367R CAL30103AS STX100068R 63321804 ALT9025 EAA-221022 71721106Video/Publications
