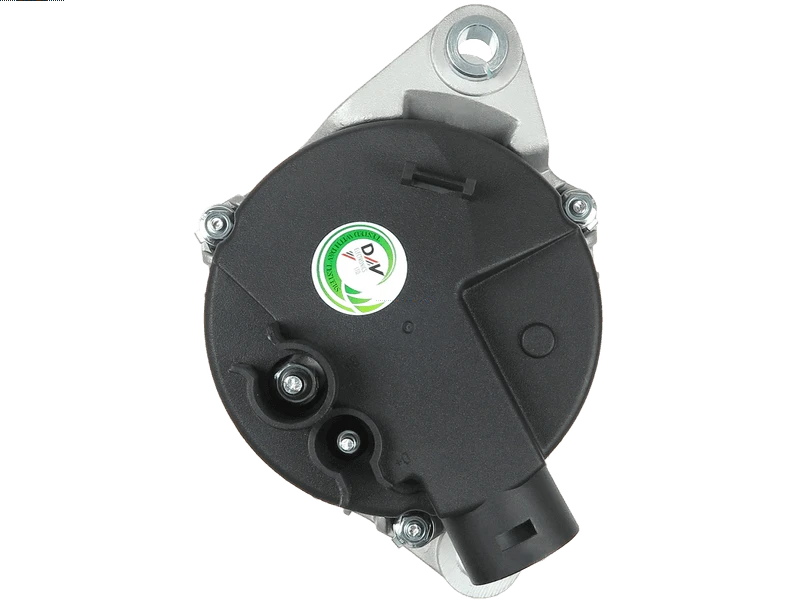

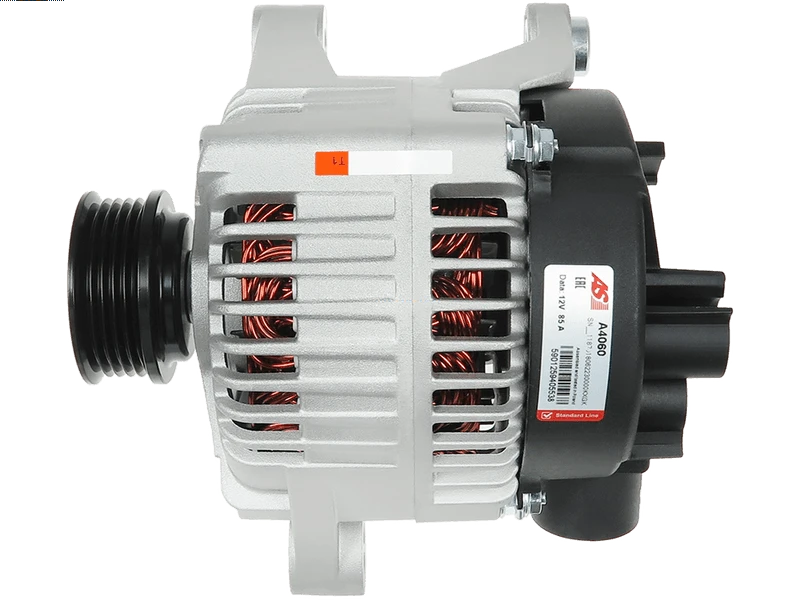

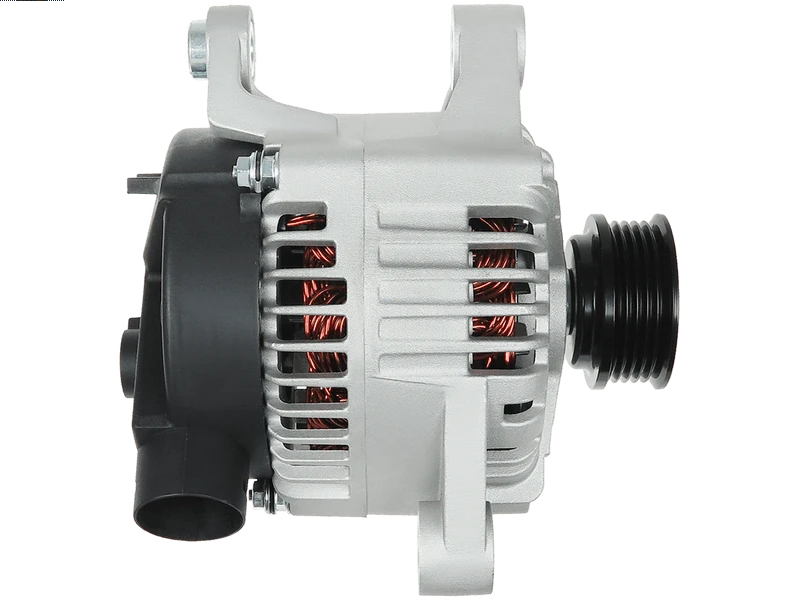

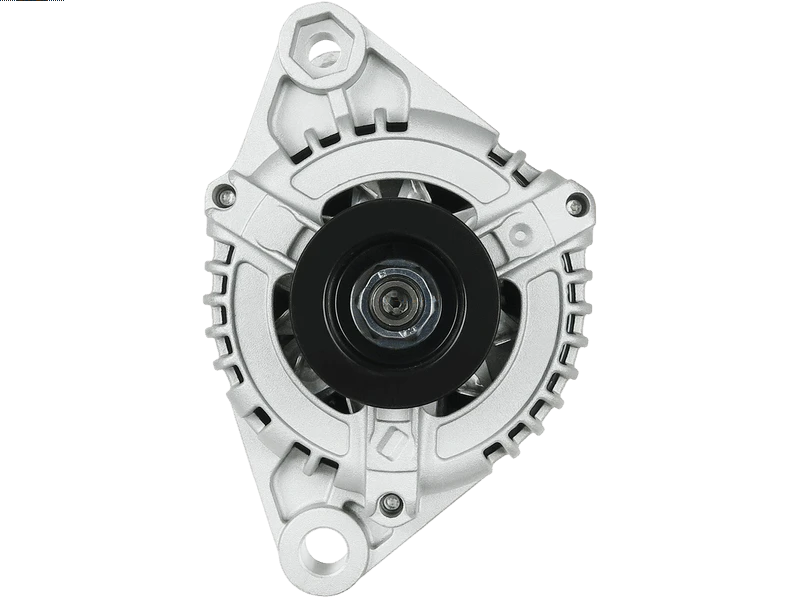

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 406.42 including GST
NZ$ 353.41 excluding GST
or four payments of $101.61
with
Learn More
each
A4060
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0986040621 11.1221 111688 20104111BN 20104111OE 20110327 2030111 28-2709 301221RIM 437668 4500 46428734 56628 63320277 63321328 89213210 8EL737296-001 9213210 943321328 ALT12038 CA1221IR CAL30111AS CAL30111GS DRA3398 EAA-221366 LRA01574Specifications
| Amp | 85 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 16.5 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 204 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 59 mm |
| Pulley Type | SOLID |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V EL | [182A6.000] | 10.1995-10.2001 |
| FIAT | Brava 1.6 16V SX | [182A4.000] | 02.1996-10.1998 |
| FIAT | Bravo 1.6 | [182A6.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.6 SX | [182A4.000] | 03.1996-10.1998 |
| FIAT | Marea 1.6 i 16V | [182A4.000] | 09.1996-02.1999 |
| LANCIA | Dedra 1.6 16V | [182A4.000] | 04.1998-10.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A4.000] | 01.1996-08.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A6.000] | 03.1996-08.1999 |
Reference Information
210070 46428734 437668 63320277 ALTL145 943321328 ALT12038 LRA1574 301221RIM CAL30111GS 8EL737296-001 2030111 ALT2420 STX100276 4500 CAL30111AS STA0235R 89213210 0986040621 11.1221 111688 ALT9094 20104111OE LRA01574 9213210 20110327 28-2709 EAA-221366 20104111BN DRA3398 63321328 STX100276R ANM35618X CA1221IR 56628Video/Publications
