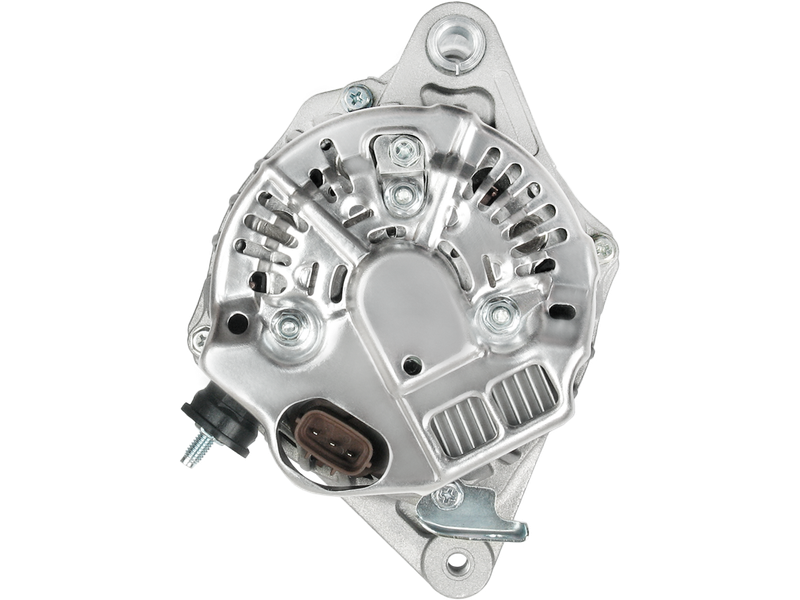

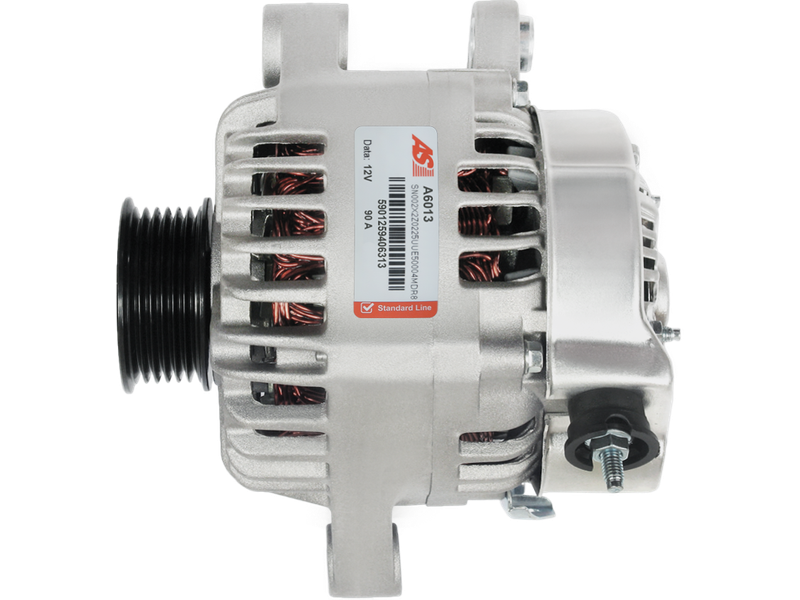

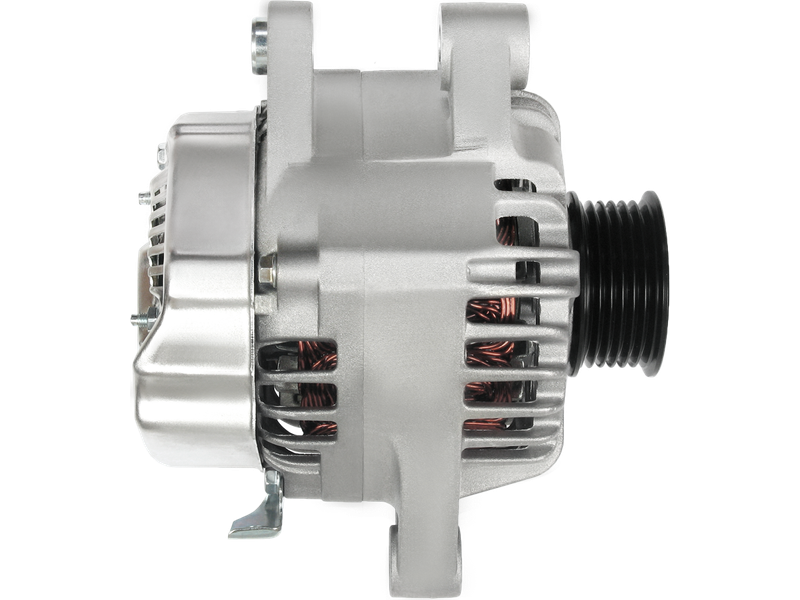

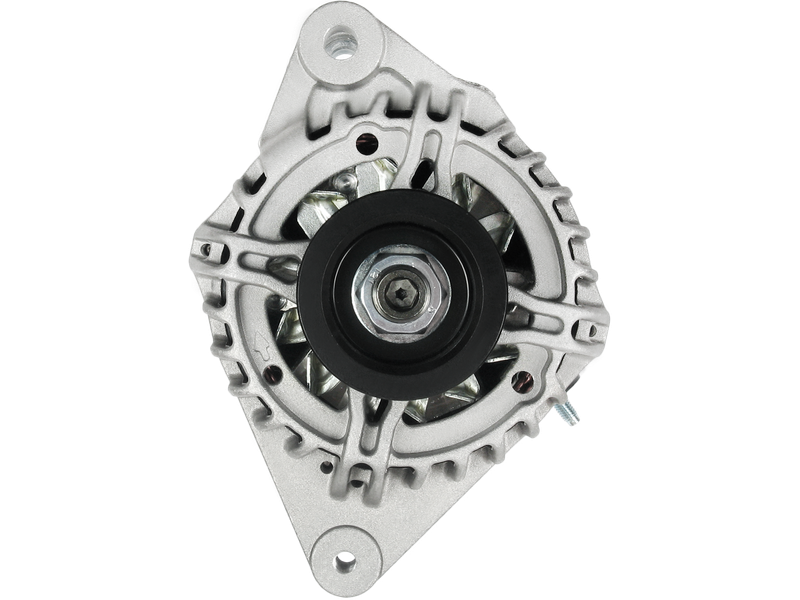

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 393.59 including GST
NZ$ 342.25 excluding GST
or four payments of $98.40
with
Learn More
each
A6013
3
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
063731800010 0986049211 102211-8010 102211-8200 114006 195.573.090 20132361 2040163 209304 23277N 27060-0J020 27060-0J040 28-4907 401800RI 56820 89212761 8EL012428-461 8EL738247-001 9266 A6013 AEK2783 AG0306 ALN1800 ALT30378 CAL40163 CAL40163AS CAL40163ES CAL40163GS CAL40163OS CAL40163RS DA1232 DRA0122 J5112119 JA1800IR LRA02783 MQA1800 RAA11233 BOSCH 4921 DENSO 1022118010 1022118200 LUCAS LRA2783 TOYOTA 270600J040 27060OJ040 01242846 Bosch ruil 102211801 Denso show 1022118011 1022118012 1022118013 Cargo 12060856 EuroTec 195573090 PSH 235188902 DRI 270600J020 Toyota 27060OJ020 284907 Elstock 440500 Valeo 443163 6275SP Spidan 63731800 Magneti Marelli 738247001 Hella 8EL012428461 8EL738247001 9049211F Friesen CEVAM 930122 EDR ATA631 ATK ATA663 Remy HJA1800IR HC L49210 ATL Lucas SP6275 TNA070 TWA TRA206 063377441010 063731809010 0986080590 1022115251 1022115252 1022115253 1022115300 1022116150 1022116170 1022118000 1022118190 114005 12060803 12060909 195573070 235188702 270600J010 270600J030 2706023040 284757 440501 443039 56825 EAI 6314SP 63377441 63731809 8EL012430791 8EL738133001 9090343F 930112 943318091010 944390903430 9662219525 PSA ALTH183 Unipoint DAN962 DRA0112 F042A0H183 HJA1809IR J5112108 Nipparts JA1809IR LRA02276 LRB471 MAN7439 MAN7441 MQA1809 N5112131 SP6202 TRA152 WSD24337 Stabeco 0986045851 102211167 1022111670 1022111671 1022111672 1022111673 12060818 195588080 235167802 2706023020 285953 440786 443136 6178SP 6202SP 8EL738097001 945851 ATA633 DRB5851 HJA1714IR HJA1722IR J5112095 Ja1714IR JA1722IR LRA03341 LRB00471 SP6178 TRA225Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 27 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 39 mm |
| OEM Product | No |
| Plug Code | PL_3312 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.0 | [1SZ-FE] | 03.2003-09.2005 |
| TOYOTA | Yaris 1.0 | [1SZ-FE] | 04.1999-09.2005 |
| TOYOTA | Yaris 1.3 | [2SZ-FE] | 04.2002-09.2005 |
Reference Information
STA0099R 9266 102211-8010 STX101581 AG0306 23277N 195.573.090.460 27060-0J040 DA1232 RAA11233 LRA2783 A12DE1145A2 JA1800IR 446952 STX100017 STX100610 1211 ALT6325 CAL40163ES CAL40163AS 195.573.090.395 MQA1800 LRA02783 ALT30378 102211-8200 0986049211 A6013 56820 20132361 27060OJ040 8EL738247-001 AX ANM32342X 8EL012428-461 CAL40163OS CAL40163 63731800010 RNL1800JA 114006 DRA0122 2T372 AEK2783 209304 27060-0J020 ALT421630 STX100017R CAL40163GS 89212761 002-T372 195.573.090 ALT372 PRAS166 2040163 195.573.090.050 28-4907 401800RI ALTS166 ALN1800 CAL40163RS STX100610R 27060OJ020Video/Publications
A6013Related Items
