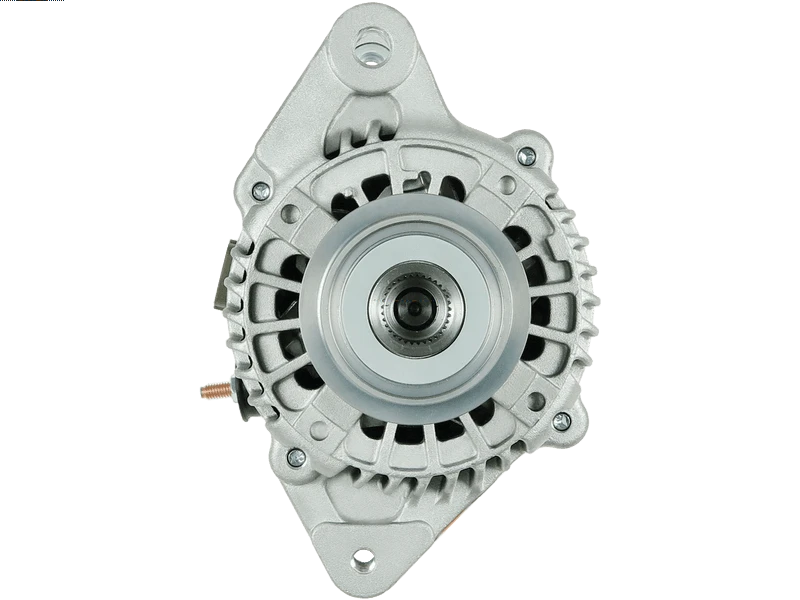

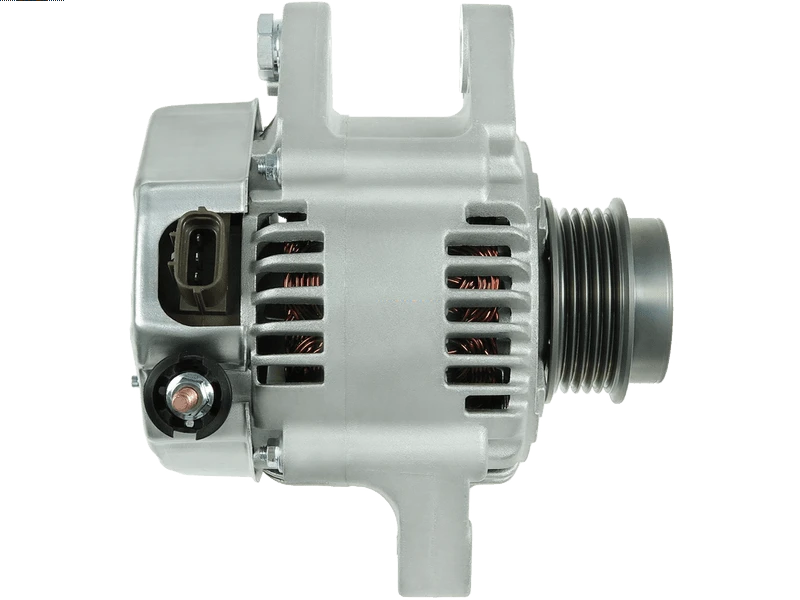

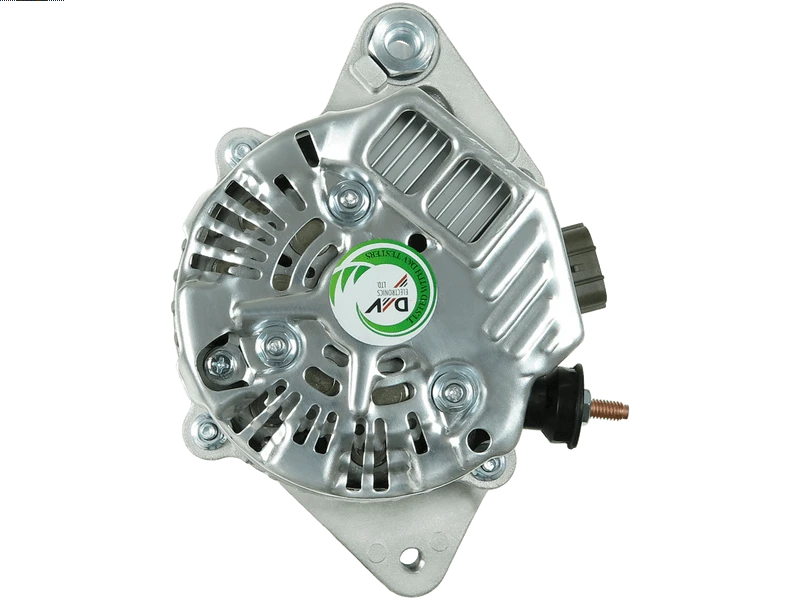

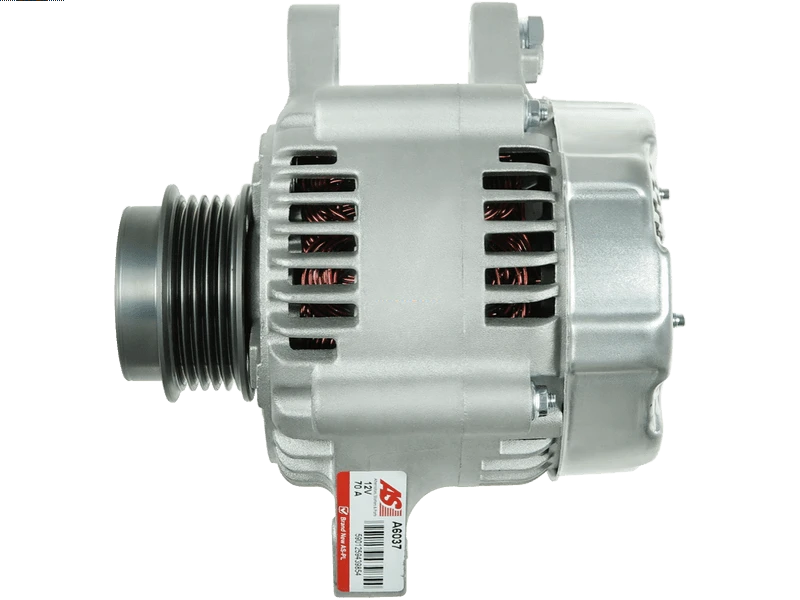

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 469.58 including GST
NZ$ 408.33 excluding GST
or four payments of $117.40
with
Learn More
each
A6037
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1022115660Associated Numbers
102211-5660 11.1893 11.1893M 20132441BN 20132441OE 2040144 27060-33020 28-4910 401893RI 57278 8EL738211-541 9090413 9269 AEK2793 ALT30294 CAL40144AS CAL40144GS DAN964 DRA0011 JA1893IR LRA02793Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 22 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41 mm |
| OEM Product | No |
| Plug Code | PL_3312 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 53 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.4 D-4D | (NLP10)[1ND-TV] | 12.2001- |
| TOYOTA | Yaris Verso 1.4 D-4D | (NLP22)[1ND-TV] | 12.2001- |
Reference Information
20132441BN RNL102211-5660 210392 11.1893 401893RI 8EL738211-541 27060-33010 9269 LRA02793 102211-5660 9090413 447039 CAL40144AS 002-T618 28-4910 ALT6307 STX100674 ALTL027 CAL40144GS 2T618 20132441OE 2040144 27060-33020 ALT30294 DAN964 11.1893M LRA2793 A12DE1215A2 DRA0011 AEK2793 A6037 ALT618 57278 JA1893IR STA0323R ALT421440Video/Publications
A6037Related Items
