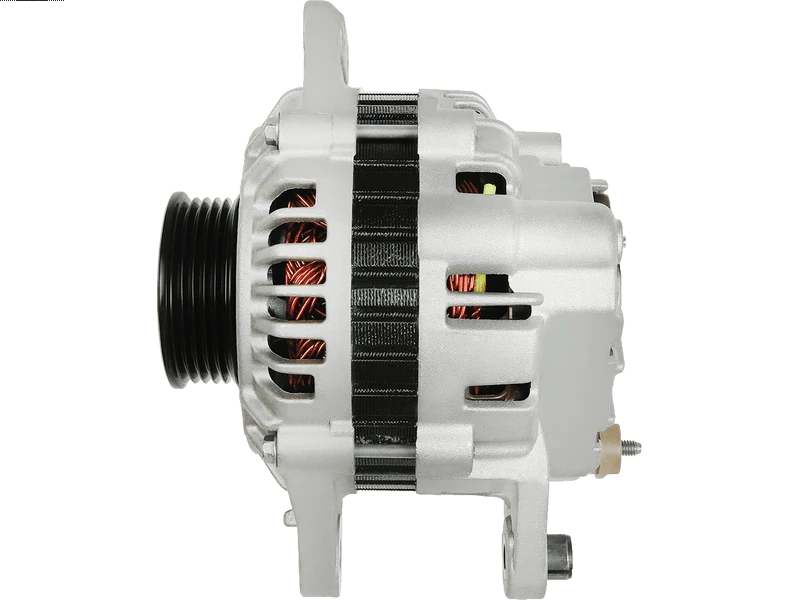

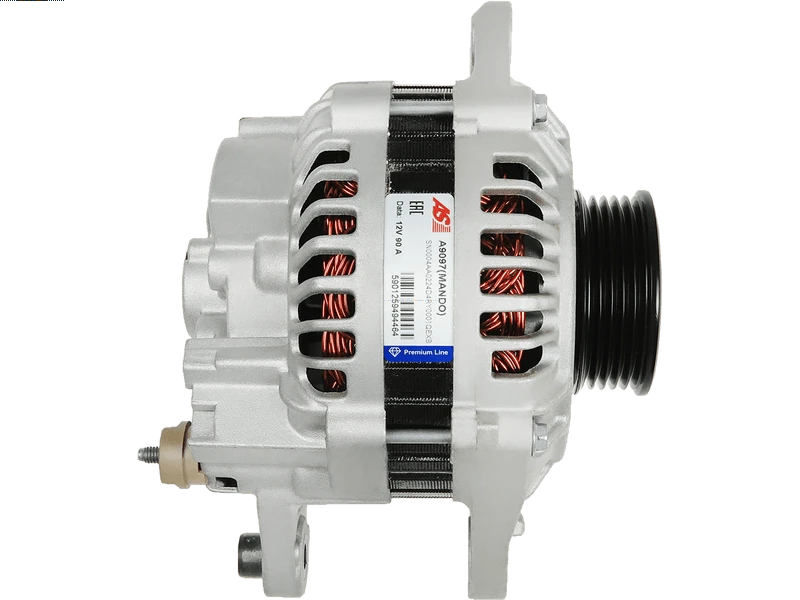

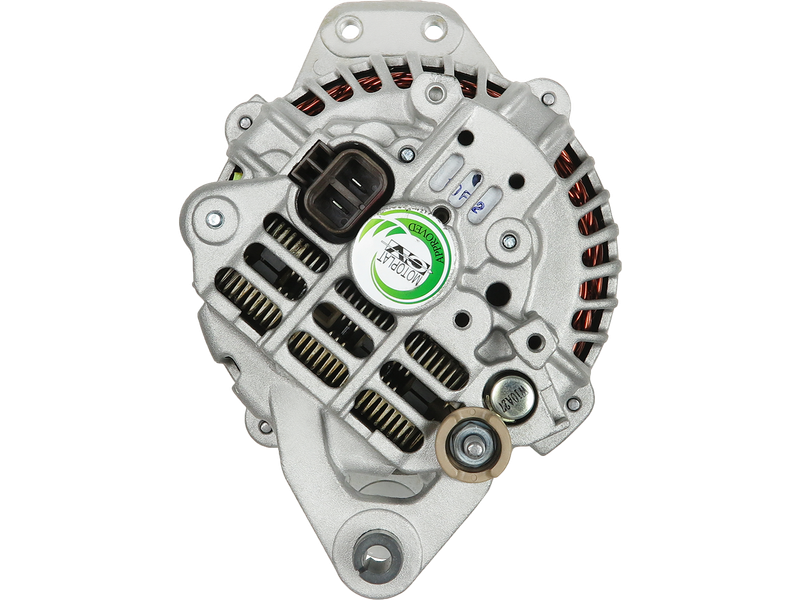

Brand new OEM MANDO Alternator
PREMIUM LINE
Mando
MANDO
Price:
NZ$ 760.52 including GST
NZ$ 661.32 excluding GST
or four payments of $190.13
with
Learn More
each
A9097(MANDO)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0986080690 20130190 28-1812 28-3572 28-5879 37300-36015 37300-36030 37300-43360 37300-43860 40870RI 600043 600047 66021305 89212216 A003T08293 A3T08293 A3T08376 A3T45794 A3TA1391 AB190097 AB190205 AB190386 AEA2233 DRA3188 JA870IR LRA01387 LRA01772 MD149751 MD168988 MD168989 MD189014 PXPAA-523 UD02556A UD11329ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8.5 mm |
| Diameter (D.4) | 8.5 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | Yes |
| Plug Code | PL_2004 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 64.5 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | SOLID |
| Unit Type | MANDO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Galloper 3.0 V6 | [G6AT] | 08.1998-12.2003 |
Reference Information
2D982 PXPAA-523 37300-36030 JA870IR LRA01387 37300-43360 LRA1772 DRA3188 20130190 UD02556A AB190386 A3T08376 A3T08293 ALT01034 LRA01772 MD168989 37300-43850 MD168988 A003T45794 55351004 446827 A3TA1391 28-1812 66021305 002-C347 MD149751 0986080690 89212216 ALC347 37300-43860 AB190205 STX100755 40870RI MD189014 600043 2C347 37300-36015 600047 A12MH0663A2 AEA2233 A003T08293 UD11329A A003TA1391 LRA1387 A003T08376 28-5879 ALT5067 A3T45794 AB190097 28-3572Video/Publications
A9097(MANDO)Related Items
