Associated Numbers
37300-93500 37300-93501 600800 ALA3503 UD02592ASpecifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M12x1.25 mm |
| Diameter (D.2) | 12.5 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 245 mm |
| Mount Inside Length or Pad Mount C-C (C) | 80.5 mm |
| OEM Product | Yes |

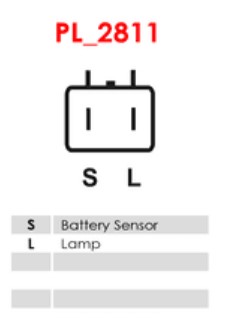

| Plug Code | PL_2811 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | SOLID |
| Unit Type | MANDO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | HD 270 | ||
| HYUNDAI | HD35 |
Reference Information
2032607.1 20193706OE UD02592A ALA3503 37300-93500 CAL32607GS 37300-93501 ALT346070Video/Publications
