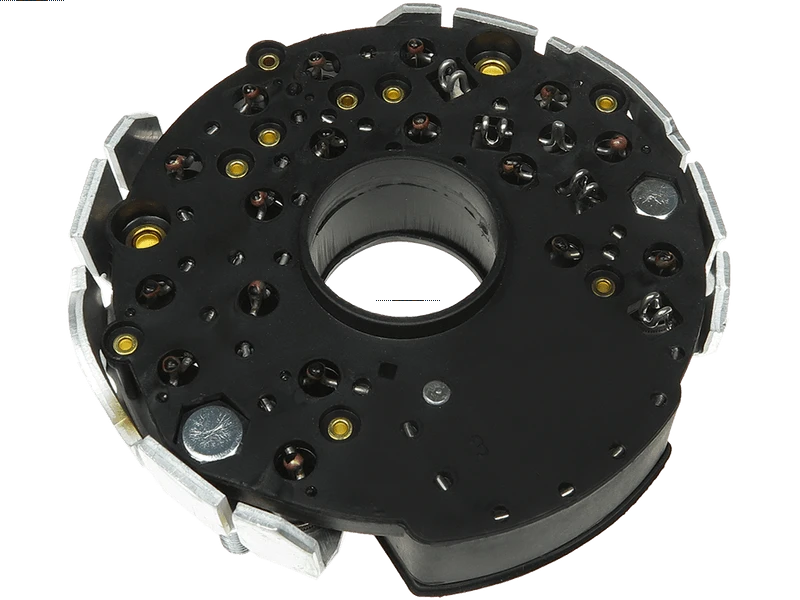

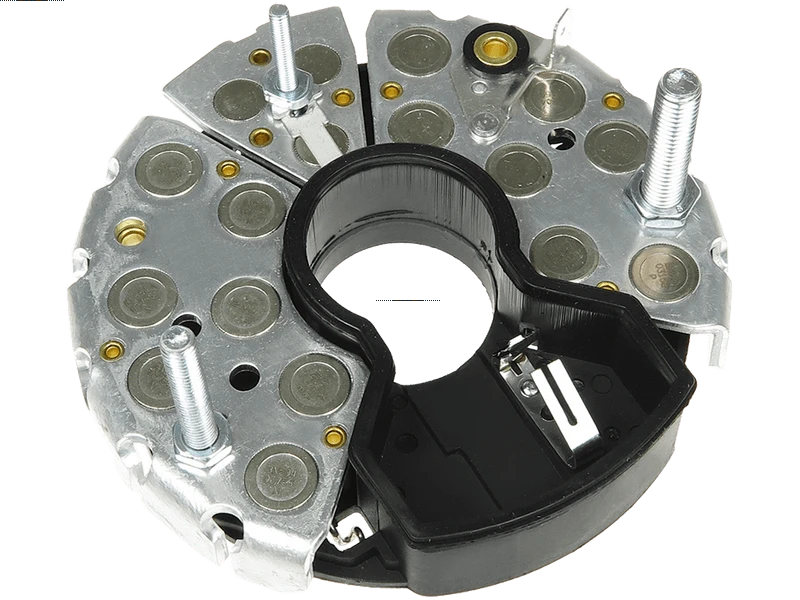

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 82.40 including GST
NZ$ 71.65 excluding GST
or four payments of $20.60
with
Learn More
each
ARC0016
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120450010 0120450015 0120469518 0120469519 0120469520 0120469521 0120469522 0120469523 0120469526 0120469527 0120469532 0120469540 0120469562 0120469569 0120469580 0120469585 0120469629 0120469630 0120469652 0120469653 0120469692 0120469749 0120469752 0120469753 0120469761 0120469763 0120469772 0120469773 0120469797 0120469798 0120469807 0120469843 0120469850 0120469851 0120469852 0120469853 0120469854 0120469855 0120469900 0120469905 0120469920 0120469951 0120469952 0120469955 0120469956 0120469960 0120471979 0986032720 0986033100 0986033530 0986033840 0986034070 0986034360 0986034370 0986034430 0986036240Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8X1.25 mm |
| B+ Thread Length (B+H) | 32.3 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 14 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M6x1.0 mm |
| D+ Thread Height (D+H) | 32.9 mm |
| Height (H.1) | 58.2 mm |
| Inside Diameter (I.D.1) | 35 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 123 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
215333 215332 REC-253 RCT1006 139171 RB-72H 1127320361 133530 1127320959 RTF39713 IBR340Video/Publications
0120469580 0986034370 0986033840 0120469540 0120469585 0120471979 0120469855 0120450010 0986034360 0120450015 0120469752 0120469753 0120469797 0120469951 0120469798 0120469952 0120469630 0120469749 0120469629 0120469905 0120469900 0986034430 0120469521 0120469763 0120469522 0120469523 0120469843 0120469920 0986033100 0120469562 0120469761 0120469520 0120469960 0120469518 0120469519 0120469955 0120469956 0120469692 0986036240 0120469532 0120469653 0120469851 0120469852 0120469853 0986033530 0120469854 0120469772 0986032720 0120469652 0120469773 0120469850 0120469807 0120469569 0120469526 0120469527 0986034070 ARC0016View your shopping basket or Browse other items in Rectifier.
