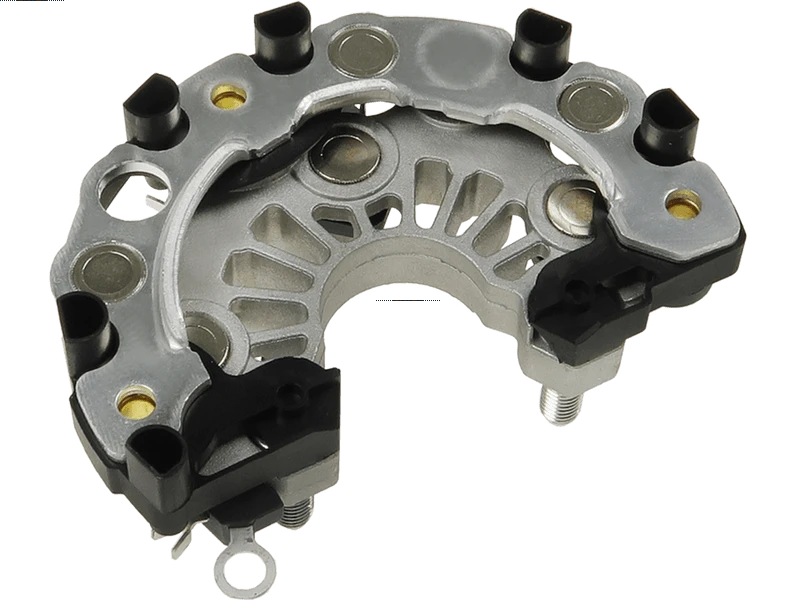

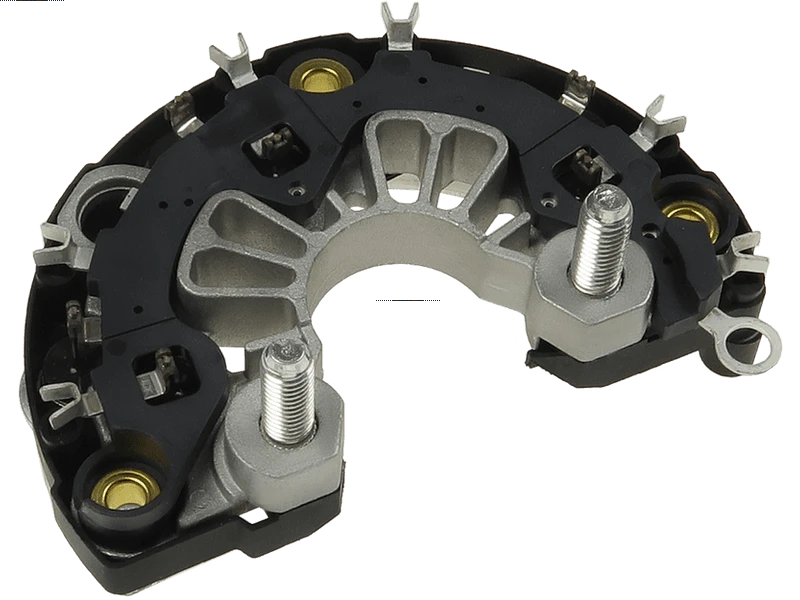

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 95.54 including GST
NZ$ 83.08 excluding GST
or four payments of $23.89
with
Learn More
each
ARC0072
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124555005 0124555006 0124555009 0124555010 0124555013 0124555017 0124655005 0124655006 0124655008 0124655012 4982318 4892320 4982318 5010589551 20409240 20466317 0124655014 A0260 0124655415Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8X1.25 mm |
| B+ Thread Length (B+H) | 20.6 mm |
| Diode Amp Rating | 60 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8X1.25 mm |
| D+ Thread Height (D+H) | 20.6 mm |
| Mount Distance (C-C) | 100 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 120.7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | △ |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
F00M147631 IBR223 RCT1051 RTF39923 F00M133339Video/Publications
A0219 0124655415 0124655008 ARC0072 0124655005 0124655006 0124655014 0124515049 0124555010 4982318 20409240 0124555013 0124555005 0124555006 0124555017 0124555009 A0260 20466317 0124655012 4892320 5010589551View your shopping basket or Browse other items in Rectifier.
