Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 47.23 including GST
NZ$ 41.07 excluding GST
or four payments of $11.81
with
Learn More
each
ARC0135
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

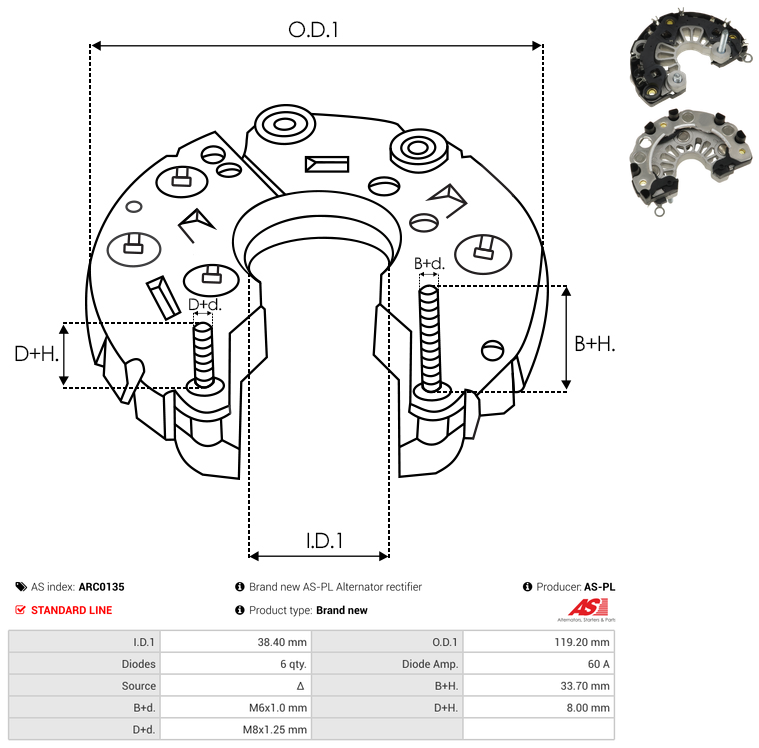

15128978 15200269 0124525072Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 33.7 mm |
| Diode Amp Rating | 60 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 8 mm |
| Inside Diameter (I.D.1) | 38.4 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 119.2 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | ∆ |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
IBR277 215310 RB954H RCT1356 AEB0277 F00M133277 RB154HVideo/Publications
0124525072 15200269 15128978 ARC0135View your shopping basket or Browse other items in Rectifier.
