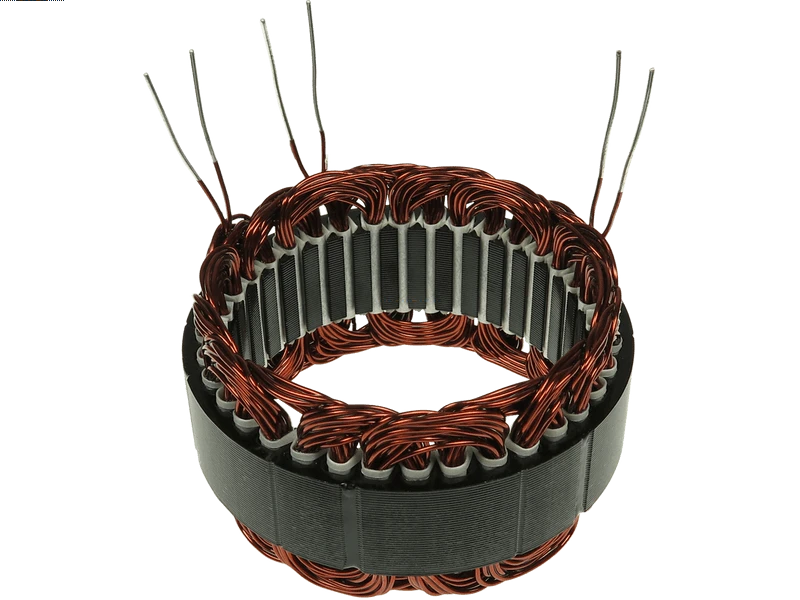

AS4002 - Brand new AS-PL Alternator stator

Brand new AS-PL Alternator stator
Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 91.34 including GST

NZ$ 79.43 excluding GST



or four payments of $22.84 with
Afterpay Payment Offer Learn More

each
AS4002
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

A4003 1001869 1015821 1032139 1066407 1071383 1074633 1107444 96FF10300DB 96FF10300DC 97AB10300AA 97AB10300AB 97AB10300AC 97AB10300AD 63320219 63320511 63321200 63321204 63321233 63321234 63321238 63321244 63321251 63321252 63321257 63321270 63321275 63321277 63321278 63321280 63321282 63321283 63321311 63321362 63321367 63321425 63321600 63321602 63321605 63321609 63321610 63321611 63321614 63321615 63321616 63321625 63321626 63321636 63321641 63321660 63321661 63321666 63321669 63321671 63321691 63321702 63321712 63321713 63321724 63321727 63321730 63321730A 63321747 63321771 63321788 63321809 63321833 63321848 63321867 63321870 63321897 63341238 63341244 63341636 63341641 63341666 63341727 63341730 63377460 063321600020 063321609000 063321615000 2871A301 2871A303 2871A306 YLE101520 YLE101790 A4111 63341896 A4061 1022118220 63321281 A4005

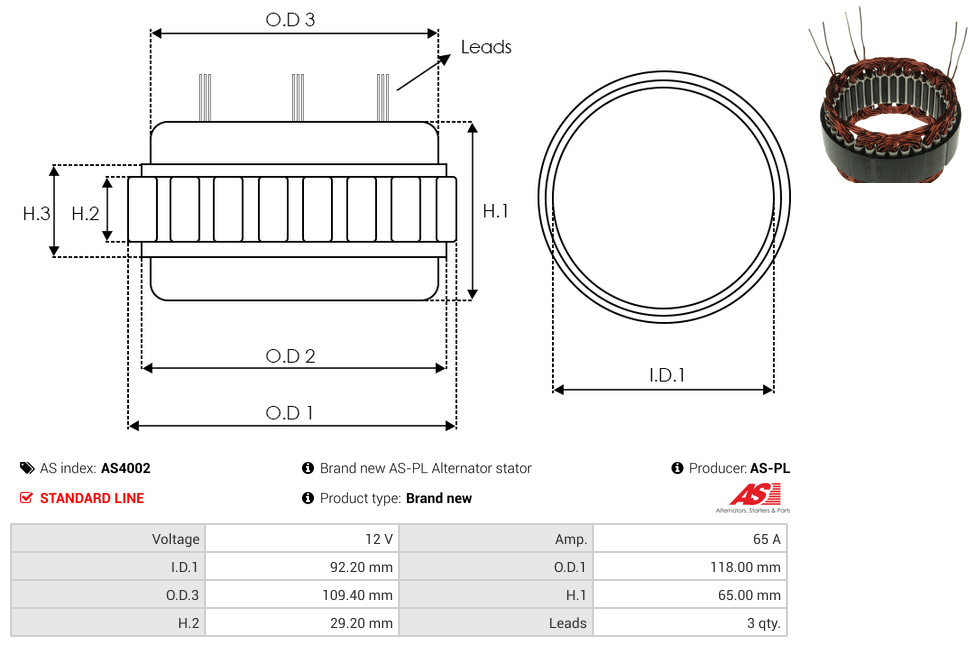

Amp65 A
Height (H.1)65 mm
Height (H.2)29.2 mm
Inside Diameter (I.D.1)92.2 mm
No./Leads3 qty
OEM ProductNo
Outside Diameter (O.D.1)118 mm
Outside Diameter of Windings (O.D.3)109.4 mm
Product LineStandard Line
Product TypeBrand new
Unit TypeMAGNETI MARELLI
Voltage12 V
9946929 CQ1120017 SSR30013.0 139956 9947878 54203890 83617801 CSR30013AS 9946061 WST8580 9946091 20804310BN S/215 STA4071
