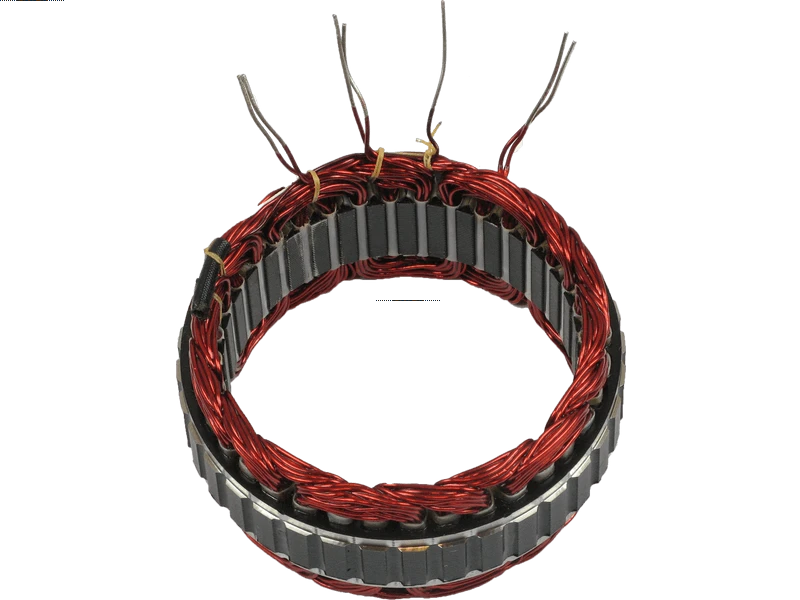

Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 139.59 including GST
NZ$ 121.38 excluding GST
or four payments of $34.90
with
Learn More
each
AS5020
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
A3TG0091 A3TN2581C A003TG0091 A003TN2581C 3395461 A3T01691 A3T03891 A3T05192 A3T06291 A3T06691 A3T06791 A3T07399 A3T07483 A3T07592 A3T07983 A3T08293 A3T08376 A3T08491 A3T08491A A3T08491C A3T08491ZC A3T09198 A3T09199 A3T11678 A3T11678A A3T14491 A3T45691 A3T45693 A3T45693ZC A3T45694 A3T45794 A3TA0291 A3TA0291A A3TA1191 A3TA1191A A3TA3191 A3TA4791 A3TA5491 A3TA5492 A3TB0291 A3TB0991 A3TB4191 A3TB5191 A3TG1391 A3TG1391A A3TN0199 A3TN0299 A3TN0699 A3TN0899 A3TN0899A A3TN0899ZT A3TN1578 A3TN1578A A5011 AB190025 AB190072 AB190097 AB190119 AB190205 AB190386 AF185381 AF185452 AF190216 AF190217 MD149750 MD149751 MD153357 MD153843 MD162964 MD167060 MD168988 MD168989 MD171196 MD192135 MD303481 MD309849 MD315432 MD317119 MD320354 MD334176 MD336781 MD343416 MD344964 MD350609 MD358421 MD360635 MD374904 ME200695 ME201745 A003T01691 A003T03891 A003T05192 A003T06291 A003T06691 A003T06791 A003T07399 A003T07483 A003T07592 A003T07983 A003T08293 A003T08376 A003T08491 A003T08491A A003T08491C A003T08491ZC A003T09198 A003T09199 A003T11678 A003T11678A A003T45691 A003T14491 A003T45693ZC A003T45694 A5042 A5003 A5017 A3TB0771 A5043 A3TB5099Specifications

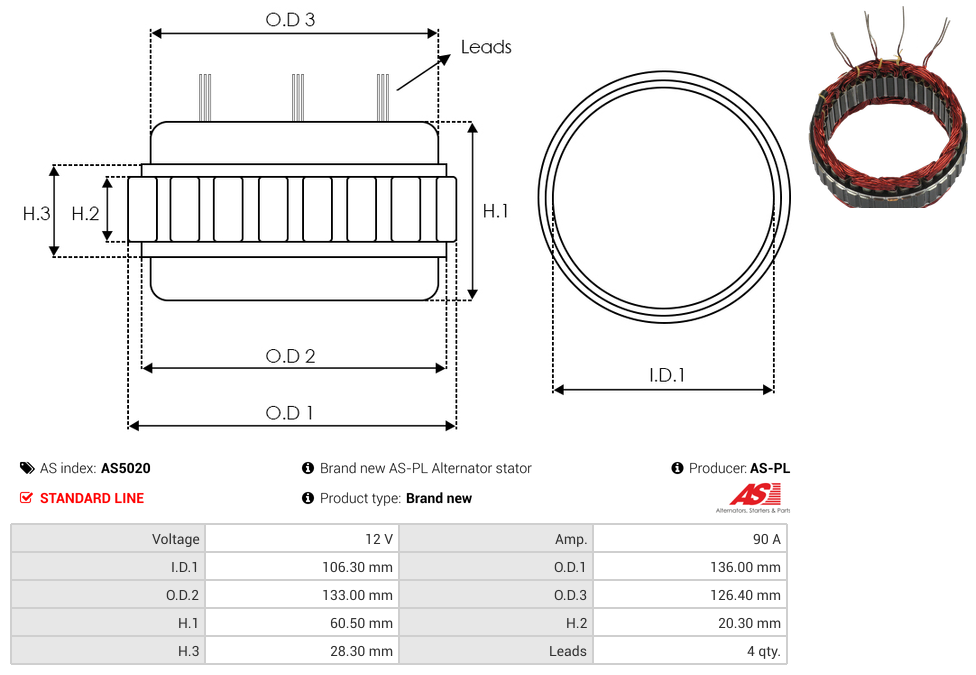

| Amp | 90 A |
| Height (H.1) | 60.5 mm |
| Height (H.2) | 20.3 mm |
| Inside Diameter (I.D.1) | 106.3 mm |
| Lam. Stack Height (H.3) | 28.3 mm |
| No./Leads | 4 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 136 mm |
| Outside Diameter (O.D.2) | 133 mm |
| Outside Diameter of Windings (O.D.3) | 126.4 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
