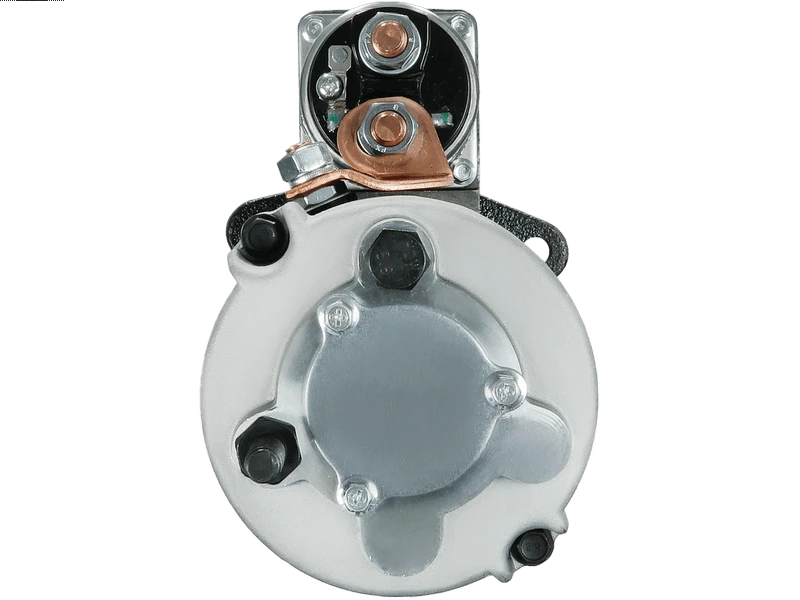

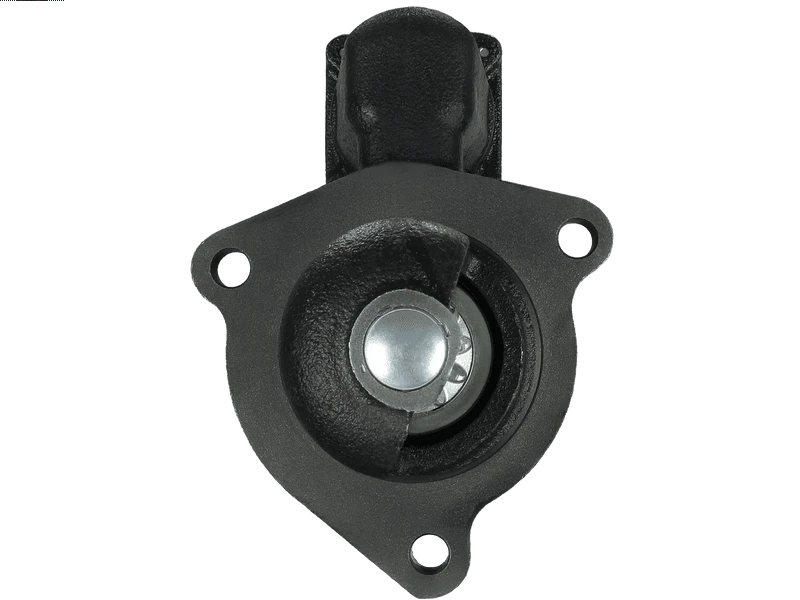

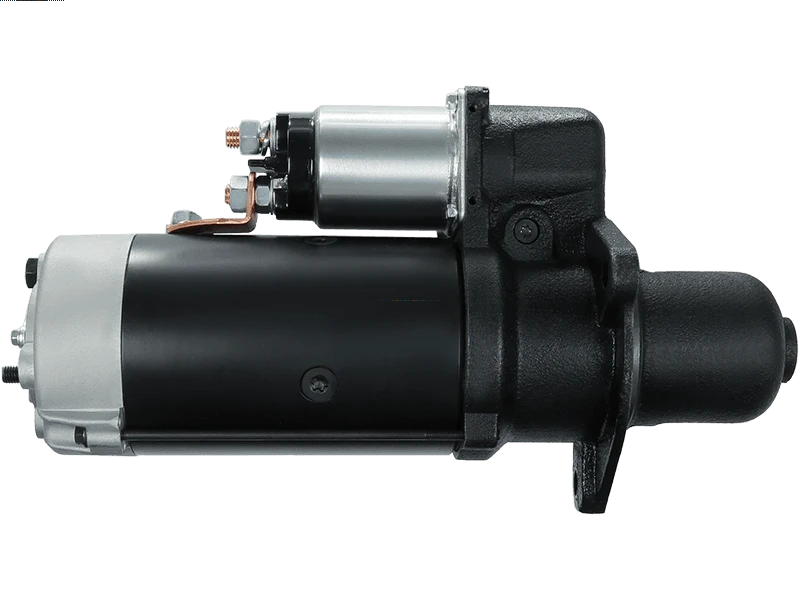

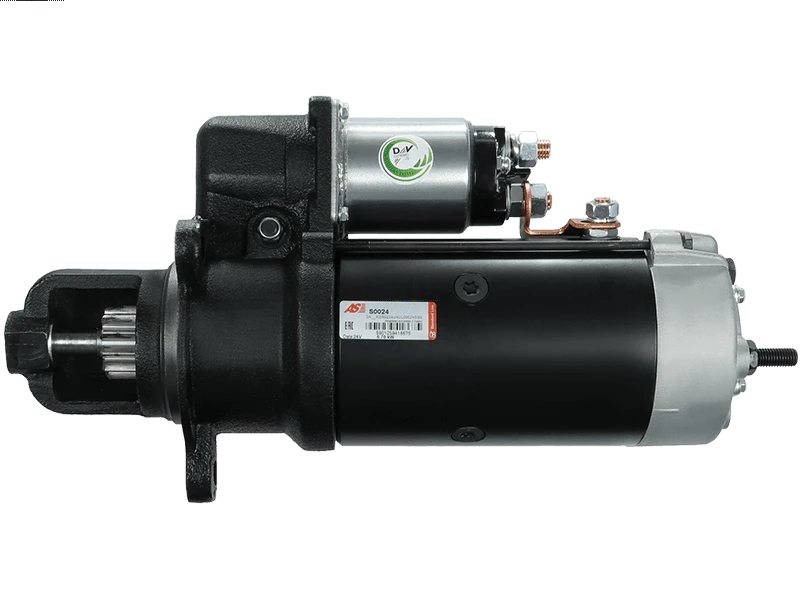

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 769.19 including GST
NZ$ 668.86 excluding GST
or four payments of $192.30
with
Learn More
each
S0024
1
Associated Numbers
0001371006 0986017760 101061 101061B 101061P 111910 1357709 19780N 20401506BN 20401506EL 28.1061 28.1061M 45-2178 458174 571168 571427 571463 6010605 81391006 81392006 8501 860305 860514 860514GB 860549 8817760 88213036 8EA737403-001 CS1061 CST10605AS CST10605ES DRS7760 EAA-121220 IS1190 IS9148 LRS01897 RNL1776 S0024 STR22086 AS-PLList BOSCHList BOSCH CARGO CASCO CEVAM DELCO EAA ELSTOCK FRIESEN HC PARTS HELLA ISKRA / LETRIKA KUHNER LAUBER LUCAS MS 425 MAHLE 524 MONARK POWERMAX PRESTOLITE REAL RNL SANDO SCANIAList SCANIA VALEO WAI TRANSPO WOODAUTO MS425 MS524 UD809612(BOSCH)S AS-PL 0001330044 0001371007 CST10786 CST10786AS CST10786ES CST10786GS CST10786OS CST10786RS STB1061 KRAUF 256292B 911.007.113 PSH 20401687 6010786 1358639 BOS0001330044 STR50695 0001330042 Bosch show 01371006 Andre Niermann 041SB02010 Scania 081391006 Steyr ruil 11017760 EuroTec 11019620 11139164 Mahle Cargo 1206229 PIC 19070037 Remy 19780 Lester 4517SP Spidan 452178 Valeo 72736152 Prestolite 8817760F Friesen 911002113 917760 DuBois A17760 ATL A19620 AZJ3450 DEM756 ADI F042002097 F042S02097 HCS1061 LNG3512F Chevrolet Lucas SM2971 Honda STR1208sa Electrolog STR2352 Unipoint STR7972sa STR9735SA 11018780 910705 EDR 911007113 DRS0705 911210113 JANNCO 410-24015R Picture ID 920-111 11.139.164 Substitutes: J&N 410-24015 References: Arrowhead LRS1897 701784 70-2665Specifications
| Kilowatt | 6.7 kW |
| Length (L.1) | 430 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | 114 C/340 11.0 | [DC11.01] | 03.1993-09.2004 |
| SCANIA | 114 C/340 11.0 | [DC11.03] | 02.1996-09.2004 |
| SCANIA | 114 C/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 G/340 10.6 | [DC11.01] | 03.1996-02.2004 |
| SCANIA | 114 G/340 10.6 | [DC11.01][DC11.03] | 03.1996-02.2004 |
| SCANIA | 114 G/340 10.6 | [DC11.03] | 03.1996-02.2004 |
| SCANIA | 114 G/340 11.0 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | 114 G/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.01][DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 114 L/340 10.6 | [DC11.03] | 05.1996-09.2004 |
| SCANIA | 114 L/340 11.0 | [DSC11.79] | 05.1996-05.1999 |
| SCANIA | 114 L/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | 124 C/360 11.7 | [DSC12.02] | 09.1996-02.2002 |
| SCANIA | 124 C/400 11.7 | [DSC12.01] | 09.1996-01.2000 |
| SCANIA | 124 G/360 11.7 | [DSC12.02] | 05.1996-02.2002 |
| SCANIA | 124 G/400 11.7 | [DSC12.01] | 05.1996-01.2000 |
| SCANIA | 124 L/360 11.7 | [DSC12.02] | 09.1996-02.2002 |
| SCANIA | 124 L/400 11.7 | [DSC12.01] | 09.1996-01.2000 |
| SCANIA | 124 L/420 11.7 | [DSC12.05] | 09.1997-02.2002 |
| SCANIA | 124 L/440 11.7 | [DT12.08] | 09.2000-09.2004 |
| SCANIA | 124 L/470 11.7 | [DT12.02] | 01.2001-09.2004 |
| SCANIA | 164 C/480 15.6 | [DC16.02] | 05.2000- |
| SCANIA | 164 C/580 15.6 | [DC16.01] | 05.2000- |
| SCANIA | 164 G/480 15.6 | [DC16.02] | 05.2000- |
| SCANIA | 164 G/580 15.6 | [DC16.01] | 05.2000- |
| SCANIA | 164 L/480 15.6 | [DC16.02] | 05.2000- |
| SCANIA | 164 L/580 15.6 | [DC16.01] | 05.2000- |
| SCANIA | K114 10.6 | [DC..] | 08.1997- |
| SCANIA | T 114 C/340 10.6 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | T 114 C/340 10.6 | [DC11.03] | 02.1996-09.2004 |
| SCANIA | T 114 C/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | T 114 G/340 10.6 | [DC11.01] | 03.1996-09.2004 |
| SCANIA | T 114 G/340 10.6 | [DC11.03] | 02.1996-09.2004 |
| SCANIA | T 114 G/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | T 114 L/340 10.6 | [DC11.01] | 03.1996-02.2002 |
| SCANIA | T 114 L/340 10.6 | [DC11.03] | 03.1998-09.2004 |
| SCANIA | T 114 L/380 10.6 | [DC11.02] | 03.1996-02.2002 |
| SCANIA | T 124 C/360 11.7 | [DSC12.02] | 09.1995-02.2002 |
| SCANIA | T 124 C/400 11.7 | [DSC12.01] | 03.1995-01.2000 |
| SCANIA | T 124 C/420 11.7 | [DC12.01] | 09.1995-08.2002 |
| SCANIA | T 124 C/420 11.7 | [DSC12.05] | 09.1995-02.2002 |
| SCANIA | T 124 G/360 11.7 | [DSC12.02] | 03.1997-02.2002 |
| SCANIA | T 124 G/400 11.7 | [DSC12.01] | 03.1997-01.2000 |
| SCANIA | T 124 G/420 11.7 | [DC12.01] | 09.1995-02.2002 |
| SCANIA | T 124 G/420 11.7 | [DSC12.05] | 09.1995-02.2002 |
| SCANIA | T 124 L/360 11.7 | [DSC12.02] | 09.1995-02.2002 |
| SCANIA | T 124 L/400 11.7 | [DSC12.01] | 05.1996-01.2002 |
| SCANIA | T 124 L/420 11.7 | [DC12.01] | 09.1995-08.2002 |
| SCANIA | T 124 L/420 11.7 | [DSC12.05] | 09.1995-02.2002 |
| SCANIA | T 124 L/470 11.7 | [DT12.02] | 09.2000-09.2004 |
Reference Information
111910 PTC-4006 6010605 0001371006 11.139.176 88213036 20401506BN RNL1776 571168 8013501 331213 81391006 72483654 1516656 1357709 8501 911.002.113.380 MAV126050 8EA012586-031 1358639 0986017760 EAA-121220 STR22086 10571168 1352290 911.002.113.215 MS524 6010605.3 911.002.113.010 561571462 S0024 19780N LRS01897 20401506EL CGB-27760 1357709S6111 19084004 8EA737403-001 571427 571463 0001330042 ZM8013501 CST10605ES 28.1061M PRSL827 860549 458174 1516656R 860305 CST10605AS DRS7760 STRL827 AZJ3488 101061 CGB-52178 28.1061 MSRC1061 45-2178 101061B STR1208 9.43211E+11 19070037 19070035 8817760 101061P 81392006 CS1061 ANM19980X IS9148 860514 CGB-27760R LRS1897 860514GB 911.002.113.310Video/Publications
