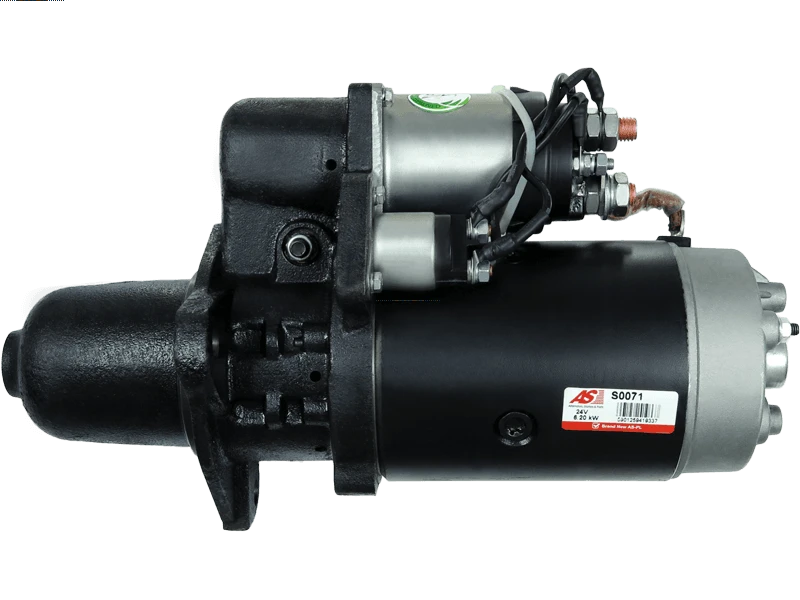

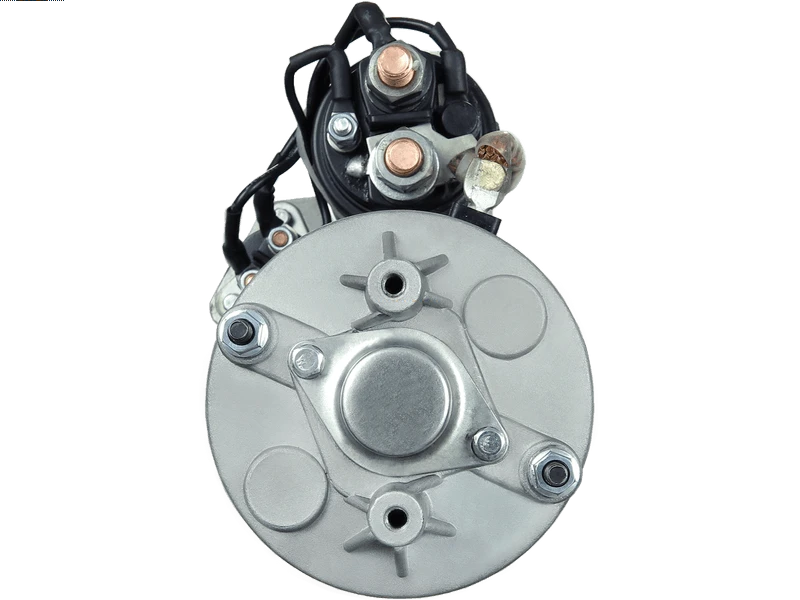

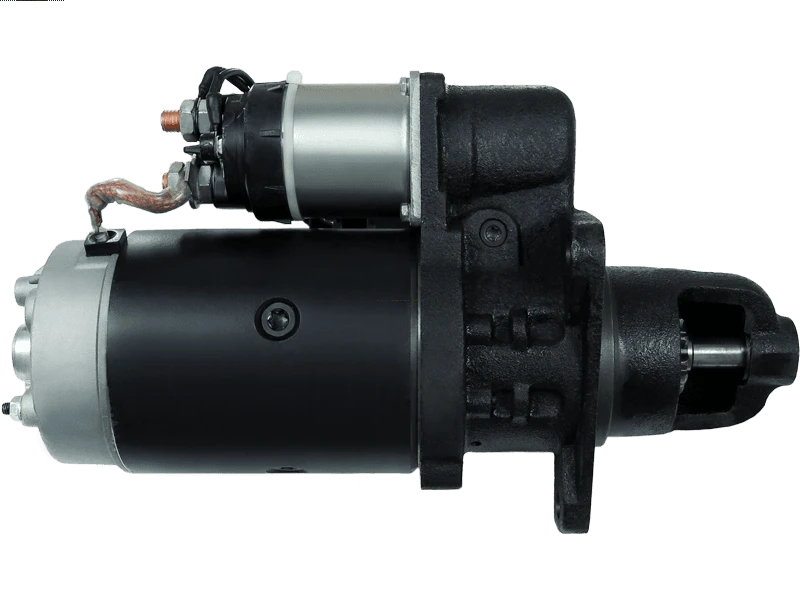

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 978.87 including GST
NZ$ 851.19 excluding GST
or four payments of $244.72
with
Learn More
each
S0071
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001372005Associated Numbers
0001372005 0986020880 101333 11.139.159 113608 19070033 20401576BN 20401576EL 220288 30114N 45-3400 4571510301 551.510.113 6010675 8114 88212535 8EA012586-471 8EA738223-001 A4571510301 AZJ3439 CS1333 CST10675 CST10675AS CST10675ES CST10675GS CST10675OS CST10675RS DRT0880 DT1990 EAA-121288 IS9143 LRS02227 LRS2227 M105R3031SE MS463 SG0089 STB1333 STR50176Specifications
| Kilowatt | 6.2 kW |
| Length (L.1) | 377 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KASSBOHRER | S313UL 12.0 | [D2866LUH21][OM447HLA] | 03.1995- |
| KASSBOHRER | S313UL 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S315H 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S315NF 12.0 | [OM447HLA] | 03.1996- |
| KASSBOHRER | S315UL 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S316UL 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S317UL 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S319NF 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S319UL 12.0 | [OM457HLA] | 07.2001- |
| KASSBOHRER | S415GT 12.0 | [OM457.941] | 10.2003- |
| KASSBOHRER | S415GT-HD 12.0 | [OM457.944] | 10.2003- |
| KASSBOHRER | S416GT-HD 12.0 | [OM457.944] | 10.2003- |
| KASSBOHRER | S417GT-HD 12.0 | [OM457.944] | 10.2003- |
| KASSBOHRER | SG321UL 12.0 | [OM457HLA] | 07.2001- |
| MERCEDES BENZ TRUCKS & BUSES | O 345 12.0 | [OM457.942] | 11.2001- |
| MERCEDES BENZ TRUCKS & BUSES | O 350 12.0 | [OM457.944] | 09.2003- |
| MERCEDES BENZ TRUCKS & BUSES | O 500 12.0 | [OM457.944] | 10.2001- |
| MERCEDES BENZ TRUCKS & BUSES | O 530 G 6.4 | [OM906.930][OM906.960][OM909.921][OM906.961][OM909.901] | 01.1999-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | O 530 L 6.4 | [OM906.930][OM909.921] | 01.1999-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | O 530 N 12.0 | [OM457.934] | 01.1998- |
| MERCEDES BENZ TRUCKS & BUSES | O 530 N 12.0 | [OM457.942] | 01.1999-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | O 580-15 RH 12.0 | [OM457.940] | 10.1999-02.2006 |
| MERCEDES BENZ TRUCKS & BUSES | O 580-15 RHD 12.0 | [OM457..] | 10.1999-02.2006 |
| MERCEDES BENZ TRUCKS & BUSES | O 580-17 RHD 12.0 | [OM457.944] | 10.1999-02.2006 |
| MERCEDES BENZ TRUCKS & BUSES | O 580 RHD 12.0 | [OM457.936] | 10.1999-02.2006 |
Reference Information
CST10675 CST10675GS S0071 AZJ3439 CST10675OS CS1333 DT1990 20401576EL 0986020880 88212535 STR50176 A457151030180 MS 8EA012586-471 331843 45-3400 113608 STRS689 STB1333 PTC-4052 8EA738223-001 LRS02227 457151030180 551.510.113 8114 CST10675ES DRT0880 30114N 6010675 CGB-20880 11.139.159 0001372005 LRS2227 STR1642 MS463 CST10675RS 220288 19070033 MAV126750 A4571510301 463 S24BH0065A2 SG0089 101333 4571510301 CST10675AS ANM23100X STR79586 20401576BN IS9143Video/Publications
