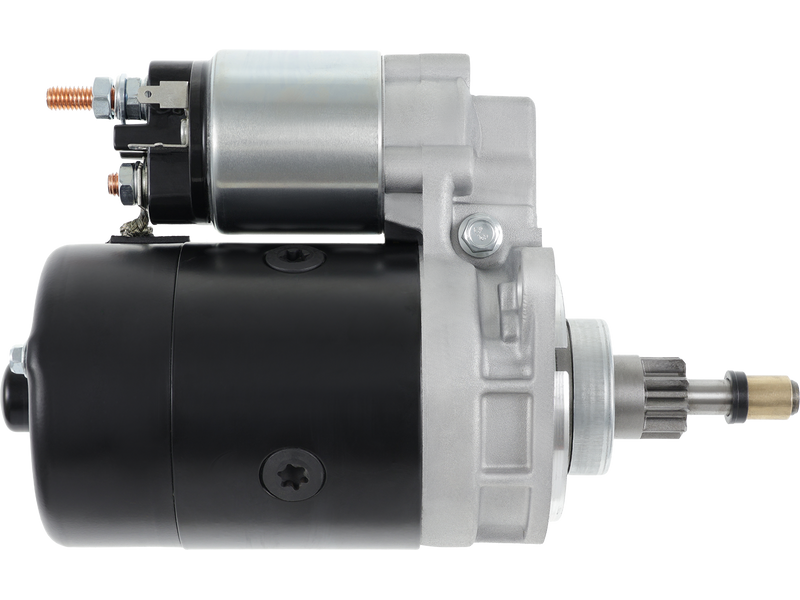

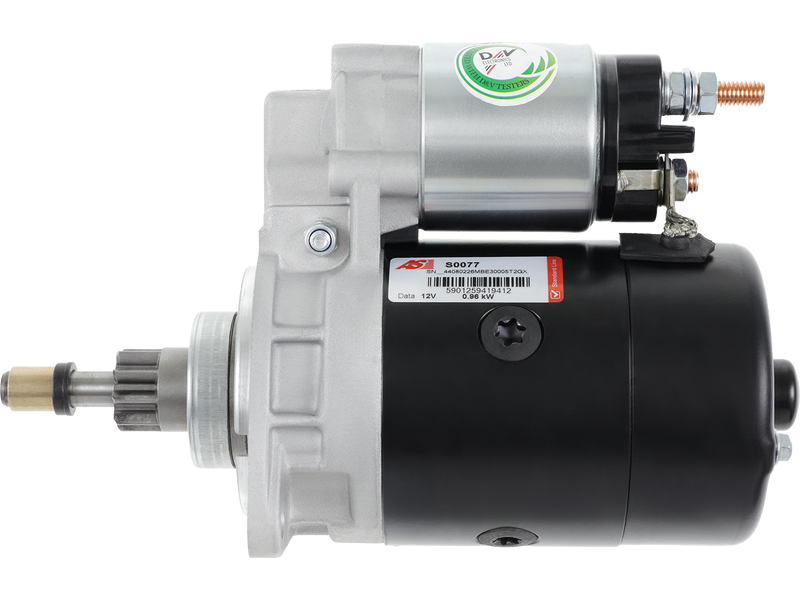

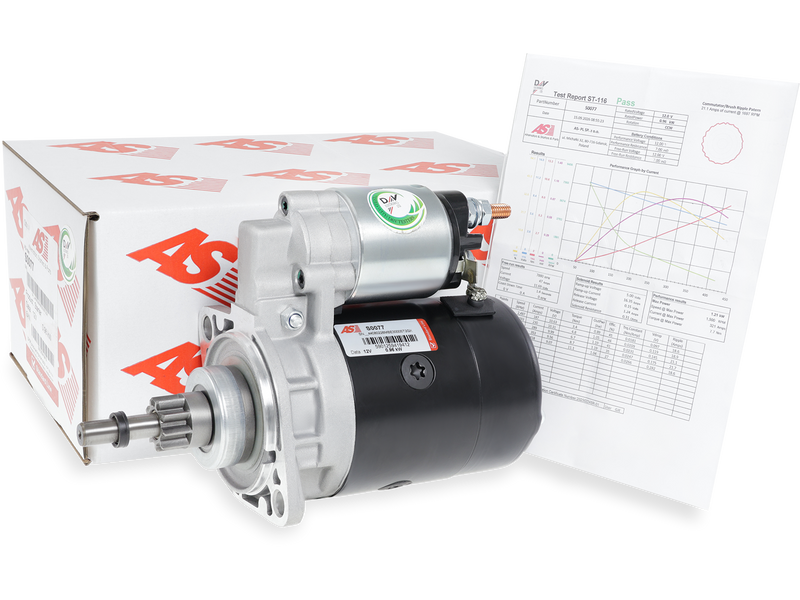

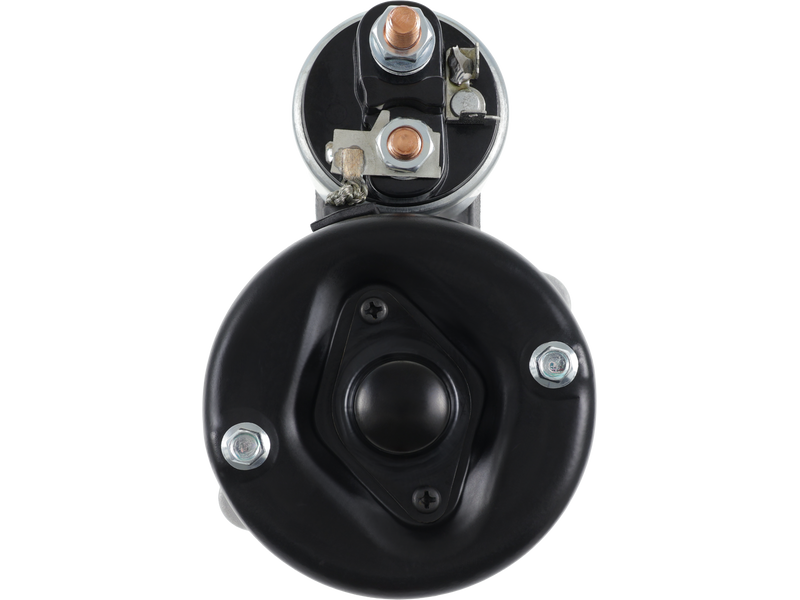

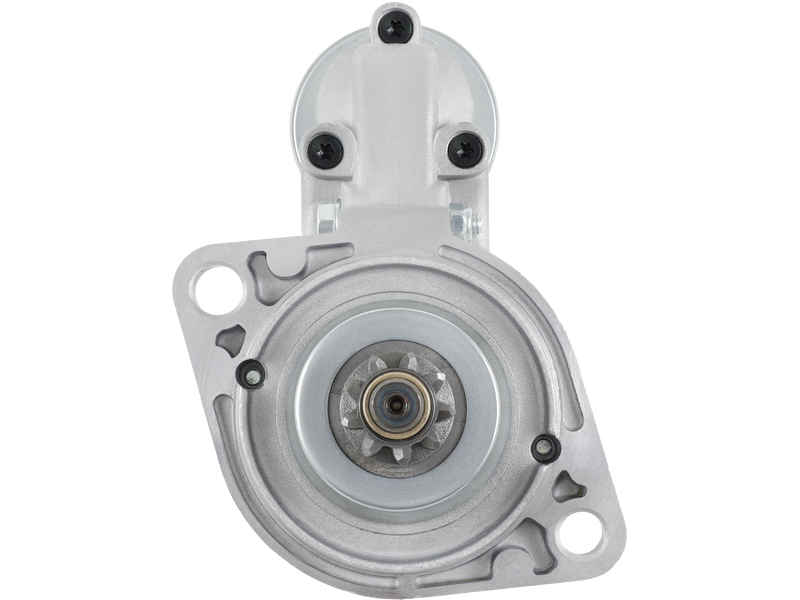

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 244.89 including GST
NZ$ 212.95 excluding GST
or four payments of $61.22
with
Learn More
each
S0077
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001208425Associated Numbers
0001208425 0001208426 0001208428 0001208429 0001211251 0001211252 0001211253 0001211254 025911023 025911023A 025911023AX 091911023A 091911023B 091911023BX 0986010470 0986014830 10298 10683 111061 11397 16722R 17066N 20401145BN 22.0298 22.0298M 22.0683 22.0683M 25-0385 25-0457 3639 42014830 433335 455625 6010541 8010470 8014830 8212233 8212385 88212233 88212385 8EA726057-001 8EA730199-001 AES5159 AES7190 B001208256 CS298 CS683 CST10541AS DRS0470 DRS4830 EAA-121398 LRS00559 LRS00790 S0077 SS819 STR50039Specifications
| Kilowatt | 0.96 kW |
| Length (L.1) | 240 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 44 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Transporter 1.6 | [CT] | 01.1981-12.1982 |
| VW | Transporter 1.9 | [DF] | 08.1982-11.1986 |
| VW | Transporter 1.9 | [DF] | 12.1986-07.1992 |
| VW | Transporter 1.9 | [DG] | 08.1982-11.1986 |
| VW | Transporter 1.9 | [DG] | 09.1982-07.1992 |
| VW | Transporter 1.9 | [DH] | 01.1983-07.1985 |
| VW | Transporter 1.9 | [GW] | 08.1983-02.1989 |
| VW | Transporter 1.9 Syncro | [DG] | 11.1984-11.1986 |
| VW | Transporter 1.9 Syncro | [DG] | 12.1986-07.1992 |
| VW | Transporter 2.0 | [CU] | 01.1981-12.1982 |
| VW | Transporter 2.0 | [CV] | 02.1982-12.1982 |
| VW | Transporter 2.1 | [DJ] | 06.1986-07.1992 |
| VW | Transporter 2.1 | [DJ] | 07.1985-04.1986 |
| VW | Transporter 2.1 | [MV] | 05.1986-07.1992 |
| VW | Transporter 2.1 | [MV] | 08.1985-04.1986 |
| VW | Transporter 2.1 | [SR] | 10.1986-07.1992 |
| VW | Transporter 2.1 | [SS] | 08.1989-07.1992 |
| VW | Transporter 2.1 i | [SS] | 08.1989-07.1992 |
| VW | Transporter 2.1 Syncro | [DJ] | 01.1986-04.1986 |
| VW | Transporter 2.1 Syncro | [DJ] | 05.1986-07.1992 |
| VW | Transporter 2.1 Syncro | [MV] | 05.1986-07.1992 |
| VW | Transporter 2.1 Syncro | [MV] | 08.1985-04.1986 |
| VW | Transporter 2.1 Syncro | [SR] | 10.1986-07.1992 |
Reference Information
0001211253 0001211252 STR10288 0001211251 091911023A 88212385 91911023AX 091911023B 22.0683 42014830 25-0457 8014830 8212385 220357 220356 025911023AX 16722R 22.0683M 3639 330450 8EA726057-001 CS683 8010470 STX200822 20401145BN 455625 10298 S0077 78AB11000AA ANM17050X 91911023BX 5010481 AES5159 22.0298M ESA154 091911023BX 0001208428 0001208429 LRS559 CS298 STRS883 11397 SS819 8EA730199-001 6010541 LRS790 STRS928 17066N STA0337R CST10541AS 0001208425 0001208426 STR50039 LRS00790 091911023AX 1516725R B001208256 ALT136080 DRS4830 LRS00559 025911023A 111061 DRS0470 0986010470 S12BH0619A2 433335 88212233 22.0298 025911023 0986014830 8212233 RNL1483 91911023A 91911023B 25-0385 10683 AES7190 0001211254Video/Publications
