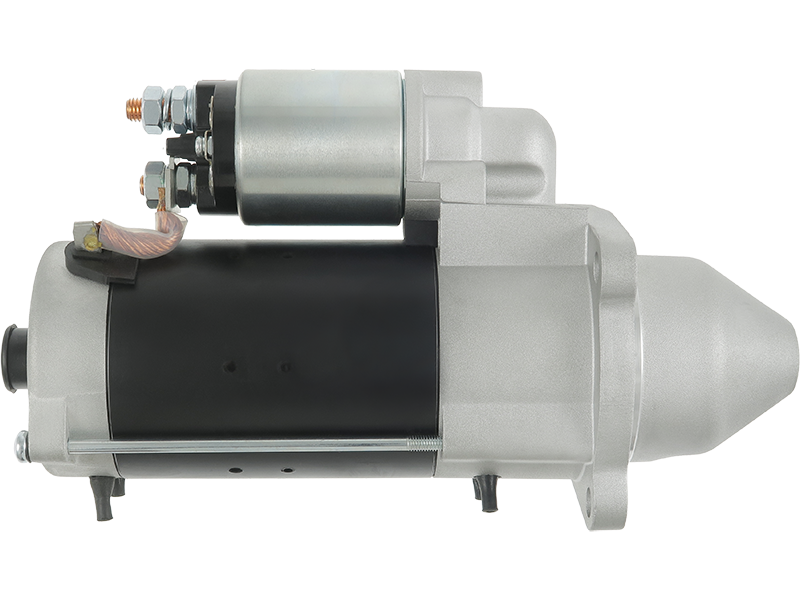

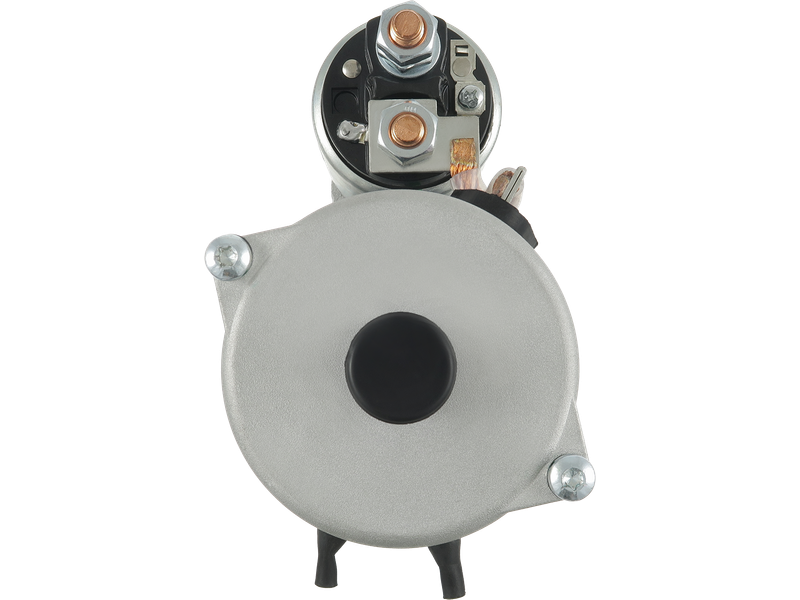

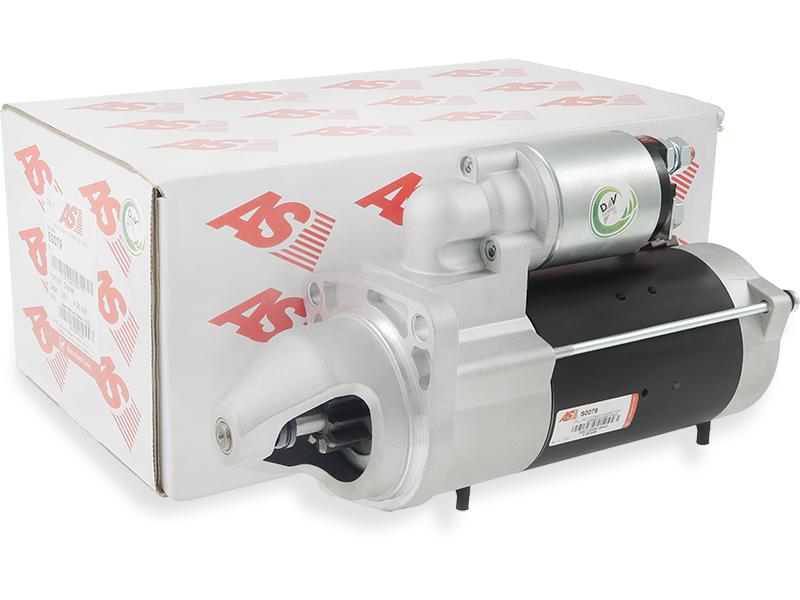

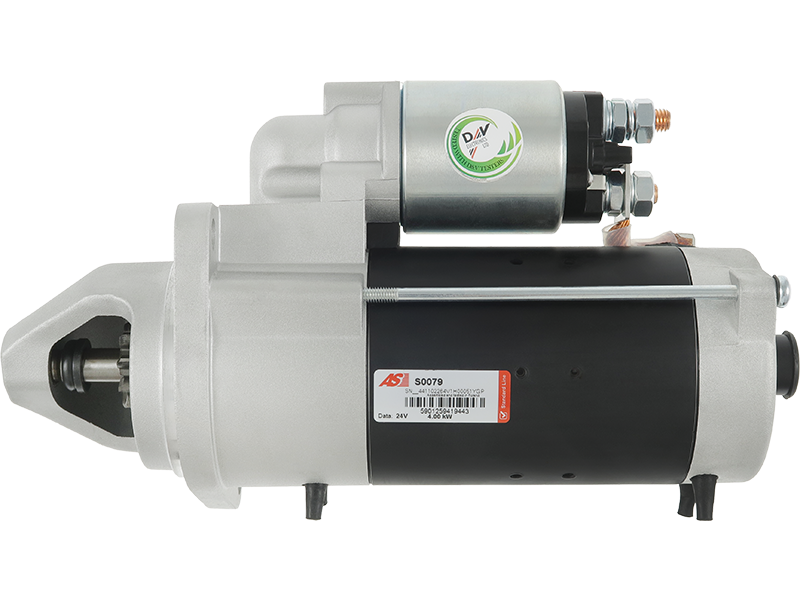

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 493.86 including GST
NZ$ 429.44 excluding GST
or four payments of $123.47
with
Learn More
each
S0079
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001231005Associated Numbers
0001231005 0001231028 0001263007 0001263008 0001263051 0001263052 0001360012 0001360014 0001360030 0001360035 0001368001 0001368007 0001368088 01180999 01180999BS 01180999KZ 01182235 01182235KZ 01182931 01183122 01183239 01183681 01183716 03046537 05726191 063522310050 0986011270 0986021000 10530 11.130.075 11.130.141 11.130.151 11.130.491 11.130.673 11.130.842 11.131.514 11.131.621 11.131.755 11.131.770 11.132.139 110523 112494 1180804 1180999 1180999KZ 1182235 1182235KZ 1183239 120-20133 17073N 1853162 18958 18958N 19024226 19024234 19024813 19083030 19726 20401116BN 20401116EL 20401467BN 20401467OE 20401756BN 20401756OE 20401976OE 20405828 2041237 20500923GB 21311522 22.0530 22175633 22175635 2300088A 254137 254137B 254137P 254229 254229B 254229M 254229P 260-23201 273-42201 28.0530 28.0530M 28.1514 28.1514M 2913163700 2913184900 45-0219 45-3007 455516 50-8435 511.001.093 511.501.093 5411656432 6010611 6010657 6010679 6010764 609.000.0 63522310 7026025A 81388001 860105Z 861053 8660 8660R 8811270 8EA726170-001 91-15-7141 91-15-7174 943252205 AES9123 AEY1936 AZF4133 AZF4161 AZF4195 AZF4198 AZF4311 AZF4515 AZJ3132 AZJ3222 AZJ3518 AZJ3522 BOS0001263008 CS1514 CS530 CST10611AS CST10611ES CST10657 CST10657AS CST10657ES CST10657GS CST10657OS CST10657RS CST10679 CST10679AS CST10679ES CST10679GS CST10679OS CST10679RS CST10764AS CST10764GS DRS1270 DRT100 DRT1000 DRT1000N EAA-121247 EAA-121337 IS0842 IS1255 LETIS1255 LRS00923 LRS01936 LRS1936 M93R3004SE MS66 MSN2043 R10-08 RNL2100 S0079 SG0083 STR22008 STR22117 TS-6188 TS-6267 UD03384S UD11312S UD803028(BOSCH)SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 314 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ABG | Titan 211 | [F3L912] | 01.1968-12.1975 |
| ABG | Titan 350S | [F4L912] | 01.1971-12.1991 |
| ABG | Titan 360 | [F4L912] | 01.1972-12.1991 |
| ABG | Titan 410S | [BF6L912] | 01.1972-12.1991 |
| AGRIFAC | Rooier | [1012BFM] | 01.1999- |
| AGRIFAC | Rooier | [1013BFM] | 01.1999- |
| ATLAS COPCO | XAHS 146Dd | [TCD2012] | 01.2007-12.2013 |
| FUCHS | 118M | [F6L912] | |
| FUCHS | MHL331 | [BF6M2012C] | |
| IVECO | 120-13 ANW 6.1 | [BF6L913T] | 01.1983-09.1990 |
| IVECO | 120-13 ANW 6.1 | [F6L913] | 01.1983-09.1990 |
| IVECO | 160-17 AN 6.1 | [BF6L913] | 07.1989-12.1993 |
| IVECO | 160-17 ANW 6.1 | [BF6L913/U] | 07.1989-12.1993 |
| IVECO | MK 110-13 A 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 110-13 A 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 110-16 A 6.1 | [BF6L913] | 01.1983-12.1991 |
| IVECO | MK 110-16 AH 6.1 | [BF6L913] | 01.1983-12.1991 |
| IVECO | MK 130-13 A 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 130-13 A 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 130-13 AH 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 130-13 AH 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 130-16 A 6.1 | [BF6L913] | 01.1983-12.1991 |
| IVECO | MK 130-16 AH 6.1 | [BF6L913] | 01.1983-12.1991 |
| IVECO | MK 75-9 A 4.1 | [BF4L913T] | 01.1983-05.1989 |
| IVECO | MK 75-9 A 4.1 | [F4L913] | 01.1983-05.1989 |
| IVECO | MK 75-9 H 4.1 | [F4L913] | 01.1983-08.1985 |
| IVECO | MK 80-13 A 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 80-13 A 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 80-13 AH 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 80-13 AH 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 80-13 AT 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 80-13 AT 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 80-13 AW 6.1 | [BF6L913T] | 01.1983-12.1989 |
| IVECO | MK 80-13 AW 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 80-13 AW 6.1 | [F6L913] | 01.1983-12.1989 |
| IVECO | MK 80-13 AW 6.1 | [F6L913] | 01.1983-12.1991 |
| IVECO | MK 80-16 A 6.1 | [BF6L913] | 01.1983-12.1991 |
| IVECO | MK 80-16 AW 6.1 | [BF6L913] | 01.1986-12.1989 |
| IVECO | MK 90-13 A 6.1 | [BF6L913T] | 01.1983-12.1991 |
| IVECO | MK 90-13 AH 6.1 | [BF6L913T] | 01.1983-12.1991 |
| KHD | Engine | 01.2000- | |
| MANITOU | AS90 | ||
| VOLVO | Various Models |
Reference Information
105356 01182235KZ PRSL813 01183122 1182235KZ 254229P 18958N STR1174 254229M 21311522 11.131.770 S0079 05726191 2041237 1853162 DRT1000 CST10657AS 8660R 45-3007 063522310050 F042002092 CGB-21005 88213377 17781 10010657OV CS1514 ST02626 203004 511.501.093.280 254229 20401756BN STR1402 1182235 S24BH0052 861053 254229B 7026025A 3119621 11021000 120-20133NOE 1183681 CST10657GS LRS1936 3119622 359001400130 0001263051 3119623 0001263052 1183716 01180999KZ 511.501.093.310 0986021000 0001231005 3119627 511.501.093.312 511.501.093.018 1180999KZ 22175635 22175633 TT16062 STR1417 01183681 IS1255 01182235 S-22117 10010657AV 112494 LES0319 SER84214-12B1 MAV126570 332135 H5110027G 511.501.093.090 88-02088-SX LRS01936 511.501.093.011 511.501.093.098 STRL813 01180999 MS66 20401756OE 1183239 6010657.1 S24BH0052A2 220811A 6010657.0 1180999 AC-CBS1514 600085094 01182931 ANM23220 MSN2043 F032112494 8EA012586-611 72735694 STB2494 0001263008 SG0083 2300088A 0001263007 AEY1936 AZF4198 1986S10050 H5110027 AZF4195 20405828Video/Publications
